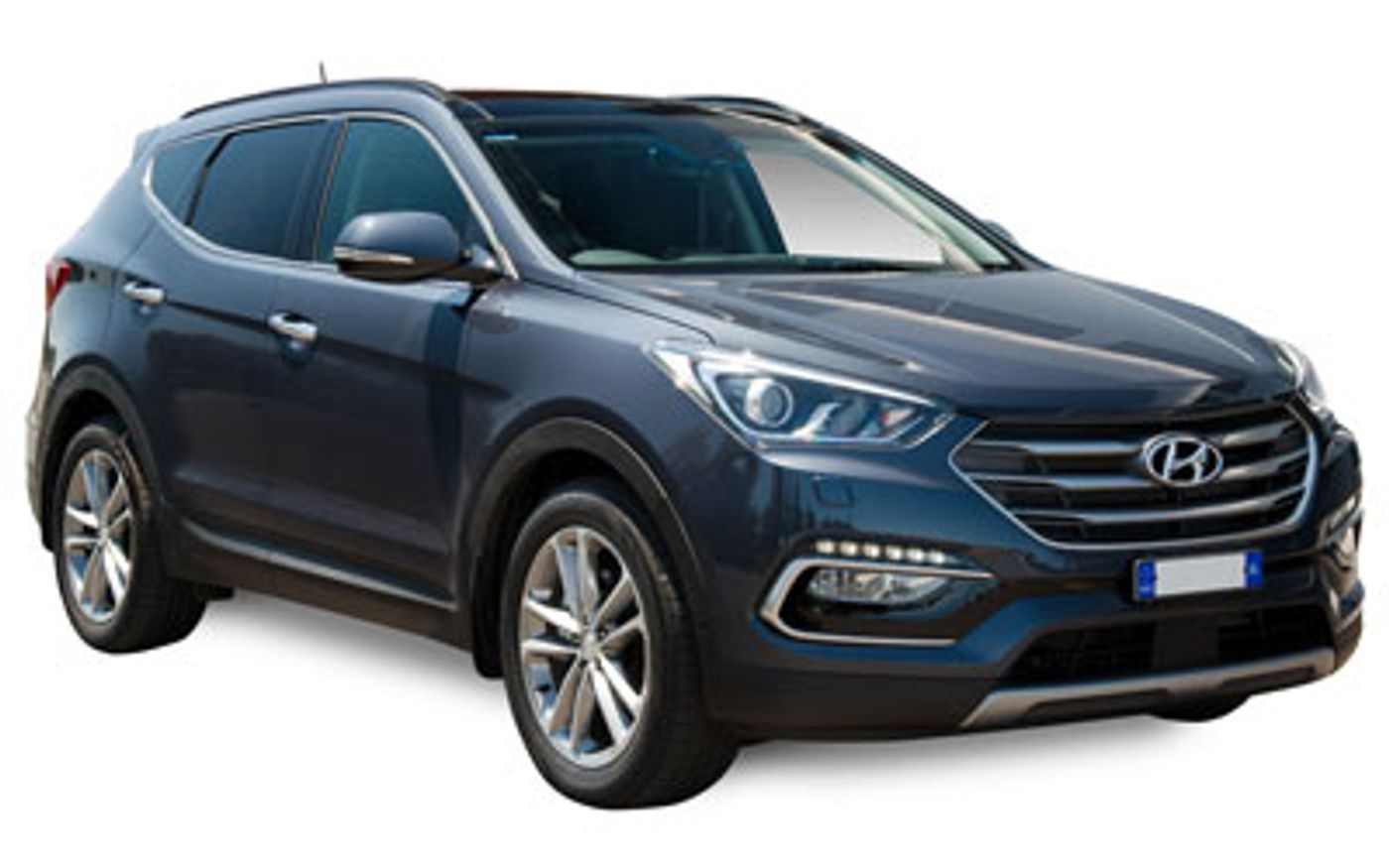

Hyundai Santa Fe Active (2016) price & specs
Save $$$ with CarExpert*
From
$43,990â€
Active
Overview
The 2016 Hyundai Santa Fe Active is a four-wheel drive, 5-door SUV that was released to the Australian market on 2nd November 2015 classified as a Dm Series Ii. The Hyundai Santa Fe is regarded as a large SUV built in Korea with prices starting at $43,990 before on-road costs.
This Hyundai Santa Fe is powered by a 2.2L 4-cylinder engine that has 147 kW of power (at 3800 rpm) and 440 Nm of torque (at 1750 rpm) via a Six-speed Automatic transmission. Hyundai claims the Santa Fe Active uses 7.7L/100km of Diesel in the combined city and highway cycle while putting out 203g of CO2. It has a 64L fuel tank, meaning it should be able to travel 831km per full tank
The Hyundai Santa Fe measures 1690mm (66.5 inches) in height, 4700mm (185.0 inches) in length, 1880mm (74.0 inches) in width with a 2700mm (106.3 inches) wheelbase that brings about a total of 1857kg (4094.0 lbs) of unladen weight. The Santa Fe Active comes standard with 235/65 R17 front tyres and 235/65 R17 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
The 2016 Hyundai Santa Fe Active has a 185mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Santa Fe compare?
Quickly see how the 2016 Hyundai Santa Fe Active stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
74.09 - 80.42 kW/t
53.17 kW/t
120.05 kW/t
Boot Space
516 litres
142 litres
742 litres
Fuel Efficiency
6.3 - 9.4 L/100km
5.7 L/100km
11.9 L/100km
Vehicle Range
681 - 1,016 km
606 km
1,101 km
Price
$38,490 - $62,990
$35,000
$85,900
Warranty (Years)
5 years
3 years
7 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
2 years
1 year
5 years
Service Interval
12 months
3 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,510 - 2,600 kg
2,100 kg
3,030 kg
Braked Towing Capacity
2,000 - 2,500 kg
1,500 kg
3,100 kg
Approach Angle
16.9°
14.7°
36.6°
Departure Angle
21.5°
21.1°
28°
Ground Clearance Unladen
185 mm
165 mm
235 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,700 mm
1,880 mm
1,690 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,700 mm |
| Overall Width | 1,880 mm |
| Overall Height | 1,690 mm |
| Wheelbase | 2,700 mm |
| Turning Circle | 10,900 mm |
| Load Capacity | 743 mm |
Looking for complete Hyundai Santa Fe size & space specs?
Our Hyundai Santa Fe Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Hyundai Santa Fe Sales rolling 12-months#
Explore Hyundai Santa Fe Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Driver Modes
Engine Mapping: yes
Parking Distance System
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Location (12V): Rear
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
Includes Audio Player: yes
Includes Phone: yes
Compressor
Compressor: Turbo
Emission Control Level
CO2 Level (Combined): 203
Engine
Bore Engine: 85.4
Engine (cc): 2199
Engine Configuration: In-Line
Engine Code: D4hb
Engine (L): 2.2
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 96.0
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 16.9
Main Capacity (L): 64
Main Capacity Uk Gallons: 14.1
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: ?
Number of Screens: 1
Screen Size (in): 7.0
Touch Screen: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 831
ADR 81/02 Calculated Vehicle Range (miles): 516
ADR 81/02 Combined (km/L): 13.0
ADR 81/02 Combined (L/100km): 7.7
ADR 81/02 Combined (miles per UK gallon): 37
ADR 81/02 Combined (mpg): 31
ADR 81/02 Country Highway (km/L): 15.6
ADR 81/02 Country Highway (L/100km): 6.4
ADR 81/02 Country Highway (miles per UK gallon): 44
ADR 81/02 Country Highway (mpg): 37
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 10.0
ADR 81/02 Urban (L/100km): 10.0
ADR 81/02 Urban (miles per UK gallon): 28
ADR 81/02 Urban (mpg): 24
Fuel Economy
ADR 81/02 (L/100km): 7.7
Power
Maximum Power (hp/PS): 200
Maximum Power (kW): 147
Maximum Torque (Nm): 440
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3800
Rpm For Maximum Torque Low: 1750
Differential Lock
Location: Centre
Drive
Descent Control System: yes
Driven Wheels: 4x4
Four-Wheel Drive Type: Full And Part-Time
Selection: Manual & Automatic
Transmission
Description: Automatic With Manual Mode
Manual Mode: yes
Number of Speeds: 6
Shift Lever Location: Floor
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 104
Location: Front
Front Wheels Tire Profile: 65
Front Wheels Tire Speed Rating: H
Front Wheels Tire Type: All Seasons
Front Wheels Tire Width: 235
Rear Wheels Tire Load Index: 104
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 65
Rear Wheels Tire Speed Rating: H
Rear Wheels Tire Type: All Seasons
Rear Wheels Tire Width: 235
Wheels
Location: Front
Front Wheels Rim Diameter (In): 17
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.0
Location: Rear
Rear Rim Diameter (In): 17
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.0
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: Hyundai Nf
Wheelbase Type: Short
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Spoiler
Location: Roof
Cargo Capacity
Measurement Standard: VDA
Rear Seat Down (cu ft): 57.0
Rear Seat Down (L): 1615
Rear Seat Up to Lower Window (cu ft): 18.2
Rear Seat Up to Lower Window (L): 516
External Dimensions
Kerb to Kerb Turning Circle (mm): 10900
Front Track (in): 64.3
Front Track (mm): 1633
Ground Clearance Unladen (in): 7.3
Ground Clearance Unladen (mm): 185
Kerb To Kerb Turning Circle (ft): 35.8
Overall Height (in): 66.5
Overall Height (mm): 1690
Overall Length (in): 185.0
Overall Length (mm): 4700
Overall Width (in): 74.0
Overall Width (mm): 1880
Rear Track (in): 64.7
Rear Track (mm): 1644
Wheelbase (in): 106.3
Wheelbase (mm): 2700
Internal Dimensions
3rd Row Headroom (in): 34.4
3rd Row Headroom (mm): 875
Front Headroom (in): 39.6
Front Headroom (mm): 1006
Rear Headroom (in): 39.1
Rear Headroom (mm): 992
3rd Row Hip Room (in): 44.1
3rd Row Hip Room (mm): 1120
Front Hip Room (in): 56.7
Front Hip Room (mm): 1439
Rear Hip Room (in): 55.4
Rear Hip Room (mm): 1406
3rd Row Leg Room (in): 30.1
3rd Row Leg Room (mm): 765
Front Leg Room (in): 41.3
Front Leg Room (mm): 1048
Rear Leg Room (in): 39.4
Rear Leg Room (mm): 1000
3rd Row Shoulder Room (in): 53.1
3rd Row Shoulder Room (mm): 1349
Front Shoulder Room (in): 59.4
Front Shoulder Room (mm): 1508
Rear Shoulder Room (in): 58.3
Rear Shoulder Room (mm): 1480
Ramp Angles
Approach Angle: 16.9
Departure Angle: 21.5
Bumpers
Location: Front
Location: Rear
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Dusk Sensor: yes
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Ellipsoidal
LED Lights
Location: Day Time Running Lights
Paint
External Colour: Black
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Gross Trailer Weight Braked (kg): 2000
Gross Trailer Weight Braked (lb): 4409
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2600
Gross Vehicle Weight (lb): 5732
Published Kerb Weight (kg): 1857
Published Kerb Weight (lb): 4094
Tare Weight (kg): 1811
Audio System
Colour Screen: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Luxury Trim
Centre Floor Console: Alloy Look
Doors: Alloy Look
Gear Selector: Leather
Instrument Panel: Wood Or Woodlook
Airbags
Number of Airbags: 7
Crash Test Results
ANCAP Date Tested: 20121203
ANCAP Overall: 5.00
ANCAP Pedestrian: Marginal
ANCAP Standard: Ancap
ANCAP Version Tested: 2.2 Crdi Comfort 5 Seat
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Location: 3rd Row Seats
3rd Row Seats Number: 2
Front Seats Active: yes
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Third Row Seat Belts
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Type: Electric
Driver Front Seat Number of Electrical Adjustments: 1
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 7
Configuration: 2+3+2
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
