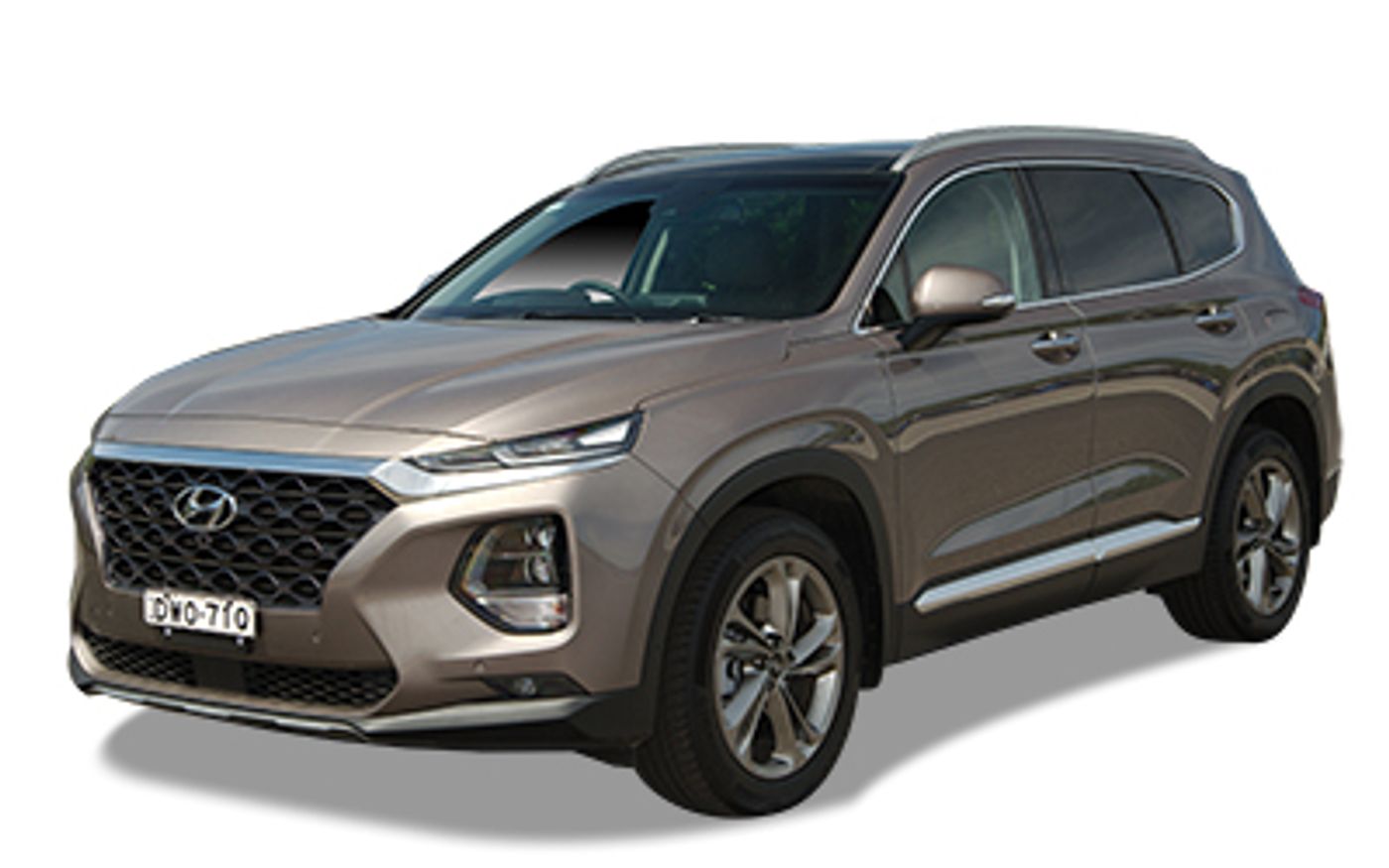

Hyundai Santa Fe Elite (2020) price & specs
Save $$$ with CarExpert*
From
$55,100â€
Elite
Overview
The 2020 Hyundai Santa Fe Elite is a four-wheel drive, 5-door SUV that was released to the Australian market on 5th May 2020 classified as a Tm.2. The Hyundai Santa Fe is regarded as a large SUV built in Korea with prices starting at $55,100 before on-road costs.
This Hyundai Santa Fe is powered by a 2.2L 4-cylinder engine that has 147 kW of power (at 3800 rpm) and 440 Nm of torque (at 1750 rpm) via an Eight-speed Automatic transmission. Hyundai claims the Santa Fe Elite uses 7.5L/100km of Diesel in the combined city and highway cycle while putting out 198g of CO2. It has a 71L fuel tank, meaning it should be able to travel 947km per full tank
The Hyundai Santa Fe measures 1705mm (67.1 inches) in height, 4770mm (187.8 inches) in length, 1890mm (74.4 inches) in width with a 2765mm (108.9 inches) wheelbase that brings about a total of 1995kg (4398.2 lbs) of unladen weight. The Santa Fe Elite comes standard with 235/60 R18 front tyres and 235/60 R18 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
The 2020 Hyundai Santa Fe Elite has a 185mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Santa Fe compare?
Quickly see how the 2020 Hyundai Santa Fe Elite stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
73.68 - 111.65 kW/t
52.95 kW/t
115.85 kW/t
Boot Space
547 litres
131 litres
1,069 litres
Fuel Efficiency
7.5 - 10.6 L/100km
5.9 L/100km
10.7 L/100km
Vehicle Range
670 - 947 km
606 km
1,682 km
Price
$43,000 - $61,660
$37,440
$89,590
Warranty (Years)
5 years
5 years
7 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
2 years
1 year
5 years
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,510 - 2,630 kg
2,100 kg
3,300 kg
Braked Towing Capacity
2,000 kg
1,497 kg
3,500 kg
Approach Angle
18.5°
14.7°
36.6°
Departure Angle
21.2°
15.3°
29.2°
Ground Clearance Unladen
185 mm
180 mm
260 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,770 mm
1,890 mm
1,705 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,770 mm |
| Overall Width | 1,890 mm |
| Overall Height | 1,705 mm |
| Wheelbase | 2,765 mm |
| Turning Circle | 11,420 mm |
| Load Capacity | 635 mm |
Looking for complete Hyundai Santa Fe size & space specs?
Our Hyundai Santa Fe Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Hyundai Santa Fe Sales rolling 12-months#
Explore Hyundai Santa Fe Features & Specs
Automatic Door Closing
Rear Boot Hatch: yes
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Cruise Control
Adaptive Cruise Control: yes
Stop Go Function: Stop & Go
Driver Modes
Engine Mapping: yes
Steering: yes
Media Control
Touch Screen: yes
Mobile Integration
Android Auto: yes
Apple Carplay: yes
Parking Assistance
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Type: Automatic
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Compressor
Compressor: Turbo
Number of Compressors: 1
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Combined): 198
Standard Met: EU5
Engine
Bore Engine: 85.4
Engine (cc): 2199
Engine Configuration: In-Line
Engine (L): 2.2
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 96.0
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 18.8
Main Capacity (L): 71
Main Capacity Uk Gallons: 15.6
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 8.0
Dashboard Centre 1 Touch Screen: yes
Low Tire Pressure Indicator
Displays Pressure Reading: yes
Rim Mounted Sensor: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 947
ADR 81/02 Calculated Vehicle Range (miles): 588
ADR 81/02 Combined (km/L): 13.3
ADR 81/02 Combined (L/100km): 7.5
ADR 81/02 Combined (miles per UK gallon): 38
ADR 81/02 Combined (mpg): 31
ADR 81/02 Country Highway (km/L): 16.1
ADR 81/02 Country Highway (L/100km): 6.2
ADR 81/02 Country Highway (miles per UK gallon): 46
ADR 81/02 Country Highway (mpg): 38
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 10.1
ADR 81/02 Urban (L/100km): 9.9
ADR 81/02 Urban (miles per UK gallon): 29
ADR 81/02 Urban (mpg): 24
Fuel Economy
ADR 81/02 (L/100km): 7.5
Power
Maximum Power (hp/PS): 200
Maximum Power (kW): 147
Maximum Torque (Nm): 440
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3800
Rpm For Maximum Torque Low: 1750
Differential Lock
Location: Centre
Drive
Descent Control System: yes
Driven Wheels: 4x4
Four-Wheel Drive Type: Full And Part-Time
Selection: Manual & Automatic
Limited Slip Differential
Location: Rear
Rear Type: Electronic
Transmission
Description: Automatic With Manual Mode
Gear Change Paddles: yes
Manual Mode: yes
Number of Speeds: 8
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 103
Location: Front
Front Wheels Tire Profile: 60
Front Wheels Tire Speed Rating: H
Front Wheels Tire Type: All Seasons
Front Wheels Tire Width: 235
Rear Wheels Tire Load Index: 103
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 60
Rear Wheels Tire Speed Rating: H
Rear Wheels Tire Type: All Seasons
Rear Wheels Tire Width: 235
Wheels
Location: Front
Front Wheels Rim Diameter (In): 18
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.5
Location: Rear
Rear Rim Diameter (In): 18
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.5
Cargo Capacity
Measurement Standard: VDA
Rear Seat Down (cu ft): 57.4
Rear Seat Down (L): 1625
Rear Seat Up to Lower Window (cu ft): 19.3
Rear Seat Up to Lower Window (L): 547
External Dimensions
Kerb to Kerb Turning Circle (mm): 11420
Front Track (in): 64.5
Front Track (mm): 1638
Ground Clearance Unladen (in): 7.3
Ground Clearance Unladen (mm): 185
Kerb To Kerb Turning Circle (ft): 37.5
Overall Height (in): 67.1
Overall Height (mm): 1705
Overall Length (in): 187.8
Overall Length (mm): 4770
Overall Width (in): 74.4
Overall Width (mm): 1890
Rear Track (in): 64.8
Rear Track (mm): 1647
Wheelbase (in): 108.9
Wheelbase (mm): 2765
Internal Dimensions
3rd Row Headroom (in): 36.1
3rd Row Headroom (mm): 917
Front Headroom (in): 40.0
Front Headroom (mm): 1016
Rear Headroom (in): 39.2
Rear Headroom (mm): 995
3rd Row Hip Room (in): 61.7
3rd Row Hip Room (mm): 1568
Front Hip Room (in): 57.5
Front Hip Room (mm): 1460
Rear Hip Room (in): 56.3
Rear Hip Room (mm): 1430
3rd Row Leg Room (in): 29.4
3rd Row Leg Room (mm): 746
Rear Leg Room (in): 39.4
Rear Leg Room (mm): 1001
3rd Row Shoulder Room (in): 52.9
3rd Row Shoulder Room (mm): 1344
Front Shoulder Room (in): 59.1
Front Shoulder Room (mm): 1500
Rear Shoulder Room (in): 58.3
Rear Shoulder Room (mm): 1480
Ramp Angles
Approach Angle: 18.5
Departure Angle: 21.2
Body Style
Body Type: SUV
Local Body Type: SUV
Wheelbase Type: Short
Spoiler
Location: Roof
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Hands Free Release: yes
Type: Lifting Gate
Headlight Control
Auto Highbeam: yes
Dusk Sensor: yes
Height Adjustment: Manual
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Ellipsoidal
LED Lights
Location: Day Time Running Lights
Paint
External Colour: White
Type: Mica
Blind
Location: Side
Side Blind Type: Manual
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 2000
Gross Trailer Weight Braked (lb): 4409
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2630
Gross Vehicle Weight (lb): 5798
Published Kerb Weight (kg): 1995
Published Kerb Weight (lb): 4398
Tare Weight (kg): 1943
Audio System
Colour Screen: yes
Digital Radio: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Brand: Infinity
Number of Speakers: 10
Subwoofer: yes
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Luxury Trim
Doors: Carbon Fibre Look
Gear Selector: Leather
Instrument Panel: Synthetic Leather
Airbags
Number of Airbags: 6
Autonomous Drive
Active Lane Control: yes
Level: 2 - Partial Automation
Crash Test Results
ANCAP Date Tested: 20180101
ANCAP Overall: 5.00
ANCAP Pedestrian: Acceptable
ANCAP Standard: Ancap
ANCAP Version Tested: 2.2 Litre Crdi
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Location: 3rd Row Seats
3rd Row Seats Number: 2
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Lane Departure Warning
Activates Brakes: yes
Activates Steering: yes
Overtaking Sensor
Manufacturer Name: Blind Spot Collision Avoidance Assist
Rear Cross Traffic Collision Avoidance
Type: Sensor
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Third Row Seat Belts
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Height Type: Electric
Location: Driver
Driver Front Seat Lumbar Type: Electric
Driver Front Seat Number of Electrical Adjustments: 5
Driver Front Seat Reach Type: Electric
Driver Front Seat Reclining Type: Electric
Driver Front Seat Type: Bucket
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Height Type: Electric
Location: Passenger
Passenger Front Seat Number of Electrical Adjustments: 4
Passenger Front Seat Reach Type: Electric
Passenger Front Seat Rear Passenger Control: yes
Passenger Front Seat Reclining Type: Electric
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Leather
Seating
Capacity: 7
Configuration: 2+3+2
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
3rd Row Location: 3rd Row
Passenger Seat Location: Passenger Seat
Ventilation System
Digital Display: yes
Heater Type: Combustion
Power Locks
Automatic Locking: yes
Operation: Card Key
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
