Hyundai Santa Fe Elite (2021) price & specs
Save $$$ with CarExpert*
From
$57,800â€
Elite
Overview

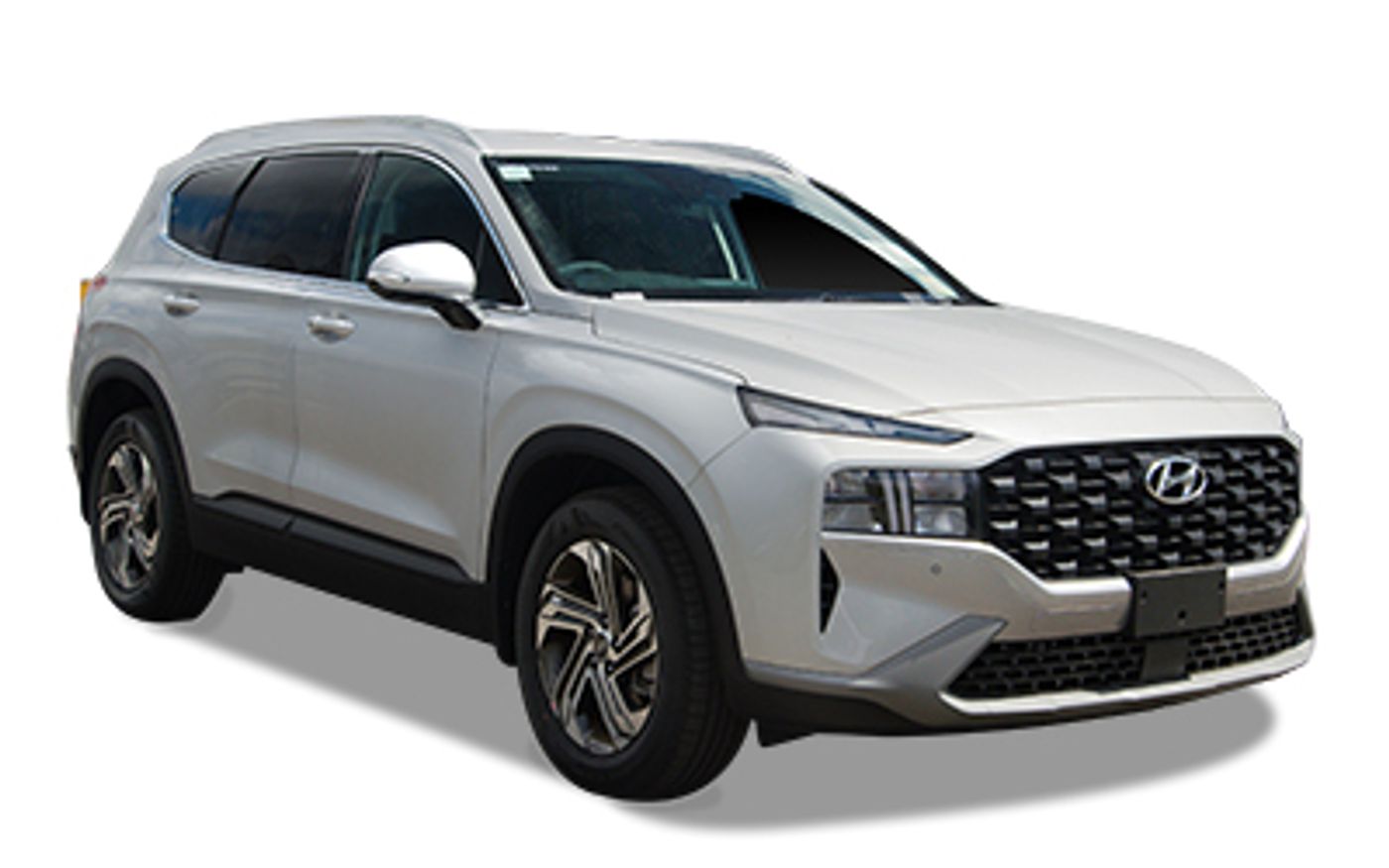

The 2021 Hyundai Santa Fe Elite is a four-wheel drive, 5-door SUV that was released to the Australian market on 4th January 1970 classified as a Tm.V3. The Hyundai Santa Fe is regarded as a large SUV built in Korea with prices starting at $57,800 before on-road costs.
This Hyundai Santa Fe is powered by a 2.2L 4-cylinder engine that has 148 kW of power (at 3800 rpm) and 440 Nm of torque (at 1750 rpm) via an Eight-speed Automatic transmission. Hyundai claims the Santa Fe Elite uses 6.1L/100km of Diesel in the combined city and highway cycle while putting out 160g of CO2. It has a 67L fuel tank, meaning it should be able to travel 1098km per full tank
The Hyundai Santa Fe measures 1710mm (67.3 inches) in height, 4785mm (188.4 inches) in length, 1900mm (74.8 inches) in width with a 2765mm (108.9 inches) wheelbase that brings about a total of 1820kg (4012.4 lbs) of unladen weight. The Santa Fe Elite comes standard with 255/45 R20 front tyres and 255/45 R20 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
The 2021 Hyundai Santa Fe Elite has a 176mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Santa Fe compare?
Quickly see how the 2021 Hyundai Santa Fe Elite stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
81.32 - 115.27 kW/t
58.68 kW/t
115.85 kW/t
Boot Space
571 litres
131 litres
1,069 litres
Fuel Efficiency
6.1 - 10.5 L/100km
5.6 L/100km
10.7 L/100km
Vehicle Range
638 - 1,098 km
638 km
1,682 km
Price
$44,700 - $65,200
$39,990
$87,807
Warranty (Years)
5 years
5 years
10 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
2 years
1 year
5 years
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,560 - 2,610 kg
2,200 kg
3,300 kg
Braked Towing Capacity
2,500 kg
1,497 kg
3,500 kg
Approach Angle
17.9°
16°
36.6°
Departure Angle
19.3°
15.3°
31.9°
Ground Clearance Unladen
176 mm
176 mm
260 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,785 mm
1,900 mm
1,710 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,785 mm |
| Overall Width | 1,900 mm |
| Overall Height | 1,710 mm |
| Wheelbase | 2,765 mm |
| Turning Circle | 11,400 mm |
| Load Capacity | 790 mm |
Looking for complete Hyundai Santa Fe size & space specs?
Our Hyundai Santa Fe Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Hyundai Santa Fe Sales rolling 12-months#
Explore Hyundai Santa Fe Features & Specs
Automatic Door Closing
Rear Boot Hatch: yes
Cruise Control
Adaptive Cruise Control: yes
Stop Go Function: Stop & Go
Driver Modes
Engine Mapping: yes
Steering: yes
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: Unlimited
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Mirrorlink Months Subscription Included: 0
Parking Assistance
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
USB Charging Port
Location: Boot
Number of Ports in Boot: 1
Location: Front
Number of Ports in Front: 1
Location: Rear
Number of Ports in Rear: 2
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Compressor
Compressor: Turbo
Number of Compressors: 1
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Country Highway): 138
CO2 Level (Combined): 160
CO2 Level (Urban): 198
Standard Met: EU5
Engine
Bore Engine: 85.4
Engine (cc): 2151
Engine Configuration: In-Line
Engine Code: D4hiii
Engine (L): 2.2
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 96.0
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 17.7
Main Capacity (L): 67
Main Capacity Uk Gallons: 14.7
Main Type: Total
Computer
Average Fuel Consumption: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 10.30
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 4.20
Low Tire Pressure Indicator
Displays Pressure Reading: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 1098
ADR 81/02 Calculated Vehicle Range (miles): 682
ADR 81/02 Combined (km/L): 16.4
ADR 81/02 Combined (L/100km): 6.1
ADR 81/02 Combined (miles per UK gallon): 46
ADR 81/02 Combined (mpg): 39
ADR 81/02 Country Highway (km/L): 18.9
ADR 81/02 Country Highway (L/100km): 5.3
ADR 81/02 Country Highway (miles per UK gallon): 53
ADR 81/02 Country Highway (mpg): 44
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 13.3
ADR 81/02 Urban (L/100km): 7.5
ADR 81/02 Urban (miles per UK gallon): 38
ADR 81/02 Urban (mpg): 31
Fuel Economy
ADR 81/02 (L/100km): 6.1
Power
Maximum Power (hp/PS): 201
Maximum Power (kW): 148
Maximum Torque (Nm): 440
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3800
Rpm For Maximum Torque Low: 1750
Differential Lock
Location: Centre
Drive
Descent Control System: yes
Driven Wheels: 4x4
Four-Wheel Drive Type: Full And Part-Time
Selection: Manual & Automatic
Limited Slip Differential
Location: Rear
Rear Type: Electronic
Terrain Type Selection
Includes TR ESP Adjustment: yes
Transmission
Description: Dual Clutch Sequential Trans (Dct)
Gear Change Paddles: yes
Manual Mode: yes
Manual Sequential: yes
Number of Speeds: 8
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 105
Location: Front
Front Wheels Tire Profile: 45
Front Wheels Tire Speed Rating: V
Front Wheels Tire Type: All Seasons
Front Wheels Tire Width: 255
Rear Wheels Tire Load Index: 105
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 45
Rear Wheels Tire Speed Rating: V
Rear Wheels Tire Type: All Seasons
Rear Wheels Tire Width: 255
Wheels
Location: Front
Front Wheels Rim Diameter (In): 20
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 8.5
Front Wheels Two Tone: yes
Location: Rear
Rear Rim Diameter (In): 20
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 8.5
Rear Two Tone: yes
Cargo Capacity
Measurement Standard: VDA
Rear Seat Up to Lower Window (cu ft): 20.2
Rear Seat Up to Lower Window (L): 571
External Dimensions
Kerb to Kerb Turning Circle (mm): 11400
Front Track (in): 64.4
Front Track (mm): 1637
Ground Clearance Unladen (in): 6.9
Ground Clearance Unladen (mm): 176
Kerb To Kerb Turning Circle (ft): 37.4
Overall Height (in): 67.3
Overall Height (mm): 1710
Overall Length (in): 188.4
Overall Length (mm): 4785
Overall Width (in): 74.8
Overall Width (mm): 1900
Rear Track (in): 64.8
Rear Track (mm): 1647
Wheelbase (in): 108.9
Wheelbase (mm): 2765
Internal Dimensions
Front Headroom (in): 40.0
Front Headroom (mm): 1016
Rear Headroom (in): 39.0
Rear Headroom (mm): 990
3rd Row Hip Room (in): 42.6
3rd Row Hip Room (mm): 1081
Front Hip Room (in): 57.5
Front Hip Room (mm): 1460
Rear Hip Room (in): 56.3
Rear Hip Room (mm): 1430
3rd Row Leg Room (in): 29.4
3rd Row Leg Room (mm): 746
Front Leg Room (in): 44.1
Front Leg Room (mm): 1120
Rear Leg Room (in): 41.7
Rear Leg Room (mm): 1060
3rd Row Shoulder Room (in): 52.9
3rd Row Shoulder Room (mm): 1344
Front Shoulder Room (in): 59.1
Front Shoulder Room (mm): 1500
Rear Shoulder Room (in): 58.3
Rear Shoulder Room (mm): 1480
Ramp Angles
Approach Angle: 17.9
Departure Angle: 19.3
Body Style
Body Type: SUV
Local Body Type: SUV
Wheelbase Type: Short
Spoiler
Location: Roof
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Auto Highbeam: yes
Dusk Sensor: yes
Height Adjustment: Automatic
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Paint
External Colour: Silver
Type: Mica
Blind
Location: Side
Side Blind Type: Manual
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 2500
Gross Trailer Weight Braked (lb): 5512
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2610
Gross Vehicle Weight (lb): 5754
Published Kerb Weight (kg): 1820
Published Kerb Weight (lb): 4012
Tare Weight (kg): 1772
Trailer Noseweight (kg): 200
Audio System
Colour Screen: yes
Digital Radio: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
Total Front USB Connections: 1
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Brand: Harman/Kardon
Number of Speakers: 10
Subwoofer: yes
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Luxury Trim
Doors: Alloy Look
Instrument Panel: Alloy Look
Airbags
Number of Airbags: 6
Autonomous Drive
Active Lane Control: yes
Level: 2 - Partial Automation
Crash Test Results
ANCAP Adult Occupant Score: 94.0
ANCAP Child Occupant Score: 86.0
ANCAP Date Tested: 20180101
ANCAP Overall: 5.0
ANCAP Pedestrian Score: 67.0
ANCAP Rating Year: 2018
ANCAP Safety Assist Score: 78.0
ANCAP Standard: Ancap
ANCAP Version Tested: 2.2 Litre Crdi
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Location: 3rd Row Seats
3rd Row Seats Number: 2
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Lane Departure Warning
Activates Brakes: yes
Activates Steering: yes
Overtaking Sensor
Active Without Turn Signal: yes
Buzzer: yes
Rear Cross Traffic Collision Avoidance
Type: Sensor
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Height Type: Electric
Location: Driver
Driver Front Seat Lumbar Type: Electric
Driver Front Seat Number of Electrical Adjustments: 5
Driver Front Seat Reach Type: Electric
Driver Front Seat Reclining Type: Electric
Driver Front Seat Type: Bucket
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Height Type: Electric
Location: Passenger
Passenger Front Seat Number of Electrical Adjustments: 4
Passenger Front Seat Reach Type: Electric
Passenger Front Seat Rear Passenger Control: yes
Passenger Front Seat Reclining Type: Electric
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Leather
Seating
Capacity: 7
Configuration: 2+3+2
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
3rd Row Location: 3rd Row
Passenger Seat Location: Passenger Seat
Ventilation System
Digital Display: yes
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
# Based on VFACTS and EVC data
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
