    Hyundai Sonata Active (2016) price & specs

    Save $$$ with CarExpert*
    From
    $30,590†
    2.4L petrol4D Sedan6 SP AUTOMATICFWD

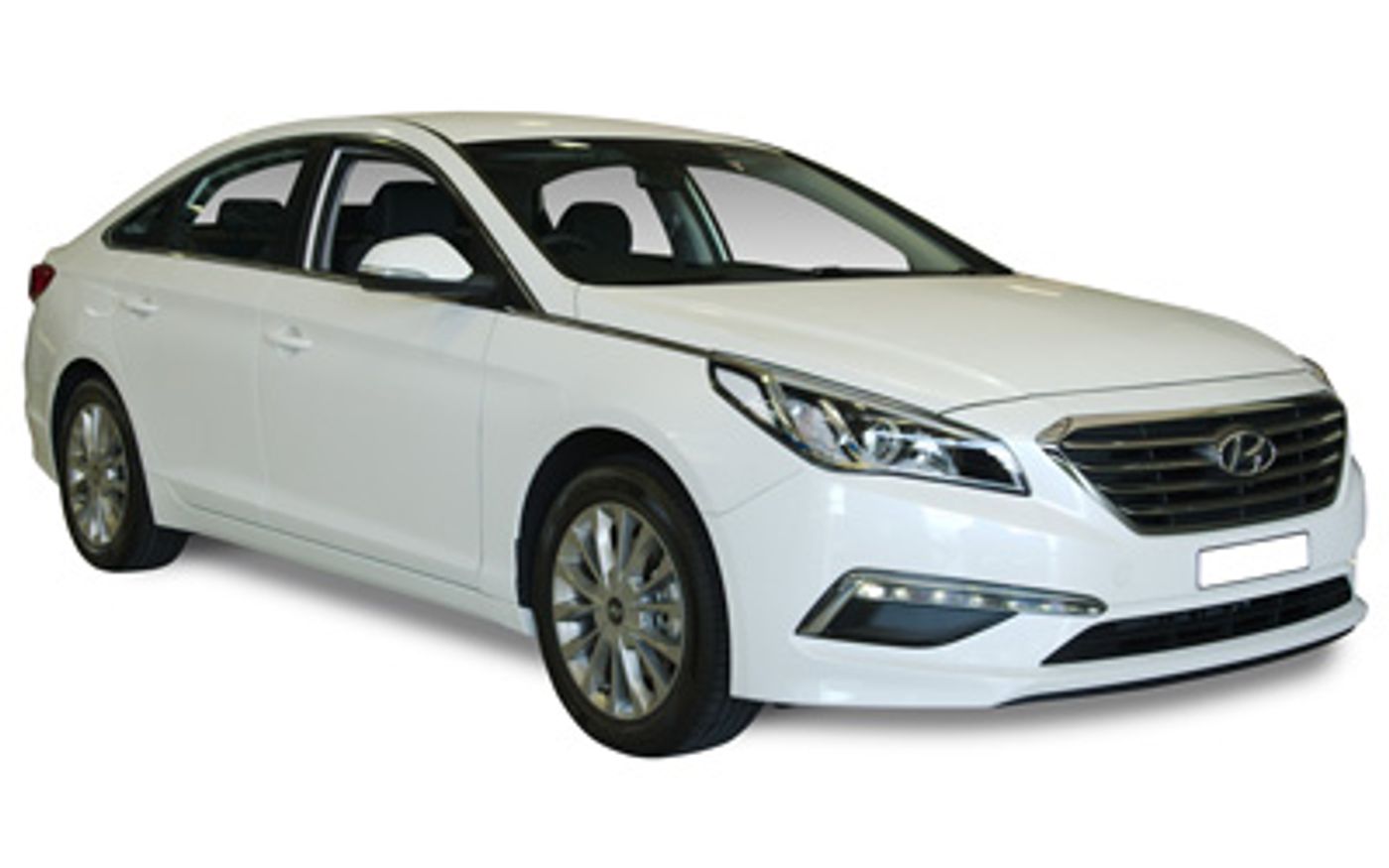

    Hero image of a new Hyundai Sonata Active (2016) price & specs available with CarExpert deals.

    Active

    Find a deal

    Overview

    The 2016 Hyundai Sonata Active is a front-wheel drive, 4-door Sedan that was released to the Australian market on 5th July 2016 classified as a LF2. The Hyundai Sonata is regarded as a medium-sized car built in Korea with prices starting at $30,590 before on-road costs.

    This Hyundai Sonata is powered by a 2.4L 4-cylinder engine that has 138 kW of power (at 6000 rpm) and 241 Nm of torque (at 4000 rpm) via a Six-speed Automatic transmission. Hyundai claims the Sonata Active uses 8.3L/100km of Unleaded in the combined city and highway cycle while putting out 194g of CO2. It has a 70L fuel tank, meaning it should be able to travel 843km per full tank

    The Hyundai Sonata measures 1475mm (58.1 inches) in height, 4855mm (191.1 inches) in length, 1865mm (73.4 inches) in width with a 2805mm (110.4 inches) wheelbase that brings about a total of 1500kg (3306.9 lbs) of unladen weight. The Sonata Active comes standard with 215/55 R17 front tyres and 215/55 R17 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited km warranty.

    The 2016 Hyundai Sonata Active has a 135mm ground clearance with a 1300kg braked and 750kg unbraked towing capacity.

    Trusted Reviews, Smarter Choices, Better Prices

    Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.

    Compare CarsFind a deal

    How does the Sonata compare?

    Quickly see how the 2016 Hyundai Sonata Active stacks up against its competition.
     Select any benchmark to see more details.

    Power to Weight
    92 - 115.38 kW/t
    67.44 kW/t
    119.08 kW/t
    Boot Space
    510 litres
    421 litres
    650 litres
    Fuel Efficiency
    8.3 - 9.2 L/100km
    4.7 L/100km
    9.9 L/100km
    Vehicle Range
    761 - 843 km
    606 km
    1,458 km
    Price
    $29,990 - $42,850
    $22,490
    $52,590
    Warranty (Years)
    5 years
    3 years
    7 years
    Warranty (Distance)
    Unlimited
    100,000 km
    Unlimited
    Years on Sale
    3 years
    1 year
    2 years
    Service Interval
    6 - 12 months
    3 months
    12 months

    Towing & Off-Road Capability

    Gross Vehicle Weight
    2,060 - 2,120 kg
    1,805 kg
    2,320 kg
    Braked Towing Capacity
    1,300 kg
    300 kg
    2,000 kg
    Ground Clearance Unladen
    135 mm
    125 mm
    171 mm

    Trusted Reviews, Smarter Choices, Better Prices

    Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.

    Compare CarsFind a deal

    Dimensions

    4,855 mm
    1,865 mm
    1,475 mm
    SpecificationMeasurement
    Overall Length4,855 mm
    Overall Width1,865 mm
    Overall Height1,475 mm
    Wheelbase2,805 mm
    Turning Circle10,900 mm
    Load Capacity560 mm

    Looking for complete Hyundai Sonata size & space specs?

    Our Hyundai Sonata Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.

    Sales Data

    Hyundai Sonata Sales rolling 12-months#

    Explore Hyundai Sonata Features & Specs

    Active

    2.4L, 6-speed auto, 4-door Sedan, Petrol, FWD

    Save $$$ with CarExpert*
    $30,590†
    Find a deal

    Emission Control Level

    CO2 Level (Combined): 194

    Engine

    Bore Engine: 88.0
    Engine (cc): 2359
    Engine Configuration: In-Line
    Engine Code: Theta Ii 2.4 Gdi
    Engine (L): 2.4
    Number of Cylinders: 4
    Number of Valves per Cylinder: 4
    Stroke Engine: 97.0
    Variable Valve Timing Camshaft: yes

    Fuel

    Generic Primary Fuel Type: Petrol
    Minimum Fuel Octane Number: 91
    Minimum Fuel Type: Unleaded
    Fuel Type: Unleaded
    Octane Number: 91

    Fuel System

    Injection Carburetion: Petrol Direct Injection

    Fuel Tanks

    Main Capacity Gal: 18.5
    Main Capacity (L): 70
    Main Capacity Uk Gallons: 15.4
    Main Type: Total

    Interested in buying a Hyundai Sonata Active?

    Save $$$ with CarExpert*
    From
    $30,590†
    Find a deal

    Computer

    Average Fuel Consumption: yes
    Average Speed: yes
    Instantaneous Fuel Consumption: yes
    Range for Remaining Fuel: yes

    Display Screen

    Screen Size (in): 5.0
    Touch Screen: yes

    Fuel Consumption

    ADR 81/02 Calculated Vehicle Range (km): 843
    ADR 81/02 Calculated Vehicle Range (miles): 524
    ADR 81/02 Combined (km/L): 12.0
    ADR 81/02 Combined (L/100km): 8.3
    ADR 81/02 Combined (miles per UK gallon): 34
    ADR 81/02 Combined (mpg): 28
    ADR 81/02 Country Highway (km/L): 15.9
    ADR 81/02 Country Highway (L/100km): 6.3
    ADR 81/02 Country Highway (miles per UK gallon): 45
    ADR 81/02 Country Highway (mpg): 37
    ADR 81/02 Standard: Adr 81/02
    ADR 81/02 Urban (km/L): 8.3
    ADR 81/02 Urban (L/100km): 12.1
    ADR 81/02 Urban (miles per UK gallon): 23
    ADR 81/02 Urban (mpg): 19

    Fuel Economy

    ADR 81/02 (L/100km): 8.3

    Power

    Maximum Power (hp/PS): 188
    Maximum Power (kW): 138
    Maximum Torque (Nm): 241
    Rpm For Maximum Power Low: 6000
    Rpm For Maximum Torque Low: 4000

    Drive

    Driven Wheels: Front

    Transmission

    Description: Automatic With Manual Mode
    Manual Mode: yes
    Number of Speeds: 6
    Shift Lever Location: Floor
    Type: Automatic

    Disc Brakes

    Number of Disc Brakes: 4
    Number of Ventilated Disc Brakes: 2

    Power Steering

    Vehicle Speed Proportional: yes

    Steering Wheel

    Height Adjustment: yes
    Telescopic Adjustment: yes
    Type: Leather Covered

    Responsive Suspension

    Type: Mechanical

    Suspension

    Location: Front
    Front Spring Type: Coil
    Front Stabilizer Bar: yes
    Front Type: Strut
    Front Wheel Dependence: Independent
    Location: Rear
    Rear Spring Type: Coil
    Rear Stabilizer Bar: yes
    Rear Type: Multi-Link
    Rear Wheel Dependence: Independent

    Tires

    Front Wheels Tire Load Index: 94
    Location: Front
    Front Wheels Tire Profile: 55
    Front Wheels Tire Speed Rating: W
    Front Wheels Tire Type: Conventional/Summer
    Front Wheels Tire Width: 215
    Rear Wheels Tire Load Index: 94
    Rear Wheels Tire Location: Rear
    Rear Wheels Tire Profile: 55
    Rear Wheels Tire Speed Rating: W
    Rear Wheels Tire Type: Conventional/Summer
    Rear Wheels Tire Width: 215

    Wheels

    Location: Front
    Front Wheels Rim Diameter (In): 17
    Front Wheels Rim Type: Alloy
    Front Wheels Rim Width (In): 7.0
    Location: Rear
    Rear Rim Diameter (In): 17
    Rear Rim Type: Alloy
    Rear Wheels Rim Width (In): 7.0

    Body Style

    Body Type: Sedan
    Local Body Type: Sedan
    Platform Code: Hyundai Lf
    Wheelbase Type: Short

    Cargo Capacity

    Measurement Standard: VDA
    Rear Seat Up to Lower Window (cu ft): 18.0
    Rear Seat Up to Lower Window (L): 510

    External Dimensions

    Kerb to Kerb Turning Circle (mm): 10900
    Front Track (in): 63.1
    Front Track (mm): 1602
    Ground Clearance Unladen (in): 5.3
    Ground Clearance Unladen (mm): 135
    Kerb To Kerb Turning Circle (ft): 35.8
    Overall Height (in): 58.1
    Overall Height (mm): 1475
    Overall Length (in): 191.1
    Overall Length (mm): 4855
    Overall Width (in): 73.4
    Overall Width (mm): 1865
    Rear Track (in): 63.3
    Rear Track (mm): 1609
    Wheelbase (in): 110.4
    Wheelbase (mm): 2805

    Internal Dimensions

    Front Headroom (in): 40.4
    Front Headroom (mm): 1025
    Rear Headroom (in): 38.4
    Rear Headroom (mm): 975
    Front Hip Room (in): 55.3
    Front Hip Room (mm): 1404
    Rear Hip Room (in): 56.1
    Rear Hip Room (mm): 1426
    Front Shoulder Room (in): 57.9
    Front Shoulder Room (mm): 1470
    Rear Shoulder Room (in): 56.5
    Rear Shoulder Room (mm): 1435

    Doors

    Location: Driver
    Driver Door Type: Front Hinged
    Location: Passenger
    Passenger Door Type: Front Hinged
    Location: Rear Driver
    Rear Driver Door Type: Front Hinged
    Location: Rear Passenger
    Rear Passenger Door Type: Front Hinged

    Headlight Control

    Dusk Sensor: yes

    Headlights

    High Beam Bulb Type: Halogen
    Low Beam Bulb Type: Halogen
    Lens Type: Ellipsoidal

    LED Lights

    Location: Day Time Running Lights

    Paint

    External Colour: White
    Type: Pearl

    Door Mirrors/Cameras

    Driver Door Mirrors/Cameras Colour: Painted
    Driver Door Mirror Indicator Lights: yes
    Mirrors/Cameras Location: Driver
    Driver Door Mirrors/Cameras Type: Electrically Adjustable
    Passenger Door Mirrors/Cameras Colour: Painted
    Passenger Door Mirror Indicator Lights: yes
    Mirrors/Cameras Location: Passenger
    Passenger Door Mirrors/Cameras Type: Electrically Adjustable

    Power Windows

    Front Electric Windows: Front
    Rear Electric Windows: Rear

    Windshield Wipers

    Intermittent Wipe Windshield Wipers: Variable

    Weights

    Gross Trailer Weight Braked (kg): 1300
    Gross Trailer Weight Braked (lb): 2866
    Gross Trailer Weight Unbraked (kg): 750
    Gross Trailer Weight Unbraked (lb): 1653
    Gross Vehicle Weight (kg): 2060
    Gross Vehicle Weight (lb): 4542
    Published Kerb Weight (kg): 1500
    Published Kerb Weight (lb): 3307
    Tare Weight (kg): 1455

    Audio System

    CD Player Reads MP3: yes
    Colour Screen: yes
    In-Dash CD: yes
    Radio Type: Am/Fm
    Touch Screen: yes

    External Connections

    Aux Jack (Front): yes
    iPod Connection (Front): yes
    USB (Front): yes

    Remote Audio Controls

    Type: Steering Wheel Mounted

    Speakers

    Number of Speakers: 6

    Bluetooth

    Includes Music Streaming: yes
    Includes Phone Connection: yes

    Parking Distance System

    Location: Rear
    Rear Type: Sensor & Camera

    Power Outlet 12V

    Location (12V): Front
    Location (12V): Rear

    Vanity Mirror

    Driver Mirror Illuminated: yes
    Driver Mirror Location: Driver
    Passenger Mirror Illuminated: yes
    Location: Passenger

    Luxury Trim

    Doors: Colour High Gloss
    Gear Selector: Leather
    Instrument Panel: Alloy Look

    Airbags

    Number of Airbags: 6

    Crash Test Results

    ANCAP Overall: 5.00
    ANCAP Pedestrian: Acceptable
    ANCAP Standard: Ancap
    ANCAP Version Tested: Hyundai Sonata Gdi

    Front Airbag

    Location: Driver
    Location: Passenger

    Front Seat Belts

    Driver Height Adjustable: yes
    Driver Pre Tensioners: yes
    Driver Seat Position: Driver
    Passenger Height Adjustable: yes
    Passenger Pre Tensioners: yes
    Passenger Seat Position: Passenger

    Head Restraints

    Front Seats Location: Front Seats
    Rear Seats Location: Rear Seats
    Rear Seats Number: 3

    Rear Seat Belts

    Center Seat Position: Centre
    Center Type: 3-Point
    Driver Seat Position: Driver
    Passenger Seat Position: Passenger

    Side Airbag

    Location: Front

    Side Curtain Airbag

    Location: Front And Rear

    Front Seat

    Driver Front Seat Height Type: Manual
    Location: Driver
    Driver Front Seat Reach Type: Manual
    Driver Front Seat Reclining Type: Manual
    Driver Front Seat Type: Bucket
    Passenger Front Seat Height Type: Manual
    Location: Passenger
    Passenger Front Seat Reach Type: Manual
    Passenger Front Seat Reclining Type: Manual
    Passenger Front Seat Type: Bucket

    Seat Upholstery

    Additional Seat Material: Cloth
    Main Seat Material: Cloth

    Seating

    Capacity: 5
    Configuration: 2+3

    Cup Holders

    Location: Front Seats
    Location: Rear Seats

    Air Conditioning

    Type: Manual

    Power Locks

    Operation: Remote

    Intermediate Service

    Distance (km): 15000
    Distance (miles): 9321
    Period (Months): 12
