    Hyundai Sonata Elite (2016) price & specs

    Save $$$ with CarExpert*
    From
    $36,990†
    2.0L petrol4D Sedan6 SP AUTOMATICFWD

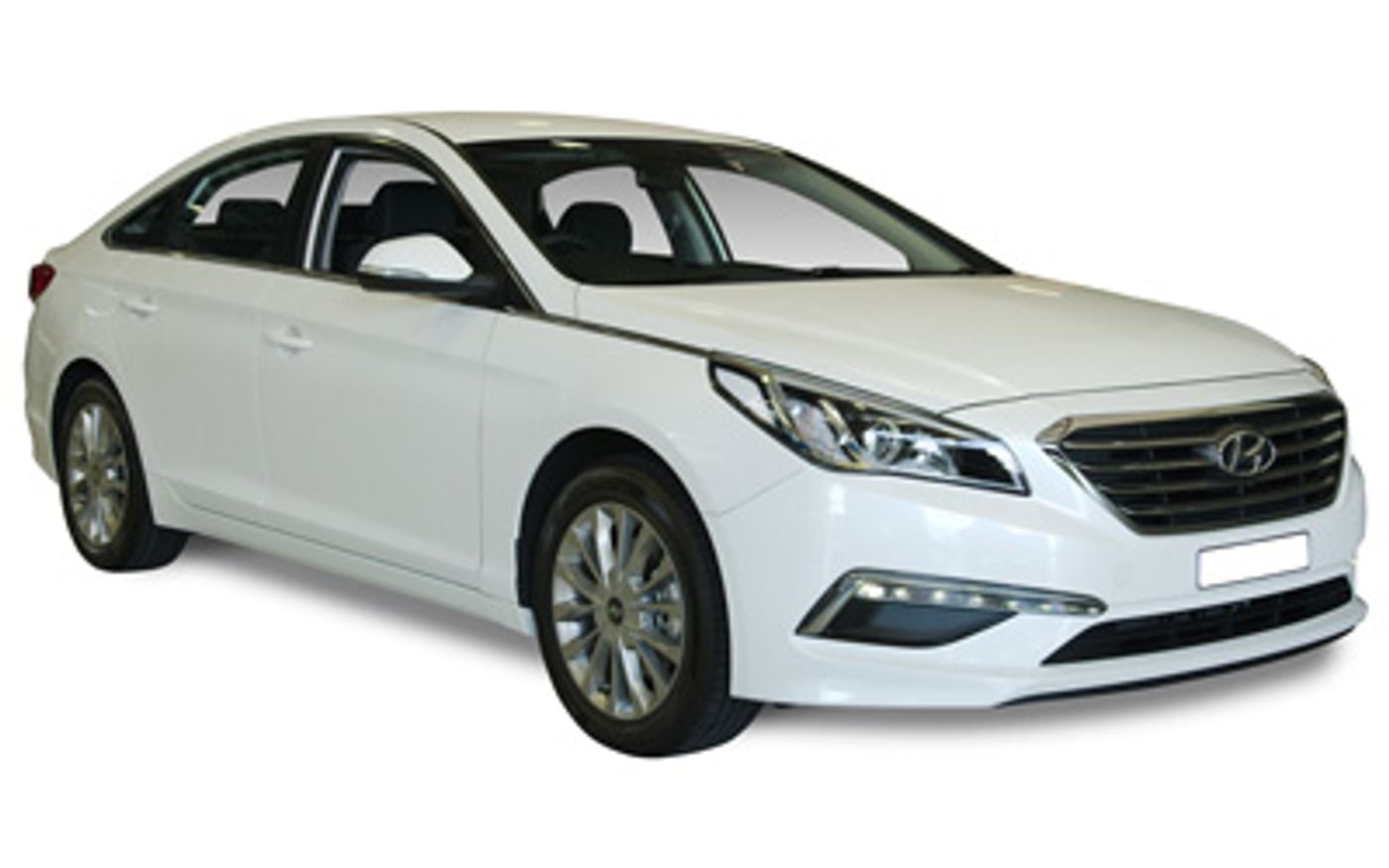

    Hero image of a new Hyundai Sonata Elite (2016) price & specs available with CarExpert deals.

    Elite

    Find a deal

    Overview

    The 2016 Hyundai Sonata Elite is a front-wheel drive, 4-door Sedan that was released to the Australian market on 1st February 2016 classified as a LF2. The Hyundai Sonata is regarded as a medium-sized car built in Korea with prices starting at $36,990 before on-road costs.

    This Hyundai Sonata is powered by a 2.0L 4-cylinder engine that has 180 kW of power (at 6000 rpm) and 350 Nm of torque (at 1400 rpm) via a Six-speed Automatic transmission. Hyundai claims the Sonata Elite uses 9.2L/100km of Unleaded in the combined city and highway cycle while putting out 213g of CO2. It has a 70L fuel tank, meaning it should be able to travel 761km per full tank

    The Hyundai Sonata measures 1475mm (58.1 inches) in height, 4855mm (191.1 inches) in length, 1865mm (73.4 inches) in width with a 2805mm (110.4 inches) wheelbase that brings about a total of 1560kg (3439.2 lbs) of unladen weight. The Sonata Elite comes standard with 215/55 R17 front tyres and 215/55 R17 rear tyres. It requires a service every 6 months or 7,500 km, whichever comes first. It has a 60 month, unlimited km warranty.

    The 2016 Hyundai Sonata Elite has a 135mm ground clearance with a 1300kg braked and 750kg unbraked towing capacity.

    Trusted Reviews, Smarter Choices, Better Prices

    Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.

    Compare CarsFind a deal

    How does the Sonata compare?

    Quickly see how the 2016 Hyundai Sonata Elite stacks up against its competition.
     Select any benchmark to see more details.

    Power to Weight
    92 - 115.38 kW/t
    67.44 kW/t
    119.08 kW/t
    Boot Space
    510 litres
    421 litres
    650 litres
    Fuel Efficiency
    8.3 - 9.2 L/100km
    4.7 L/100km
    9.9 L/100km
    Vehicle Range
    761 - 843 km
    606 km
    1,458 km
    Price
    $29,990 - $42,850
    $22,490
    $52,590
    Warranty (Years)
    5 years
    3 years
    7 years
    Warranty (Distance)
    Unlimited
    100,000 km
    Unlimited
    Years on Sale
    3 years
    1 year
    2 years
    Service Interval
    6 - 12 months
    3 months
    12 months

    Towing & Off-Road Capability

    Gross Vehicle Weight
    2,060 - 2,120 kg
    1,805 kg
    2,320 kg
    Braked Towing Capacity
    1,300 kg
    300 kg
    2,000 kg
    Ground Clearance Unladen
    135 mm
    125 mm
    171 mm

    Trusted Reviews, Smarter Choices, Better Prices

    Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.

    Compare CarsFind a deal

    Dimensions

    4,855 mm
    1,865 mm
    1,475 mm
    SpecificationMeasurement
    Overall Length4,855 mm
    Overall Width1,865 mm
    Overall Height1,475 mm
    Wheelbase2,805 mm
    Turning Circle10,900 mm
    Load Capacity560 mm

    Looking for complete Hyundai Sonata size & space specs?

    Our Hyundai Sonata Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.

    Sales Data

    Hyundai Sonata Sales rolling 12-months#

    Explore Hyundai Sonata Features & Specs

    Elite

    2.0L, 6-speed auto, 4-door Sedan, Petrol, FWD

    Save $$$ with CarExpert*
    $36,990†
    Find a deal

    Compressor

    Compressor: Turbo

    Emission Control Level

    CO2 Level (Combined): 213

    Engine

    Bore Engine: 86.0
    Engine (cc): 1998
    Engine Configuration: In-Line
    Engine Code: Theta Ii 2.0 T-Gdi
    Engine (L): 2.0
    Number of Cylinders: 4
    Number of Valves per Cylinder: 4
    Stroke Engine: 86.0
    Variable Valve Timing Camshaft: yes

    Fuel

    Generic Primary Fuel Type: Petrol
    Minimum Fuel Octane Number: 91
    Minimum Fuel Type: Unleaded
    Fuel Type: Unleaded
    Octane Number: 91

    Fuel System

    Injection Carburetion: Petrol Direct Injection

    Fuel Tanks

    Main Capacity Gal: 18.5
    Main Capacity (L): 70
    Main Capacity Uk Gallons: 15.4
    Main Type: Total

    Interested in buying a Hyundai Sonata Elite?

    Save $$$ with CarExpert*
    From
    $36,990†
    Find a deal

    Computer

    Average Fuel Consumption: yes
    Average Speed: yes
    Instantaneous Fuel Consumption: yes
    Range for Remaining Fuel: yes

    Display Screen

    Screen Size (in): 8.0
    Touch Screen: yes

    Fuel Consumption

    ADR 81/02 Calculated Vehicle Range (km): 761
    ADR 81/02 Calculated Vehicle Range (miles): 473
    ADR 81/02 Combined (km/L): 10.9
    ADR 81/02 Combined (L/100km): 9.2
    ADR 81/02 Combined (miles per UK gallon): 31
    ADR 81/02 Combined (mpg): 26
    ADR 81/02 Country Highway (km/L): 14.9
    ADR 81/02 Country Highway (L/100km): 6.7
    ADR 81/02 Country Highway (miles per UK gallon): 42
    ADR 81/02 Country Highway (mpg): 35
    ADR 81/02 Standard: Adr 81/02
    ADR 81/02 Urban (km/L): 7.5
    ADR 81/02 Urban (L/100km): 13.4
    ADR 81/02 Urban (miles per UK gallon): 21
    ADR 81/02 Urban (mpg): 18

    Fuel Economy

    ADR 81/02 (L/100km): 9.2

    Power

    Maximum Power (hp/PS): 245
    Maximum Power (kW): 180
    Maximum Torque (Nm): 350
    Rpm For Maximum Power Low: 6000
    Rpm For Maximum Torque Low: 1400

    Drive

    Driven Wheels: Front

    Transmission

    Description: Automatic With Manual Mode
    Manual Mode: yes
    Number of Speeds: 6
    Shift Lever Location: Floor
    Type: Automatic

    Disc Brakes

    Number of Disc Brakes: 4
    Number of Ventilated Disc Brakes: 2

    Power Steering

    Vehicle Speed Proportional: yes

    Steering Wheel

    Height Adjustment: yes
    Telescopic Adjustment: yes
    Type: Leather Covered

    Responsive Suspension

    Type: Mechanical

    Suspension

    Location: Front
    Front Spring Type: Coil
    Front Stabilizer Bar: yes
    Front Type: Strut
    Front Wheel Dependence: Independent
    Location: Rear
    Rear Spring Type: Coil
    Rear Stabilizer Bar: yes
    Rear Type: Multi-Link
    Rear Wheel Dependence: Independent

    Tires

    Front Wheels Tire Load Index: 94
    Location: Front
    Front Wheels Tire Profile: 55
    Front Wheels Tire Speed Rating: W
    Front Wheels Tire Type: Conventional/Summer
    Front Wheels Tire Width: 215
    Rear Wheels Tire Load Index: 94
    Rear Wheels Tire Location: Rear
    Rear Wheels Tire Profile: 55
    Rear Wheels Tire Speed Rating: W
    Rear Wheels Tire Type: Conventional/Summer
    Rear Wheels Tire Width: 215

    Wheels

    Location: Front
    Front Wheels Rim Diameter (In): 17
    Front Wheels Rim Type: Alloy
    Front Wheels Rim Width (In): 7.0
    Location: Rear
    Rear Rim Diameter (In): 17
    Rear Rim Type: Alloy
    Rear Wheels Rim Width (In): 7.0

    Body Style

    Body Type: Sedan
    Local Body Type: Sedan
    Platform Code: Hyundai Lf
    Wheelbase Type: Short

    Cargo Capacity

    Measurement Standard: VDA
    Rear Seat Up to Lower Window (cu ft): 18.0
    Rear Seat Up to Lower Window (L): 510

    External Dimensions

    Kerb to Kerb Turning Circle (mm): 10900
    Front Track (in): 63.1
    Front Track (mm): 1602
    Ground Clearance Unladen (in): 5.3
    Ground Clearance Unladen (mm): 135
    Kerb To Kerb Turning Circle (ft): 35.8
    Overall Height (in): 58.1
    Overall Height (mm): 1475
    Overall Length (in): 191.1
    Overall Length (mm): 4855
    Overall Width (in): 73.4
    Overall Width (mm): 1865
    Rear Track (in): 63.3
    Rear Track (mm): 1609
    Wheelbase (in): 110.4
    Wheelbase (mm): 2805

    Internal Dimensions

    Front Headroom (in): 40.4
    Front Headroom (mm): 1025
    Rear Headroom (in): 38.4
    Rear Headroom (mm): 975
    Front Hip Room (in): 55.3
    Front Hip Room (mm): 1404
    Rear Hip Room (in): 56.1
    Rear Hip Room (mm): 1426
    Front Shoulder Room (in): 57.9
    Front Shoulder Room (mm): 1470
    Rear Shoulder Room (in): 56.5
    Rear Shoulder Room (mm): 1435

    Doors

    Location: Driver
    Driver Door Type: Front Hinged
    Location: Passenger
    Passenger Door Type: Front Hinged
    Location: Rear Driver
    Rear Driver Door Type: Front Hinged
    Location: Rear Passenger
    Rear Passenger Door Type: Front Hinged

    Headlight Control

    Dusk Sensor: yes

    Headlights

    High Beam Bulb Type: Halogen
    Low Beam Bulb Type: Halogen
    Lens Type: Ellipsoidal

    LED Lights

    Location: Day Time Running Lights
    Location: Rear Lights

    Paint

    External Colour: White
    Type: Pearl

    Door Mirrors/Cameras

    Driver Door Mirrors/Cameras Colour: Painted
    Driver Door Mirror Indicator Lights: yes
    Mirrors/Cameras Location: Driver
    Driver Door Mirrors/Cameras Type: Electrically Adjustable
    Passenger Door Mirrors/Cameras Colour: Painted
    Passenger Door Mirror Indicator Lights: yes
    Mirrors/Cameras Location: Passenger
    Passenger Door Mirrors/Cameras Type: Electrically Adjustable

    Power Windows

    Front Electric Windows: Front
    Rear Electric Windows: Rear

    Windshield Wipers

    Intermittent Wipe Windshield Wipers: Variable

    Weights

    Gross Trailer Weight Braked (kg): 1300
    Gross Trailer Weight Braked (lb): 2866
    Gross Trailer Weight Unbraked (kg): 750
    Gross Trailer Weight Unbraked (lb): 1653
    Gross Vehicle Weight (kg): 2120
    Gross Vehicle Weight (lb): 4674
    Published Kerb Weight (kg): 1560
    Published Kerb Weight (lb): 3439
    Tare Weight (kg): 1515

    Audio System

    CD Player Reads MP3: yes
    Colour Screen: yes
    In-Dash CD: yes
    In-Dash DVD: yes
    Radio Type: Am/Fm
    Touch Screen: yes

    External Connections

    Aux Jack (Front): yes
    iPod Connection (Front): yes
    USB (Front): yes

    Remote Audio Controls

    Type: Steering Wheel Mounted

    Speakers

    Number of Speakers: 6

    Bluetooth

    Includes Music Streaming: yes
    Includes Phone Connection: yes

    Entertainment Display Screen

    Front DVD: yes
    Location: Front
    Front Screen Size (in): 8.0
    Front Touch Screen: yes

    Navigational Systems

    Controls: Touch Screen
    Information Type: Full Map And Voice
    Screen Size (in): 8.0

    Parking Distance System

    Location: Rear
    Rear Type: Sensor & Camera

    Power Outlet 12V

    Location (12V): Front
    Location (12V): Rear

    Smart Card/Smart Key

    Includes Keyless Entry: yes
    Includes Keyless Start: yes
    Type: Automatic

    Vanity Mirror

    Driver Mirror Illuminated: yes
    Driver Mirror Location: Driver
    Passenger Mirror Illuminated: yes
    Location: Passenger

    Luxury Trim

    Doors: Carbon Fibre Look
    Gear Selector: Leather
    Instrument Panel: Carbon Fibre Look

    Airbags

    Number of Airbags: 6

    Crash Test Results

    ANCAP Overall: 5.00
    ANCAP Pedestrian: Acceptable
    ANCAP Standard: Ancap
    ANCAP Version Tested: Hyundai Sonata Gdi

    Front Airbag

    Location: Driver
    Location: Passenger

    Front Seat Belts

    Driver Height Adjustable: yes
    Driver Pre Tensioners: yes
    Driver Seat Position: Driver
    Passenger Height Adjustable: yes
    Passenger Pre Tensioners: yes
    Passenger Seat Position: Passenger

    Head Restraints

    Front Seats Location: Front Seats
    Rear Seats Location: Rear Seats
    Rear Seats Number: 3

    Rear Seat Belts

    Center Seat Position: Centre
    Center Type: 3-Point
    Driver Seat Position: Driver
    Passenger Seat Position: Passenger

    Side Airbag

    Location: Front

    Side Curtain Airbag

    Location: Front And Rear

    Front Seat

    Driver Front Seat Power Adjustable: yes
    Driver Front Seat Height Type: Electric
    Location: Driver
    Driver Front Seat Lumbar Type: 2-Way Electric
    Driver Front Seat Number of Electrical Adjustments: 6
    Driver Front Seat Reach Type: Electric
    Driver Front Seat Reclining Type: Electric
    Driver Front Seat Type: Bucket
    Passenger Front Seat Height Type: Manual
    Location: Passenger
    Passenger Front Seat Reach Type: Manual
    Passenger Front Seat Reclining Type: Manual
    Passenger Front Seat Type: Bucket

    Seat Upholstery

    Additional Seat Material: Leather
    Main Seat Material: Leather

    Seating

    Capacity: 5
    Configuration: 2+3

    Cup Holders

    Location: Front Seats
    Location: Rear Seats

    Air Conditioning

    Type: Fully-Auto
    Climate Control - Number of Zones: 2

    Secondary Ventilation Controls

    Passenger Seat Location: Passenger Seat

    Ventilation System

    Digital Display: yes

    Power Locks

    Operation: Card Key

    Intermediate Service

    Distance (km): 7500
    Distance (miles): 4660
    Period (Months): 6
