2.2L, 8-speed auto, 5-door Panel Van, Diesel, FWD
Save $$$ with CarExpert*
$51,240â€

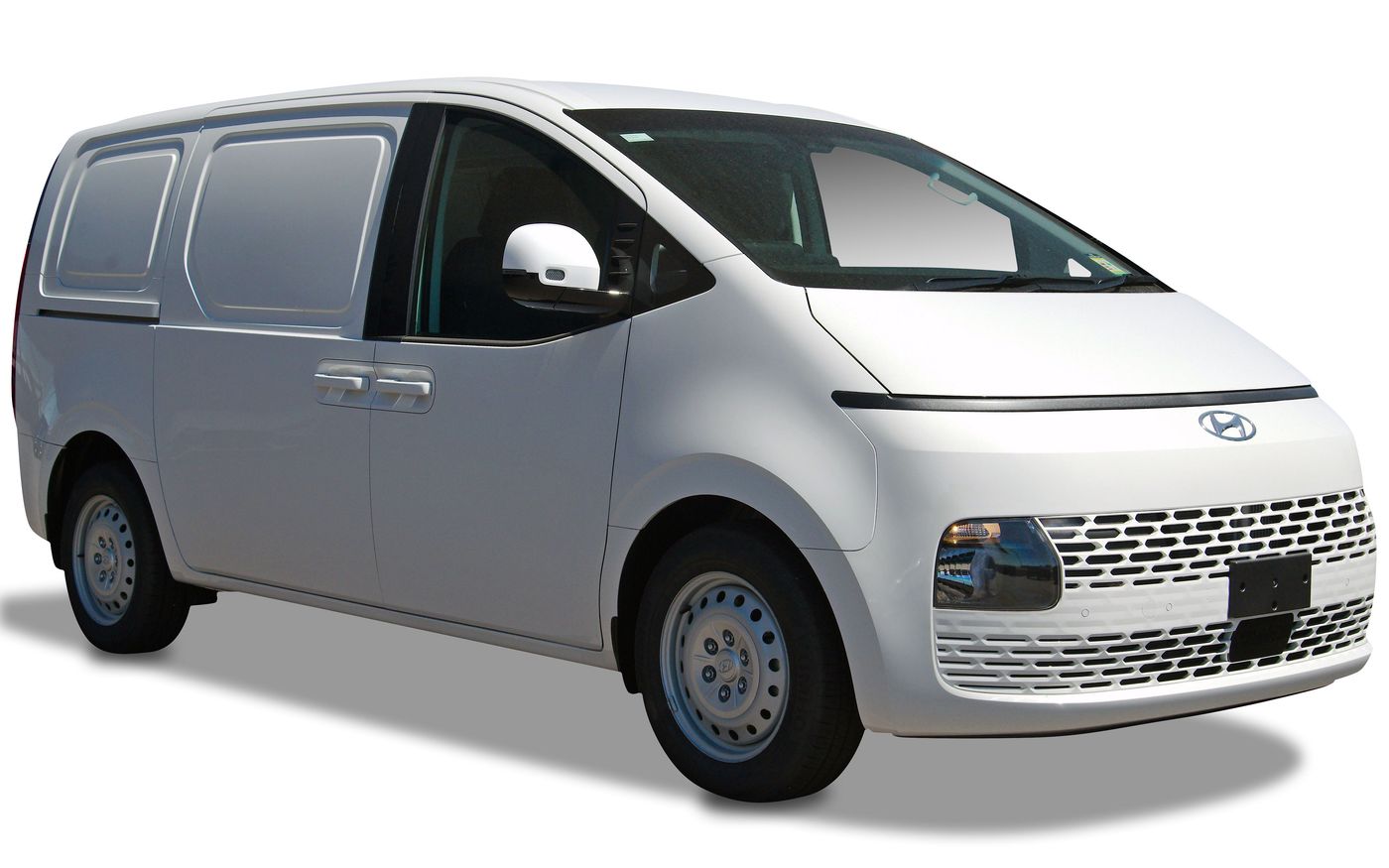

Hyundai Staria Load Premium (2024) price & specs
Save $$$ with CarExpert*
From
$51,240â€
Premium
Overview
The 2024 Hyundai Staria Load Premium is a front-wheel drive, 5-door Panel Van that was released to the Australian market on 1st February 2023. The Hyundai Staria Load is regarded as a Van Under 3.5t built in Korea with prices starting at $51,240 before on-road costs.
This Hyundai Staria Load is powered by a 2.2L 4-cylinder engine that has 130 kW of power (at 3800 rpm) and 430 Nm of torque (at 1500 rpm) via an Eight-speed Automatic transmission. Hyundai claims the Staria Load Premium uses 7.0L/100km of Diesel in the combined city and highway cycle while putting out 183g of CO2. It has a 75L fuel tank, meaning it should be able to travel 1071km per full tank
The Hyundai Staria Load measures 2000mm (78.7 inches) in height, 5253mm (206.8 inches) in length, 1997mm (78.6 inches) in width with a 3273mm (128.9 inches) wheelbase that brings about a total of 2002kg (4413.6 lbs) of unladen weight. The Staria Load Premium comes standard with 215/65 R17 front tyres and 215/65 R17 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, 160,000 km warranty.
The 2024 Hyundai Staria Load Premium has a 186mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Staria Load compare?
Quickly see how the 2024 Hyundai Staria Load Premium stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
62.62 - 64.94 kW/t
35.8 kW/t
81.55 kW/t
Fuel Efficiency
7 L/100km
4.9 L/100km
11.1 L/100km
Vehicle Range
1,071 km
649 km
1,231 km
Price
$46,240 - $51,240
$37,358
$136,898
Warranty (Years)
5 years
3 years
7 years
Warranty (Distance)
160,000 km
100,000 km
Unlimited
Years on Sale
3 - 5 years
1 year
6 years
Service Interval
12 months
6 months
24 months
Towing & Off-Road Capability
Gross Vehicle Weight
3,020 - 3,110 kg
1,970 kg
4,050 kg
Gross Comb. Mass
5,220 - 5,610 kg
3,470 kg
5,725 kg
Braked Towing Capacity
2,500 kg
750 kg
2,500 kg
Ground Clearance Unladen
186 mm
134 mm
202 mm
Payload Capacity
1,018 - 1,034 kg
523 kg
1,350 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,253 mm
1,997 mm
2,000 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,253 mm |
| Overall Width | 1,997 mm |
| Overall Height | 2,000 mm |
| Wheelbase | 3,273 mm |
| Turning Circle | 11,940 mm |
| Load Capacity | 1,018 mm |
Looking for complete Hyundai Staria Load size & space specs?
Our Hyundai Staria Load Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Hyundai Staria Load Sales rolling 12-months#
Explore Hyundai Staria Load Features & Specs
Cruise Control
Adaptive Cruise Control: yes
Stop Go Function: Stop & Go
Driver Modes
Engine Mapping: yes
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: Unlimited
Android Wireless Connection: yes
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Apple Wireless Connection: yes
Mirrorlink Months Subscription Included: 0
Parking Assistance
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Front
Front Type: Sensor & Camera
Location: Rear
Rear Type: Sensor & Camera
Location: Side
Side Type: Camera
Power Outlet 12V
Location (12V): Front
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
USB Charging Port
Location: Front
Number of Ports in Front: 1
Compressor
Compressor: Turbo
Number of Compressors: 1
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Country Highway): 155
CO2 Level (Combined): 183
CO2 Level (Urban): 233
Standard Met: EU5
Engine
Engine (cc): 2199
Engine Configuration: In-Line
Engine Code: D4hb
Engine (L): 2.2
Number of Cylinders: 4
Interested in buying a Hyundai Staria Load Premium?
Save $$$ with CarExpert*
From
$51,240â€
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel Tanks
Main Capacity Gal: 19.8
Main Capacity (L): 75
Main Capacity Uk Gallons: 16.5
Main Type: Total
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 1071
ADR 81/02 Calculated Vehicle Range (miles): 665
ADR 81/02 Combined (km/L): 14.3
ADR 81/02 Combined (L/100km): 7.0
ADR 81/02 Combined (miles per UK gallon): 40
ADR 81/02 Combined (mpg): 34
ADR 81/02 Country Highway (km/L): 16.9
ADR 81/02 Country Highway (L/100km): 5.9
ADR 81/02 Country Highway (miles per UK gallon): 48
ADR 81/02 Country Highway (mpg): 40
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 11.2
ADR 81/02 Urban (L/100km): 8.9
ADR 81/02 Urban (miles per UK gallon): 32
ADR 81/02 Urban (mpg): 26
Fuel Economy
ADR 81/02 (L/100km): 7.0
Power
Maximum Power (hp/PS): 177
Maximum Power (kW): 130
Maximum Torque (Nm): 430
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3800
Rpm For Maximum Torque Low: 1500
Drive
Driven Wheels: Front
Transmission
Description: Automatic With Manual Mode
Manual Mode: yes
Number of Speeds: 8
Shift Lever Location: Floor
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 4
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Orientation: Fixed
Dashboard Centre 1 Screen Size (in): 10.25
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 10.25
Low Tire Pressure Indicator
Displays Pressure Reading: yes
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 108
Location: Front
Front Wheels Tire Profile: 65
Front Wheels Tire Speed Rating: H
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 215
Rear Wheels Tire Load Index: 108
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 65
Rear Wheels Tire Speed Rating: H
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 215
Wheels
Location: Front
Front Wheels Rim Diameter (In): 17
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 6.5
Location: 1
Location: Rear
Rear Rim Diameter (In): 17
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 6.5
Body Style
Body Type: Panel Van
Local Body Type: Panel Van
Roof Type: Standard
Wheelbase Type: Short
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Cargo Area Dimensions
Cargo Volume (cu ft): 174.3
Cargo Volume (L): 4935
Height (in): 56.5
Height (mm): 1640
Length (in): 102.6
Length (mm): 2607
Standard Measurement: Manufacturer'S Own
Width (in): 64.6
Width (mm): 1640
External Dimensions
Kerb to Kerb Turning Circle (mm): 11940
Front Track (in): 68.2
Front Track (mm): 1732
Ground Clearance Unladen (in): 7.3
Ground Clearance Unladen (mm): 186
Kerb To Kerb Turning Circle (ft): 39.2
Overall Height (in): 78.7
Overall Height (mm): 2000
Overall Length (in): 206.8
Overall Length (mm): 5253
Overall Width (in): 78.6
Overall Width (mm): 1997
Rear Track (in): 67.6
Rear Track (mm): 1716
Wheelbase (in): 128.9
Wheelbase (mm): 3273
Cargo Doors
Driver Location: Driver
Driver Operation: Sliding
Driver Width (in): 34.3
Driver Width (mm): 870
Location: Passenger
Passenger Operation: Sliding
Passenger Width (in): 34.3
Passenger Width (mm): 870
Location: Rear
Rear Opening Angle: 90
Rear Operation: Lifting Gate
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Headlight Control
Auto Highbeam: yes
Dusk Sensor: yes
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Paint
External Colour: White
Type: Mica
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Front Axle Weight (kg): 1610
Front Axle Weight (lb): 3549
Gross Trailer Weight Braked (kg): 2500
Gross Trailer Weight Braked (lb): 5512
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 5520
Gross Train Weight (lb): 12170
Gross Vehicle Weight (kg): 3020
Gross Vehicle Weight (lb): 6658
Payload Allowance (kg): 1018
Payload Allowance (lb): 2244
Published Kerb Weight (kg): 2002
Published Kerb Weight (lb): 4414
Rear Axle Weight (kg): 1780
Rear Axle Weight (lb): 3924
Tare Weight (kg): 1947
Trailer Noseweight (kg): 100
Audio System
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
Total 3rd Row USB Connections: 0
Total Front USB Connections: 1
Total Rear USB Connections: 0
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 2
Load Area Side Covering
Exposed Metal: Partial
Type: Plastic/Rubber
Luxury Trim
Gear Selector: Leather
Airbags
Number of Airbags: 7
Autonomous Drive
Active Lane Control: yes
Level: 2 - Partial Automation
Crash Test Results
ANCAP Adult Occupant Score: 85.0
ANCAP Date Tested: 20211201
ANCAP Overall: 5.0
ANCAP Pedestrian Score: 65.0
ANCAP Rating Year: 2021
ANCAP Safety Assist Score: 74.0
ANCAP Standard: Ancap
ANCAP Version Tested: 3.5 Litre
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Seat Position: Center
Driver Height Adjustable: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Lane Departure Warning
Activates Steering: yes
Overtaking Sensor
Active Without Turn Signal: yes
Includes Collision Avoidance: yes
Includes Display: yes
Rear Cross Traffic Collision Avoidance
Includes Braking: yes
Type: Sensor
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front
Front Seat
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 2
Configuration: 2+0
Cup Holders
Location: Front Seats
Air Conditioning
Type: Fully-Auto
Power Locks
Includes Trunk Hatch: yes
Operation: Card Key
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
