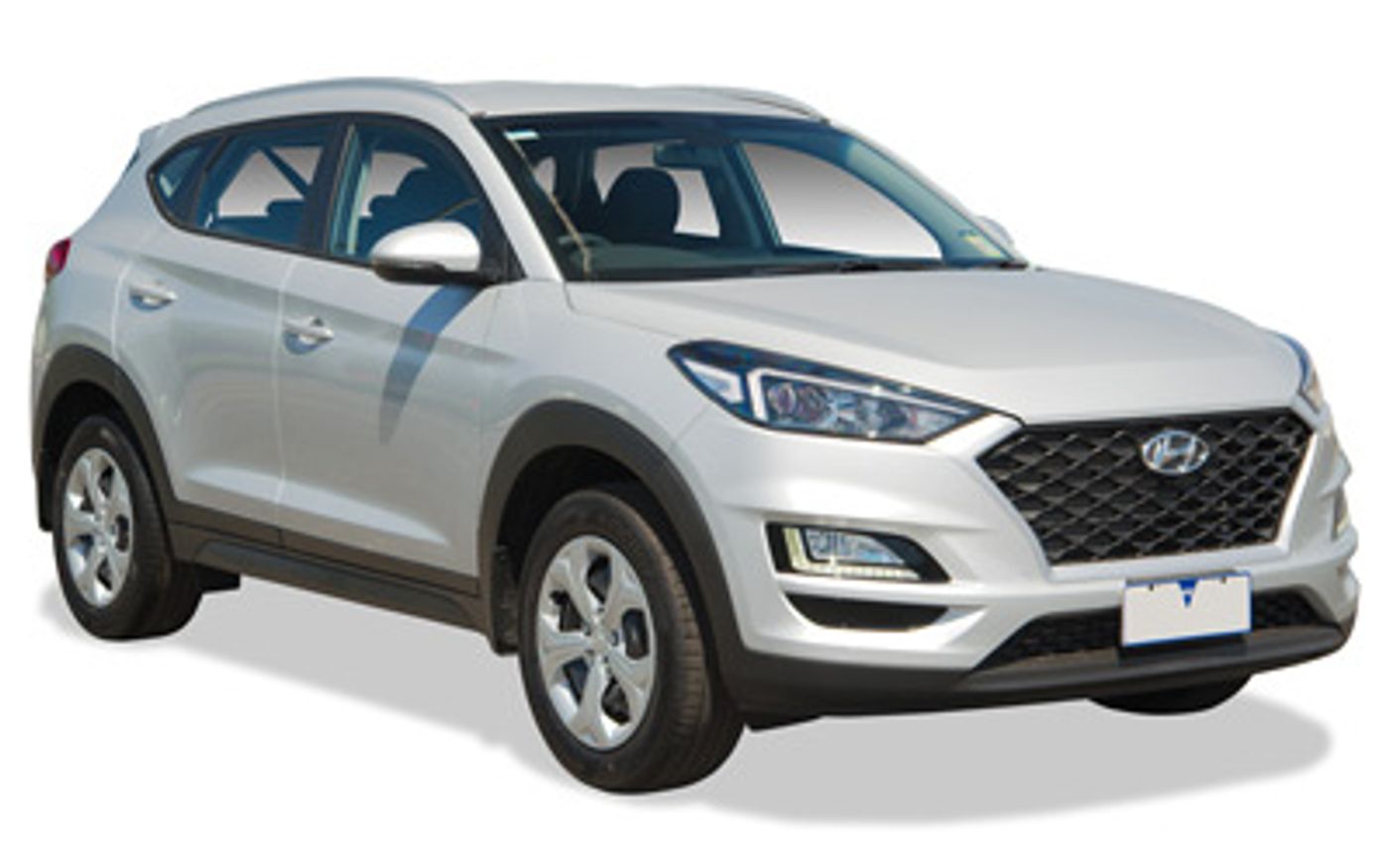

Hyundai Tucson Highlander (2020) price & specs
Save $$$ with CarExpert*
From
$46,850â€
Highlander
Overview
The 2020 Hyundai Tucson Highlander is a four-wheel drive, 5-door SUV that was released to the Australian market on 1st February 2020 classified as a TL3. with prices starting at $46,850 before on-road costs.
This Hyundai Tucson is powered by a 1.6L 4-cylinder engine that has 130 kW of power (at 5500 rpm) and 265 Nm of torque (at 1500 rpm) via a 7 SP MANUAL transmission. Hyundai claims the Tucson Highlander uses 7.7L/100km of Unleaded in the combined city and highway cycle while putting out 178g of CO2. It has a 62L fuel tank, meaning it should be able to travel 805km per full tank
The Hyundai Tucson measures 1660mm (65.4 inches) in height, 4480mm (176.4 inches) in length, 1850mm (72.8 inches) in width with a 2670mm (105.1 inches) wheelbase that brings about a total of 1666kg (3672.9 lbs) of unladen weight. The Tucson Highlander comes standard with 245/45 R19 front tyres and 245/45 R19 rear tyres. It requires a service every 6 months or 7,500 km, whichever comes first. It has a 60 month, unlimited km warranty.
The 2020 Hyundai Tucson Highlander has a 172mm ground clearance with a 1600kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Tucson compare?
Quickly see how the 2020 Hyundai Tucson Highlander stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
76.73 - 78.03 kW/t
59.56 kW/t
113.45 kW/t
Boot Space
488 litres
128 litres
720 litres
Fuel Efficiency
6.4 - 7.9 L/100km
1.5 L/100km
10.4 L/100km
Vehicle Range
785 - 969 km
658 km
1,170 km
Price
$29,290 - $49,150
$24,990
$56,390
Warranty (Years)
5 years
5 years
7 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
2 years
1 year
4 years
Service Interval
6 - 12 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,040 - 2,250 kg
1,835 kg
2,960 kg
Braked Towing Capacity
1,600 kg
480 kg
3,000 kg
Approach Angle
17.9°
16.7°
29.9°
Departure Angle
24.5°
16.4°
32.2°
Ground Clearance Unladen
172 mm
145 mm
230 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,480 mm
1,850 mm
1,660 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,480 mm |
| Overall Width | 1,850 mm |
| Overall Height | 1,660 mm |
| Wheelbase | 2,670 mm |
| Turning Circle | 11,000 mm |
| Load Capacity | 484 mm |
Looking for complete Hyundai Tucson size & space specs?
Our Hyundai Tucson Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Hyundai Tucson Sales rolling 12-months#
Explore Hyundai Tucson Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Cruise Control
Adaptive Cruise Control: yes
Stop Go Function: Stop & Go
Driver Modes
Engine Mapping: yes
Steering: yes
Media Control
Touch Screen: yes
Mobile Integration
Android Auto: yes
Apple Carplay: yes
Parking Assistance
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Type: Automatic
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Compressor
Compressor: Turbo
Number of Compressors: 1
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Combined): 178
Standard Met: EU5
Engine
Bore Engine: 77.0
Engine (cc): 1591
Engine Configuration: In-Line
Engine (L): 1.6
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 85.4
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 91
Minimum Fuel Type: Unleaded
Fuel Type: Unleaded
Octane Number: 91
Fuel System
Injection Carburetion: Petrol Direct Injection
Fuel Tanks
Main Capacity Gal: 16.4
Main Capacity (L): 62
Main Capacity Uk Gallons: 13.6
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 8.0
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 4.2
Low Tire Pressure Indicator
Displays Pressure Reading: yes
Rim Mounted Sensor: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 805
ADR 81/02 Calculated Vehicle Range (miles): 500
ADR 81/02 Combined (km/L): 13.0
ADR 81/02 Combined (L/100km): 7.7
ADR 81/02 Combined (miles per UK gallon): 37
ADR 81/02 Combined (mpg): 31
ADR 81/02 Country Highway (km/L): 15.4
ADR 81/02 Country Highway (L/100km): 6.5
ADR 81/02 Country Highway (miles per UK gallon): 44
ADR 81/02 Country Highway (mpg): 36
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 10.4
ADR 81/02 Urban (L/100km): 9.6
ADR 81/02 Urban (miles per UK gallon): 29
ADR 81/02 Urban (mpg): 25
Fuel Economy
ADR 81/02 (L/100km): 7.7
Power
Maximum Power (hp/PS): 177
Maximum Power (kW): 130
Maximum Torque (Nm): 265
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 5500
Rpm For Maximum Torque Low: 1500
Differential Lock
Location: Centre
Drive
Descent Control System: yes
Driven Wheels: 4x4
Four-Wheel Drive Type: Full And Part-Time
Selection: Manual & Automatic
Limited Slip Differential
Location: Rear
Rear Type: Electronic
Transmission
Automatic Mode: yes
Description: Dual Clutch Sequential Trans (Dct)
Manual Sequential: yes
Number of Speeds: 7
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Heated: yes
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 98
Location: Front
Front Wheels Tire Profile: 45
Front Wheels Tire Speed Rating: H
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 245
Rear Wheels Tire Load Index: 98
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 45
Rear Wheels Tire Speed Rating: H
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 245
Wheels
Location: Front
Front Wheels Rim Diameter (In): 19
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.5
Front Wheels Two Tone: yes
Location: Rear
Rear Rim Diameter (In): 19
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.5
Rear Two Tone: yes
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: Hyundai Xd
Wheelbase Type: Short
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Spoiler
Location: Roof
Cargo Capacity
Measurement Standard: VDA
Rear Seat Down (cu ft): 52.2
Rear Seat Down (L): 1478
Rear Seat Up to Lower Window (cu ft): 17.2
Rear Seat Up to Lower Window (L): 488
External Dimensions
Kerb to Kerb Turning Circle (mm): 11000
Front Track (in): 63.1
Front Track (mm): 1604
Ground Clearance Unladen (in): 6.8
Ground Clearance Unladen (mm): 172
Kerb To Kerb Turning Circle (ft): 36.1
Overall Height (in): 65.4
Overall Height (mm): 1660
Overall Length (in): 176.4
Overall Length (mm): 4480
Overall Width (in): 72.8
Overall Width (mm): 1850
Rear Track (in): 63.6
Rear Track (mm): 1615
Wheelbase (in): 105.1
Wheelbase (mm): 2670
Internal Dimensions
Front Headroom (in): 37.9
Front Headroom (mm): 963
Rear Headroom (in): 38.1
Rear Headroom (mm): 969
Front Hip Room (in): 55.6
Front Hip Room (mm): 1413
Rear Hip Room (in): 54.5
Rear Hip Room (mm): 1384
Rear Leg Room (in): 38.2
Rear Leg Room (mm): 970
Front Shoulder Room (in): 57.1
Front Shoulder Room (mm): 1450
Rear Shoulder Room (in): 55.5
Rear Shoulder Room (mm): 1410
Ramp Angles
Approach Angle: 17.9
Departure Angle: 24.5
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Hands Free Release: yes
Type: Lifting Gate
Headlight Control
Auto Highbeam: yes
Dusk Sensor: yes
Height Adjustment: Automatic
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: White
Type: Gloss
Sunroof
Front Sunroof Location: Front
Front Sunroof Operation: Electric
Front Sunroof Type: Glass
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 1600
Gross Trailer Weight Braked (lb): 3527
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2150
Gross Vehicle Weight (lb): 4740
Published Kerb Weight (kg): 1666
Published Kerb Weight (lb): 3673
Tare Weight (kg): 1627
Audio System
Colour Screen: yes
Digital Radio: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Brand: Infinity
Number of Speakers: 8
Subwoofer: yes
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Luxury Trim
Doors: Synthetic Leather
Gear Selector: Leather
Instrument Panel: Synthetic Leather
Airbags
Number of Airbags: 6
Autonomous Drive
Level: 1 - Driver Assistance
Crash Test Results
ANCAP Date Tested: 20150101
ANCAP Overall: 5.00
ANCAP Pedestrian: Marginal
ANCAP Rear Crash Protect Head Restraint Rating: Good
ANCAP Standard: Ancap
ANCAP Version Tested: 2.0 Gdi Petrol
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Lane Departure Warning
Activates Steering: yes
Overtaking Sensor
Manufacturer Name: Blind Spot Collision Warning
Rear Cross Traffic Collision Avoidance
Type: Sensor
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Electric
Location: Driver
Driver Front Seat Lumbar Type: Electric
Driver Front Seat Number of Electrical Adjustments: 5
Driver Front Seat Reach Type: Electric
Driver Front Seat Reclining Type: Electric
Driver Front Seat Type: Bucket
Driver Front Seat Ventilated: yes
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Heated: yes
Passenger Front Seat Height Type: Electric
Location: Passenger
Passenger Front Seat Number of Electrical Adjustments: 4
Passenger Front Seat Reach Type: Electric
Passenger Front Seat Reclining Type: Electric
Passenger Front Seat Type: Bucket
Passenger Front Seat Ventilated: yes
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Ventilation System
Digital Display: yes
Heater Type: Combustion
Power Locks
Automatic Locking: yes
Operation: Card Key
Intermediate Service
Distance (km): 7500
Distance (miles): 4660
Period (Months): 6
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
