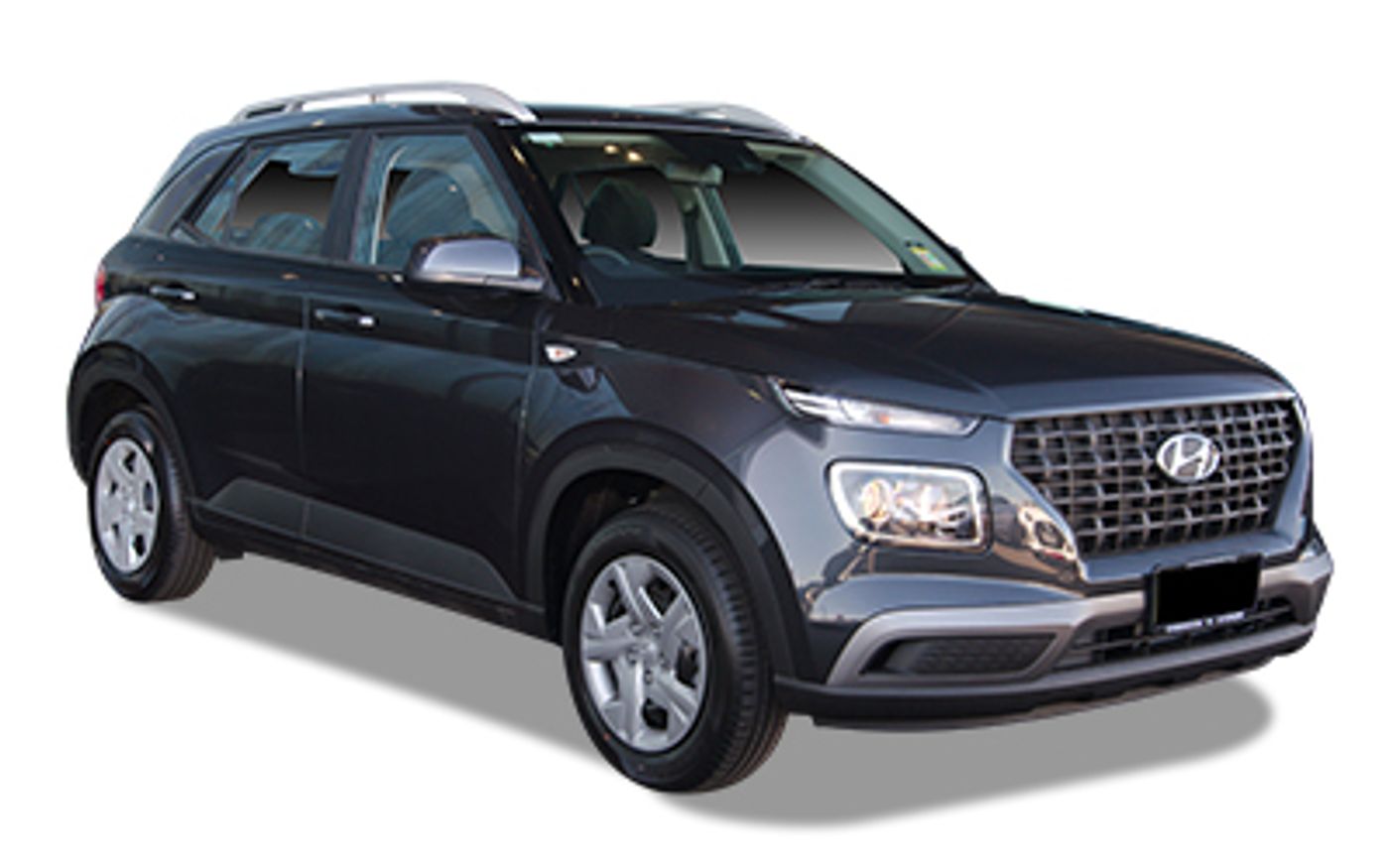

Hyundai Venue Launch Edition (2020) price & specs
Save $$$ with CarExpert*
From
$26,250â€
Launch Edition
Overview
The 2020 Hyundai Venue Launch Edition is a front-wheel drive, 5-door SUV that was released to the Australian market on 5th May 2020 classified as a QX. The Hyundai Venue is regarded as a small SUV built in Korea with prices starting at $26,250 before on-road costs.
This Hyundai Venue is powered by a 1.6L 4-cylinder engine that has 90 kW of power (at 6300 rpm) and 151 Nm of torque (at 4850 rpm) via a Six-speed Automatic transmission. Hyundai claims the Venue Launch Edition uses 7.2L/100km of Unleaded in the combined city and highway cycle while putting out 165g of CO2. It has a 45L fuel tank, meaning it should be able to travel 625km per full tank
The Hyundai Venue measures 1592mm (62.7 inches) in height, 4040mm (159.1 inches) in length, 1770mm (69.7 inches) in width with a 2520mm (99.2 inches) wheelbase that brings about a total of 1240kg (2733.7 lbs) of unladen weight. The Venue Launch Edition comes standard with 205/55 R17 front tyres and 205/55 R17 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
The 2020 Hyundai Venue Launch Edition has a 170mm ground clearance with a 800kg braked and 500kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Venue compare?
Quickly see how the 2020 Hyundai Venue Launch Edition stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
72.58 - 74.07 kW/t
58.22 kW/t
94.75 kW/t
Boot Space
355 litres
264 litres
551 litres
Fuel Efficiency
7 - 7.2 L/100km
3.8 L/100km
9.7 L/100km
Vehicle Range
625 - 643 km
610 km
1,053 km
Price
$19,990 - $26,250
$19,990
$65,290
Warranty (Years)
5 years
5 years
7 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
7 years
3 years
7 years
Service Interval
12 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
1,670 - 1,700 kg
1,600 kg
2,189 kg
Braked Towing Capacity
800 - 1,100 kg
400 kg
2,000 kg
Approach Angle
21.3°
15.8°
30.3°
Departure Angle
32°
22°
33.6°
Ground Clearance Unladen
170 mm
125 mm
225 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,040 mm
1,770 mm
1,592 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,040 mm |
| Overall Width | 1,770 mm |
| Overall Height | 1,592 mm |
| Wheelbase | 2,520 mm |
| Turning Circle | 10,200 mm |
| Load Capacity | 460 mm |
Looking for complete Hyundai Venue size & space specs?
Our Hyundai Venue Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Hyundai Venue Sales rolling 12-months#
Explore Hyundai Venue Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Driver Modes
Engine Mapping: yes
Traction Control: yes
Media Control
Touch Screen: yes
Wheel: yes
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: Unlimited
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Mirrorlink Months Subscription Included: 0
Other Months Subscription Included: 0
Parking Assistance
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Front
USB Charging Port
Location: Front
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Country Highway): 136
CO2 Level (Combined): 165
CO2 Level (Urban): 217
Standard Met: EU5
Engine
Bore Engine: 77.0
Engine (cc): 1591
Engine Configuration: In-Line
Engine Code: Gamma
Engine (L): 1.6
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 85.4
Variable Valve Timing Camshaft: yes
Interested in buying a Hyundai Venue Launch Edition?
Save $$$ with CarExpert*
From
$26,250â€
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 91
Minimum Fuel Type: Unleaded
Fuel Type: Unleaded
Octane Number: 91
Fuel System
Injection Carburetion: Multi-Point Injection
Fuel Tanks
Main Capacity Gal: 11.9
Main Capacity (L): 45
Main Capacity Uk Gallons: 9.9
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Range for Remaining Fuel: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 8.0
Dashboard Centre 1 Touch Screen: yes
Low Tire Pressure Indicator
Displays Pressure Reading: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 625
ADR 81/02 Calculated Vehicle Range (miles): 388
ADR 81/02 Combined (km/L): 13.9
ADR 81/02 Combined (L/100km): 7.2
ADR 81/02 Combined (miles per UK gallon): 39
ADR 81/02 Combined (mpg): 33
ADR 81/02 Country Highway (km/L): 16.9
ADR 81/02 Country Highway (L/100km): 5.9
ADR 81/02 Country Highway (miles per UK gallon): 48
ADR 81/02 Country Highway (mpg): 40
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 10.5
ADR 81/02 Urban (L/100km): 9.5
ADR 81/02 Urban (miles per UK gallon): 30
ADR 81/02 Urban (mpg): 25
Fuel Economy
ADR 81/02 (L/100km): 7.2
Power
Maximum Power (hp/PS): 122
Maximum Power (kW): 90
Maximum Torque (Nm): 151
Rpm For Maximum Power Low: 6300
Rpm For Maximum Torque Low: 4850
Drive
Driven Wheels: Front
Terrain Type Selection
Includes TR ESP Adjustment: yes
Transmission
Description: Automatic With Manual Mode
Manual Mode: yes
Number of Speeds: 6
Shift Lever Location: Floor
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Type: Torsion Beam
Rear Wheel Dependence: Semi-Independent
Tires
Front Wheels Tire Load Index: 91
Location: Front
Front Wheels Tire Profile: 55
Front Wheels Tire Speed Rating: H
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 205
Rear Wheels Tire Load Index: 91
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 55
Rear Wheels Tire Speed Rating: H
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 205
Wheels
Location: Front
Front Wheels Rim Diameter (In): 17
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 6.5
Front Wheels Two Tone: yes
Location: Rear
Rear Rim Diameter (In): 17
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 6.5
Rear Two Tone: yes
Cargo Capacity
Measurement Standard: VDA
Rear Seat Up to Lower Window (cu ft): 12.5
Rear Seat Up to Lower Window (L): 355
External Dimensions
Kerb to Kerb Turning Circle (mm): 10200
Front Track (in): 60.4
Front Track (mm): 1535
Ground Clearance Unladen (in): 6.7
Ground Clearance Unladen (mm): 170
Kerb To Kerb Turning Circle (ft): 33.5
Overall Height (in): 62.7
Overall Height (mm): 1592
Overall Length (in): 159.1
Overall Length (mm): 4040
Overall Width (in): 69.7
Overall Width (mm): 1770
Rear Track (in): 60.8
Rear Track (mm): 1545
Wheelbase (in): 99.2
Wheelbase (mm): 2520
Internal Dimensions
3rd Row Leg Room (in): 34.3
3rd Row Leg Room (mm): 870
Rear Leg Room (in): 41.3
Rear Leg Room (mm): 1050
Front Shoulder Room (in): 53.9
Front Shoulder Room (mm): 1370
Rear Shoulder Room (in): 53.7
Rear Shoulder Room (mm): 1365
Ramp Angles
Approach Angle: 21.3
Departure Angle: 32.0
Body Style
Body Type: SUV
Local Body Type: SUV
Wheelbase Type: Short
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Auto Highbeam: yes
Dusk Sensor: yes
Height Adjustment: Manual
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Ellipsoidal
LED Lights
Location: Day Time Running Lights
Location: Rear Lights
Paint
External Colour: Orange
Type: Metallic
Sunroof
Front Sunroof Location: Front
Front Sunroof Operation: Electric
Front Sunroof Type: Glass
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Gross Trailer Weight Braked (kg): 800
Gross Trailer Weight Braked (lb): 1764
Gross Trailer Weight Unbraked (kg): 500
Gross Trailer Weight Unbraked (lb): 1102
Gross Vehicle Weight (kg): 1700
Gross Vehicle Weight (lb): 3748
Published Kerb Weight (kg): 1240
Published Kerb Weight (lb): 2734
Tare Weight (kg): 1199
Audio System
Colour Screen: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Cargo Area Cover Rear Parcel Shelf
Type: Rigid
Luxury Trim
Doors: Synthetic Leather
Gear Selector: Leather
Airbags
Number of Airbags: 6
Crash Test Results
ANCAP Adult Occupant Score: 91.00
ANCAP Child Occupant Score: 81.00
ANCAP Date Tested: 20190101
ANCAP Overall: 4.00
ANCAP Pedestrian: Acceptable
ANCAP Pedestrian Score: 62.00
ANCAP Rating Year: 2019
ANCAP Safety Assist Score: 62.00
ANCAP Standard: Ancap
ANCAP Version Tested: 1.6 Mpi
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Lane Departure Warning
Activates Steering: yes
Maximum Speed For Operation (km/h): 160
Maximum Speed For Operation (mph): 110
Overtaking Sensor
Buzzer: yes
Rear Cross Traffic Collision Avoidance
Type: Sensor
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Type: Manual
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Thigh Support Type: Manual
Driver Front Seat Type: Bucket
Passenger Front Seat Height Type: Manual
Location: Passenger
Passenger Front Seat Lumbar Type: Manual
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Thigh Support Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 1
Ventilation System
Digital Display: yes
Heater Type: Combustion
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
