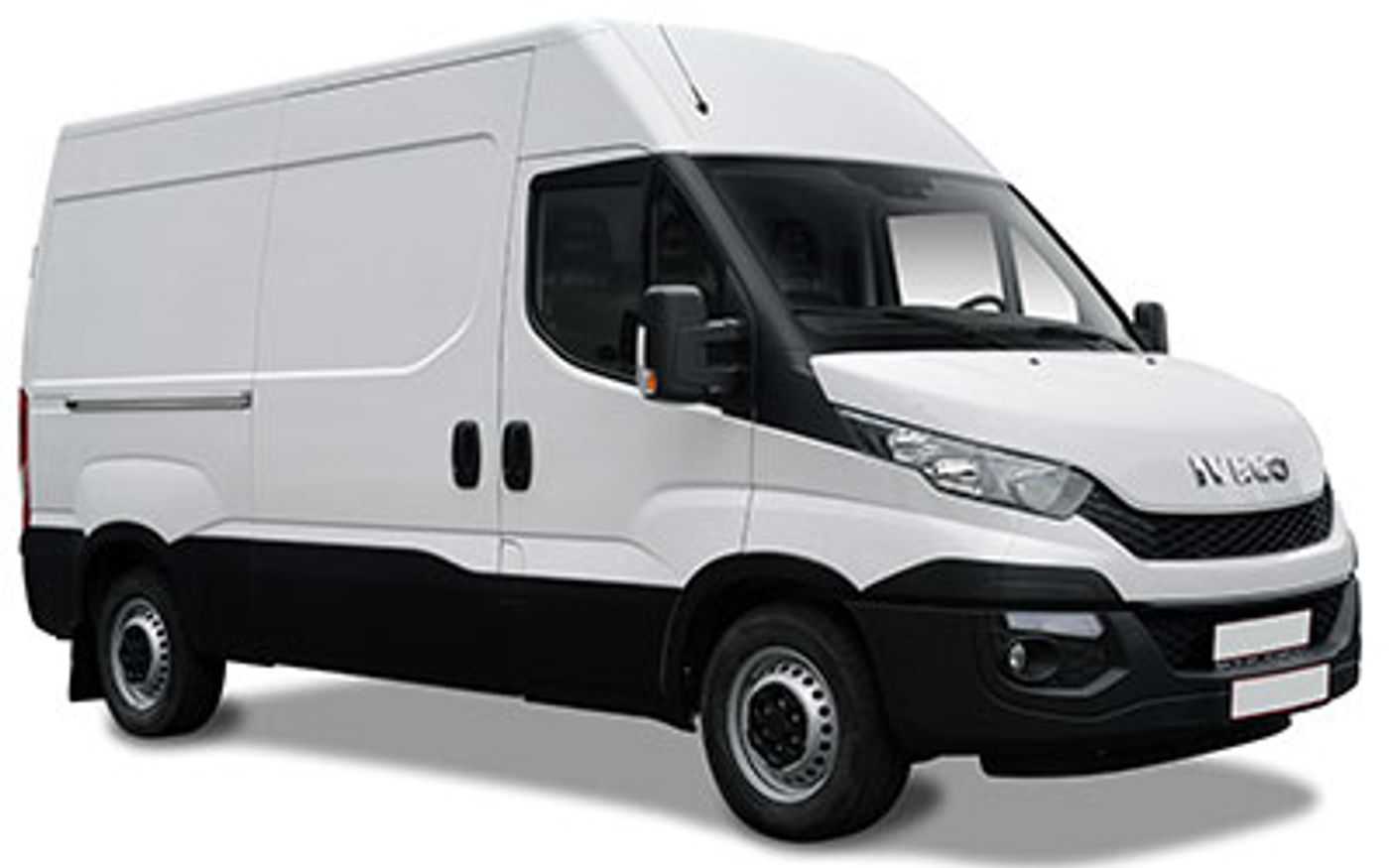

Iveco Daily Base (2014) price & specs
Save $$$ with CarExpert*
From
$49,501â€
Base
Overview
The 2014 Iveco Daily Base is a rear-wheel drive, 4-door Panel Van that was released to the Australian market on 2nd May 2015. The Iveco Daily is regarded as a Van Over 3.5t built in Italy with prices starting at $49,501 before on-road costs.
This Iveco Daily is powered by a 2.3L 4-cylinder engine that has 93 kW of power (at 3000 rpm) and 320 Nm of torque (at 1800 rpm) via a Six-speed Manual transmission. It has a 100L fuel tank
The Iveco Daily measures 2200mm (86.6 inches) in height, 5648mm (222.4 inches) in length, 2010mm (79.1 inches) in width with a 3520mm (138.6 inches) wheelbase that brings about a total of 2170kg (4784.0 lbs) of unladen weight. The Daily Base comes standard with 235/65 R16 front tyres and 235/65 R16 rear tyres. It has a 36 month, 200,000 km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Daily compare?
Quickly see how the 2014 Iveco Daily Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
38.4 - 61.01 kW/t
32.97 kW/t
66.67 kW/t
Price
$49,501 - $103,400
$38,000
$103,400
Warranty (Years)
3 years
3 years
Warranty (Distance)
200,000 km
200,000 km
Unlimited
Years on Sale
1 - 5 years
1 year
5 years
Service Interval
12 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
3,800 - 7,000 kg
3,510 kg
7,000 kg
Gross Comb. Mass
7,000 - 10,500 kg
5,550 kg
10,500 kg
Braked Towing Capacity
3,500 kg
2,000 kg
3,500 kg
Approach Angle
48°
48°
Departure Angle
39°
39°
Ground Clearance Unladen
165 - 177 mm
165 mm
219 mm
Payload Capacity
1,378 - 4,638 kg
945 kg
4,638 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,648 mm
2,010 mm
2,200 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,648 mm |
| Overall Width | 2,010 mm |
| Overall Height | 2,200 mm |
| Wheelbase | 3,520 mm |
| Turning Circle | 12,084 mm |
| Load Capacity | 1,630 mm |
Looking for complete Iveco Daily size & space specs?
Our Iveco Daily Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Iveco Daily Features & Specs
Bluetooth
Includes Phone Connection: yes
Driver Modes
Engine Mapping: yes
Parking Distance System
Location: Rear
Rear Type: Sensor
Power Outlet 12V
Location (12V): Front
Compressor
Compressor: Turbo
Emission Control Level
Standard Met: EU5
Engine
Bore Engine: 88.0
Engine (cc): 2286
Engine Configuration: In-Line
Engine Code: F1afl411b
Engine (L): 2.3
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 94.0
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 26.4
Main Capacity (L): 100
Main Capacity Uk Gallons: 22.0
Main Type: Total
Fuel Consumption
ADR 81/02 Standard: Adr 81/02
Power
Maximum Power (hp/PS): 126
Maximum Power (kW): 93
Maximum Torque (Nm): 320
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3000
Rpm For Maximum Torque Low: 1800
Drive
Driven Wheels: Rear
Transmission
Code: Fpt 2835.6 Dod
Description: Manual
Number of Speeds: 6
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Hydraulic
Steering Wheel
Telescopic Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Leaf
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Stabilizer Bar: yes
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Location: Front
Front Wheels Tire Profile: 65
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 235
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 65
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 235
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.5
Location: 1
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.5
Body Style
Body Type: Panel Van
Cab Type: Single Cab
Local Body Type: Panel Van
Platform Code: X70
Roof Type: Standard
Wheelbase Type: Medium
Step
Step Location: Rear
Rear Step Type: Platform
Bumpers
Front Bumper Colour: Black
Location: Front
Rear Bumper Colour: Black
Location: Rear
Cargo Area Dimensions
Cargo Volume (cu ft): 317.8
Cargo Volume (L): 9000
Height (in): 60.8
Height (mm): 1740
Length (in): 123.2
Length (mm): 3130
Loading Floor Height (in): 26.6
Loading Floor Height (mm): 675
Standard Measurement: Manufacturer'S Own
Width Between Wheelhouses (in): 51.9
Width Between Wheelhouses (mm): 1317
Width (in): 68.5
Width (mm): 1740
External Dimensions
Kerb to Kerb Turning Circle (mm): 12084
Front Overhang (in): 39.7
Front Overhang (mm): 1008
Front Track (in): 68.5
Front Track (mm): 1740
Kerb To Kerb Turning Circle (ft): 39.6
Overall Height (in): 86.6
Overall Height (mm): 2200
Overall Length (in): 222.4
Overall Length (mm): 5648
Overall Width (in): 79.1
Overall Width (mm): 2010
Rear Overhang (in): 44.1
Rear Overhang (mm): 1120
Rear Track (in): 67.1
Rear Track (mm): 1704
Wall to Wall Turning Circle (ft): 41.8
Wall to Wall Turning Circle (mm): 12744
Wheelbase (in): 138.6
Wheelbase (mm): 3520
Cargo Doors
Passenger Height (in): 56.7
Passenger Height (mm): 1440
Location: Passenger
Passenger Operation: Sliding
Passenger Width (in): 43.3
Passenger Width (mm): 1100
Rear Height (in): 57.1
Rear Height (mm): 1450
Location: Rear
Rear Opening Angle: 270
Rear Operation: Double Hinged
Rear Width (in): 60.2
Rear Width (mm): 1530
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Headlight Control
Height Adjustment: Manual
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Windshield Wipers
Intermittent Wipe Windshield Wipers: Fixed
Weights
Front Axle Weight (kg): 1900
Front Axle Weight (lb): 4189
Gross Trailer Weight Braked (kg): 3500
Gross Trailer Weight Braked (lb): 7716
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 7000
Gross Train Weight (lb): 15432
Gross Vehicle Weight (kg): 3800
Gross Vehicle Weight (lb): 8378
Payload Allowance (kg): 1630
Payload Allowance (lb): 3594
Published Kerb Weight (kg): 2170
Published Kerb Weight (lb): 4784
Rear Axle Weight (kg): 2430
Rear Axle Weight (lb): 5357
Tare Weight (kg): 2119
Audio System
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 4
Bulkhead
Solid Bulkhead Height: Full
Type: Solid
Solid Bulkhead Width: Full
Solid Bulkhead Window: yes
Overall Bulkhead Size
Full Height: yes
Full Width: yes
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Airbags
Number of Airbags: 4
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Seat Position: Center
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Side Curtain Airbag
Location: Front
Front Seat
Location: Centre
Center Front Seat Type: Bench
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Type: Manual
Driver Front Seat Reach Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Type: Bench
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 3
Configuration: 3+0
Cup Holders
Location: Front Seats
Air Conditioning
Type: Fully-Auto
Ventilation System
Digital Display: yes
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 40000
Distance (miles): 24855
