Chequered Flag
2.0L, 8-speed auto, 5-door Station Wagon, Diesel, RWD
Save $$$ with CarExpert*
$101,700â€

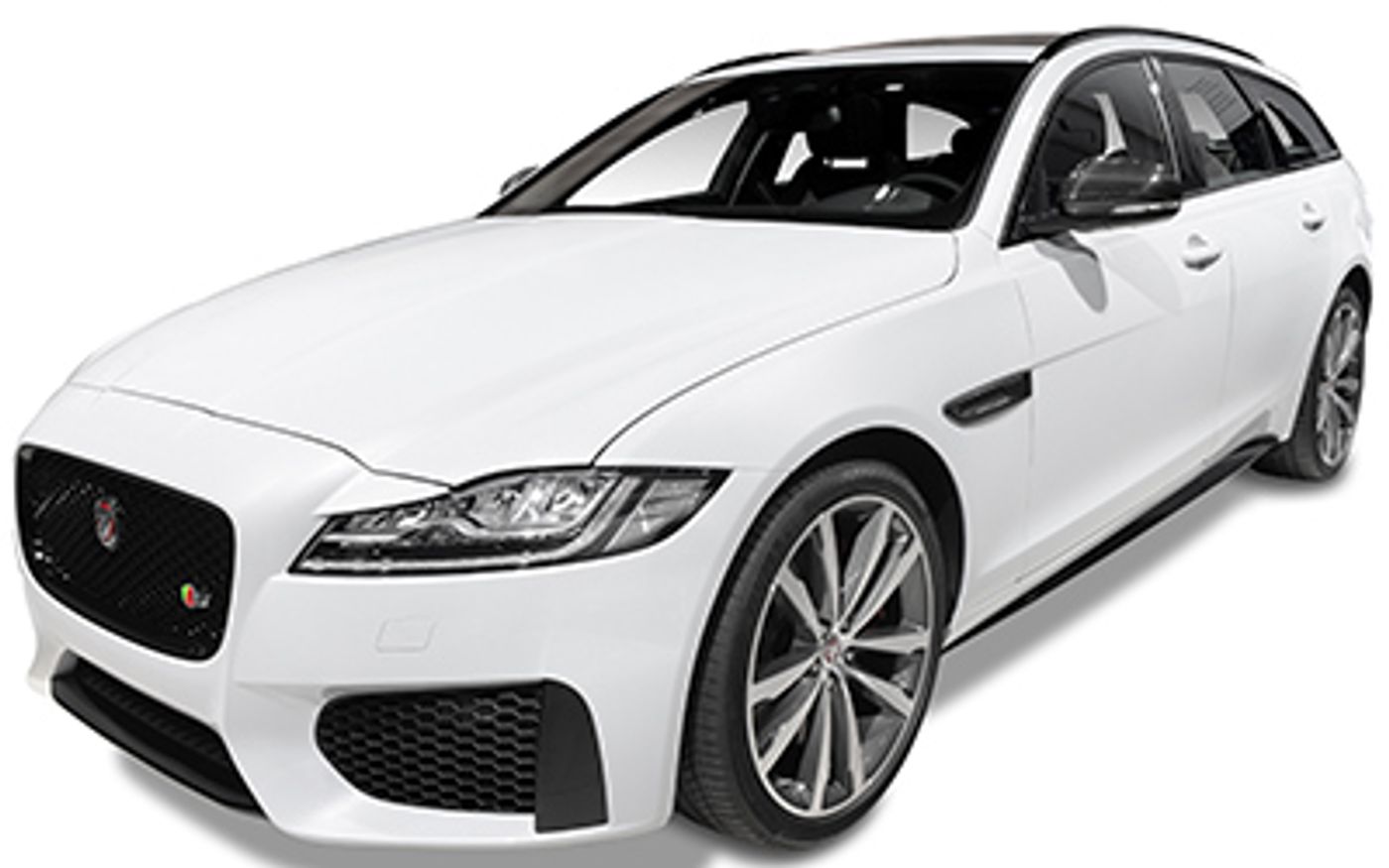

Jaguar XF Chequered Flag (2020) price & specs
Save $$$ with CarExpert*
From
$101,700â€
Chequered Flag
Overview
The 2020 Jaguar XF Chequered Flag is a rear-wheel drive, 5-door Station Wagon that was released to the Australian market on 5th March 2019. The Jaguar XF is regarded as a Large Luxury built in Great Britain with prices starting at $101,700 before on-road costs.
This Jaguar XF is powered by a 2.0L 4-cylinder engine that has 132 kW of power (at 4000 rpm) and 430 Nm of torque (at 1750 rpm) via an Eight-speed Automatic transmission. Jaguar claims the XF Chequered Flag uses 5.7L/100km of Diesel in the combined city and highway cycle while putting out 151g of CO2. It has a 66L fuel tank, meaning it should be able to travel 1158km per full tank
The Jaguar XF measures 1496mm (58.9 inches) in height, 4955mm (195.1 inches) in length, 1880mm (74.0 inches) in width with a 2960mm (116.5 inches) wheelbase that brings about a total of 1854kg (4087.4 lbs) of unladen weight. The XF Chequered Flag comes standard with 245/40 R19 front tyres and 245/40 R19 rear tyres. It requires a service every 24 months or 34,000 km, whichever comes first. It has a 36 month, 100,000 km warranty.
The 2020 Jaguar XF Chequered Flag has a 116mm ground clearance with a 2000kg braked and nullkg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the XF compare?
Quickly see how the 2020 Jaguar XF Chequered Flag stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
71.2 - 152.01 kW/t
71.2 kW/t
221.84 kW/t
Boot Space
540 - 565 litres
424 litres
570 litres
Fuel Efficiency
5.6 - 8.3 L/100km
5.6 L/100km
11.7 L/100km
Vehicle Range
892 - 1,179 km
611 km
1,179 km
Price
$81,388 - $130,700
$81,388
$224,000
Warranty (Years)
3 years
3 years
5 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Years on Sale
4 years
2 years
3 years
Service Interval
12 - 24 months
12 months
24 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,260 - 2,430 kg
2,260 kg
2,740 kg
Braked Towing Capacity
1,900 - 2,000 kg
1,900 kg
2,100 kg
Ground Clearance Unladen
110 - 119 mm
93 mm
131 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,955 mm
1,880 mm
1,496 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,955 mm |
| Overall Width | 1,880 mm |
| Overall Height | 1,496 mm |
| Wheelbase | 2,960 mm |
| Turning Circle | 11,610 mm |
| Load Capacity | 466 mm |
Looking for complete Jaguar XF size & space specs?
Our Jaguar XF Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Jaguar XF Sales rolling 12-months#
Explore Jaguar XF Features & Specs
Ashtray
Location: Front
Automatic Door Closing
Side Doors: yes
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Cigar Lighter
Location: Front Seats
Cruise Control
Steering Wheel Mounted Controls: yes
Driver Modes
Engine Mapping: yes
Stability Control: yes
Steering: yes
Traction Control: yes
Entertainment Display Screen
Front Digital Television: yes
Location: Front
Front Screen Size (in): 10.2
Front Touch Screen: yes
Media Control
Touch Screen: yes
Memorised Adjustment
Door Mirror Position: yes
Wheel Position: yes
Mobile Integration
Android Auto: yes
Apple Carplay: yes
Parking Assistance
Location: Front
Front Type: Guidance Display
Location: Rear
Rear Type: Full Auto Park & Perpendicular & Exit
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Location: Side
Side Type: Sensor
Power Outlet 12V
Location (12V): Boot/Cargo
Number of Outlets in Boot Cargo (12V): 1
Location (12V): Front
Location (12V): Rear
Number of Outlets in Rear (12V): 1
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Type: Automatic
Telematics
Advanced Auto Collision Notification: yes
Connection Type: Via Sim In Vehicle
Trailer Assist
Hitch: yes
Trailer Reversing Aid: yes
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Vehicle 360 View Camera
Manufacturer Name: Surround Camera System
Compressor
Compressor: Turbo
Number of Compressors: 1
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Combined): 151
Standard Met: EU6
Energy Recuperation
Engine: yes
Engine
Bore Engine: 83.0
Engine (cc): 1999
Engine Configuration: In-Line
Engine Code: Aj20-D4m
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 92.4
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 17.4
Main Capacity (L): 66
Main Capacity Uk Gallons: 14.5
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Range for Remaining Fuel: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 10.2
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 12.3
Instrument Cluster
Reconfigurable: yes
Low Tire Pressure Indicator
Displays Pressure Reading: yes
Rim Mounted Sensor: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 1158
ADR 81/02 Calculated Vehicle Range (miles): 720
ADR 81/02 Combined (km/L): 17.5
ADR 81/02 Combined (L/100km): 5.7
ADR 81/02 Combined (miles per UK gallon): 50
ADR 81/02 Combined (mpg): 41
ADR 81/02 Country Highway (km/L): 20.0
ADR 81/02 Country Highway (L/100km): 5.0
ADR 81/02 Country Highway (miles per UK gallon): 57
ADR 81/02 Country Highway (mpg): 47
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 14.3
ADR 81/02 Urban (L/100km): 7.0
ADR 81/02 Urban (miles per UK gallon): 40
ADR 81/02 Urban (mpg): 34
Fuel Economy
ADR 81/02 (L/100km): 5.7
Performance
Acceleration 0 To 100 km/h: 8.5
Maximum Speed (km/h): 219
Maximum Speed (mph): 136
Power
Maximum Power (hp/PS): 180
Maximum Power (kW): 132
Maximum Torque (Nm): 430
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 4000
Rpm For Maximum Torque Low: 1750
Drive
Driven Wheels: Rear
Transmission
Code: Zf 8hp45
Description: Automatic With Manual Mode
Gear Change Paddles: yes
Manual Mode: yes
Number of Speeds: 8
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 4
Power Steering
Variable Rack: yes
Vehicle Speed Proportional: yes
Steering Wheel
Electric Adjustment: yes
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Alloy & Leather
Alternate Suspension
Type: Sport
Responsive Suspension
Adjustable Anti Roll Bar: yes
Driver Selectable: yes
Type: Electronic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: air
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Suspension Levelling
Location: Rear
Rear Operation: Automatic
Tires
Front Wheels Tire Diameter: 19
Front Wheels Tire Load Index: 98
Location: Front
Front Wheels Tire Official Brochure Tire Size: yes
Front Wheels Tire Profile: 40
Front Wheels Tire Speed Rating: Y
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 245
Rear Wheels Tire Diameter: 19
Rear Wheels Tire Load Index: 98
Rear Wheels Tire Location: Rear
Rear Wheels Tire Official Brochure Tire Size: yes
Rear Wheels Tire Profile: 40
Rear Wheels Tire Speed Rating: Y
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 245
Wheels
Location: Front
Front Locking Wheel Nuts: yes
Front Wheels Rim Diameter (In): 19
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 8.0
Location: Rear
Rear Locking Wheel Nuts: yes
Rear Rim Diameter (In): 19
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 8.0
Body Style
Body Type: Station Wagon
Local Body Type: Station Wagon
Platform Code: Iq[Al] / D7a
Wheelbase Type: Short
Spoiler
Location: Roof
Cargo Capacity
Measurement Standard: SAE
Rear Seat Down (cu ft): 60.0
Rear Seat Down (L): 1700
Rear Seat Up to Lower Window (cu ft): 20.0
Rear Seat Up to Lower Window (L): 565
External Dimensions
Kerb to Kerb Turning Circle (mm): 11610
Front Track (in): 63.2
Front Track (mm): 1605
Ground Clearance Unladen (in): 4.6
Ground Clearance Unladen (mm): 116
Kerb To Kerb Turning Circle (ft): 38.1
Overall Height (in): 58.9
Overall Height (mm): 1496
Overall Length (in): 195.1
Overall Length (mm): 4955
Overall Width (in): 74.0
Overall Width (mm): 1880
Rear Track (in): 63.3
Rear Track (mm): 1607
Wall to Wall Turning Circle (ft): 39.2
Wall to Wall Turning Circle (mm): 11940
Wheelbase (in): 116.5
Wheelbase (mm): 2960
Internal Dimensions
Front Headroom (in): 39.0
Front Headroom (mm): 991
Rear Headroom (in): 39.1
Rear Headroom (mm): 994
Front Leg Room (in): 41.5
Front Leg Room (mm): 1055
Rear Leg Room (in): 37.2
Rear Leg Room (mm): 945
Front Shoulder Room (in): 57.1
Front Shoulder Room (mm): 1450
Rear Shoulder Room (in): 54.9
Rear Shoulder Room (mm): 1394
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Dusk Sensor: yes
Height Adjustment: Automatic
Internal Height Adjustment: yes
Manufacturer Name: Adaptive Led Headlamps
Headlights
High Beam Bulb Type: Bi-Xenon
Low Beam Bulb Type: Bi-Xenon
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: Black
Type: Metallic
Blind
Location: Side
Side Blind Type: Manual
Door Mirrors/Cameras
Auto-Dimming Driver Door Mirrors: yes
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Auto-Dimming Passenger Door Mirrors: yes
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors Tilting for Reverse: Automatic
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Electrically Foldable Mirrors
Operation: Electric
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 2000
Gross Trailer Weight Braked (lb): 4409
Gross Vehicle Weight (kg): 2320
Gross Vehicle Weight (lb): 5115
Published Kerb Weight (kg): 1854
Published Kerb Weight (lb): 4087
Tare Weight (kg): 1789
Audio System
Colour Screen: yes
Radio Type: Am/Fm
Touch Screen: yes
Wireless Headphones: yes
External Connections
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Brand: Meridian
Number of Speakers: 11
Subwoofer: yes
Luxury Trim
Centre Floor Console: Wood & Alloy
Doors: Wood & Alloy
Gear Selector: Alloy
Instrument Panel: Wood & Alloy
Airbags
Number of Airbags: 6
Autonomous Drive
Level: 1 - Driver Assistance
Crash Test Results
ANCAP Date Tested: 20150101
ANCAP Overall: 5.00
ANCAP Pedestrian: Good
ANCAP Standard: Ancap
ANCAP Version Tested: 2.0 Diesel
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Overtaking Sensor
Manufacturer Name: Blind Spot Assist
Rear Cross Traffic Collision Avoidance
Type: Sensor & Camera
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Height Type: Memory
Location: Driver
Driver Front Seat Lumbar Type: 2-Way Electric
Driver Front Seat Number of Electrical Adjustments: 6
Driver Front Seat Reach Type: Memory
Driver Front Seat Reclining Type: Memory
Driver Front Seat Type: Bucket
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Fore/Aft Adjustment: yes
Passenger Front Seat Height Adjustment: yes
Passenger Front Seat Height Type: Electric
Location: Passenger
Passenger Front Seat Lumbar Type: 2-Way Electric
Passenger Front Seat Number of Electrical Adjustments: 6
Passenger Front Seat Reach Type: Electric
Passenger Front Seat Reclining: yes
Passenger Front Seat Reclining Type: Electric
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Leather
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Rear Outlet: yes
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Ventilation System
Automatic Recirculation: yes
Digital Display: yes
Heater Type: Combustion
Manufacturer Name: Air Quality Sensor
Power Locks
Automatic Locking: yes
Includes Power Windows: yes
Operation: Card Key
Intermediate Service
Distance (km): 34000
Distance (miles): 21127
Period (Months): 24
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
