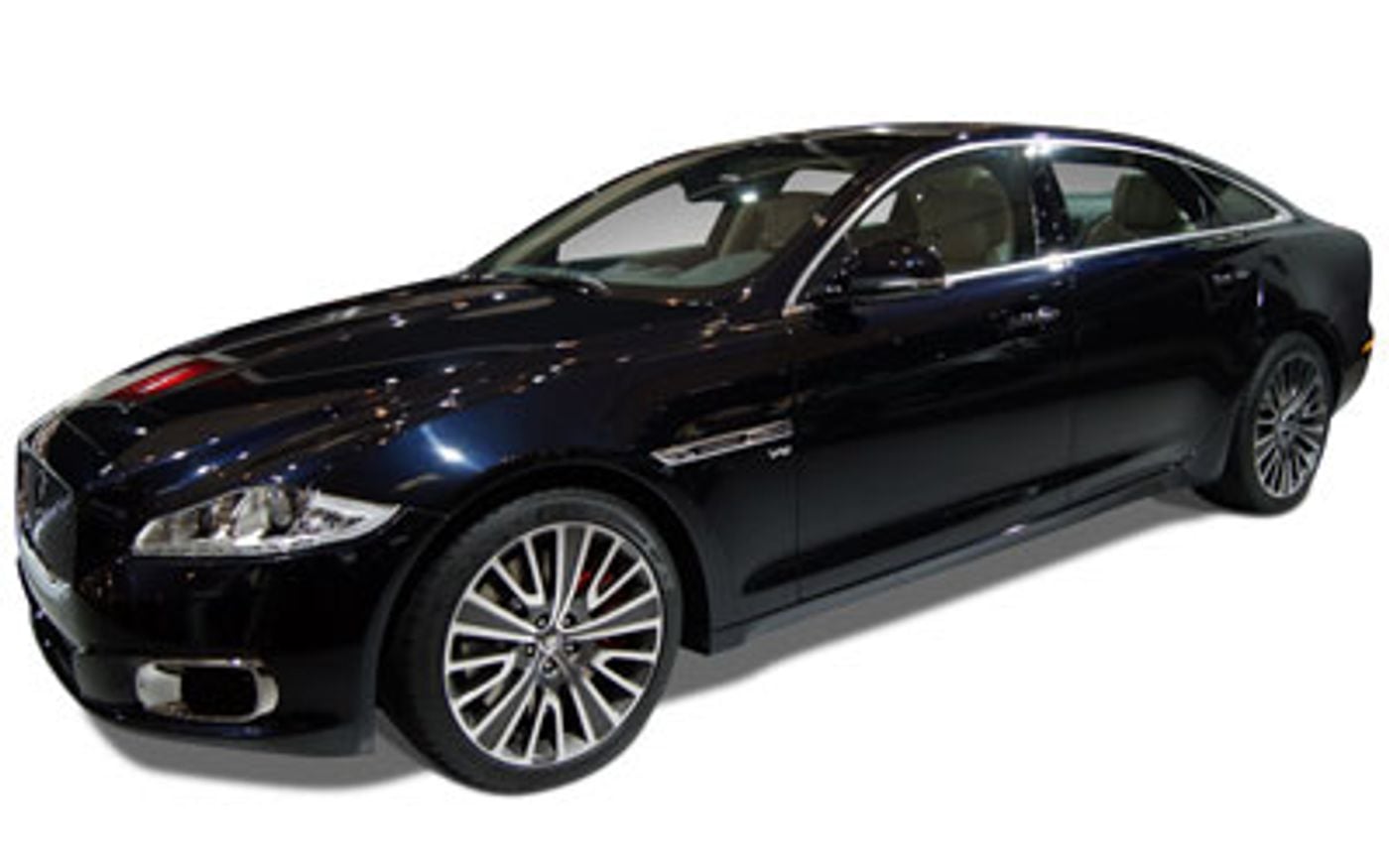

Jaguar XJ R (2016) price & specs
Save $$$ with CarExpert*
From
$300,275â€
Overview
The 2016 Jaguar XJ R is a rear-wheel drive, 4-door Sedan that was released to the Australian market on 3rd December 2015. The Jaguar XJ is regarded as a Luxury built in Great Britain with prices starting at $300,275 before on-road costs.
This Jaguar XJ is powered by a 5.0L 8-cylinder engine that has 404 kW of power (at 6500 rpm) and 680 Nm of torque (at 2500 rpm) via an Eight-speed Automatic transmission. Jaguar claims the XJ R uses 11.1L/100km of Premium Unleaded in the combined city and highway cycle while putting out 270g of CO2. It has a 82L fuel tank, meaning it should be able to travel 739km per full tank
The Jaguar XJ measures 1456mm (57.3 inches) in height, 5127mm (201.9 inches) in length, 1899mm (74.8 inches) in width with a 3032mm (119.4 inches) wheelbase that brings about a total of 1870kg (4122.6 lbs) of unladen weight. The XJ R comes standard with 265/30 R20 front tyres and 295/30 R20 rear tyres. It requires a service every 12 months or 26,000 km, whichever comes first. It has a 36 month, unlimited km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the XJ compare?
Quickly see how the 2016 Jaguar XJ R stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
121.1 - 216.04 kW/t
84.37 kW/t
216.04 kW/t
Boot Space
520 litres
335 litres
530 litres
Fuel Efficiency
5.7 - 11.1 L/100km
2.2 L/100km
14.6 L/100km
Vehicle Range
739 - 1,439 km
625 km
1,592 km
Price
$201,615 - $300,275
$139,900
$733,386
Warranty (Years)
3 years
3 years
4 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Service Interval
12 months
12 months
36 months
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,127 mm
1,899 mm
1,456 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,127 mm |
| Overall Width | 1,899 mm |
| Overall Height | 1,456 mm |
| Wheelbase | 3,032 mm |
| Turning Circle | 11,900 mm |
| Load Capacity | 480 mm |
Looking for complete Jaguar XJ size & space specs?
Our Jaguar XJ Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Jaguar XJ Features & Specs
Automatic Door Closing
Rear Boot Hatch: yes
Side Doors: yes
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Driver Modes
Engine Mapping: yes
Stability Control: yes
Traction Control: yes
Entertainment Display Screen
Front Digital Television: yes
Front Dual-View Screen: yes
Front DVD: yes
Location: Front
Front Screen Size (in): 8.0
Front Touch Screen: yes
Memorised Adjustment
Door Mirror Position: yes
Wheel Position: yes
Parking Assistance
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Location: Side
Side Type: Sensor & Camera
Power Outlet 12V
Location (12V): Front
Location (12V): Rear
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Includes Memory Seat Adjustments: yes
Type: Automatic
Trailer Assist
Hitch: yes
Trailer Reversing Aid: yes
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Vehicle 360 View Camera
Manufacturer Name: Surround Camera System
Voice Activating System
Includes Air Conditioning: yes
Includes Audio Player: yes
Includes Navigation System: yes
Includes Phone: yes
Compressor
Compressor: Supercharger
Emission Control Level
Australia Air Pollution Rating: 6.5
Australia Greenhouse Rating: 4.5
Australia Overall Emission Control Level Rating: 3.0
CO2 Level (Combined): 270
Standard Met: EU5
Engine
Bore Engine: 92.5
Engine (cc): 5000
Engine Configuration: V
Engine Code: Aj133
Engine (L): 5.0
Number of Cylinders: 8
Number of Valves per Cylinder: 4
Stroke Engine: 93.0
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Type: Premium Unleaded
Fuel Type: Premium Unleaded
Fuel System
Injection Carburetion: Petrol Direct Injection
Fuel Tanks
Main Capacity Gal: 21.7
Main Capacity (L): 82
Main Capacity Uk Gallons: 18.0
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: ?
Number of Screens: 2
Screen Size (in): 12.3
Touch Screen: yes
Instrument Cluster
Reconfigurable: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 739
ADR 81/02 Calculated Vehicle Range (miles): 459
ADR 81/02 Combined (km/L): 9.0
ADR 81/02 Combined (L/100km): 11.1
ADR 81/02 Combined (miles per UK gallon): 25
ADR 81/02 Combined (mpg): 21
ADR 81/02 Country Highway (km/L): 12.2
ADR 81/02 Country Highway (L/100km): 8.2
ADR 81/02 Country Highway (miles per UK gallon): 34
ADR 81/02 Country Highway (mpg): 29
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 6.2
ADR 81/02 Urban (L/100km): 16.2
ADR 81/02 Urban (miles per UK gallon): 17
ADR 81/02 Urban (mpg): 15
Fuel Economy
ADR 81/02 (L/100km): 11.1
Performance
Acceleration 0 To 100 km/h: 4.6
Maximum Speed (km/h): 280
Maximum Speed (mph): 174
Power
Maximum Power (hp/PS): 549
Maximum Power (kW): 404
Maximum Torque (Nm): 680
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 6500
Rpm For Maximum Torque Low: 2500
Active Differential
Location: Rear
Drive
Driven Wheels: Rear
Transmission
Code: Zf8hp
Description: Automatic With Manual Mode
Gear Change Paddles: yes
Manual Mode: yes
Number of Speeds: 8
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 4
Power Steering
Variable Rack: yes
Vehicle Speed Proportional: yes
Steering Wheel
Electric Adjustment: yes
Heated: yes
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Responsive Suspension
Type: Electronic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: air
Rear Stabilizer Bar: yes
Rear Type: Wishbone
Rear Wheel Dependence: Independent
Suspension Levelling
Location: Rear
Tires
Front Wheels Tire Load Index: 99
Location: Front
Front Wheels Tire Profile: 35
Front Wheels Tire Speed Rating: Y
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 265
Rear Wheels Tire Load Index: 101
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 30
Rear Wheels Tire Speed Rating: Y
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 295
Wheels
Location: Front
Front Wheels Rim Diameter (In): 20
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 9.0
Location: Rear
Rear Rim Diameter (In): 20
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 10.0
Body Style
Body Type: Sedan
Local Body Type: Sedan
Platform Code: X351
Wheelbase Type: Short
Spoiler
Location: Boot/Hatch
Bumpers
Location: Front
Location: Rear
Cargo Capacity
Measurement Standard: VDA
Rear Seat Up to Lower Window (cu ft): 18.4
Rear Seat Up to Lower Window (L): 520
External Dimensions
Kerb to Kerb Turning Circle (mm): 11900
Front Track (in): 64.0
Front Track (mm): 1626
Kerb To Kerb Turning Circle (ft): 39.0
Overall Height (in): 57.3
Overall Height (mm): 1456
Overall Length (in): 201.9
Overall Length (mm): 5127
Overall Width (in): 74.8
Overall Width (mm): 1899
Rear Track (in): 63.1
Rear Track (mm): 1604
Wheelbase (in): 119.4
Wheelbase (mm): 3032
Internal Dimensions
Front Headroom (in): 39.5
Front Headroom (mm): 1004
Rear Headroom (in): 37.2
Rear Headroom (mm): 946
Front Leg Room (in): 41.5
Front Leg Room (mm): 1055
Rear Leg Room (in): 38.9
Rear Leg Room (mm): 988
Front Shoulder Room (in): 57.6
Front Shoulder Room (mm): 1464
Rear Shoulder Room (in): 56.6
Rear Shoulder Room (mm): 1437
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Headlight Control
Auto Highbeam: yes
Directional Headlights: yes
Dusk Sensor: yes
Height Adjustment: Automatic
Internal Height Adjustment: yes
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: White
Type: Metallic
Sunroof
Front Sunroof Location: Front
Front Sunroof Operation: Electric
Front Sunroof Type: Glass
Blind
Location: Rear
Rear Blind Type: Electric
Door Mirrors/Cameras
Auto-Dimming Driver Door Mirrors: yes
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Auto-Dimming Passenger Door Mirrors: yes
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors Tilting for Reverse: Automatic
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Rain Sensor Windshield Wipers: yes
Weights
Gross Vehicle Weight (kg): 2350
Gross Vehicle Weight (lb): 5181
Published Kerb Weight (kg): 1870
Published Kerb Weight (lb): 4123
Audio System
CD Player Reads MP3: yes
Colour Screen: yes
In-Dash CD: yes
In-Dash DVD: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
Aux Jack (Front): yes
Aux Jack (Rear): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Brand: Meridian
Number of Speakers: 20
Subwoofer: yes
Luxury Trim
Centre Floor Console: Piano Black
Doors: Leather
Gear Selector: Alloy
Handbrake Grip: Alloy Or Alloy Look
Instrument Panel: Piano Black
Airbags
Number of Airbags: 6
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Active: yes
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Memory
Location: Driver
Driver Front Seat Lumbar Type: Electric
Driver Front Seat Number of Electrical Adjustments: 8
Driver Front Seat Reach Type: Memory
Driver Front Seat Reclining Type: Memory
Driver Front Seat Thigh Support Type: Memory
Driver Front Seat Type: Sports
Driver Front Seat Ventilated: yes
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Heated: yes
Passenger Front Seat Height Type: Memory
Location: Passenger
Passenger Front Seat Lumbar Type: Electric
Passenger Front Seat Number of Electrical Adjustments: 8
Passenger Front Seat Reach Type: Memory
Passenger Front Seat Reclining Type: Memory
Passenger Front Seat Thigh Support Type: Memory
Passenger Front Seat Type: Sports
Passenger Front Seat Ventilated: yes
Seat Upholstery
Additional Seat Material: Leather
Main Seat Material: Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 4
Rear Control For Climate Control: yes
Secondary Ventilation Controls
Individual Rear Location: Individual Rear
Passenger Seat Location: Passenger Seat
Ventilation System
Digital Display: yes
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 26000
Distance (miles): 16156
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
