Renegade Extreme Sport
2.8L, 5-speed auto, 5-door SUV, Diesel, 4x4
Save $$$ with CarExpert*
$42,590â€

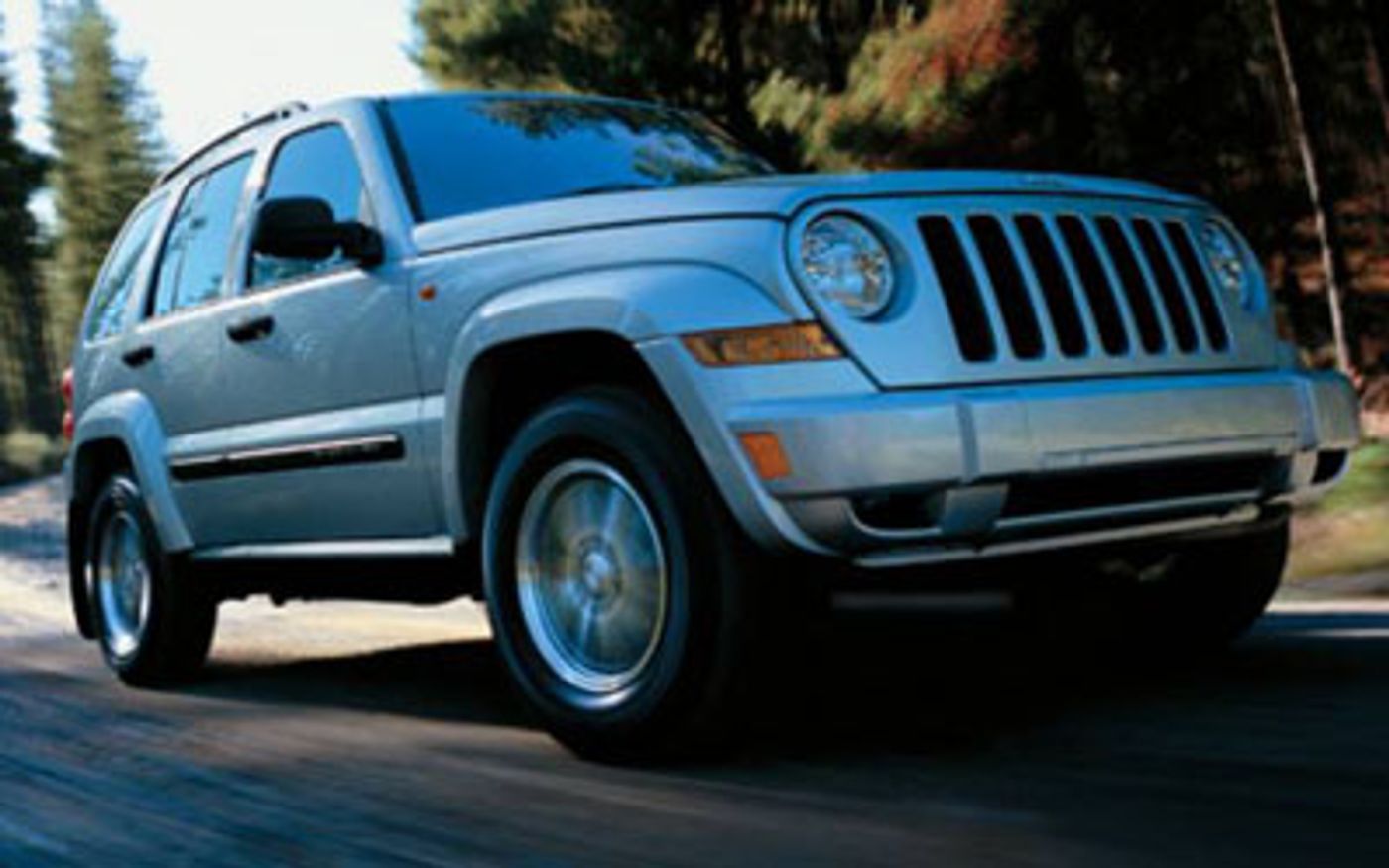

Jeep Cherokee Renegade Extreme Sport (2005) price & specs
Save $$$ with CarExpert*
From
$42,590â€
Renegade Extreme Sport
Overview
The 2005 Jeep Cherokee Renegade Extreme Sport is a four-wheel drive, 5-door SUV that was released to the Australian market on 4th January 1970 classified as a KJ. The Jeep Cherokee is regarded as a small SUV built in USA with prices starting at $42,590 before on-road costs.
This Jeep Cherokee is powered by a 2.8L 4-cylinder engine that has 120 kW of power (at 3800 rpm) and 400 Nm of torque (at 1800 rpm) via a Five-speed Automatic transmission. Jeep claims the Cherokee Renegade Extreme Sport uses 10L/100km of Diesel in the combined city and highway cycle while putting out nullg of CO2. It has a 77L fuel tank, meaning it should be able to travel 770km per full tank
The Jeep Cherokee measures 1817mm (71.5 inches) in height, 4496mm (177.0 inches) in length, 1819mm (71.6 inches) in width with a 2649mm (104.3 inches) wheelbase that brings about a total of 1956kg (4312.2 lbs) of unladen weight. The Cherokee Renegade Extreme Sport comes standard with 235/70 R16 front tyres and 235/70 R16 rear tyres. It has a 36 month, 100,000 km warranty.
The 2005 Jeep Cherokee Renegade Extreme Sport has a 200mm ground clearance with a 2800kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Cherokee compare?
Quickly see how the 2005 Jeep Cherokee Renegade Extreme Sport stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
60.98 - 82.01 kW/t
60.98 kW/t
108.77 kW/t
Boot Space
878 litres
387 litres
878 litres
Fuel Efficiency
9.3 - 13.1 L/100km
9.2 L/100km
15.5 L/100km
Price
$34,990 - $49,590
$25,990
$50,990
Warranty (Years)
3 years
3 years
5 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Years on Sale
6 years
1 year
4 years
Towing & Off-Road Capability
Gross Vehicle Weight
2,359 - 2,563 kg
1,860 kg
2,563 kg
Braked Towing Capacity
900 - 2,800 kg
900 kg
2,800 kg
Approach Angle
35.3 - 36.2°
21.4°
36.2°
Departure Angle
31 - 31.1°
21.2°
31.9°
Ground Clearance Unladen
200 mm
170 mm
205 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,496 mm
1,819 mm
1,817 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,496 mm |
| Overall Width | 1,819 mm |
| Overall Height | 1,817 mm |
| Wheelbase | 2,649 mm |
| Turning Circle | 10,940 mm |
| Load Capacity | 564 mm |
Looking for complete Jeep Cherokee size & space specs?
Our Jeep Cherokee Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Jeep Cherokee Sales rolling 12-months#
Explore Jeep Cherokee Features & Specs
Compressor
Compressor: Turbo
Engine
Bore Engine: 94
Engine (cc): 2776
Compression Ratio: 17.5
Engine Configuration: In-Line
Engine Code: 2.8 Crd I-4
Engine (L): 2.8
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 100
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 20.3
Main Capacity (L): 77
Main Fuel Type: Diesel
Main Type: Total
Interested in buying a Jeep Cherokee Renegade Extreme Sport?
Save $$$ with CarExpert*
From
$42,590â€
Computer
Average Fuel Consumption: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Fuel Consumption
ADR 81/02 Combined (L/100km): 10
ADR 81/02 Combined (mpg): 24
ADR 81/02 Standard: Adr 81/02
AS 2877 Combined (L/100km): 10
AS 2877 Combined (mpg): 24
AS 2877 Country Highway (L/100km): 8.2
AS 2877 Country Highway (mpg): 29
AS 2877 Standard: As 2877
AS 2877 Urban (L/100km): 12.7
AS 2877 Urban (mpg): 19
Fuel Economy
ADR 81/02 (L/100km): 10
AS 2877 City (L/100km): 12.7
AS 2877 Highway (L/100km): 8.2
Performance
Acceleration 0 To 100 km/h: 13.5
Maximum Speed (km/h): 174
Maximum Speed (mph): 108
Power
Maximum Power (hp/PS): 163
Maximum Power (kW): 120
Maximum Torque (Nm): 400
Measurement Standard: SAE
Rpm For Maximum Power Low: 3800
Rpm For Maximum Torque Low: 1800
Drive
Assisted Four-Wheel Drive Selection: yes
Driven Wheels: 4x4
Four-Wheel Drive Type: Full And Part-Time
Selectable While Driving: yes
Selection: Automatic
Dual Range Transmission
4wd Low High Low Transfer Selection: 4wd Low
Limited Slip Differential
Location: Rear
Transmission
Electronic Control Auto Only: yes
Lock Up Auto Only: yes
Low High Gear Ranges: yes
Number of Speeds: 5
Type: Automatic
ABS
Location: 4-Wheel
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Multi Function: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Extra Load: ?
Location: Front
Front Wheels Tire Profile: 70
Front Wheels Tire Speed Rating: S
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 235
Rear Wheels Tire Extra Load: ?
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 70
Rear Wheels Tire Speed Rating: S
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 235
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7
Body Style
Body Type: SUV
Driver Location: RHD
Local Body Type: SUV
Mud Flaps
Rear Mud Flaps Location: Rear
Non-Corrosive Body
Non-Corrosive Panel Location: Part
Non-Corrosive Panel Type: Galvanised
Step
Step Location: Rear
Rear Step Type: Platform
Underbody Protection
Location: Engine
Location: Fuel Tank
Location: Transfer Case
Cargo Capacity
Rear Seat Down (cu ft): 69
Rear Seat Down (L): 1954
Rear Seat Up to Lower Window (cu ft): 31
Rear Seat Up to Lower Window (L): 878
External Dimensions
Kerb to Kerb Turning Circle (mm): 10940
Front Track (in): 60
Front Track (mm): 1524
Ground Clearance Unladen (in): 7.9
Ground Clearance Unladen (mm): 200
Kerb To Kerb Turning Circle (ft): 35.9
Overall Height (in): 71.5
Overall Height (mm): 1817
Overall Length (in): 177
Overall Length (mm): 4496
Overall Width (in): 71.6
Overall Width (mm): 1819
Rear Track (in): 59.7
Rear Track (mm): 1516
Wall to Wall Turning Circle (ft): 39.4
Wall to Wall Turning Circle (mm): 12000
Wheelbase (in): 104.3
Wheelbase (mm): 2649
Internal Dimensions
Front Headroom (in): 40.7
Front Headroom (mm): 1034
Rear Headroom (in): 42.2
Rear Headroom (mm): 1072
Front Hip Room (in): 57
Front Hip Room (mm): 1448
Rear Hip Room (in): 47.4
Rear Hip Room (mm): 1204
Front Leg Room (in): 40.8
Front Leg Room (mm): 1036
Rear Leg Room (in): 37.2
Rear Leg Room (mm): 945
Front Shoulder Room (in): 56.5
Front Shoulder Room (mm): 1435
Rear Shoulder Room (in): 56.5
Rear Shoulder Room (mm): 1435
Ramp Angles
Approach Angle: 36.2
Departure Angle: 31.1
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Split Gate
Headlights
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
Type: Gloss
Sunroof
Front Sunroof Location: Front
Front Sunroof Operation: Electric
Front Sunroof Sliding: yes
Front Sunroof Sunshade: yes
Front Sunroof Tilting: yes
Front Sunroof Type: Glass
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Heated Driver Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Heated Passenger Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Electrically Foldable Mirrors
Operation: Electric
Power Windows
Front Electric Windows: Front
Number of Front Express Power Windows: 2
Rear Electric Windows: Rear
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Gross Trailer Weight Braked (kg): 2800
Gross Trailer Weight Braked (lb): 6173
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2520
Gross Vehicle Weight (lb): 5556
Published Kerb Weight (kg): 1956
Published Kerb Weight (lb): 4312
Antenna
Type: Element
Audio System
Disc Autochanger: yes
Autochanger Disc Capacity: 6
In-Dash CD: yes
Radio Type: Am/Fm
Disc Player
Boot Capacity: 6
Location: Boot
Speakers
Number of Speakers: 6
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Load Restraint
Type: net
Cigar Lighter
Location: Front Seats
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Reading Lights
Location: Front
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Luxury Trim
Centre Floor Console: Alloy Look
Doors: Alloy Look
Instrument Panel: Alloy Look
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Operation: Reel
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Height Adjustable: yes
Passenger Operation: Reel
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Head Restraints
Front Seats Height Adjustable: yes
Front Seats Location: Front Seats
Front Seats Number: 2
Rear Seats Height Adjustable: yes
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Operation: Reel
Center Seat Position: Centre
Center Type: 3-Point
Driver Operation: Reel
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Operation: Reel
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Side Curtain Airbag
Location: Front And Rear
Front Seat
Location: Driver
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 5
Cup Holders
Location: Front Seats
Front Seats Type: Fixed
Location: Rear Seats
Rear Seats Type: Fixed
Door Pockets Bins
Location: Driver
Location: Passenger
Anti-Theft Protection
Interior Monitoring: yes
Peripheral: yes
Remote Operation: yes
Power Locks
Includes Trunk Hatch: yes
Operation: Remote
