Overview

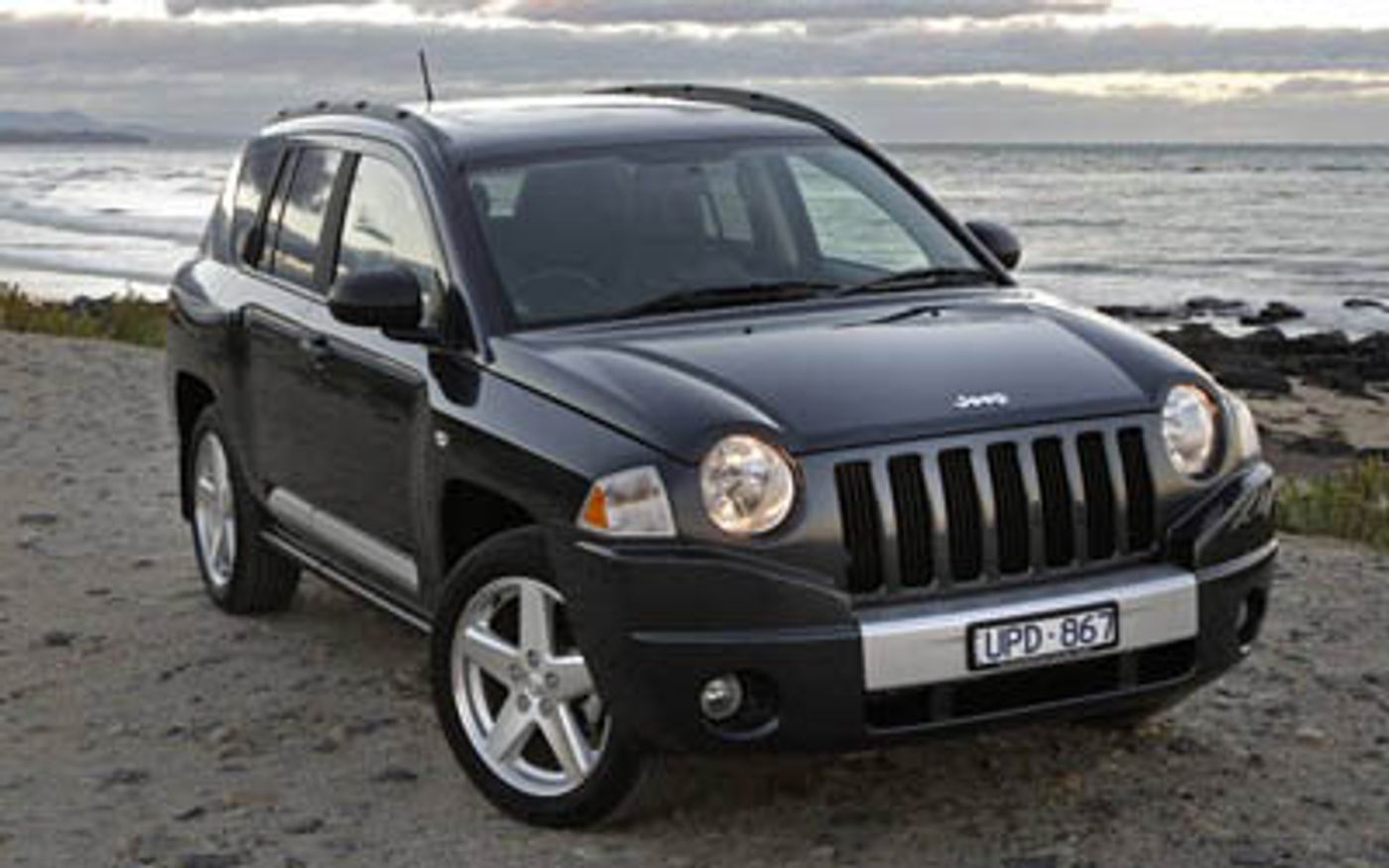

The 2009 Jeep Compass Limited is a four-wheel drive, 5-door SUV that was released to the Australian market on 4th January 1970 classified as a MK. The Jeep Compass is regarded as a small SUV built in USA with prices starting at $36,490 before on-road costs.
This Jeep Compass is powered by a 2.4L 4-cylinder engine that has 125 kW of power (at 6000 rpm) and 220 Nm of torque (at 4500 rpm) via a Variable SP AUTOMATIC transmission. Jeep claims the Compass Limited uses 8.6L/100km of Unleaded in the combined city and highway cycle while putting out 226g of CO2. It has a 51L fuel tank, meaning it should be able to travel 593km per full tank
The Jeep Compass measures 1740mm (68.5 inches) in height, 4405mm (173.4 inches) in length, 1810mm (71.3 inches) in width with a 2635mm (103.7 inches) wheelbase that brings about a total of 1485kg (3273.9 lbs) of unladen weight. The Compass Limited comes standard with 215/55 R18 front tyres and 215/55 R18 rear tyres. It has a 36 month, 100,000 km warranty.
The 2009 Jeep Compass Limited has a 200mm ground clearance with a 1500kg braked and nullkg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Comparative Rating
Quickly see how this car stacks up against its competition. Select any benchmark to see more details.
Towing & Off-Road Capability
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | In-Line |
|---|---|
| Size (cc) | 2359 |
| Size (L) | 2.4L |
| Cylinders | 4 |
| Camshaft | - |
| Valves/Ports per Cylinder | - |
| Power | 125kW |
| Power RPM | 6000 |
| Torque | 220Nm |
| Torque RPM | 4500 |
| Bore Stroke | - |
| Compression Ratio | 10.5 |
| Transmission | Variable SP AUTOMATIC |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | - |
| Suspension Rear | - |
| Steering Mechanism | Leather Covered |
| Drive | 4x4 |
| Fuel Combined (L/100km) | 8.6 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 51 |
| Fuel Type | Unleaded |
| e10 Compatible | - |
| CO2 Combined | 226 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | - |
|---|---|
| Brake Rear | - |
| Tyre Front | 215/55 R18 |
| Tyre Rear | 215/55 R18 |
| Front Rim Size | - |
| Rear Rim Size | - |
| Vehicle Height (mm) | 1740 |
|---|---|
| Vehicle Length (mm) | 4405 |
| Vehicle Width (mm) | 1810 |
| Ground Clearance (mm) | 200 |
| Wheelbase (mm) | 2635 |
| Turning Circle (m) | - |
| Unladen Weight (kg) | 1485 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 1980 |
| Track Front (mm) | 1520 |
| Track Rear (mm) | 1520 |
| Towing Capacity Brake (kg) | 1500 |
| Towing Capacity Unbraked (kg) | - |
| Country Of Origin | USA |
|---|---|
| Number of Doors | 5 |
| Seats | 5 |
| Service Interval KMs | 12000 |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2010-02-26 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
