Blackhawk Edition
2.0L, variable sp auto, 5-door SUV, Petrol, FWD
Save $$$ with CarExpert*
$30,200â€
Jeep Compass Blackhawk Edition (2014) price & specs
Save $$$ with CarExpert*
From
$30,200â€
Blackhawk Edition
Overview

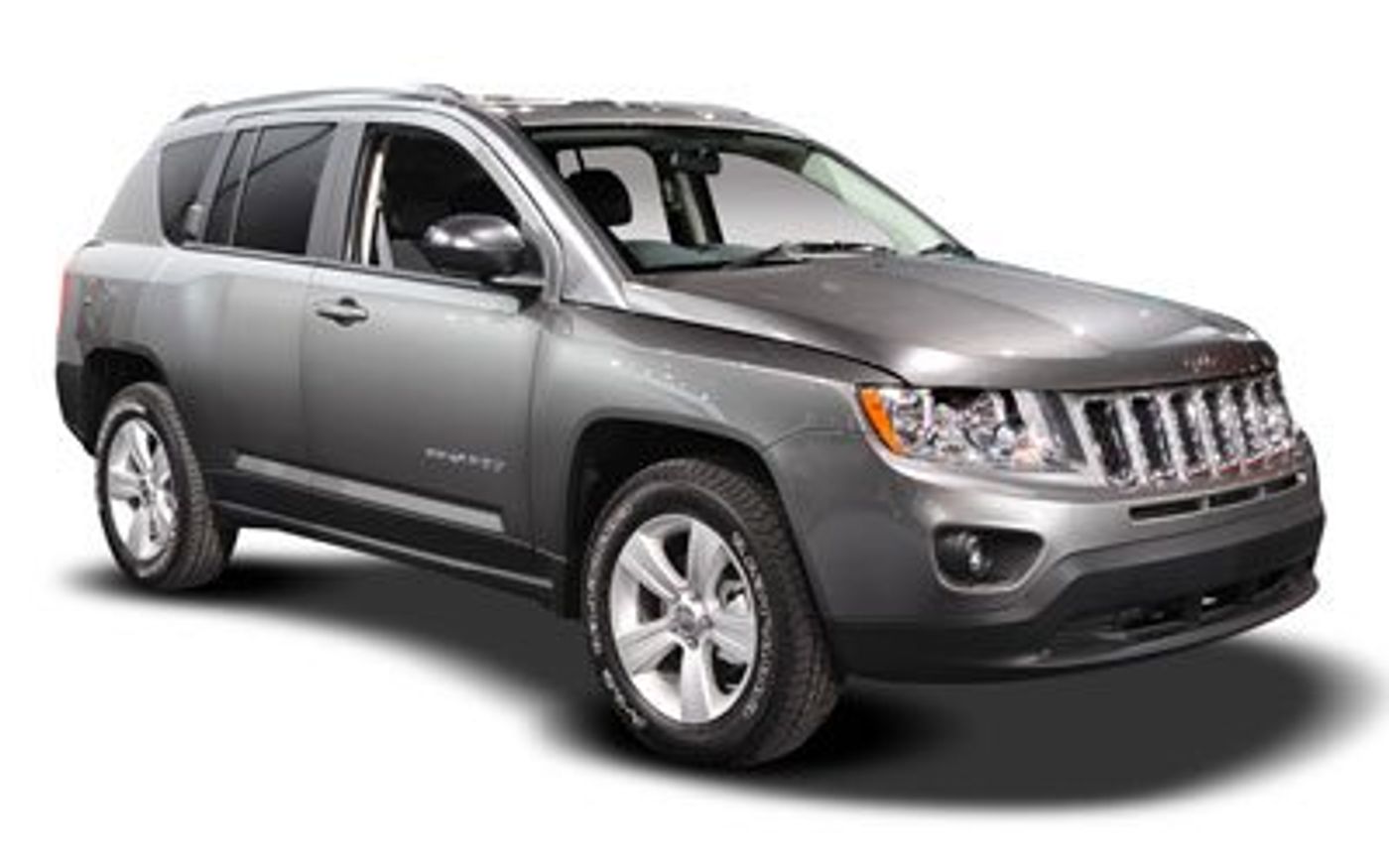

The 2014 Jeep Compass Blackhawk Edition is a front-wheel drive, 5-door SUV that was released to the Australian market on 5th May 2014 classified as a MK. The Jeep Compass is regarded as a small SUV built in USA with prices starting at $30,200 before on-road costs.
This Jeep Compass is powered by a 2.0L 4-cylinder engine that has 115 kW of power (at 6300 rpm) and 190 Nm of torque (at 5100 rpm) via a Variable SP AUTOMATIC transmission. Jeep claims the Compass Blackhawk Edition uses 8.3L/100km of Unleaded in the combined city and highway cycle while putting out 194g of CO2. It has a 51L fuel tank, meaning it should be able to travel 614km per full tank
The Jeep Compass measures 1718mm (67.6 inches) in height, 4448mm (175.1 inches) in length, 1810mm (71.3 inches) in width with a 2635mm (103.7 inches) wheelbase that brings about a total of 1480kg (3262.8 lbs) of unladen weight. The Compass Blackhawk Edition comes standard with 215/60 R17 front tyres and 215/60 R17 rear tyres. It has a 36 month, 100,000 km warranty.
The 2014 Jeep Compass Blackhawk Edition has a 209mm ground clearance with a 1500kg braked and nullkg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Compass compare?
Quickly see how the 2014 Jeep Compass Blackhawk Edition stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
77.7 - 80.76 kW/t
58.6 kW/t
113.82 kW/t
Boot Space
328 litres
113 litres
468 litres
Fuel Efficiency
7.6 - 9 L/100km
4.9 L/100km
9 L/100km
Vehicle Range
567 - 671 km
541 km
1,327 km
Price
$27,000 - $35,500
$17,990
$39,990
Warranty (Years)
3 years
3 years
5 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Years on Sale
2 - 5 years
3 years
7 years
Towing & Off-Road Capability
Gross Vehicle Weight
1,980 - 2,010 kg
1,420 kg
2,260 kg
Braked Towing Capacity
1,500 kg
500 kg
2,000 kg
Approach Angle
20°
18°
42°
Departure Angle
32°
27.7°
46°
Ground Clearance Unladen
209 mm
165 mm
220 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,448 mm
1,810 mm
1,718 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,448 mm |
| Overall Width | 1,810 mm |
| Overall Height | 1,718 mm |
| Wheelbase | 2,635 mm |
| Turning Circle | 10,800 mm |
| Load Capacity | 530 mm |
Looking for complete Jeep Compass size & space specs?
Our Jeep Compass Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Jeep Compass Sales rolling 12-months#
Explore Jeep Compass Features & Specs
Emission Control Level
Australia Air Pollution Rating: 7.5
Australia Greenhouse Rating: 6.5
Australia Overall Emission Control Level Rating: 4.0
CO2 Level (Combined): 194
Engine
Bore Engine: 86.0
Engine (cc): 1998
Engine Configuration: In-Line
Engine Code: ECN
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 86.0
Valve Gear Type: Double Overhead Cam
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 91
Minimum Fuel Type: Unleaded
Fuel Type: Unleaded
Octane Number: 91
Fuel System
Injection Carburetion: Multi-Point Injection
Fuel Tanks
Main Capacity Gal: 13.5
Main Capacity (L): 51
Main Capacity Uk Gallons: 11.2
Main Type: Total
Interested in buying a Jeep Compass Blackhawk Edition?
Save $$$ with CarExpert*
From
$30,200â€
Computer
Average Fuel Consumption: yes
Range for Remaining Fuel: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 614
ADR 81/02 Calculated Vehicle Range (miles): 382
ADR 81/02 Combined (km/L): 12.0
ADR 81/02 Combined (L/100km): 8.3
ADR 81/02 Combined (miles per UK gallon): 34
ADR 81/02 Combined (mpg): 28
ADR 81/02 Country Highway (km/L): 14.9
ADR 81/02 Country Highway (L/100km): 6.7
ADR 81/02 Country Highway (miles per UK gallon): 42
ADR 81/02 Country Highway (mpg): 35
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 9.0
ADR 81/02 Urban (L/100km): 11.1
ADR 81/02 Urban (miles per UK gallon): 25
ADR 81/02 Urban (mpg): 21
Fuel Economy
ADR 81/02 (L/100km): 8.3
Performance
Maximum Speed (km/h): 185
Maximum Speed (mph): 115
Power
Maximum Power (hp/PS): 156
Maximum Power (kW): 115
Maximum Torque (Nm): 190
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 6300
Rpm For Maximum Torque Low: 5100
Drive
Driven Wheels: Front
Electronic Traction Control
Controlled By: Abs & Engine Management
Transmission
Description: Continuously Variable With Manual Mode
Manual Mode: yes
Number of Speeds: Variable
Shift Lever Location: Dash
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 96
Location: Front
Front Wheels Tire Profile: 60
Front Wheels Tire Speed Rating: H
Front Wheels Tire Type: All Seasons
Front Wheels Tire Width: 215
Rear Wheels Tire Load Index: 96
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 60
Rear Wheels Tire Speed Rating: H
Rear Wheels Tire Type: All Seasons
Rear Wheels Tire Width: 215
Wheels
Location: Front
Front Wheels Rim Diameter (In): 17
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 6.5
Location: Rear
Rear Rim Diameter (In): 17
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 6.5
Cargo Capacity
Measurement Standard: SAE
Rear Seat Down (cu ft): 44.8
Rear Seat Down (L): 1269
Rear Seat Up to Lower Window (cu ft): 11.6
Rear Seat Up to Lower Window (L): 328
External Dimensions
Kerb to Kerb Turning Circle (mm): 10800
Front Track (in): 59.8
Front Track (mm): 1520
Ground Clearance Unladen (in): 8.2
Ground Clearance Unladen (mm): 209
Kerb To Kerb Turning Circle (ft): 35.4
Overall Height (in): 67.6
Overall Height (mm): 1718
Overall Length (in): 175.1
Overall Length (mm): 4448
Overall Width (in): 71.3
Overall Width (mm): 1810
Rear Track (in): 59.8
Rear Track (mm): 1520
Wheelbase (in): 103.7
Wheelbase (mm): 2635
Internal Dimensions
Front Headroom (in): 40.7
Front Headroom (mm): 1034
Rear Headroom (in): 39.9
Rear Headroom (mm): 1014
Front Hip Room (in): 52.3
Front Hip Room (mm): 1329
Rear Hip Room (in): 51.0
Rear Hip Room (mm): 1295
Front Leg Room (in): 40.6
Front Leg Room (mm): 1032
Rear Leg Room (in): 39.4
Rear Leg Room (mm): 1000
Front Shoulder Room (in): 54.3
Front Shoulder Room (mm): 1380
Rear Shoulder Room (in): 54.0
Rear Shoulder Room (mm): 1372
Ramp Angles
Approach Angle: 20.0
Departure Angle: 32.0
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: GS
Wheelbase Type: Short
Spoiler
Location: Roof
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Height Adjustment: Manual
Internal Height Adjustment: yes
Headlights
Low Beam Bulb Type: Halogen
Lens Type: Ellipsoidal
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Heated Driver Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Heated Passenger Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Electrically Foldable Mirrors
Operation: Electric
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Gross Trailer Weight Braked (kg): 1500
Gross Trailer Weight Braked (lb): 3307
Gross Vehicle Weight (kg): 2010
Gross Vehicle Weight (lb): 4431
Published Kerb Weight (kg): 1480
Published Kerb Weight (lb): 3263
Tare Weight (kg): 1449
Audio System
CD Player Reads MP3: yes
In-Dash CD: yes
In-Dash DVD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
Speakers
Number of Speakers: 4
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Bluetooth
Includes Phone Connection: yes
Power Outlet 12V
Location (12V): Front
Vanity Mirror
Driver Mirror Location: Driver
Location: Passenger
Voice Activating System
Includes Phone: yes
Luxury Trim
Doors: Alloy Look
Gear Selector: Alloy Look
Instrument Panel: Alloy Look
Airbags
Number of Airbags: 6
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 2
Rear Seat Belts
Center Operation: Reel
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Passenger Front Seat Heated: yes
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Upgraded Cloth/Velour
Main Seat Material: Upgraded Cloth/Velour
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 12000
Distance (miles): 7456
