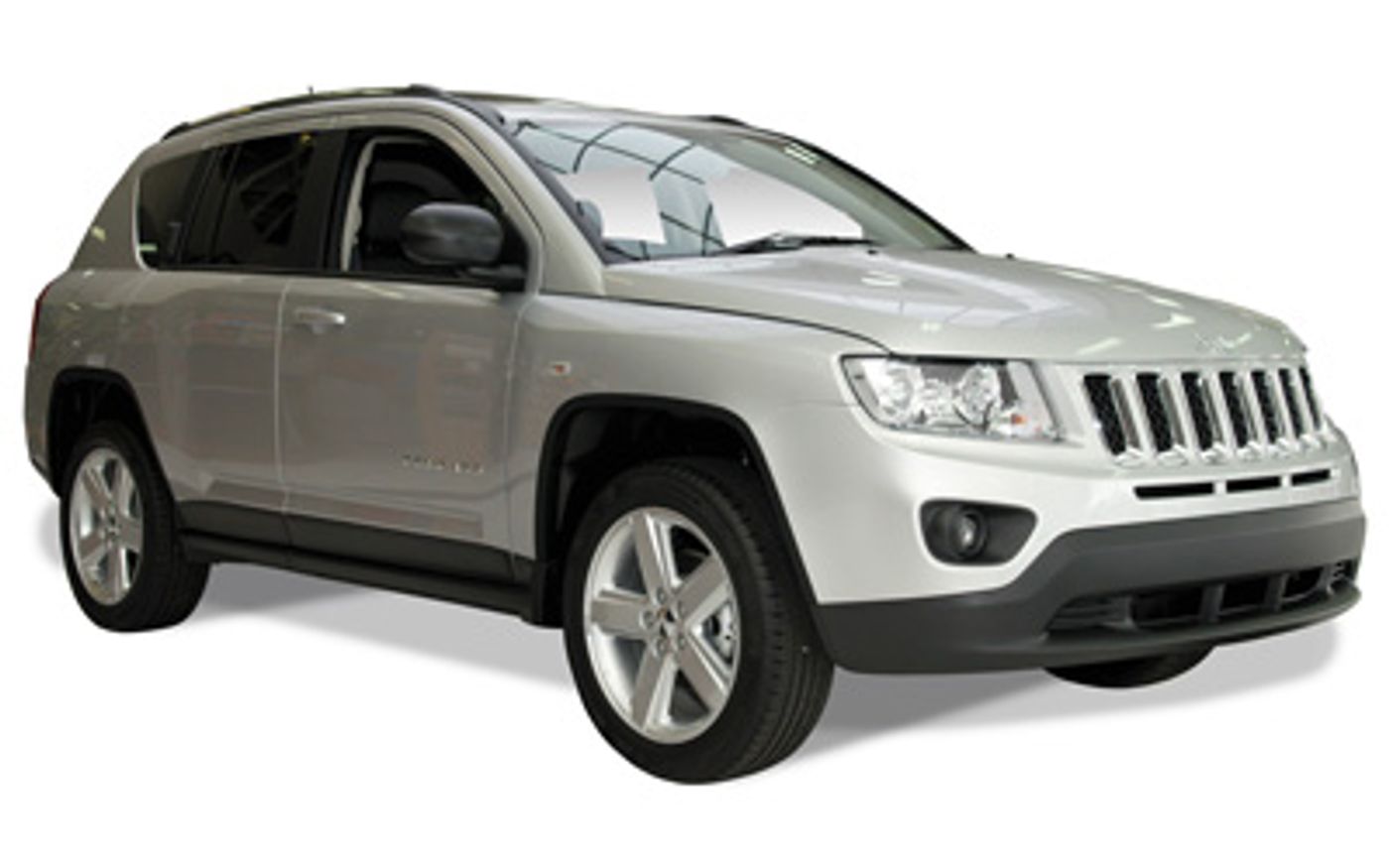

Jeep Compass Limited (2015) price & specs
Save $$$ with CarExpert*
From
$35,500â€
Limited
Overview
The 2015 Jeep Compass Limited is a four-wheel drive, 5-door SUV that was released to the Australian market on 5th September 2014 classified as a MK. The Jeep Compass is regarded as a small SUV built in USA with prices starting at $35,500 before on-road costs.
This Jeep Compass is powered by a 2.4L 4-cylinder engine that has 125 kW of power (at 6000 rpm) and 220 Nm of torque (at 4500 rpm) via a Six-speed Automatic transmission. Jeep claims the Compass Limited uses 9.0L/100km of Unleaded in the combined city and highway cycle while putting out 209g of CO2. It has a 51L fuel tank, meaning it should be able to travel 567km per full tank
The Jeep Compass measures 1718mm (67.6 inches) in height, 4448mm (175.1 inches) in length, 1810mm (71.3 inches) in width with a 2635mm (103.7 inches) wheelbase that brings about a total of 1586kg (3496.5 lbs) of unladen weight. The Compass Limited comes standard with 215/55 R18 front tyres and 215/55 R18 rear tyres. It requires a service every 6 months or 12,000 km, whichever comes first. It has a 36 month, 100,000 km warranty.
The 2015 Jeep Compass Limited has a 209mm ground clearance with a 1500kg braked and nullkg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Compass compare?
Quickly see how the 2015 Jeep Compass Limited stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
76.41 - 79.72 kW/t
56.29 kW/t
104.32 kW/t
Boot Space
328 - 650 litres
207 litres
650 litres
Fuel Efficiency
7.6 - 9 L/100km
4.8 L/100km
9 L/100km
Vehicle Range
567 - 671 km
567 km
1,086 km
Price
$27,000 - $35,500
$19,990
$41,500
Warranty (Years)
3 years
3 years
5 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Years on Sale
2 - 5 years
3 years
7 years
Service Interval
6 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
1,980 - 2,010 kg
1,890 kg
2,100 kg
Braked Towing Capacity
454 - 1,500 kg
454 kg
1,500 kg
Approach Angle
20°
17.9°
30.5°
Departure Angle
28 - 32°
26°
34.3°
Ground Clearance Unladen
205 - 209 mm
155 mm
220 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,448 mm
1,810 mm
1,718 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,448 mm |
| Overall Width | 1,810 mm |
| Overall Height | 1,718 mm |
| Wheelbase | 2,635 mm |
| Turning Circle | 11,300 mm |
| Load Capacity | 394 mm |
Looking for complete Jeep Compass size & space specs?
Our Jeep Compass Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Jeep Compass Sales rolling 12-months#
Explore Jeep Compass Features & Specs
Emission Control Level
Australia Air Pollution Rating: 7.5
Australia Greenhouse Rating: 6.0
Australia Overall Emission Control Level Rating: 3.5
CO2 Level (Combined): 209
Engine
Bore Engine: 88.0
Engine (cc): 2359
Engine Configuration: In-Line
Engine (L): 2.4
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 97.0
Valve Gear Type: Double Overhead Cam
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 91
Minimum Fuel Type: Unleaded
Fuel Type: Unleaded
Octane Number: 91
Fuel System
Injection Carburetion: Multi-Point Injection
Fuel Tanks
Main Capacity Gal: 13.5
Main Capacity (L): 51
Main Capacity Uk Gallons: 11.2
Main Type: Total
Computer
Average Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: ?
Number of Screens: 1
Screen Size (in): 6.5
Touch Screen: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 567
ADR 81/02 Calculated Vehicle Range (miles): 352
ADR 81/02 Combined (km/L): 11.1
ADR 81/02 Combined (L/100km): 9.0
ADR 81/02 Combined (miles per UK gallon): 31
ADR 81/02 Combined (mpg): 26
ADR 81/02 Country Highway (km/L): 14.1
ADR 81/02 Country Highway (L/100km): 7.1
ADR 81/02 Country Highway (miles per UK gallon): 40
ADR 81/02 Country Highway (mpg): 33
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 8.3
ADR 81/02 Urban (L/100km): 12.0
ADR 81/02 Urban (miles per UK gallon): 24
ADR 81/02 Urban (mpg): 20
Fuel Economy
ADR 81/02 (L/100km): 9.0
Performance
Maximum Speed (km/h): 185
Maximum Speed (mph): 115
Power
Maximum Power (hp/PS): 170
Maximum Power (kW): 125
Maximum Torque (Nm): 220
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 6000
Rpm For Maximum Torque Low: 4500
Differential Lock
Location: Centre
Drive
Driven Wheels: 4x4
Four-Wheel Drive Type: Full And Part-Time
Selection: Manual & Automatic
Electronic Traction Control
Controlled By: Abs & Engine Management
Transmission
Code: 6f24
Description: Automatic With Manual Mode
Manual Mode: yes
Number of Speeds: 6
Shift Lever Location: Floor
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 95
Location: Front
Front Wheels Tire Profile: 55
Front Wheels Tire Speed Rating: H
Front Wheels Tire Type: All Seasons
Front Wheels Tire Width: 215
Rear Wheels Tire Load Index: 95
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 55
Rear Wheels Tire Speed Rating: H
Rear Wheels Tire Type: All Seasons
Rear Wheels Tire Width: 215
Wheels
Location: Front
Front Wheels Rim Diameter (In): 18
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.0
Location: Rear
Rear Rim Diameter (In): 18
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.0
Cargo Capacity
Measurement Standard: SAE
Rear Seat Down (cu ft): 44.8
Rear Seat Down (L): 1269
Rear Seat Up to Lower Window (cu ft): 11.6
Rear Seat Up to Lower Window (L): 328
External Dimensions
Kerb to Kerb Turning Circle (mm): 11300
Front Track (in): 59.8
Front Track (mm): 1520
Ground Clearance Unladen (in): 8.2
Ground Clearance Unladen (mm): 209
Kerb To Kerb Turning Circle (ft): 37.1
Overall Height (in): 67.6
Overall Height (mm): 1718
Overall Length (in): 175.1
Overall Length (mm): 4448
Overall Width (in): 71.3
Overall Width (mm): 1810
Rear Track (in): 59.8
Rear Track (mm): 1520
Wheelbase (in): 103.7
Wheelbase (mm): 2635
Internal Dimensions
Front Headroom (in): 40.7
Front Headroom (mm): 1034
Rear Headroom (in): 39.9
Rear Headroom (mm): 1014
Front Hip Room (in): 52.3
Front Hip Room (mm): 1329
Rear Hip Room (in): 51.0
Rear Hip Room (mm): 1295
Front Leg Room (in): 40.6
Front Leg Room (mm): 1032
Rear Leg Room (in): 39.4
Rear Leg Room (mm): 1000
Front Shoulder Room (in): 54.3
Front Shoulder Room (mm): 1380
Rear Shoulder Room (in): 54.0
Rear Shoulder Room (mm): 1372
Ramp Angles
Approach Angle: 20.0
Departure Angle: 32.0
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: GS
Wheelbase Type: Short
Spoiler
Location: Roof
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Height Adjustment: Manual
Internal Height Adjustment: yes
Headlights
Low Beam Bulb Type: Halogen
Lens Type: Ellipsoidal
Paint
External Colour: White
Type: Gloss
Sunroof
Front Sunroof Location: Front
Front Sunroof Operation: Electric
Front Sunroof Sliding: yes
Front Sunroof Sunshade: yes
Front Sunroof Tilting: yes
Front Sunroof Type: Glass
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Electrically Foldable Mirrors
Operation: Electric
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Gross Trailer Weight Braked (kg): 1500
Gross Trailer Weight Braked (lb): 3307
Gross Vehicle Weight (kg): 1980
Gross Vehicle Weight (lb): 4365
Published Kerb Weight (kg): 1586
Published Kerb Weight (lb): 3497
Tare Weight (kg): 1555
Audio System
CD Player Reads MP3: yes
Colour Screen: yes
In-Dash CD: yes
In-Dash DVD: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
Aux Jack (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Brand: Boston Acoustics
Number of Speakers: 9
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Entertainment Display Screen
Front DVD: yes
Location: Front
Front Screen Size (in): 6.5
Parking Distance System
Location: Rear
Rear Type: Camera
Power Outlet 12V
Location (12V): Front
Vanity Mirror
Driver Mirror Location: Driver
Location: Passenger
Voice Activating System
Includes Phone: yes
Luxury Trim
Doors: Alloy Look
Gear Selector: Alloy Look
Instrument Panel: Alloy Look
Airbags
Number of Airbags: 6
Crash Test Results
ANCAP Overall: 4.00
ANCAP Standard: Ancap
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 2
Rear Seat Belts
Center Operation: Reel
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Electric
Location: Driver
Driver Front Seat Lumbar Type: Manual
Driver Front Seat Number of Electrical Adjustments: 3
Driver Front Seat Reach Type: Electric
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Sports
Passenger Front Seat Heated: yes
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Sports
Seat Upholstery
Additional Seat Material: Leather
Main Seat Material: Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 1
Ventilation System
Digital Display: yes
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 12000
Distance (miles): 7456
Period (Months): 6
Variable Distance Period: yes
# Based on VFACTS and EVC data
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
