Overview

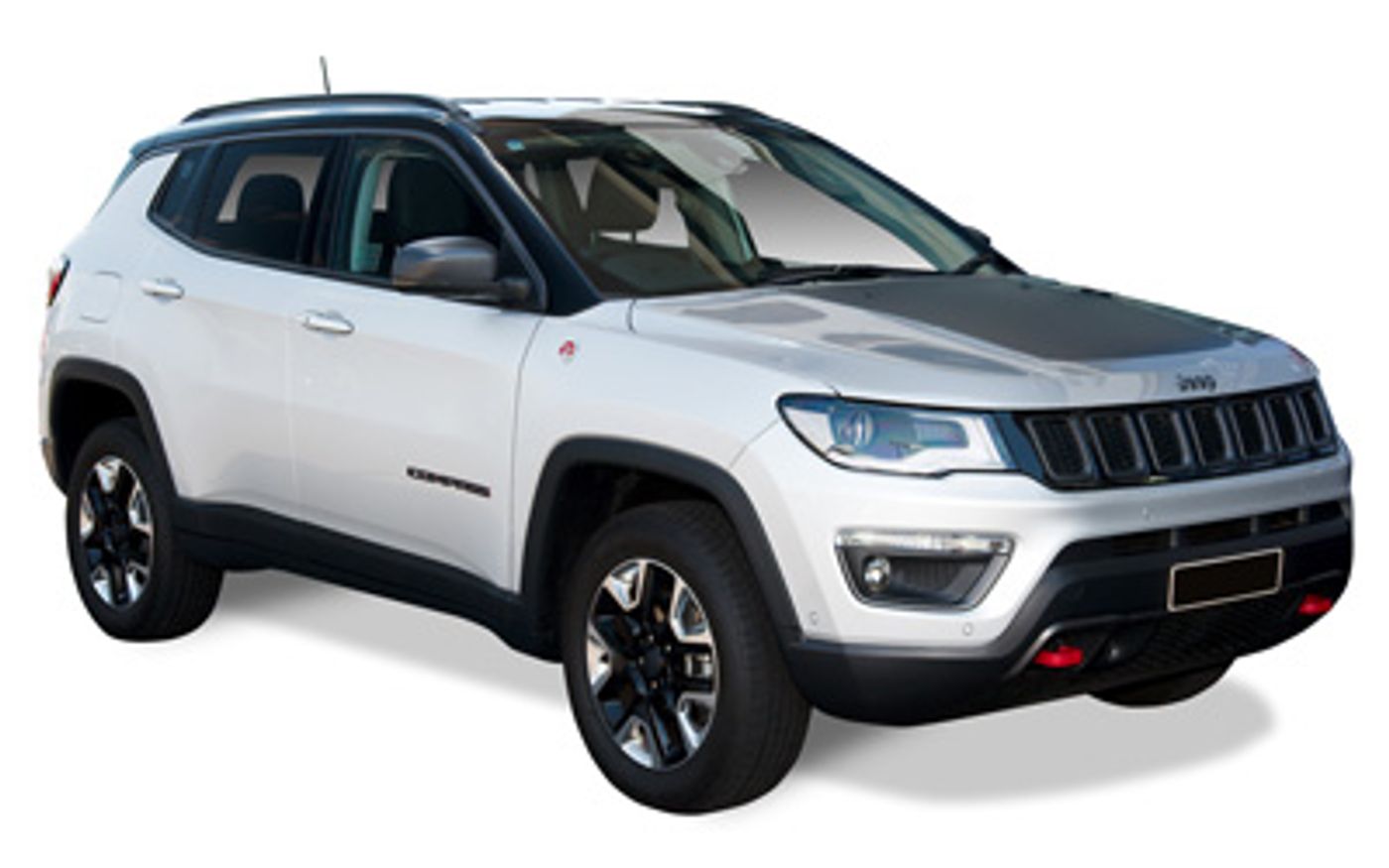

The 2020 Jeep Compass Trailhawk is a four-wheel drive, 5-door SUV that was released to the Australian market on 2nd July 2021 classified as a M6. The Jeep Compass is regarded as a small SUV built in India with prices starting at $49,450 before on-road costs.
This Jeep Compass is powered by a 2.0L 4-cylinder engine that has 125 kW of power (at 3750 rpm) and 350 Nm of torque (at 1750 rpm) via a Nine-speed Automatic transmission. Jeep claims the Compass Trailhawk uses 5.7L/100km of Diesel in the combined city and highway cycle while putting out 150g of CO2. It has a 60L fuel tank, meaning it should be able to travel 1053km per full tank
The Jeep Compass measures 1657mm (65.2 inches) in height, 4398mm (173.1 inches) in length, 1819mm (71.6 inches) in width with a 2636mm (103.8 inches) wheelbase that brings about a total of 1664kg (3668.5 lbs) of unladen weight. The Compass Trailhawk comes standard with 225/60 R17 front tyres and 225/60 R17 rear tyres. It requires a service every 12 months or 20,000 km, whichever comes first. It has a 60 month, 100,000 km warranty.
The 2020 Jeep Compass Trailhawk has a 225mm ground clearance with a 1500kg braked and 450kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Comparative Rating
Quickly see how this car stacks up against its competition. Select any benchmark to see more details.
Towing & Off-Road Capability
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | In-Line |
|---|---|
| Size (cc) | 1956 |
| Size (L) | 2.0L |
| Cylinders | 4 |
| Camshaft | - |
| Valves/Ports per Cylinder | - |
| Power | 125kW |
| Power RPM | 3750 |
| Torque | 350Nm |
| Torque RPM | 1750 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 9 SP AUTOMATIC |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | - |
| Suspension Rear | - |
| Steering Mechanism | Alloy & Leather |
| Drive | 4x4 |
| Fuel Combined (L/100km) | 5.7 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 60 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | 150 |
| CO2 Urban | 177 |
| CO2 Extra Urban | 134 |
| Brake Front | - |
|---|---|
| Brake Rear | - |
| Tyre Front | 225/60 R17 |
| Tyre Rear | 225/60 R17 |
| Front Rim Size | - |
| Rear Rim Size | - |
| Vehicle Height (mm) | 1657 |
|---|---|
| Vehicle Length (mm) | 4398 |
| Vehicle Width (mm) | 1819 |
| Ground Clearance (mm) | 225 |
| Wheelbase (mm) | 2636 |
| Turning Circle (m) | - |
| Unladen Weight (kg) | 1664 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 2189 |
| Track Front (mm) | 1546 |
| Track Rear (mm) | 1538 |
| Towing Capacity Brake (kg) | 1500 |
| Towing Capacity Unbraked (kg) | 450 |
| Country Of Origin | India |
|---|---|
| Number of Doors | 5 |
| Seats | 5 |
| Service Interval KMs | 20000 |
| Service Interval Months | 12 |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 60 |
| Discontinued Date | 2022-02-02 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
