Overland
3.6L, 8-speed auto, 4-door Utility, Petrol, 4x4
Save $$$ with CarExpert*
$75,450â€

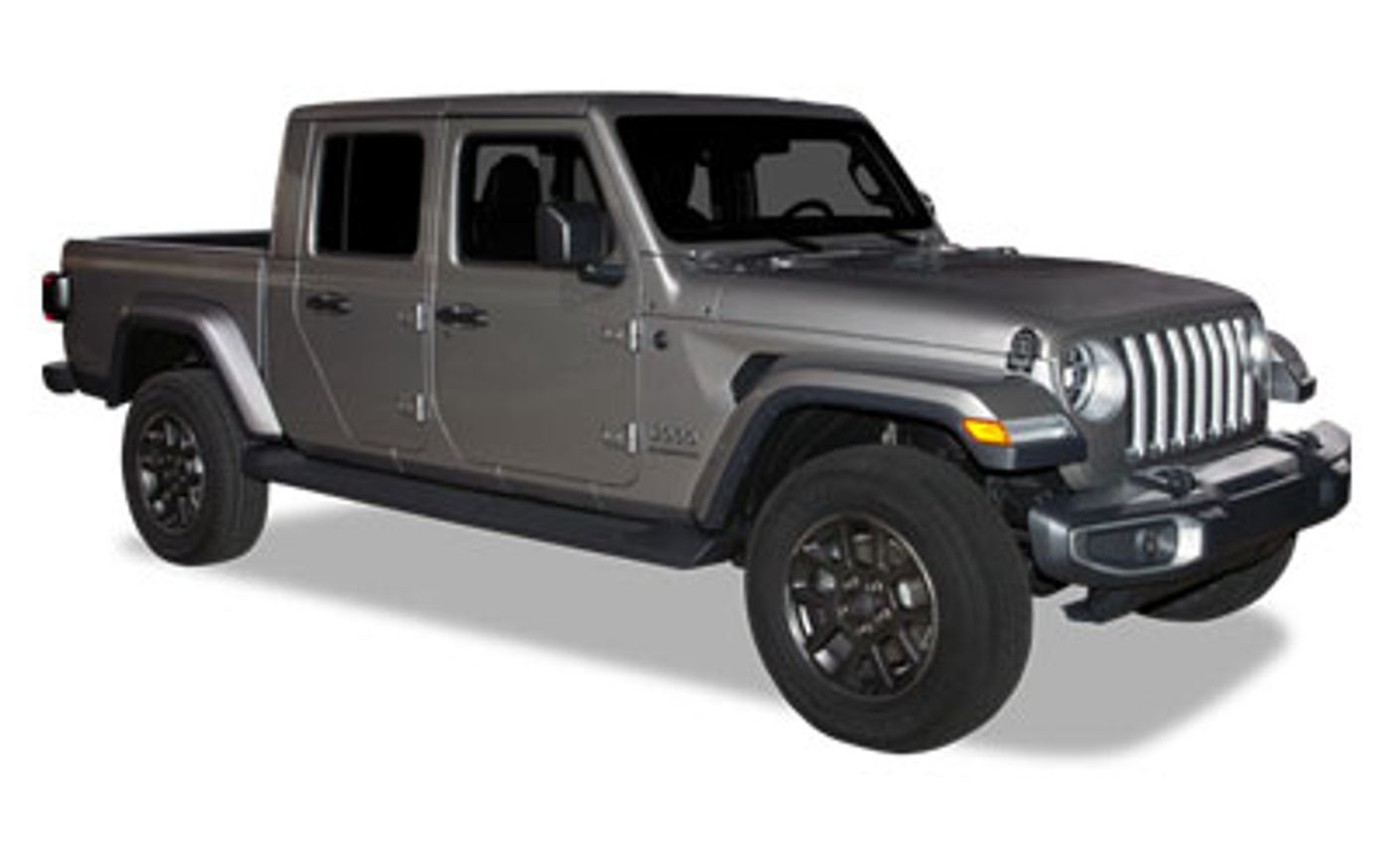

Jeep Gladiator Overland (2020) price & specs
Save $$$ with CarExpert*
From
$75,450â€
Overland
Overview
The 2020 Jeep Gladiator Overland is a four-wheel drive, 4-door Utility that was released to the Australian market on 3rd March 2020 classified as a 502. The Jeep Gladiator is regarded as a Pickup built in USA with prices starting at $75,450 before on-road costs.
This Jeep Gladiator is powered by a 3.6L 6-cylinder engine that has 209 kW of power (at 6400 rpm) and 347 Nm of torque (at 4100 rpm) via an Eight-speed Automatic transmission. Jeep claims the Gladiator Overland uses 11.2L/100km of Unleaded in the combined city and highway cycle while putting out 260g of CO2. It has a 83L fuel tank, meaning it should be able to travel 741km per full tank
The Jeep Gladiator measures 1905mm (75.0 inches) in height, 5591mm (220.1 inches) in length, 1894mm (74.6 inches) in width with a 3488mm (137.3 inches) wheelbase that brings about a total of 2104kg (4638.5 lbs) of unladen weight. The Gladiator Overland comes standard with 255/70 R18 front tyres and 255/70 R18 rear tyres. It requires a service every 12 months or 12,000 km, whichever comes first. It has a 60 month, 100,000 km warranty.
The 2020 Jeep Gladiator Overland has a 249mm ground clearance with a 2721kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Gladiator compare?
Quickly see how the 2020 Jeep Gladiator Overland stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
94.36 - 99.33 kW/t
47.8 kW/t
120.94 kW/t
Fuel Efficiency
11.2 - 12.4 L/100km
6.3 L/100km
12.4 L/100km
Vehicle Range
672 - 744 km
658 km
1,270 km
Price
$75,450 - $86,450
$22,490
$113,990
Warranty (Years)
5 years
3 years
7 years
Warranty (Distance)
100,000 km
57,936 km
Unlimited
Years on Sale
5 - 6 years
1 year
4 years
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,631 - 2,835 kg
2,631 kg
3,450 kg
Gross Comb. Mass
5,080 - 5,284 kg
4,435 kg
7,237 kg
Braked Towing Capacity
2,721 kg
1,800 kg
4,500 kg
Approach Angle
40.7°
15.2°
40.7°
Departure Angle
25.1°
15°
29°
Ground Clearance Unladen
249 mm
174 mm
283 mm
Payload Capacity
527 - 620 kg
527 kg
1,476 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,591 mm
1,894 mm
1,905 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,591 mm |
| Overall Width | 1,894 mm |
| Overall Height | 1,905 mm |
| Wheelbase | 3,488 mm |
| Turning Circle | 13,600 mm |
| Load Capacity | 527 mm |
Looking for complete Jeep Gladiator size & space specs?
Our Jeep Gladiator Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Jeep Gladiator Sales rolling 12-months#
Explore Jeep Gladiator Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Cruise Control
Adaptive Cruise Control: yes
Speed Limiter: yes
Mobile Integration
Android Auto: yes
Apple Carplay: yes
Parking Assistance
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Front
Location (12V): Rear
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Type: Automatic
Emission Control Level
CO2 Level (Combined): 260
Standard Met: EU6
Engine
Bore Engine: 96.0
Engine (cc): 3604
Engine Configuration: V
Engine Code: ERC
Engine (L): 3.6
Number of Cylinders: 6
Number of Valves per Cylinder: 4
Stroke Engine: 83.0
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 91
Minimum Fuel Type: Unleaded
Fuel Type: Unleaded
Octane Number: 91
Fuel System
Injection Carburetion: Multi-Point Injection
Fuel Tanks
Main Capacity Gal: 22.0
Main Capacity (L): 83
Main Capacity Uk Gallons: 18.3
Main Type: Total
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 744
ADR 81/02 Calculated Vehicle Range (miles): 462
ADR 81/02 Combined (km/L): 8.9
ADR 81/02 Combined (L/100km): 11.2
ADR 81/02 Combined (miles per UK gallon): 25
ADR 81/02 Combined (mpg): 21
ADR 81/02 Country Highway (km/L): 10.6
ADR 81/02 Country Highway (L/100km): 9.4
ADR 81/02 Country Highway (miles per UK gallon): 30
ADR 81/02 Country Highway (mpg): 25
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 7.0
ADR 81/02 Urban (L/100km): 14.3
ADR 81/02 Urban (miles per UK gallon): 20
ADR 81/02 Urban (mpg): 16
Fuel Economy
ADR 81/02 (L/100km): 11.2
Power
Maximum Power (hp/PS): 284
Maximum Power (kW): 209
Maximum Torque (Nm): 347
Measurement Standard: SAE
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 6400
Rpm For Maximum Torque Low: 4100
Drive
Driven Wheels: 4x4
Four-Wheel Drive Type: Part-Time
Selection: Manual
Transmission
Code: 850re
Description: Automatic With Manual Mode
Low High Gear Ranges: yes
Manual Mode: yes
Number of Speeds: 8
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 8.4
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 7.0
Low Tire Pressure Indicator
Displays Pressure Reading: yes
Rim Mounted Sensor: yes
Power Steering
Type: Electro-Hydraulic
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Beam
Front Wheel Dependence: Rigid
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 113
Location: Front
Front Wheels Tire Profile: 70
Front Wheels Tire Speed Rating: T
Front Wheels Tire Type: All Seasons
Front Wheels Tire Width: 255
Rear Wheels Tire Load Index: 113
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 70
Rear Wheels Tire Speed Rating: T
Rear Wheels Tire Type: All Seasons
Rear Wheels Tire Width: 255
Wheels
Location: Front
Front Wheels Rim Diameter (In): 18
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.5
Location: 1
Location: Rear
Rear Rim Diameter (In): 18
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.5
Tray/Tub
Type: Straight Side
Cargo Area Dimensions
Height (mm): 1443
Length (in): 60.3
Length (mm): 1532
Loading Floor Height (in): 34.8
Loading Floor Height (mm): 884
Width Between Wheelhouses (in): 44.8
Width Between Wheelhouses (mm): 1138
Width (in): 56.8
Width (mm): 1443
External Dimensions
Kerb to Kerb Turning Circle (mm): 13600
Front Track (in): 64.4
Front Track (mm): 1636
Ground Clearance Unladen (in): 9.8
Ground Clearance Unladen (mm): 249
Kerb To Kerb Turning Circle (ft): 44.6
Overall Height (in): 75.0
Overall Height (mm): 1905
Overall Length (in): 220.1
Overall Length (mm): 5591
Overall Width (in): 74.6
Overall Width (mm): 1894
Rear Track (in): 64.4
Rear Track (mm): 1636
Wheelbase (in): 137.3
Wheelbase (mm): 3488
Ramp Angles
Approach Angle: 40.7
Departure Angle: 25.1
Body Style
Body Type: Utility
Cab Type: Double Cab
Local Body Type: Utility
Platform Code: JT
Roof Type: Standard
Wheelbase Type: Short
Step
Step Location: Side
Bumpers
Front Bumper Colour: Black
Location: Front
Rear Bumper Colour: Black
Location: Rear
Cargo Doors
Location: Rear
Rear Opening Angle: 90
Rear Operation: Dropping Gate
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Headlight Control
Dusk Sensor: yes
Height Adjustment: Automatic
Internal Height Adjustment: yes
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Complex Surface
LED Lights
Location: Day Time Running Lights
Paint
External Colour: Black
Type: Black
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Rear Side Windows
Location: Driver
Driver Type: Wind-Up
Location: Passenger
Passenger Type: Wind-Up
Rear View Mirror Camera
Auto Dimming: yes
Third Row Windows
Location: Driver
Driver Type: Fixed
Location: Passenger
Passenger Type: Fixed
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Gross Trailer Weight Braked (kg): 2721
Gross Trailer Weight Braked (lb): 5999
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 5080
Gross Train Weight (lb): 11200
Gross Vehicle Weight (kg): 2631
Gross Vehicle Weight (lb): 5800
Payload Allowance (kg): 527
Payload Allowance (lb): 1162
Published Kerb Weight (kg): 2104
Published Kerb Weight (lb): 4639
Tare Weight (kg): 2049
Audio System
Brand Name: Alpine
Colour Screen: yes
Digital Radio: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 9
Floor Covering
Vehicle Cab Compartment: Textile
Luxury Trim
Doors: Leather
Gear Selector: Leather
Handbrake Grip: Leather
Instrument Panel: Leather
Airbags
Number of Airbags: 4
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Overtaking Sensor
Manufacturer Name: Blind Spot Monitor
Rear Cross Traffic Collision Avoidance
Type: Sensor
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Front Seat
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Type: Manual
Driver Front Seat Reach Type: Manual
Driver Front Seat Type: Bucket
Passenger Front Seat Heated: yes
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Leather
Main Seat Material: Leather
Seating
Capacity: 5
Configuration: 2+3
Below Seat Storage
Location: Rear
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Ventilation System
Digital Display: yes
Power Locks
Automatic Locking: yes
Operation: Card Key
Intermediate Service
Distance (km): 12000
Distance (miles): 7456
Period (Months): 12
