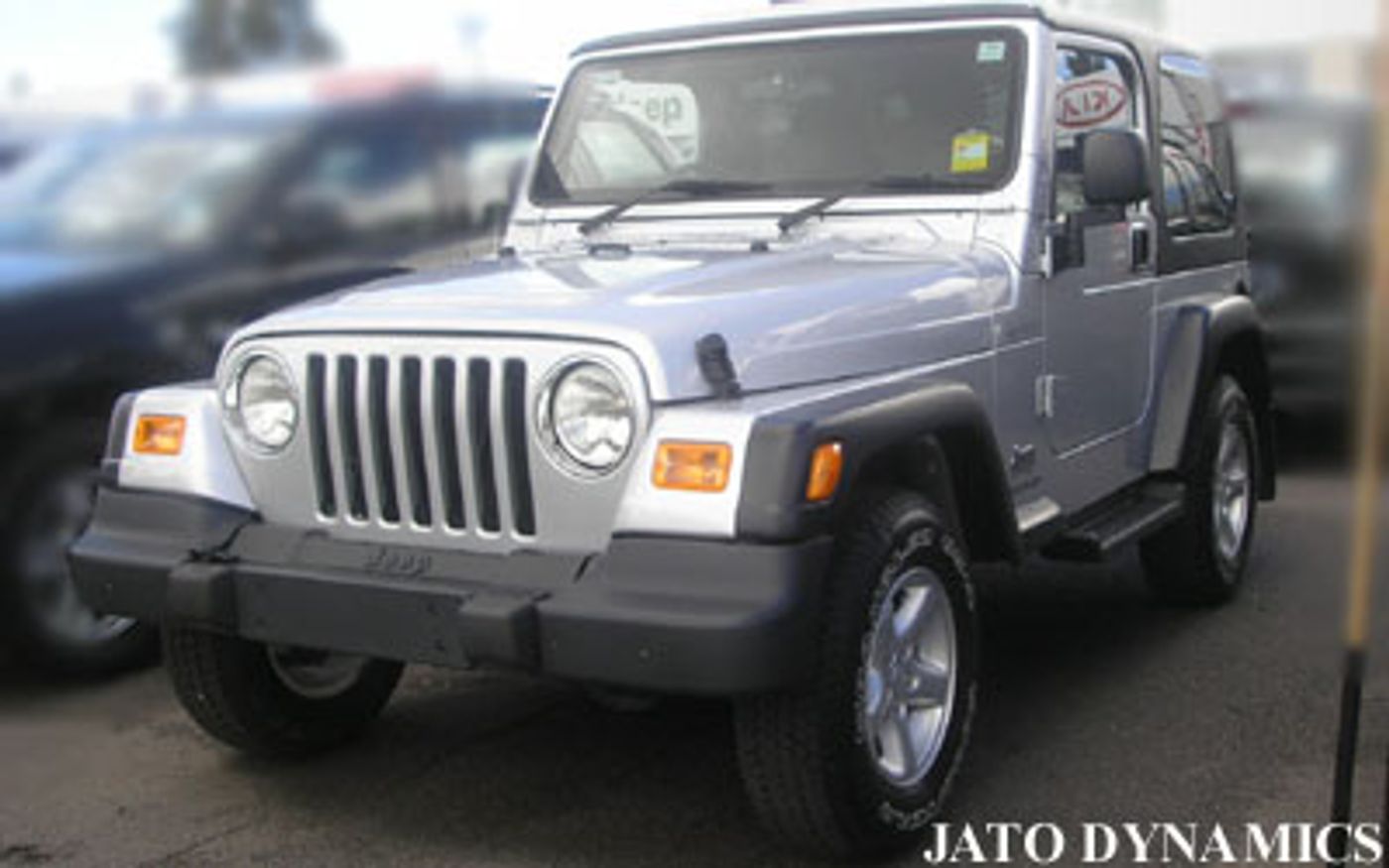

Jeep Wrangler Renegade Extreme Sport (2005) price & specs
Save $$$ with CarExpert*
From
$33,990â€
Renegade Extreme Sport
Overview
The 2005 Jeep Wrangler Renegade Extreme Sport is a four-wheel drive, 3-door SUV that was released to the Australian market on 4th January 1970 classified as a TJ. The Jeep Wrangler is regarded as a large SUV built in USA with prices starting at $33,990 before on-road costs.
This Jeep Wrangler is powered by a 4L 6-cylinder engine that has 130 kW of power (at 4600 rpm) and 296 Nm of torque (at 2700 rpm) via a Four-speed Automatic transmission. Jeep claims the Wrangler Renegade Extreme Sport uses 13.5L/100km of Unleaded in the combined city and highway cycle while putting out 321g of CO2. It has a 72L fuel tank, meaning it should be able to travel 533km per full tank
The Jeep Wrangler measures 1782mm (70.2 inches) in height, 3883mm (152.9 inches) in length, 1740mm (68.5 inches) in width with a 2373mm (93.4 inches) wheelbase that brings about a total of 1550kg (3417.2 lbs) of unladen weight. The Wrangler Renegade Extreme Sport comes standard with 225/75 R15 front tyres and 225/75 R15 rear tyres. It has a 36 month, 100,000 km warranty.
The 2005 Jeep Wrangler Renegade Extreme Sport has a 209mm ground clearance with a 900kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Wrangler compare?
Quickly see how the 2005 Jeep Wrangler Renegade Extreme Sport stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
79.75 - 88.62 kW/t
55.5 kW/t
116.88 kW/t
Boot Space
337 litres
190 litres
900 litres
Fuel Efficiency
13.5 L/100km
9 L/100km
15.5 L/100km
Price
$29,990 - $33,990
$29,990
$69,990
Warranty (Years)
3 years
3 years
5 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Years on Sale
2 years
1 year
5 years
Towing & Off-Road Capability
Gross Vehicle Weight
2,019 kg
2,019 kg
2,880 kg
Braked Towing Capacity
900 kg
900 kg
3,000 kg
Approach Angle
41.8°
26°
41.8°
Departure Angle
31.3°
23.9°
31.3°
Ground Clearance Unladen
209 - 224 mm
184 mm
235 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
3,883 mm
1,740 mm
1,782 mm
| Specification | Measurement |
|---|---|
| Overall Length | 3,883 mm |
| Overall Width | 1,740 mm |
| Overall Height | 1,782 mm |
| Wheelbase | 2,373 mm |
| Turning Circle | 10,200 mm |
| Load Capacity | 469 mm |
Looking for complete Jeep Wrangler size & space specs?
Our Jeep Wrangler Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Jeep Wrangler Sales rolling 12-months#
Explore Jeep Wrangler Features & Specs
Emission Control Level
CO2 Level (Combined): 321
Engine
Bore Engine: 98.4
Engine (cc): 3960
Compression Ratio: 8.8
Engine Configuration: In-Line
Engine (L): 4
Number of Cylinders: 6
Number of Valves per Cylinder: 2
Stroke Engine: 86.7
Valve Gear Type: Overhead Valve
Fuel
Generic Primary Fuel Type: Petrol
Fuel Type: Unleaded
Octane Number: 91
Fuel System
Injection Carburetion: Multi-Point Injection
Fuel Tanks
Main Capacity Gal: 19
Main Capacity (L): 72
Main Fuel Type: Unleaded
Main Type: Total
Interested in buying a Jeep Wrangler Renegade Extreme Sport?
Save $$$ with CarExpert*
From
$33,990â€
Fuel Consumption
ADR 81/02 Combined (L/100km): 13.5
ADR 81/02 Combined (mpg): 17
ADR 81/02 Standard: Adr 81/02
AS 2877 Combined (L/100km): 13.5
AS 2877 Combined (mpg): 17
AS 2877 Standard: As 2877
Fuel Economy
ADR 81/02 (L/100km): 13.5
Performance
Maximum Speed (km/h): 172
Maximum Speed (mph): 107
Power
Maximum Power (hp/PS): 177
Maximum Power (kW): 130
Maximum Torque (Nm): 296
Measurement Standard: DIN
Rpm For Maximum Power Low: 4600
Rpm For Maximum Torque Low: 2700
Drive
Assisted Four-Wheel Drive Selection: yes
Driven Wheels: 4x4
Four-Wheel Drive Hub Engagement: Automatic Hubs
Four-Wheel Drive Type: Part-Time
Selectable While Driving: yes
Selection: Manual
Speed Limited Manual Only: yes
Dual Range Transmission
4wd Low High Low Transfer Selection: 4wd Low
Limited Slip Differential
Location: Rear
Transmission
Code: 42rle
Description: Automatic
Electronic Control Auto Only: yes
Lock Up Auto Only: yes
Low High Gear Ranges: yes
Number of Speeds: 4
Shift Lever Location: Floor
Type: Automatic
ABS
Location: 4-Wheel
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Beam
Front Wheel Dependence: Rigid
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Extra Load: ?
Front Wheels Tire Load Index: 102
Location: Front
Front Wheels Tire Official Brochure Tire Size: yes
Front Wheels Tire Profile: 75
Front Wheels Tire Speed Rating: S
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 225
Rear Wheels Tire Extra Load: ?
Rear Wheels Tire Load Index: 102
Rear Wheels Tire Location: Rear
Rear Wheels Tire Official Brochure Tire Size: yes
Rear Wheels Tire Profile: 75
Rear Wheels Tire Speed Rating: S
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 225
Wheels
Location: Front
Front Wheels Rim Diameter (In): 15
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7
Location: Rear
Rear Rim Diameter (In): 15
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7
Body Style
Body Type: SUV
Driver Location: RHD
Local Body Type: SUV
Mud Flaps
Rear Mud Flaps Location: Rear
Non-Corrosive Body
Non-Corrosive Panel Location: Part
Non-Corrosive Panel Type: Galvanised
Step
Step Location: Side
Underbody Protection
Location: Fuel Tank
Location: Transfer Case
Cargo Capacity
Rear Seat Down (cu ft): 47.1
Rear Seat Down (L): 1334
Rear Seat Up to Lower Window (cu ft): 11.9
Rear Seat Up to Lower Window (L): 337
External Dimensions
Kerb to Kerb Turning Circle (mm): 10200
Front Track (in): 58
Front Track (mm): 1473
Ground Clearance Unladen (in): 8.2
Ground Clearance Unladen (mm): 209
Kerb To Kerb Turning Circle (ft): 33.5
Overall Height (in): 70.2
Overall Height (mm): 1782
Overall Length (in): 152.9
Overall Length (mm): 3883
Overall Width (in): 68.5
Overall Width (mm): 1740
Rear Track (in): 58
Rear Track (mm): 1473
Wheelbase (in): 93.4
Wheelbase (mm): 2373
Internal Dimensions
Front Headroom (in): 42.5
Front Headroom (mm): 1080
Rear Headroom (in): 40.6
Rear Headroom (mm): 1031
Front Hip Room (in): 51.8
Front Hip Room (mm): 1316
Rear Hip Room (in): 42.7
Rear Hip Room (mm): 1085
Front Leg Room (in): 40.9
Front Leg Room (mm): 1039
Rear Leg Room (in): 35.3
Rear Leg Room (mm): 897
Front Shoulder Room (in): 50.8
Front Shoulder Room (mm): 1290
Rear Shoulder Room (in): 57.3
Rear Shoulder Room (mm): 1455
Ramp Angles
Approach Angle: 41.8
Departure Angle: 31.3
Bumpers
Front Bumper Colour: Black
Location: Front
Rear Bumper Colour: Black
Location: Rear
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Rear Door
Type: Dropping Gate
Headlights
Low Beam Bulb Type: Halogen
Lens Type: Conventional
Paint
External Colour: Black
Type: Gloss
Convertible Rollover Protection
Rollover Protection Type: Fixed Hoop
Convertible Roof
Hard Glass Rear Window: yes
Hard Operation: Removable
Roof Hard Type: Hard
Roof Soft Operation: Removable
Roof Soft Type: Soft
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Externally Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Externally Adjustable
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Gross Trailer Weight Braked (kg): 900
Gross Trailer Weight Braked (lb): 1984
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2019
Gross Vehicle Weight (lb): 4451
Published Kerb Weight (kg): 1550
Published Kerb Weight (lb): 3417
Antenna
Type: Fixed Mast
Audio System
In-Dash CD: yes
Radio Type: Am/Fm
Speakers
Number of Speakers: 7
Load Restraint
Type: Hooks
Cigar Lighter
Location: Front Seats
Power Outlet 12V
Location (12V): Front
Number of Outlets in Front (12V): 1
Reading Lights
Location: Front
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Operation: Reel
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Height Adjustable: yes
Passenger Operation: Reel
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Head Restraints
Front Seats Location: Front Seats
Front Seats Number: 2
Rear Seat Belts
Driver Operation: Reel
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Operation: Reel
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Front Seat
Location: Driver
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Vinyl
Main Seat Material: Cloth
Seating
Capacity: 4
Cup Holders
Location: Front Seats
Front Seats Type: Fixed
Location: Rear Seats
Rear Seats Type: Fixed
Door Pockets Bins
Location: Driver
Location: Passenger
