Jeep Wrangler Sport (2009) price & specs
Save $$$ with CarExpert*
From
$33,590â€
Sport
Overview

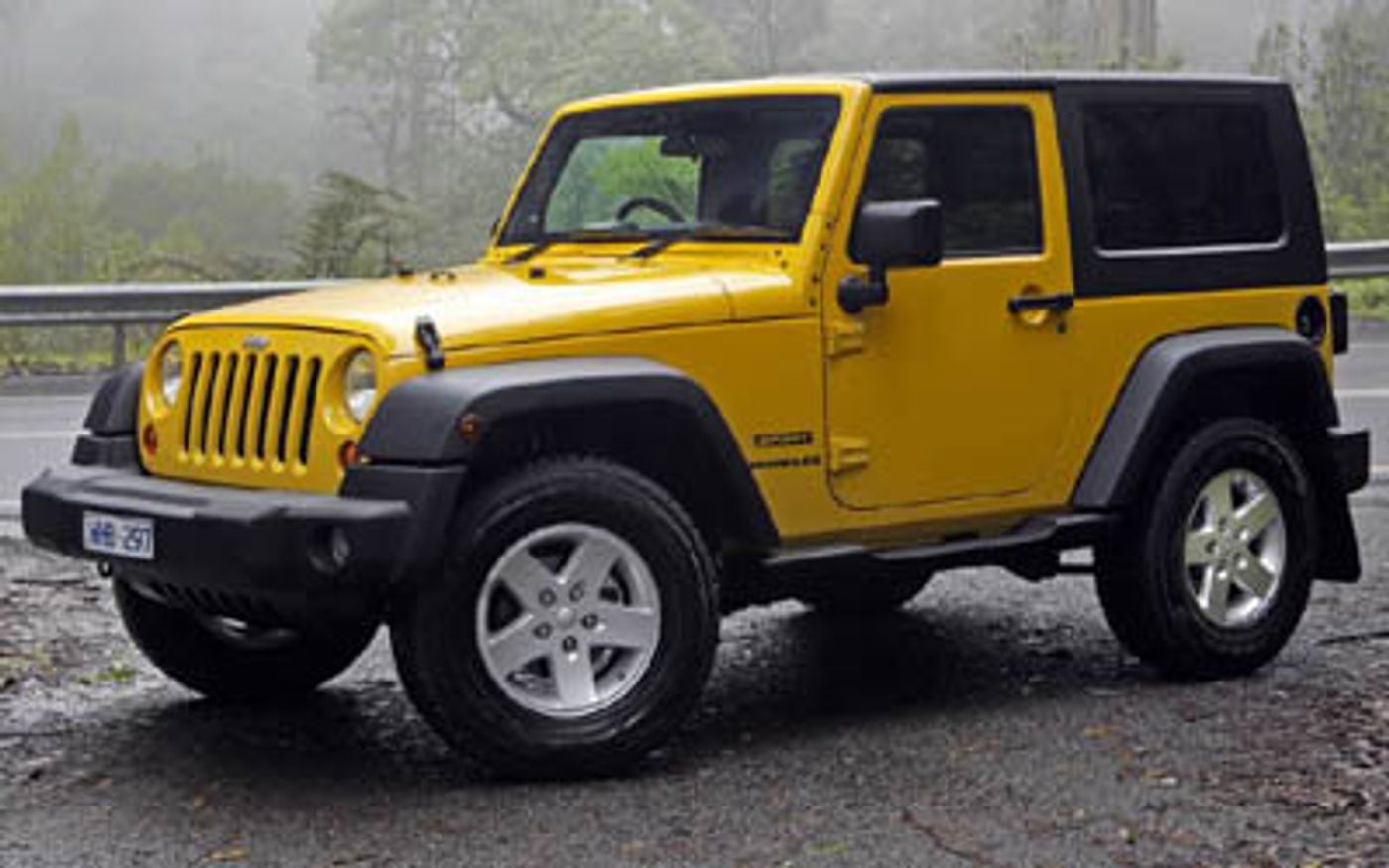

The 2009 Jeep Wrangler Sport is a four-wheel drive, 3-door SUV that was released to the Australian market on 1st January 2009 classified as a JK. The Jeep Wrangler is regarded as a large SUV built in USA with prices starting at $33,590 before on-road costs.
This Jeep Wrangler is powered by a 3.8L 6-cylinder engine that has 146 kW of power (at 5000 rpm) and 315 Nm of torque (at 4000 rpm) via a Four-speed Automatic transmission. Jeep claims the Wrangler Sport uses 11.6L/100km of Unleaded in the combined city and highway cycle while putting out 275g of CO2. It has a 70L fuel tank, meaning it should be able to travel 603km per full tank
It has a 36 month, 100,000 km warranty.
The 2009 Jeep Wrangler Sport has a 238mm ground clearance with a 1600kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Wrangler compare?
Quickly see how the 2009 Jeep Wrangler Sport stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
68.67 - 84.39 kW/t
57.11 kW/t
116.88 kW/t
Boot Space
490 litres
459 litres
490 litres
Fuel Efficiency
9.4 - 12.5 L/100km
7.2 L/100km
13.7 L/100km
Vehicle Range
560 - 713 km
511 km
1,048 km
Price
$31,590 - $42,590
$31,590
$76,790
Warranty (Years)
3 years
3 years
5 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Years on Sale
2 years
1 year
5 years
Towing & Off-Road Capability
Gross Vehicle Weight
2,268 - 2,506 kg
2,268 kg
3,300 kg
Braked Towing Capacity
1,600 kg
1,500 kg
3,500 kg
Approach Angle
36.4 - 37.8°
25.6°
37.9°
Departure Angle
29.8 - 31.2°
22.9°
34.8°
Ground Clearance Unladen
238 - 256 mm
200 mm
256 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
1,740 mm
1,865 mm
| Specification | Measurement |
|---|---|
| Overall Width | 1,740 mm |
| Overall Height | 1,865 mm |
| Wheelbase | 2,424 mm |
| Turning Circle | 10,360 mm |
| Load Capacity | 453 mm |
Looking for complete Jeep Wrangler size & space specs?
Our Jeep Wrangler Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Jeep Wrangler Sales rolling 12-months#
Explore Jeep Wrangler Features & Specs
Emission Control Level
Australia Air Pollution Rating: 6.5
Australia Greenhouse Rating: 4.5
Australia Overall Emission Control Level Rating: 3.0
CO2 Level (Combined): 275
Standard Met: EU4
Engine
Bore Engine: 96.0
Engine (cc): 3778
Compression Ratio: 9.6
Engine Configuration: V
Engine (L): 3.8
Number of Cylinders: 6
Number of Valves per Cylinder: 2
Stroke Engine: 87.0
Valve Gear Type: Overhead Valve
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 91
Minimum Fuel Type: Unleaded
Fuel Type: Unleaded
Octane Number: 91
Fuel System
Injection Carburetion: Multi-Point Injection
Fuel Tanks
Main Capacity Gal: 18.5
Main Capacity (L): 70
Main Capacity Uk Gallons: 15.4
Main Type: Total
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 603
ADR 81/02 Calculated Vehicle Range (miles): 375
ADR 81/02 Combined (km/L): 8.6
ADR 81/02 Combined (L/100km): 11.6
ADR 81/02 Combined (miles per UK gallon): 24
ADR 81/02 Combined (mpg): 20
ADR 81/02 Country Highway (km/L): 11.4
ADR 81/02 Country Highway (L/100km): 8.8
ADR 81/02 Country Highway (miles per UK gallon): 32
ADR 81/02 Country Highway (mpg): 27
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 6.1
ADR 81/02 Urban (L/100km): 16.4
ADR 81/02 Urban (miles per UK gallon): 17
ADR 81/02 Urban (mpg): 14
Fuel Economy
ADR 81/02 (L/100km): 11.6
Power
Maximum Power (hp/PS): 199
Maximum Power (kW): 146
Maximum Torque (Nm): 315
Measurement Standard: DIN
Rpm For Maximum Power Low: 5000
Rpm For Maximum Torque Low: 4000
Drive
Assisted Four-Wheel Drive Selection: yes
Driven Wheels: 4x4
Four-Wheel Drive Hub Engagement: Automatic Hubs
Four-Wheel Drive Type: Part-Time
Selectable While Driving: yes
Selection: Manual
Speed Limited Manual Only: yes
Transmission
Code: 42rle-Vlp
Description: Automatic
Low High Gear Ranges: yes
Number of Speeds: 4
Shift Lever Location: Floor
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Beam
Front Wheel Dependence: Rigid
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 113
Location: Front
Front Wheels Tire Profile: 75
Front Wheels Tire Speed Rating: T
Front Wheels Tire Type: All Seasons
Front Wheels Tire Width: 255
Rear Wheels Tire Load Index: 113
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 75
Rear Wheels Tire Speed Rating: T
Rear Wheels Tire Type: All Seasons
Rear Wheels Tire Width: 255
Wheels
Location: Front
Front Wheels Rim Diameter (In): 17
Front Wheels Rim Type: Alloy
Location: Rear
Rear Rim Diameter (In): 17
Rear Rim Type: Alloy
Body Style
Body Type: SUV
Driver Location: RHD
Local Body Type: SUV
Platform Code: JK
Wheelbase Type: Short
Mud Flaps
Rear Mud Flaps Location: Rear
Step
Step Location: Side
Side Step Type: Tube
Underbody Protection
Location: Fuel Tank
Location: Transfer Case
Cargo Capacity
Rear Seat Down (cu ft): 56.5
Rear Seat Down (L): 1600
Rear Seat Up to Lower Window (cu ft): 17.3
Rear Seat Up to Lower Window (L): 490
External Dimensions
Kerb to Kerb Turning Circle (mm): 10360
Front Track (in): 61.9
Front Track (mm): 1572
Ground Clearance Unladen (in): 9.4
Ground Clearance Unladen (mm): 238
Kerb To Kerb Turning Circle (ft): 34.0
Overall Height (in): 73.4
Overall Height (mm): 1865
Overall Width (in): 68.5
Overall Width (mm): 1740
Rear Track (in): 61.9
Rear Track (mm): 1572
Wheelbase (in): 95.4
Wheelbase (mm): 2424
Internal Dimensions
Front Headroom (in): 41.3
Front Headroom (mm): 1048
Rear Headroom (in): 40.4
Rear Headroom (mm): 1025
Front Hip Room (in): 55.6
Front Hip Room (mm): 1413
Rear Hip Room (in): 44.7
Rear Hip Room (mm): 1136
Front Leg Room (in): 40.9
Front Leg Room (mm): 1040
Rear Leg Room (in): 35.6
Rear Leg Room (mm): 905
Front Shoulder Room (in): 55.8
Front Shoulder Room (mm): 1417
Rear Shoulder Room (in): 61.7
Rear Shoulder Room (mm): 1566
Ramp Angles
Approach Angle: 36.4
Departure Angle: 29.8
Bumpers
Front Bumper Colour: Black
Location: Front
Rear Bumper Colour: Black
Location: Rear
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Rear Door
Type: Single Hinged
Headlights
Low Beam Bulb Type: Halogen
Paint
External Colour: Black
Type: Gloss
Convertible Rollover Protection
Rollover Protection Type: Fixed Hoop
Convertible Roof
Hard Colour: Black
Hard Operation: Removable
Roof Hard Type: Hard
Roof Soft Colour: Black
Roof Soft Operation: Removable
Roof Soft Type: Soft
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Externally Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Externally Adjustable
Power Windows
Front Electric Windows: Front
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Gross Trailer Weight Braked (kg): 1600
Gross Trailer Weight Braked (lb): 3527
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2268
Gross Vehicle Weight (lb): 5000
Published Kerb Weight (kg): 1815
Published Kerb Weight (lb): 4001
Audio System
In-Dash CD: yes
Radio Type: Am/Fm
Disc Player
Dashboard Capacity: 6
Location: Dashboard
External Connections
Aux Jack (Front): yes
Speakers
Number of Speakers: 6
Upgraded Speakers: yes
Entertainment Display Screen
Location: Front
Power Outlet 12V
Location (12V): Front
Voice Activating System
Includes Audio Player: yes
Includes Navigation System: yes
Includes Phone: yes
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 2
Rear Seat Belts
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Front Seat
Driver Front Seat Height Adjustment: yes
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 4
Configuration: 2+2
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 12000
Distance (miles): 7456
