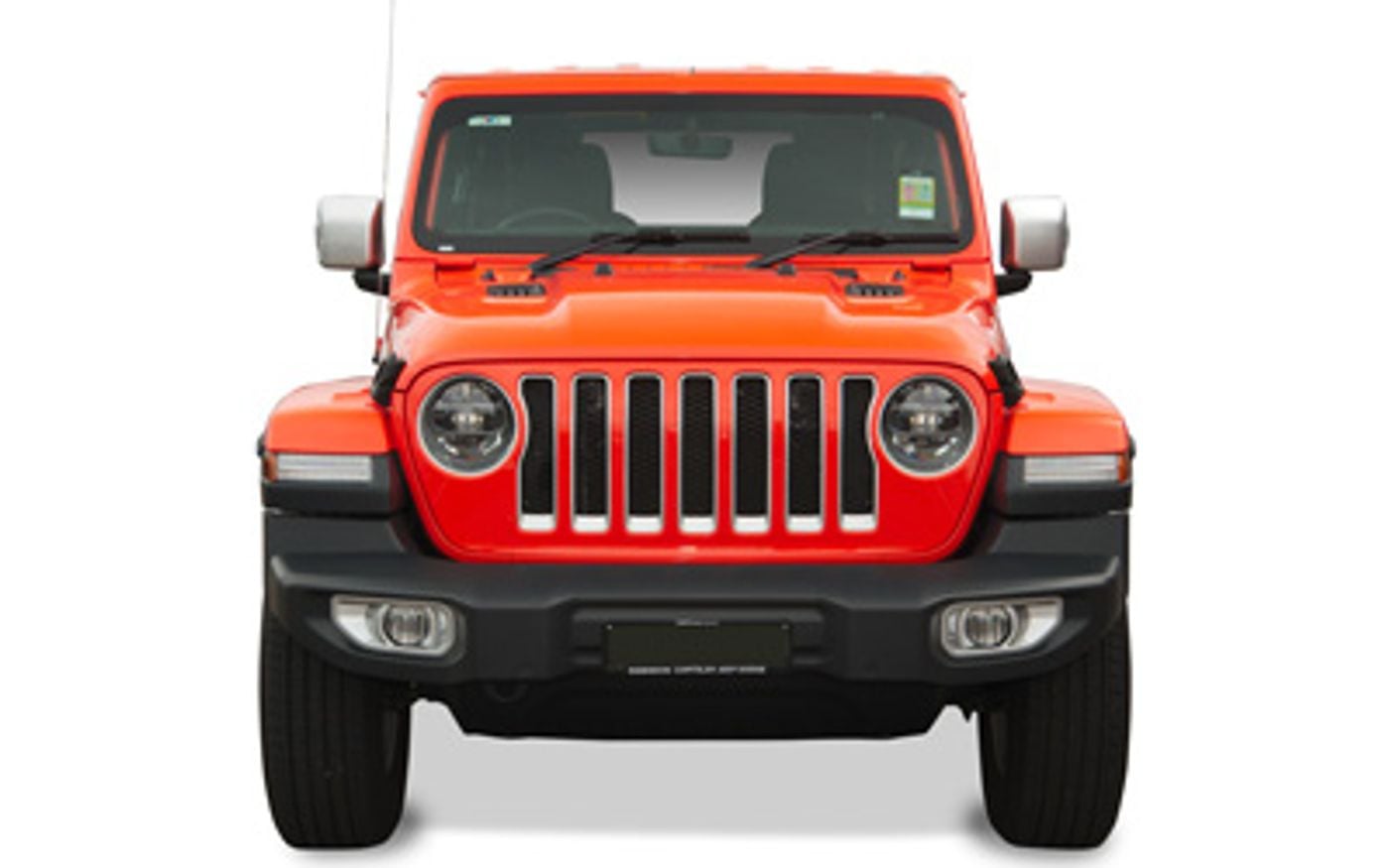

Jeep Wrangler Overland (2020) price & specs
Save $$$ with CarExpert*
From
$59,450â€
Overland
Overview
The 2020 Jeep Wrangler Overland is a four-wheel drive, 3-door SUV that was released to the Australian market on 2nd September 2020 classified as a JL. The Jeep Wrangler is regarded as a large SUV built in USA with prices starting at $59,450 before on-road costs.
This Jeep Wrangler is powered by a 3.6L 6-cylinder engine that has 209 kW of power (at 6400 rpm) and 347 Nm of torque (at 4100 rpm) via an Eight-speed Automatic transmission. Jeep claims the Wrangler Overland uses 9.6L/100km of Unleaded in the combined city and highway cycle while putting out 223g of CO2. It has a 66L fuel tank, meaning it should be able to travel 688km per full tank
The Jeep Wrangler measures 1839mm (72.4 inches) in height, 4334mm (170.6 inches) in length, 1894mm (74.6 inches) in width with a 2459mm (96.8 inches) wheelbase that brings about a total of 1804kg (3977.1 lbs) of unladen weight. The Wrangler Overland comes standard with 255/70 R18 front tyres and 255/70 R18 rear tyres. It requires a service every 12 months or 12,000 km, whichever comes first. It has a 60 month, 100,000 km warranty.
The 2020 Jeep Wrangler Overland has a 260mm ground clearance with a 1497kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Wrangler compare?
Quickly see how the 2020 Jeep Wrangler Overland stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
106.04 - 115.85 kW/t
52.95 kW/t
115.85 kW/t
Fuel Efficiency
9.6 - 10.3 L/100km
5.9 L/100km
10.7 L/100km
Vehicle Range
690 - 790 km
606 km
1,682 km
Price
$59,450 - $66,950
$37,440
$89,590
Warranty (Years)
5 years
5 years
7 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Years on Sale
2 years
1 year
5 years
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,313 - 2,404 kg
2,100 kg
3,300 kg
Braked Towing Capacity
1,497 kg
1,497 kg
3,500 kg
Approach Angle
34.8°
14.7°
36.6°
Departure Angle
29.2°
15.3°
29.2°
Ground Clearance Unladen
260 mm
180 mm
260 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,334 mm
1,894 mm
1,839 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,334 mm |
| Overall Width | 1,894 mm |
| Overall Height | 1,839 mm |
| Wheelbase | 2,459 mm |
| Turning Circle | 10,500 mm |
| Load Capacity | 509 mm |
Looking for complete Jeep Wrangler size & space specs?
Our Jeep Wrangler Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Jeep Wrangler Sales rolling 12-months#
Explore Jeep Wrangler Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Cruise Control
Adaptive Cruise Control: yes
Stop Go Function: Stop
Media Control
Touch Screen: yes
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: Unlimited
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Mirrorlink Months Subscription Included: 0
Other Months Subscription Included: 0
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Front
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Type: Automatic
USB Charging Port
Location: Front
Number of Ports in Front: 2
Location: Rear
Number of Ports in Rear: 2
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Country Highway): 178
CO2 Level (Combined): 223
CO2 Level (Urban): 301
Standard Met: EU5
Engine
Bore Engine: 96.0
Engine (cc): 3604
Engine Configuration: V
Engine Code: ERC
Engine (L): 3.6
Number of Cylinders: 6
Number of Valves per Cylinder: 4
Stroke Engine: 83.0
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 91
Minimum Fuel Type: Unleaded
Fuel Type: Unleaded
Octane Number: 91
Fuel System
Injection Carburetion: Multi-Point Injection
Fuel Tanks
Main Capacity Gal: 17.5
Main Capacity (L): 66
Main Capacity Uk Gallons: 14.6
Main Type: Total
Computer
Average Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 8.4
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 7.0
Low Tire Pressure Indicator
Displays Pressure Reading: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 690
ADR 81/02 Calculated Vehicle Range (miles): 429
ADR 81/02 Combined (km/L): 10.4
ADR 81/02 Combined (L/100km): 9.6
ADR 81/02 Combined (miles per UK gallon): 29
ADR 81/02 Combined (mpg): 25
ADR 81/02 Country Highway (km/L): 13.0
ADR 81/02 Country Highway (L/100km): 7.7
ADR 81/02 Country Highway (miles per UK gallon): 37
ADR 81/02 Country Highway (mpg): 31
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 7.7
ADR 81/02 Urban (L/100km): 13.0
ADR 81/02 Urban (miles per UK gallon): 22
ADR 81/02 Urban (mpg): 18
Fuel Economy
ADR 81/02 (L/100km): 9.6
Performance
Acceleration 0 To 100 km/h: 7.5
Maximum Speed (km/h): 180
Maximum Speed (mph): 112
Power
Maximum Power (hp/PS): 284
Maximum Power (kW): 209
Maximum Torque (Nm): 347
Measurement Standard: DIN
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 6400
Rpm For Maximum Torque Low: 4100
Drive
Driven Wheels: 4x4
Four-Wheel Drive Type: Part-Time
Selection: Manual
Transmission
Code: 850re
Description: Automatic With Manual Mode
Low High Gear Ranges: yes
Manual Mode: yes
Number of Speeds: 8
Shift Lever Location: Floor
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Heated: yes
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Beam
Front Wheel Dependence: Rigid
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 113
Location: Front
Front Wheels Tire Profile: 70
Front Wheels Tire Speed Rating: S
Front Wheels Tire Type: All Terrain
Front Wheels Tire Width: 255
Rear Wheels Tire Load Index: 113
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 70
Rear Wheels Tire Speed Rating: S
Rear Wheels Tire Type: All Terrain
Rear Wheels Tire Width: 255
Wheels
Location: Front
Front Wheels Rim Diameter (In): 18
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.5
Front Wheels Two Tone: yes
Location: Rear
Rear Rim Diameter (In): 18
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.5
Rear Two Tone: yes
Cargo Capacity
Measurement Standard: SAE
Rear Seat Down (cu ft): 72.4
Rear Seat Down (L): 2050
External Dimensions
Kerb to Kerb Turning Circle (mm): 10500
Front Track (in): 62.9
Front Track (mm): 1598
Ground Clearance Unladen (in): 10.2
Ground Clearance Unladen (mm): 260
Kerb To Kerb Turning Circle (ft): 34.4
Overall Height (in): 72.4
Overall Height (mm): 1839
Overall Length (in): 170.6
Overall Length (mm): 4334
Overall Width (in): 74.6
Overall Width (mm): 1894
Rear Track (in): 62.9
Rear Track (mm): 1598
Wheelbase (in): 96.8
Wheelbase (mm): 2459
Internal Dimensions
Front Headroom (in): 42.6
Front Headroom (mm): 1082
Rear Headroom (in): 41.7
Rear Headroom (mm): 1059
Front Hip Room (in): 53.9
Front Hip Room (mm): 1369
Rear Hip Room (in): 45.0
Rear Hip Room (mm): 1143
Front Leg Room (in): 41.2
Front Leg Room (mm): 1046
Rear Leg Room (in): 35.7
Rear Leg Room (mm): 907
Front Shoulder Room (in): 55.7
Front Shoulder Room (mm): 1415
Rear Shoulder Room (in): 57.7
Rear Shoulder Room (mm): 1466
Ramp Angles
Approach Angle: 34.8
Departure Angle: 29.2
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: JL
Wheelbase Type: Short
Step
Step Location: Side
Side Step Type: Platform
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Rear Door
Type: Single Hinged
Headlight Control
Dusk Sensor: yes
Height Adjustment: Automatic
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: Black
Type: Gloss
Convertible Rollover Protection
Rollover Protection Type: Fixed Hoop
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Gross Trailer Weight Braked (kg): 1497
Gross Trailer Weight Braked (lb): 3300
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2313
Gross Vehicle Weight (lb): 5099
Published Kerb Weight (kg): 1804
Published Kerb Weight (lb): 3977
Tare Weight (kg): 1762
Trailer Noseweight (kg): 150
Audio System
Audio Player Reads MP3: yes
Colour Screen: yes
Digital Radio: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
USB (Rear): yes
Total Front USB Connections: 2
Total Rear USB Connections: 2
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Brand: Alpine
Number of Speakers: 9
Subwoofer: yes
Luxury Trim
Doors: Leather
Gear Selector: Leather
Handbrake Grip: Leather
Instrument Panel: Alloy Look
Airbags
Number of Airbags: 4
Autonomous Drive
Level: 1 - Driver Assistance
Crash Test Results
ANCAP Adult Occupant Score: 60.00
ANCAP Child Occupant Score: 80.00
ANCAP Date Tested: 20191219
ANCAP Overall: 3.00
ANCAP Pedestrian: Acceptable
ANCAP Pedestrian Score: 49.00
ANCAP Rating Year: 2019
ANCAP Rear Crash Protect Head Restraint Rating: Good
ANCAP Safety Assist Score: 51.00
ANCAP Standard: Ancap
ANCAP Version Tested: Wrangler Sahara Unlimited Lhd 2.2 Diesel
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 2
Overtaking Sensor
Active Without Turn Signal: yes
Buzzer: yes
Manufacturer Code: Blind Spot Monitoring (Bsm)
Rear Cross Traffic Collision Avoidance
Type: Sensor
Rear Seat Belts
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Front Head Protection: yes
Location: Front
Front Seat
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Type: Manual
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Passenger Front Seat Heated: yes
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Leather
Main Seat Material: Leather
Seating
Capacity: 4
Configuration: 2+2
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Ventilation System
Heater Type: Combustion
Touch Screen Controls: yes
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 12000
Distance (miles): 7456
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
