Overview

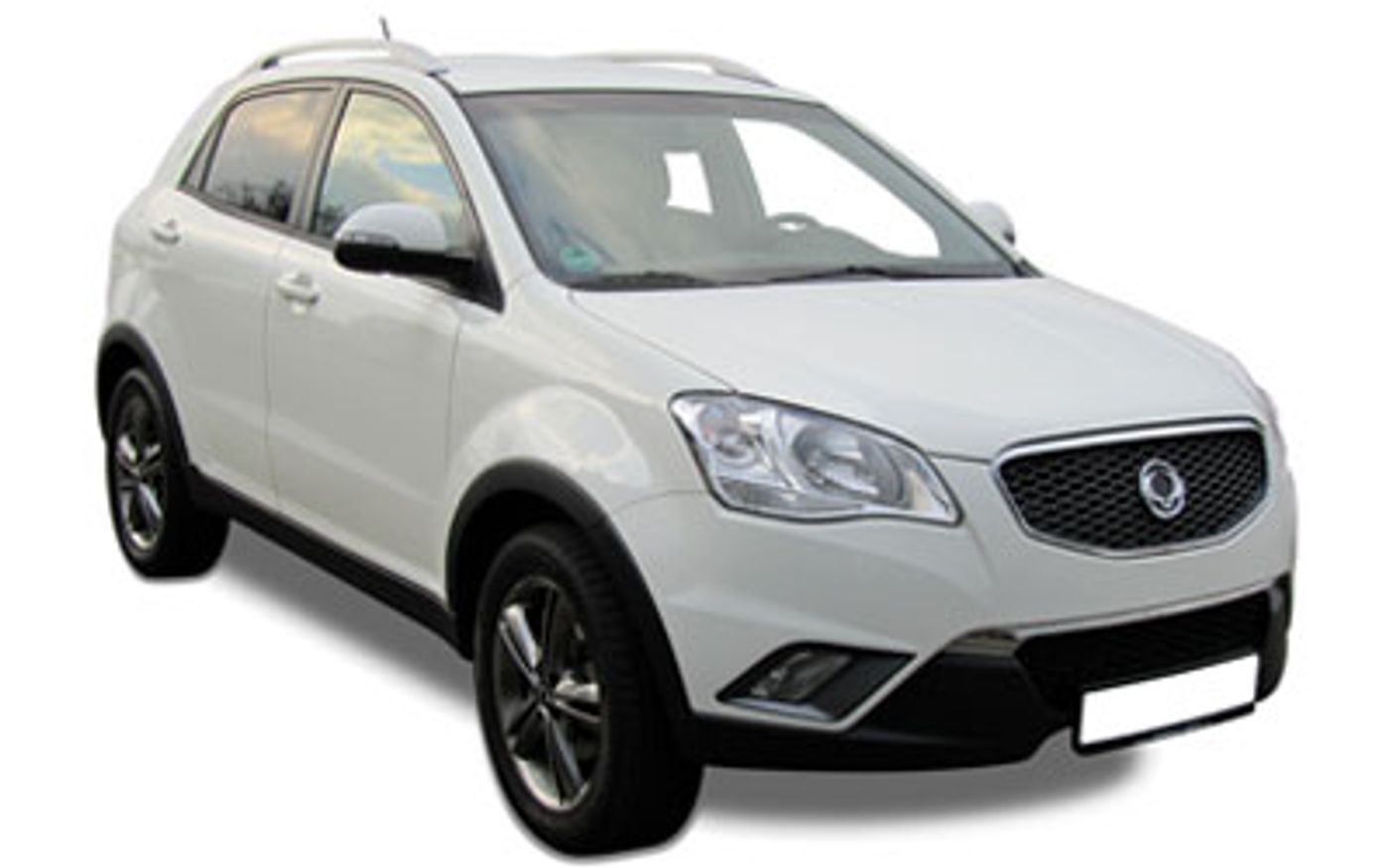

The 2012 KGM Korando SPR is a four-wheel drive, 5-door SUV that was released to the Australian market on 5th February 2011. The KGM Korando is regarded as a small SUV built in Korea with prices starting at $36,811 before on-road costs.
This KGM Korando is powered by a 2.0L 4-cylinder engine that has 129 kW of power (at 4000 rpm) and 360 Nm of torque (at 2000 rpm) via a Six-speed Automatic transmission. KGM claims the Korando SPR uses 7.5L/100km of Diesel in the combined city and highway cycle while putting out 199g of CO2. It has a 57L fuel tank, meaning it should be able to travel 760km per full tank
The KGM Korando measures 1710mm (67.3 inches) in height, 4410mm (173.6 inches) in length, 1830mm (72.0 inches) in width with a 2650mm (104.3 inches) wheelbase that brings about a total of 1747kg (3851.5 lbs) of unladen weight. The Korando SPR comes standard with 225/55 R18 front tyres and 225/55 R18 rear tyres. It has a 60 month, 100,000 km warranty.
The 2012 KGM Korando SPR has a 180mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Korando compare?
Quickly see how the 2012 KGM Korando SPR stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
72.09 - 78.42 kW/t
58.6 kW/t
85.62 kW/t
Boot Space
486 litres
113 litres
486 litres
Fuel Efficiency
6.1 - 7.5 L/100km
5.9 L/100km
8.6 L/100km
Vehicle Range
760 - 934 km
541 km
1,017 km
Price
$25,990 - $36,811
$20,490
$36,990
Warranty (Years)
5 years
3 years
5 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Towing & Off-Road Capability
Gross Vehicle Weight
2,100 - 2,260 kg
1,420 kg
2,260 kg
Braked Towing Capacity
1,500 - 2,000 kg
1,050 kg
2,000 kg
Approach Angle
22.8°
18°
42°
Departure Angle
28.2°
27.7°
46°
Ground Clearance Unladen
180 mm
170 mm
220 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,410 mm
1,830 mm
1,710 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,410 mm |
| Overall Width | 1,830 mm |
| Overall Height | 1,710 mm |
| Wheelbase | 2,650 mm |
| Turning Circle | 10,800 mm |
| Load Capacity | 513 mm |
Looking for complete KGM Korando size & space specs?
Our KGM Korando Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
KGM Korando Sales rolling 12-months#
Explore KGM Korando Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
Australia Air Pollution Rating: 6.0
Australia Greenhouse Rating: 6.5
Australia Overall Emission Control Level Rating: 3.5
CO2 Level (Combined): 199
Standard Met: EU5
Engine
Bore Engine: 86.2
Engine (cc): 1998
Engine Configuration: In-Line
Engine Code: D20 Dft
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 85.6
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 15.1
Main Capacity (L): 57
Main Capacity Uk Gallons: 12.5
Main Type: Total
Computer
Average Fuel Consumption: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 760
ADR 81/02 Calculated Vehicle Range (miles): 472
ADR 81/02 Combined (km/L): 13.3
ADR 81/02 Combined (L/100km): 7.5
ADR 81/02 Combined (miles per UK gallon): 38
ADR 81/02 Combined (mpg): 31
ADR 81/02 Country Highway (km/L): 15.9
ADR 81/02 Country Highway (L/100km): 6.3
ADR 81/02 Country Highway (miles per UK gallon): 45
ADR 81/02 Country Highway (mpg): 37
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 10.4
ADR 81/02 Urban (L/100km): 9.6
ADR 81/02 Urban (miles per UK gallon): 29
ADR 81/02 Urban (mpg): 25
Fuel Economy
ADR 81/02 (L/100km): 7.5
Performance
Acceleration 0 To 100 km/h: 10.8
Maximum Speed (km/h): 186
Maximum Speed (mph): 116
Power
Maximum Power (hp/PS): 175
Maximum Power (kW): 129
Maximum Torque (Nm): 360
Measurement Standard: EEC
Rpm For Maximum Power Low: 4000
Rpm For Maximum Torque Low: 2000
Differential Lock
Location: Rear
Drive
Driven Wheels: 4x4
Four-Wheel Drive Type: Full And Part-Time
Selection: Manual
Electronic Traction Control
Controlled By: Abs & Engine Management
Transmission
Description: Automatic With Manual Mode
Gear Change Paddles: yes
Manual Mode: yes
Number of Speeds: 6
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Location: Front
Front Wheels Tire Profile: 55
Front Wheels Tire Speed Rating: W
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 225
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 55
Rear Wheels Tire Speed Rating: W
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 225
Wheels
Location: Front
Front Wheels Rim Diameter (In): 18
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.0
Location: Rear
Rear Rim Diameter (In): 18
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.0
Cargo Capacity
Rear Seat Down (cu ft): 46.3
Rear Seat Down (L): 1312
Rear Seat Up to Lower Window (cu ft): 17.2
Rear Seat Up to Lower Window (L): 486
External Dimensions
Kerb to Kerb Turning Circle (mm): 10800
Front Track (in): 61.9
Front Track (mm): 1573
Ground Clearance Unladen (in): 7.1
Ground Clearance Unladen (mm): 180
Kerb To Kerb Turning Circle (ft): 35.4
Overall Height (in): 67.3
Overall Height (mm): 1710
Overall Length (in): 173.6
Overall Length (mm): 4410
Overall Width (in): 72.0
Overall Width (mm): 1830
Rear Track (in): 61.3
Rear Track (mm): 1558
Wheelbase (in): 104.3
Wheelbase (mm): 2650
Internal Dimensions
Front Headroom (in): 39.8
Front Headroom (mm): 1010
Rear Headroom (in): 39.0
Rear Headroom (mm): 990
Front Hip Room (in): 53.7
Front Hip Room (mm): 1365
Rear Hip Room (in): 52.8
Rear Hip Room (mm): 1340
Front Leg Room (in): 40.7
Front Leg Room (mm): 1035
Rear Leg Room (in): 37.0
Rear Leg Room (mm): 940
Front Shoulder Room (in): 57.1
Front Shoulder Room (mm): 1450
Rear Shoulder Room (in): 55.5
Rear Shoulder Room (mm): 1410
Ramp Angles
Approach Angle: 22.8
Departure Angle: 28.2
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: C200
Spoiler
Location: Roof
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Height Adjustment: Manual
Internal Height Adjustment: yes
Headlights
Low Beam Bulb Type: Halogen
Paint
External Colour: red
Type: Gloss
Sunroof
Front Sunroof Location: Front
Front Sunroof Operation: Electric
Front Sunroof Type: Glass
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Electrically Foldable Mirrors
Operation: Electric
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Rear View Mirror Camera
Auto Dimming: yes
Weights
Gross Trailer Weight Braked (kg): 2000
Gross Trailer Weight Braked (lb): 4409
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2260
Gross Vehicle Weight (lb): 4982
Published Kerb Weight (kg): 1747
Published Kerb Weight (lb): 3851
Tare Weight (kg): 1707
Audio System
Brand Name: Manufacturer'S Own
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Parking Distance System
Location: Rear
Rear Type: Sensor
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Luxury Trim
Gear Selector: Leather
Crash Test Results
ANCAP Standard: Ancap
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Active: yes
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Operation: Reel
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Electric
Location: Driver
Driver Front Seat Lumbar Type: Manual
Driver Front Seat Reach Type: Electric
Driver Front Seat Reclining Type: Electric
Driver Front Seat Type: Bucket
Passenger Front Seat Heated: yes
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Leather
Main Seat Material: Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 1
Ventilation System
Digital Display: yes
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
