    KGM Korando SX (2013) price & specs

    From
    $30,990†
    2.0L Diesel5D SUV6 SP MANUAL4x4

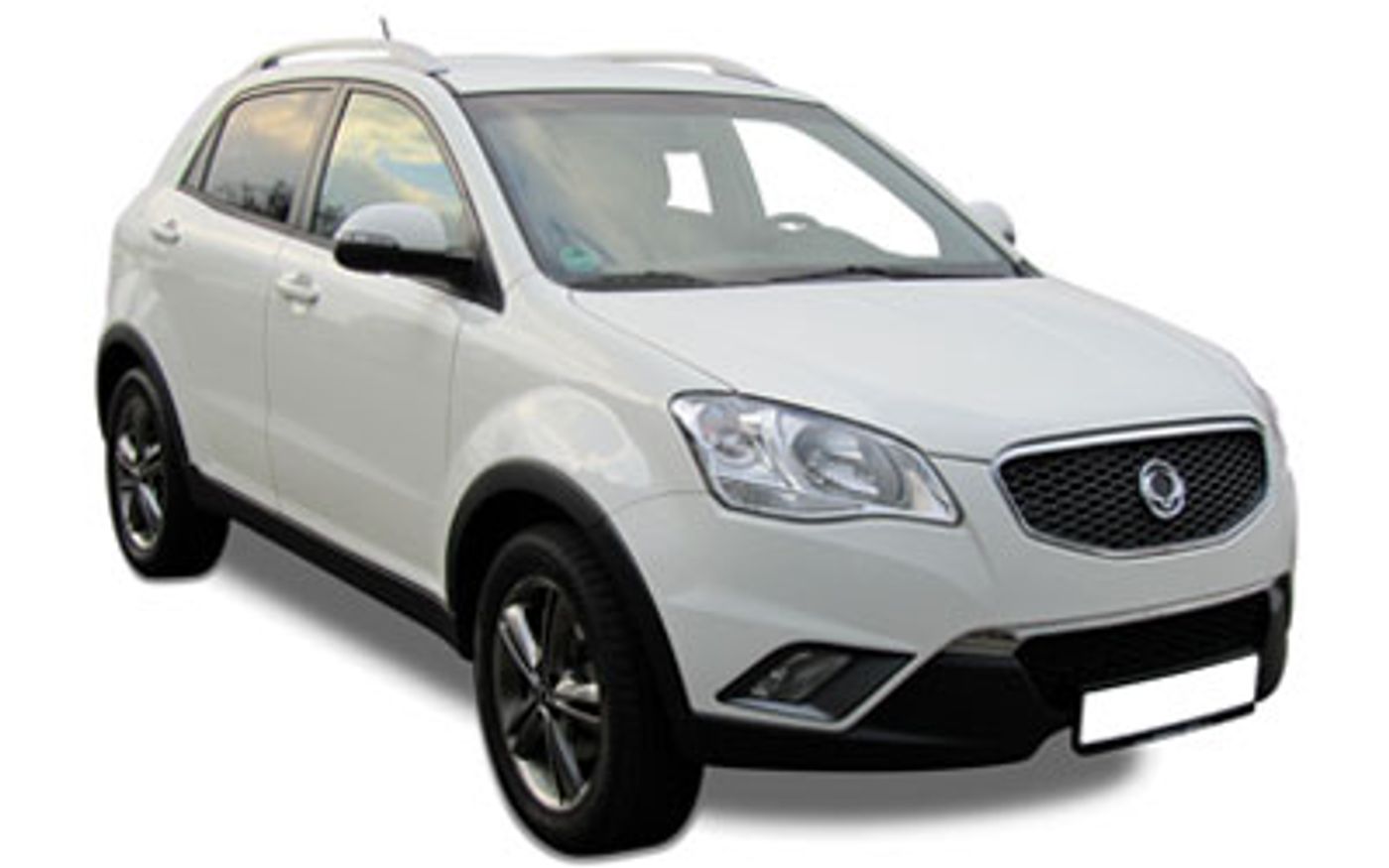

    Hero image of a new KGM Korando SX (2013) price & specs available with CarExpert deals.

    SX

    Find a deal

    Overview

    The 2013 KGM Korando SX is a four-wheel drive, 5-door SUV that was released to the Australian market on 4th February 2013. The KGM Korando is regarded as a small SUV built in Korea with prices starting at $30,990 before on-road costs.

    This KGM Korando is powered by a 2.0L 4-cylinder engine that has 129 kW of power (at 4000 rpm) and 360 Nm of torque (at 2000 rpm) via a Six-speed Manual transmission. KGM claims the Korando SX uses 6.4L/100km of Diesel in the combined city and highway cycle while putting out 169g of CO2. It has a 57L fuel tank, meaning it should be able to travel 891km per full tank

    The KGM Korando measures 1710mm (67.3 inches) in height, 4410mm (173.6 inches) in length, 1830mm (72.0 inches) in width with a 2650mm (104.3 inches) wheelbase that brings about a total of 1727kg (3807.4 lbs) of unladen weight. The Korando SX comes standard with 225/60 R17 front tyres and 225/60 R17 rear tyres. It has a 60 month, 100,000 km warranty.

    The 2013 KGM Korando SX has a 180mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.

    Trusted Reviews, Smarter Choices, Better Prices

    Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.

    Compare CarsFind a deal

    How does the Korando compare?

    Quickly see how the 2013 KGM Korando SX stacks up against its competition.
     Select any benchmark to see more details.

    Power to Weight
    72.45 - 77.48 kW/t
    70.97 kW/t
    85.62 kW/t
    Boot Space
    486 litres
    310 litres
    486 litres
    Fuel Efficiency
    6.4 - 8 L/100km
    5.7 L/100km
    8.6 L/100km
    Vehicle Range
    712 - 891 km
    593 km
    1,086 km
    Price
    $23,990 - $32,990
    $23,990
    $36,990
    Warranty (Years)
    5 years
    3 years
    5 years
    Warranty (Distance)
    100,000 km
    100,000 km
    Unlimited

    Towing & Off-Road Capability

    Gross Vehicle Weight
    2,100 - 2,260 kg
    1,980 kg
    2,260 kg
    Braked Towing Capacity
    1,500 - 2,000 kg
    1,300 kg
    2,000 kg
    Approach Angle
    22.8°
    18°
    22.8°
    Departure Angle
    28.2°
    27.7°
    32°
    Ground Clearance Unladen
    180 mm
    180 mm
    220 mm

    Trusted Reviews, Smarter Choices, Better Prices

    Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.

    Compare CarsFind a deal

    Dimensions

    4,410 mm
    1,830 mm
    1,710 mm
    SpecificationMeasurement
    Overall Length4,410 mm
    Overall Width1,830 mm
    Overall Height1,710 mm
    Wheelbase2,650 mm
    Turning Circle10,800 mm
    Load Capacity533 mm

    Looking for complete KGM Korando size & space specs?

    Our KGM Korando Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.

    Sales Data

    KGM Korando Sales rolling 12-months#

    Explore KGM Korando Features & Specs

    SX

    2.0L, 6-speed manual, 5-door SUV, Diesel, 4x4

    Save $$$ with CarExpert*
    $30,990†
    Find a deal

    Compressor

    Compressor: Turbo

    Emission Control Level

    Australia Air Pollution Rating: 6.0
    Australia Greenhouse Rating: 7.0
    Australia Overall Emission Control Level Rating: 3.5
    CO2 Level (Combined): 169
    Standard Met: EU5

    Engine

    Bore Engine: 86.2
    Engine (cc): 1998
    Engine Configuration: In-Line
    Engine Code: D20 Dft
    Engine (L): 2.0
    Number of Cylinders: 4
    Number of Valves per Cylinder: 4
    Stroke Engine: 85.6
    Valve Gear Type: Double Overhead Cam

    Fuel

    Generic Primary Fuel Type: Diesel
    Minimum Fuel Type: Diesel
    Fuel Type: Diesel

    Fuel System

    Injection Carburetion: Diesel Common Rail

    Fuel Tanks

    Main Capacity Gal: 15.1
    Main Capacity (L): 57
    Main Capacity Uk Gallons: 12.5
    Main Type: Total

    Interested in buying a KGM Korando SX?

    Save $$$ with CarExpert*
    From
    $30,990†
    Find a deal

    Computer

    Average Fuel Consumption: yes
    Instantaneous Fuel Consumption: yes
    Range for Remaining Fuel: yes

    Fuel Consumption

    ADR 81/02 Calculated Vehicle Range (km): 891
    ADR 81/02 Calculated Vehicle Range (miles): 554
    ADR 81/02 Combined (km/L): 15.6
    ADR 81/02 Combined (L/100km): 6.4
    ADR 81/02 Combined (miles per UK gallon): 44
    ADR 81/02 Combined (mpg): 37
    ADR 81/02 Country Highway (km/L): 18.2
    ADR 81/02 Country Highway (L/100km): 5.5
    ADR 81/02 Country Highway (miles per UK gallon): 51
    ADR 81/02 Country Highway (mpg): 43
    ADR 81/02 Standard: Adr 81/02
    ADR 81/02 Urban (km/L): 12.7
    ADR 81/02 Urban (L/100km): 7.9
    ADR 81/02 Urban (miles per UK gallon): 36
    ADR 81/02 Urban (mpg): 30

    Fuel Economy

    ADR 81/02 (L/100km): 6.4

    Power

    Maximum Power (hp/PS): 175
    Maximum Power (kW): 129
    Maximum Torque (Nm): 360
    Measurement Standard: EEC
    Rpm For Maximum Power Low: 4000
    Rpm For Maximum Torque Low: 2000

    Differential Lock

    Location: Rear

    Drive

    Driven Wheels: 4x4
    Four-Wheel Drive Type: Full And Part-Time
    Selection: Manual

    Electronic Traction Control

    Controlled By: Abs & Engine Management

    Transmission

    Description: Manual
    Number of Speeds: 6
    Shift Lever Location: Floor
    Type: Manual

    Disc Brakes

    Number of Disc Brakes: 4
    Number of Ventilated Disc Brakes: 2

    Steering Wheel

    Height Adjustment: yes
    Type: Leather Covered

    Suspension

    Location: Front
    Front Spring Type: Coil
    Front Stabilizer Bar: yes
    Front Type: Strut
    Front Wheel Dependence: Independent
    Location: Rear
    Rear Spring Type: Coil
    Rear Stabilizer Bar: yes
    Rear Type: Multi-Link
    Rear Wheel Dependence: Independent

    Tires

    Location: Front
    Front Wheels Tire Profile: 60
    Front Wheels Tire Speed Rating: W
    Front Wheels Tire Type: Conventional/Summer
    Front Wheels Tire Width: 225
    Rear Wheels Tire Location: Rear
    Rear Wheels Tire Profile: 60
    Rear Wheels Tire Speed Rating: W
    Rear Wheels Tire Type: Conventional/Summer
    Rear Wheels Tire Width: 225

    Wheels

    Location: Front
    Front Wheels Rim Diameter (In): 17
    Front Wheels Rim Type: Alloy
    Front Wheels Rim Width (In): 7.0
    Location: Rear
    Rear Rim Diameter (In): 17
    Rear Rim Type: Alloy
    Rear Wheels Rim Width (In): 7.0

    Cargo Capacity

    Rear Seat Down (cu ft): 46.3
    Rear Seat Down (L): 1312
    Rear Seat Up to Lower Window (cu ft): 17.2
    Rear Seat Up to Lower Window (L): 486

    External Dimensions

    Kerb to Kerb Turning Circle (mm): 10800
    Front Track (in): 61.9
    Front Track (mm): 1573
    Ground Clearance Unladen (in): 7.1
    Ground Clearance Unladen (mm): 180
    Kerb To Kerb Turning Circle (ft): 35.4
    Overall Height (in): 67.3
    Overall Height (mm): 1710
    Overall Length (in): 173.6
    Overall Length (mm): 4410
    Overall Width (in): 72.0
    Overall Width (mm): 1830
    Rear Track (in): 61.3
    Rear Track (mm): 1558
    Wheelbase (in): 104.3
    Wheelbase (mm): 2650

    Internal Dimensions

    Front Headroom (in): 39.8
    Front Headroom (mm): 1010
    Rear Headroom (in): 39.0
    Rear Headroom (mm): 990
    Front Hip Room (in): 53.7
    Front Hip Room (mm): 1365
    Rear Hip Room (in): 52.8
    Rear Hip Room (mm): 1340
    Front Leg Room (in): 40.7
    Front Leg Room (mm): 1035
    Rear Leg Room (in): 37.0
    Rear Leg Room (mm): 940
    Front Shoulder Room (in): 57.1
    Front Shoulder Room (mm): 1450
    Rear Shoulder Room (in): 55.5
    Rear Shoulder Room (mm): 1410

    Ramp Angles

    Approach Angle: 22.8
    Departure Angle: 28.2

    Body Style

    Body Type: SUV
    Local Body Type: SUV
    Platform Code: C200

    Bumpers

    Front Bumper Colour: Painted
    Location: Front
    Rear Bumper Colour: Painted
    Location: Rear

    Doors

    Location: Driver
    Driver Door Type: Front Hinged
    Location: Passenger
    Passenger Door Type: Front Hinged
    Location: Rear Driver
    Rear Driver Door Type: Front Hinged
    Location: Rear Passenger
    Rear Passenger Door Type: Front Hinged

    Rear Door

    Type: Lifting Gate

    Headlights

    Low Beam Bulb Type: Halogen

    Paint

    External Colour: red
    Type: Gloss

    Sunroof

    Front Sunroof Location: Front
    Front Sunroof Operation: Electric
    Front Sunroof Type: Glass

    Door Mirrors/Cameras

    Driver Door Mirrors/Cameras Colour: Painted
    Heated Driver Door Mirrors/Cameras: yes
    Driver Door Mirror Indicator Lights: yes
    Mirrors/Cameras Location: Driver
    Driver Door Mirrors/Cameras Type: Electrically Adjustable
    Passenger Door Mirrors/Cameras Colour: Painted
    Heated Passenger Door Mirrors/Cameras: yes
    Passenger Door Mirror Indicator Lights: yes
    Mirrors/Cameras Location: Passenger
    Passenger Door Mirrors/Cameras Type: Electrically Adjustable

    Power Windows

    Front Electric Windows: Front
    Rear Electric Windows: Rear

    Rear View Mirror Camera

    Auto Dimming: yes

    Weights

    Gross Trailer Weight Braked (kg): 2000
    Gross Trailer Weight Braked (lb): 4409
    Gross Trailer Weight Unbraked (kg): 750
    Gross Trailer Weight Unbraked (lb): 1653
    Gross Vehicle Weight (kg): 2260
    Gross Vehicle Weight (lb): 4982
    Published Kerb Weight (kg): 1727
    Published Kerb Weight (lb): 3807
    Tare Weight (kg): 1687

    Audio System

    Brand Name: Manufacturer'S Own
    CD Player Reads MP3: yes
    In-Dash CD: yes
    Radio Type: Am/Fm

    External Connections

    Aux Jack (Front): yes
    USB (Front): yes

    Remote Audio Controls

    Type: Steering Wheel Mounted

    Speakers

    Number of Speakers: 6

    Cargo Area Cover Rear Parcel Shelf

    Type: Flexible

    Bluetooth

    Includes Music Streaming: yes
    Includes Phone Connection: yes

    Power Outlet 12V

    Location (12V): Boot/Cargo
    Location (12V): Front

    Vanity Mirror

    Driver Mirror Illuminated: yes
    Driver Mirror Location: Driver
    Passenger Mirror Illuminated: yes
    Location: Passenger

    Luxury Trim

    Gear Selector: Leather

    Crash Test Results

    ANCAP Standard: Ancap

    Front Airbag

    Location: Driver
    Location: Passenger

    Front Seat Belts

    Driver Height Adjustable: yes
    Driver Pre Tensioners: yes
    Driver Seat Position: Driver
    Passenger Height Adjustable: yes
    Passenger Pre Tensioners: yes
    Passenger Seat Position: Passenger

    Head Restraints

    Front Seats Active: yes
    Front Seats Location: Front Seats
    Rear Seats Location: Rear Seats
    Rear Seats Number: 3

    Rear Seat Belts

    Center Operation: Reel
    Center Seat Position: Centre
    Center Type: 3-Point
    Driver Seat Position: Driver
    Passenger Seat Position: Passenger

    Side Airbag

    Location: Front

    Side Curtain Airbag

    Location: Front And Rear

    Front Seat

    Driver Front Seat Height Type: Manual
    Location: Driver
    Driver Front Seat Lumbar Type: Manual
    Driver Front Seat Reach Type: Manual
    Driver Front Seat Reclining Type: Manual
    Driver Front Seat Type: Bucket
    Location: Passenger
    Passenger Front Seat Reach Type: Manual
    Passenger Front Seat Reclining Type: Manual
    Passenger Front Seat Type: Bucket

    Seat Upholstery

    Additional Seat Material: Cloth
    Main Seat Material: Cloth

    Seating

    Capacity: 5
    Configuration: 2+3

    Cup Holders

    Location: Front Seats
    Location: Rear Seats

    Air Conditioning

    Type: Fully-Auto
    Climate Control - Number of Zones: 1

    Ventilation System

    Digital Display: yes

    Power Locks

    Operation: Remote

    Intermediate Service

    Distance (km): 15000
    Distance (miles): 9321
