Base
Overview

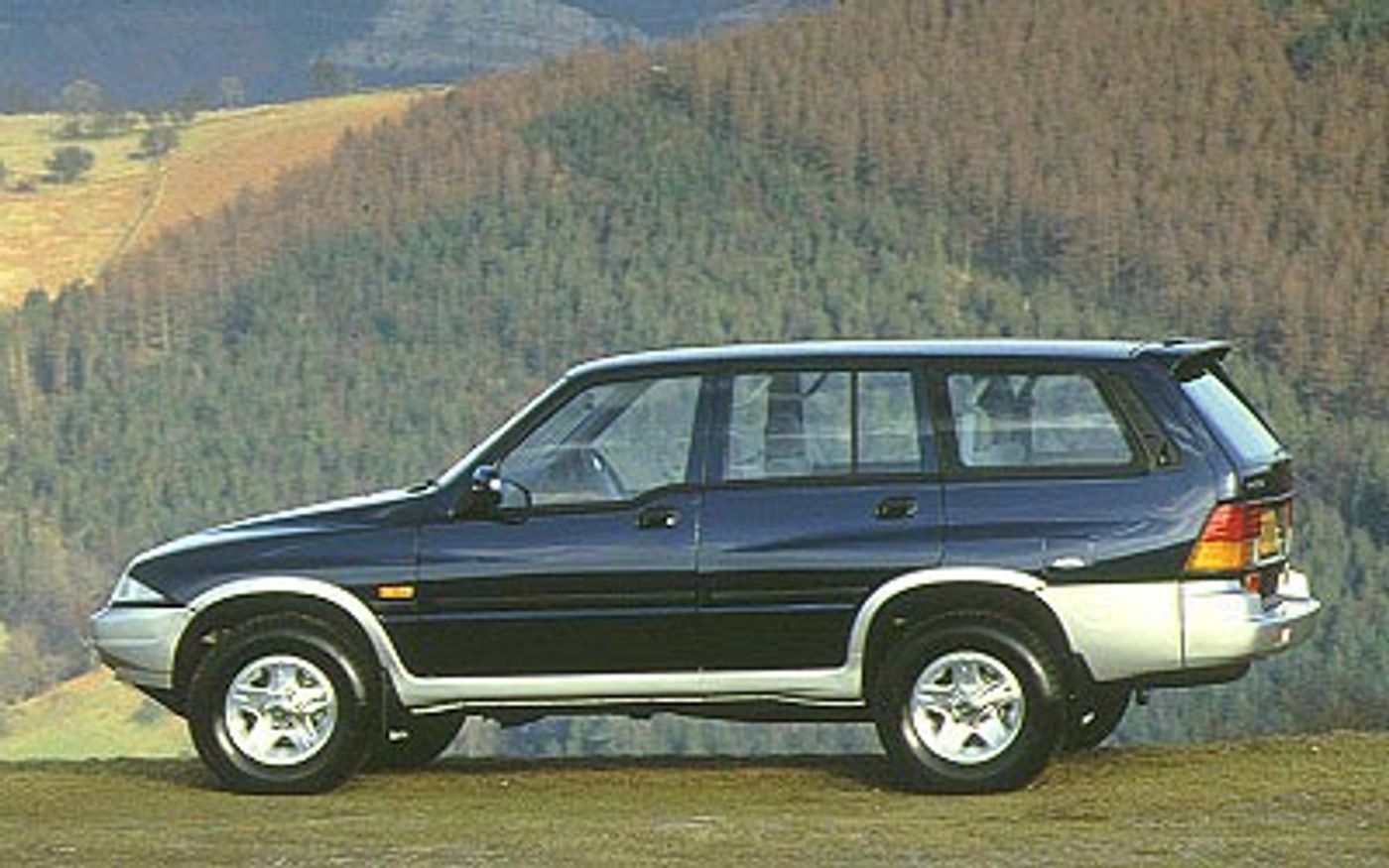

The 1997 KGM Musso Base is a four-wheel drive, 5-door SUV that was released to the Australian market on 4th January 1970. The KGM Musso is regarded as a small SUV built in Korea with prices starting at $41,400 before on-road costs.
This KGM Musso is powered by a 2.9L 5-cylinder engine that has 70 kW of power (at 4000 rpm) and 192 Nm of torque (at 2400 rpm) via a Five-speed Manual transmission. It has a 80L fuel tank
The KGM Musso measures 1735mm (68.3 inches) in height, 4640mm (182.7 inches) in length, 1905mm (75.0 inches) in width with a 2630mm (103.5 inches) wheelbase that brings about a total of 1875kg (4133.7 lbs) of unladen weight. The Musso Base comes standard with 235/75 R15 front tyres and 235/75 R15 rear tyres. It has a 36 month, 100,000 km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Musso compare?
Quickly see how the 1997 KGM Musso Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
35.35 - 84.29 kW/t
35.35 kW/t
87.95 kW/t
Boot Space
1,100 litres
173 litres
1,100 litres
Price
$39,900 - $53,600
$21,990
$53,600
Warranty (Years)
3 years
2 years
3 years
Warranty (Distance)
100,000 km
50,000 km
125,000 km
Towing & Off-Road Capability
Gross Vehicle Weight
2,520 kg
1,565 kg
2,520 kg
Braked Towing Capacity
2,800 - 3,500 kg
1,200 kg
3,500 kg
Approach Angle
30.6°
30.6°
36°
Departure Angle
24°
24°
33°
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,640 mm
1,905 mm
1,735 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,640 mm |
| Overall Width | 1,905 mm |
| Overall Height | 1,735 mm |
| Wheelbase | 2,630 mm |
| Turning Circle | 11,060 mm |
| Load Capacity | 645 mm |
Looking for complete KGM Musso size & space specs?
Our KGM Musso Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore KGM Musso Features & Specs
Catalytic Converter
Type: 3-Way
Emission Control Level
Standard Met: Adr 79/01
Engine
Bore Engine: 89
Engine (cc): 2874
Compression Ratio: 22
Engine Configuration: In-Line
Engine (L): 2.9
Engine Location: Front
Number of Cylinders: 5
Number of Valves per Cylinder: 2
Engine Orientation: Longitudinal
Stroke Engine: 92.4
Valve Gear Type: Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Ignition Type: Diesel
Injection Carburetion: Diesel Indirect Injection
Fuel Tanks
Main Capacity Gal: 21.1
Main Capacity (L): 80
Main Type: Total
Clock
Type: Digital
Instrument Cluster
Type: Analogue
Odometer
Number of Odometers: 1
Oil Pressure
Type: Gauge
Water Temperature
Type: Gauge
Fuel Consumption
AS 2877 Country Highway (L/100km): 9
AS 2877 Country Highway (mpg): 26
AS 2877 Standard: As 2877
AS 2877 Urban (L/100km): 12
AS 2877 Urban (mpg): 20
Fuel Economy
AS 2877 City (L/100km): 12
AS 2877 Highway (L/100km): 9
Power
Maximum Power (hp/PS): 95
Maximum Power (kW): 70
Maximum Torque (Nm): 192
Measurement Standard: DIN
Rpm For Maximum Power Low: 4000
Rpm For Maximum Torque Low: 2400
Drive
Driven Wheels: 4x4
Four-Wheel Drive Type: Part-Time
Selectable While Driving: yes
Limited Slip Differential
Location: Rear
Transmission
1st Gear Ratio: 3.969
2nd Gear Ratio: 2.341
3rd Gear Ratio: 1.457
4th Gear Ratio: 1
5th Gear Ratio: 0.851
Low High Ratio: 2.48
Number of Speeds: 5
Reverse Gear Ratio: 3.705
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Torsion
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Semi-Independent
Tires
Location: Front
Front Wheels Tire Profile: 75
Front Wheels Tire Speed Rating: T
Front Wheels Tire Width: 235
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 75
Rear Wheels Tire Speed Rating: T
Rear Wheels Tire Width: 235
Wheels
Location: Front
Front Wheels Rim Diameter (In): 15
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 7
Location: Rear
Rear Rim Diameter (In): 15
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 7
Body Side Molding
Colour of Body Side Moulding: Toned
Size of Body Side Molding: Wide
Body Style
Body Type: SUV
Local Body Type: SUV
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Spoiler
Roof Spoiler Colour: Body Colour
Location: Roof
Bumpers
Front Bumper Colour: Toned
Location: Front
Rear Bumper Colour: Toned
Location: Rear
Ashtray
Illuminated Front Ashtray: yes
Location: Front
Location: Rear
Cigar Lighter
Illuminated Front Seat Lighter: yes
Location: Front Seats
Location: Rear Seats
Courtesy Lights
Delayed Fade: yes
Number of Door Switches: 4
Illuminated Entry System
Ignition Key Surround: yes
Interior: yes
Reading Lights
Location: Front
Vanity Mirror
Location: Passenger
Cargo Area Dimensions
Length to Back of Rear Station Wagons (in): 41.3
Length to Back of Rear Station Wagons: 1050
Standard Measurement: Manufacturer'S Own
Cargo Capacity
Rear Seat Down (cu ft): 67.1
Rear Seat Down (L): 1900
Rear Seat Up to Lower Window (cu ft): 38.8
Rear Seat Up to Lower Window (L): 1100
External Dimensions
Kerb to Kerb Turning Circle (mm): 11060
Front Track (in): 59.4
Front Track (mm): 1510
Kerb To Kerb Turning Circle (ft): 36.3
Overall Height (in): 68.3
Overall Height (mm): 1735
Overall Length (in): 182.7
Overall Length (mm): 4640
Overall Width (in): 75
Overall Width (mm): 1905
Rear Track (in): 59.8
Rear Track (mm): 1520
Wheelbase (in): 103.5
Wheelbase (mm): 2630
Internal Dimensions
Front Headroom (in): 37.4
Front Headroom (mm): 950
Rear Headroom (in): 36.2
Rear Headroom (mm): 920
Front Shoulder Room (in): 55.1
Front Shoulder Room (mm): 1400
Rear Shoulder Room (in): 57.5
Rear Shoulder Room (mm): 1460
Exterior Door Handles
Color: Black
Headlights
Low Beam Bulb Type: Halogen
Configuration: Twin
Lens Type: Conventional
Paint
Two Tone: yes
Type: Gloss
Luxury Inner Roof Upholstery
Material: Cloth/Felt
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Heated Driver Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Heated Passenger Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Number of Front Express Power Windows: 1
Rear Electric Windows: Rear
Sun Visors
Location: Driver
Location: Passenger
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Number of Windshield Wiper Speeds: 2
Weights
Gross Trailer Weight Braked (kg): 2800
Gross Trailer Weight Braked (lb): 6173
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2520
Gross Vehicle Weight (lb): 5556
Published Kerb Weight (kg): 1875
Published Kerb Weight (lb): 4134
Antenna
Type: Electric
Audio Anti-Theft Protection
Type: Code
Audio System
Cassette Player: yes
Radio Type: Am/Fm
System Type: Stereo
Speakers
Number of Speakers: 4
Load Restraint
Type: Hooks
Door Panel Trim
Material: Partial Cloth
Floor Covering
Load Area: Textile
Vehicle Cab Compartment: Textile
Load Area Side Covering
Type: Plastic/Rubber
Front Seat Belts
Driver Height Adjustable: yes
Driver Operation: Reel
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Height Adjustable: yes
Passenger Operation: Reel
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Head Restraints
Front Seats Height Adjustable: yes
Front Seats Location: Front Seats
Rear Seats Height Adjustable: yes
Rear Seats Location: Rear Seats
Rear Seat Belts
Center Operation: Static
Center Seat Position: Centre
Center Type: lap
Driver Operation: Reel
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Operation: Reel
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Front Seat
Driver Front Seat Fore/Aft Adjustment: yes
Driver Front Seat Height Adjustment: yes
Location: Driver
Driver Front Seat Lumbar Adjustment: yes
Driver Front Seat Reclining: yes
Driver Front Seat Type: Bucket
Passenger Front Seat Fore/Aft Adjustment: yes
Location: Passenger
Passenger Front Seat Reclining: yes
Passenger Front Seat Type: Bucket
Front Seat Center Armrest
Center Front Seat Armrest Integral Box: yes
Seat Upholstery
Additional Seat Material: Upgraded Cloth/Velour
Main Seat Material: Upgraded Cloth/Velour
Seating
Capacity: 5
Below Seat Storage
Location: Passenger
Console
Location: Dashboard
Dashboard Storage: Open
Dashboard Type: Full
Location: Floor
Floor Storage: Lidded
Floor Type: Full
Cup Holders
Location: Front Seats
Door Pockets Bins
Location: Driver
Location: Passenger
Glove Compartment
Illuminated: yes
Lid: yes
Seat Back Storage
Location: Front
Air Conditioning
CFC Free Liquid Aircon: yes
Fully Automated Climate Control: yes
Ventilation System
Micro Filter: yes
Number of Fan Speeds: 4
Rear Seat Heater Ducts: yes
Recirculation Setting: yes
Power Locks
Includes Trunk Hatch: yes
Internal Switch: yes
Operation: key
