Ultimate
2.2L, 6-speed auto, 4-door Utility, Diesel, 4x4
Save $$$ with CarExpert*
$39,450â€
Ultimate
Overview

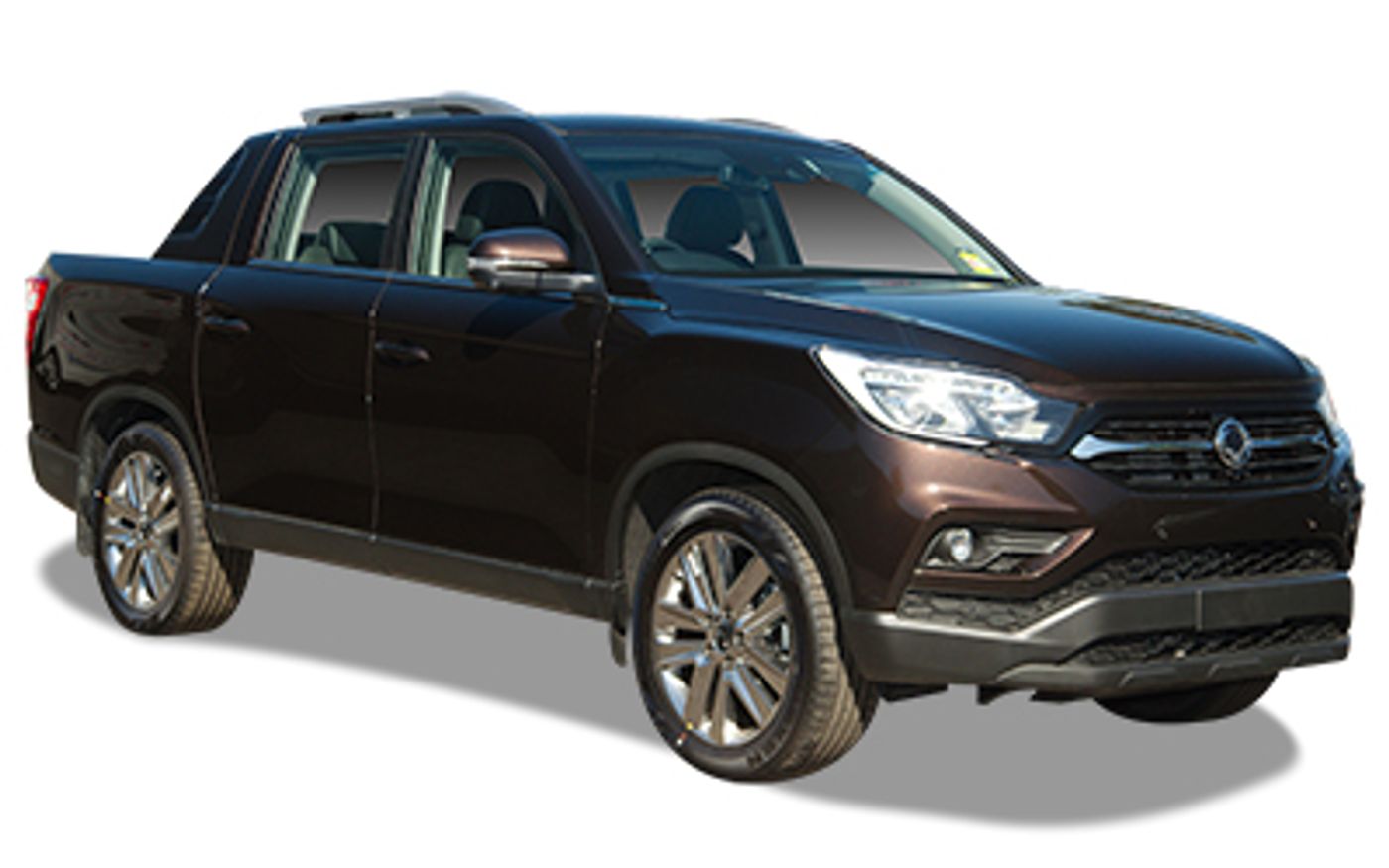

The 2020 KGM Musso Ultimate is a four-wheel drive, 4-door Utility that was released to the Australian market on 2nd October 2020 classified as a Q201. The KGM Musso is regarded as a Pickup built in Korea with prices starting at $39,450 before on-road costs.
This KGM Musso is powered by a 2.2L 4-cylinder engine that has 133 kW of power (at 4000 rpm) and 420 Nm of torque (at 1600 rpm) via a Six-speed Automatic transmission. KGM claims the Musso Ultimate uses 8.9L/100km of Diesel in the combined city and highway cycle while putting out 233g of CO2. It has a 75L fuel tank, meaning it should be able to travel 843km per full tank
The KGM Musso measures 1855mm (73.0 inches) in height, 5409mm (213.0 inches) in length, 1950mm (76.8 inches) in width with a 3210mm (126.4 inches) wheelbase that brings about a total of 2170kg (4784.0 lbs) of unladen weight. The Musso Ultimate comes standard with 255/60 R18 front tyres and 255/60 R18 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 84 month, unlimited km warranty.
The 2020 KGM Musso Ultimate has a 215mm ground clearance with a 3500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Musso compare?
Quickly see how the 2020 KGM Musso Ultimate stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
60.68 - 61.57 kW/t
47.8 kW/t
120.94 kW/t
Fuel Efficiency
7.9 - 8.9 L/100km
6.3 L/100km
12.4 L/100km
Vehicle Range
843 - 953 km
658 km
1,270 km
Price
$26,135 - $42,155
$22,490
$113,990
Warranty (Years)
7 years
3 years
7 years
Warranty (Distance)
Unlimited
57,936 km
Unlimited
Years on Sale
1 - 5 years
1 year
4 years
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,880 - 3,220 kg
2,631 kg
3,450 kg
Gross Comb. Mass
5,880 - 6,370 kg
4,435 kg
7,237 kg
Braked Towing Capacity
3,500 kg
1,800 kg
4,500 kg
Approach Angle
22.8 - 25°
15.2°
40.7°
Departure Angle
20 - 23.4°
15°
29°
Ground Clearance Unladen
215 mm
174 mm
283 mm
Payload Capacity
688 - 1,025 kg
527 kg
1,476 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,409 mm
1,950 mm
1,855 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,409 mm |
| Overall Width | 1,950 mm |
| Overall Height | 1,855 mm |
| Wheelbase | 3,210 mm |
| Turning Circle | 12,200 mm |
| Load Capacity | 810 mm |
Looking for complete KGM Musso size & space specs?
Our KGM Musso Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore KGM Musso Features & Specs
Compressor
Compressor: Turbo
Number of Compressors: 1
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Combined): 233
Standard Met: EU6
Engine
Bore Engine: 86.2
Engine (cc): 2157
Engine Configuration: In-Line
Engine Code: E-Xdi220
Engine (L): 2.2
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 92.4
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 19.8
Main Capacity (L): 75
Main Capacity Uk Gallons: 16.5
Main Type: Total
Computer
Average Fuel Consumption: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 8.00
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 7.00
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 843
ADR 81/02 Calculated Vehicle Range (miles): 524
ADR 81/02 Combined (km/L): 11.2
ADR 81/02 Combined (L/100km): 8.9
ADR 81/02 Combined (miles per UK gallon): 32
ADR 81/02 Combined (mpg): 26
ADR 81/02 Country Highway (km/L): 13.3
ADR 81/02 Country Highway (L/100km): 7.5
ADR 81/02 Country Highway (miles per UK gallon): 38
ADR 81/02 Country Highway (mpg): 31
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 11.2
ADR 81/02 Urban (L/100km): 8.9
ADR 81/02 Urban (miles per UK gallon): 32
ADR 81/02 Urban (mpg): 26
Fuel Economy
ADR 81/02 (L/100km): 8.9
Power
Maximum Power (hp/PS): 181
Maximum Power (kW): 133
Maximum Torque (Nm): 420
Measurement Standard: SAE
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 4000
Rpm For Maximum Torque Low: 1600
Drive
Descent Control System: yes
Driven Wheels: 4x4
Four-Wheel Drive Type: Part-Time
Selection: Manual
Limited Slip Differential
Location: Rear
Rear Type: Mechanical
Transmission
Code: Awr6b45
Description: Automatic With Manual Mode
Low High Gear Ranges: yes
Manual Mode: yes
Number of Speeds: 6
Shift Lever Location: Floor
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 108
Location: Front
Front Wheels Tire Profile: 60
Front Wheels Tire Speed Rating: H
Front Wheels Tire Type: Mud & Snow
Front Wheels Tire Width: 255
Rear Wheels Tire Load Index: 108
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 60
Rear Wheels Tire Speed Rating: H
Rear Wheels Tire Type: Mud & Snow
Rear Wheels Tire Width: 255
Wheels
Location: Front
Front Wheels Rim Diameter (In): 18
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.5
Location: 1
Location: Rear
Rear Rim Diameter (In): 18
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.5
Tray/Tub
Liner: Composite
Type: Straight Side
Cargo Area Dimensions
Cargo Volume (cu ft): 44.6
Cargo Volume (L): 1262
Height (in): 22.4
Height (mm): 1570
Length (in): 63.0
Length (mm): 1600
Standard Measurement: Manufacturer'S Own
Width Between Wheelhouses (in): 43.3
Width Between Wheelhouses (mm): 1100
Width (in): 61.8
Width (mm): 1570
External Dimensions
Kerb to Kerb Turning Circle (mm): 12200
Front Overhang (in): 35.1
Front Overhang (mm): 891
Front Track (in): 64.6
Front Track (mm): 1640
Ground Clearance Unladen (in): 8.5
Ground Clearance Unladen (mm): 215
Kerb To Kerb Turning Circle (ft): 40.0
Overall Height (in): 73.0
Overall Height (mm): 1855
Overall Length (in): 213.0
Overall Length (mm): 5409
Overall Width (in): 76.8
Overall Width (mm): 1950
Rear Overhang (in): 51.4
Rear Overhang (mm): 1305
Rear Track (in): 64.6
Rear Track (mm): 1640
Wheelbase (in): 126.4
Wheelbase (mm): 3210
Ramp Angles
Approach Angle: 25.0
Departure Angle: 20.0
Body Style
Body Type: Utility
Cab Type: Double Cab
Local Body Type: Utility
Platform Code: Ssangyong Y
Roof Type: Standard
Wheelbase Type: Long
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Cargo Doors
Location: Rear
Rear Operation: Dropping Gate
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Headlight Control
Height Adjustment: Manual
Headlights
High Beam Bulb Type: Bi-Xenon
Low Beam Bulb Type: Bi-Xenon
Lens Type: Ellipsoidal
LED Lights
Location: Day Time Running Lights
Paint
External Colour: Gray
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Rear Side Windows
Location: Driver
Driver Type: Wind-Up
Location: Passenger
Passenger Type: Wind-Up
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 3500
Gross Trailer Weight Braked (lb): 7716
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 6130
Gross Train Weight (lb): 13514
Gross Vehicle Weight (kg): 2980
Gross Vehicle Weight (lb): 6570
Payload Allowance (kg): 880
Payload Allowance (lb): 1940
Published Kerb Weight (kg): 2170
Published Kerb Weight (lb): 4784
Tare Weight (kg): 2115
Audio System
Colour Screen: yes
Digital Radio: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
Total Front USB Connections: 1
Total Rear USB Connections: 0
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: Unlimited
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Mirrorlink Months Subscription Included: 0
Parking Distance System
Location: Front
Front Type: Sensor & Camera
Location: Rear
Rear Type: Sensor & Camera
Location: Side
Side Type: Sensor & Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
USB Charging Port
Location: Front
Number of Ports in Front: 1
Luxury Trim
Centre Floor Console: Alloy Look
Doors: Alloy Look
Gear Selector: Leather
Instrument Panel: Alloy Look
Airbags
Number of Airbags: 6
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Cross Traffic Collision Avoidance
Type: Sensor
Rear Seat Belts
Center Seat Position: Centre
Center Type: lap
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Type: Manual
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Passenger Front Seat Heated: yes
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Synthetic Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
