    Kia Carnival S (2017) price & specs

    Save $$$ with CarExpert*
    From
    $43,990†
    2.2L Diesel5D MPV6 SP AUTOMATICFWD

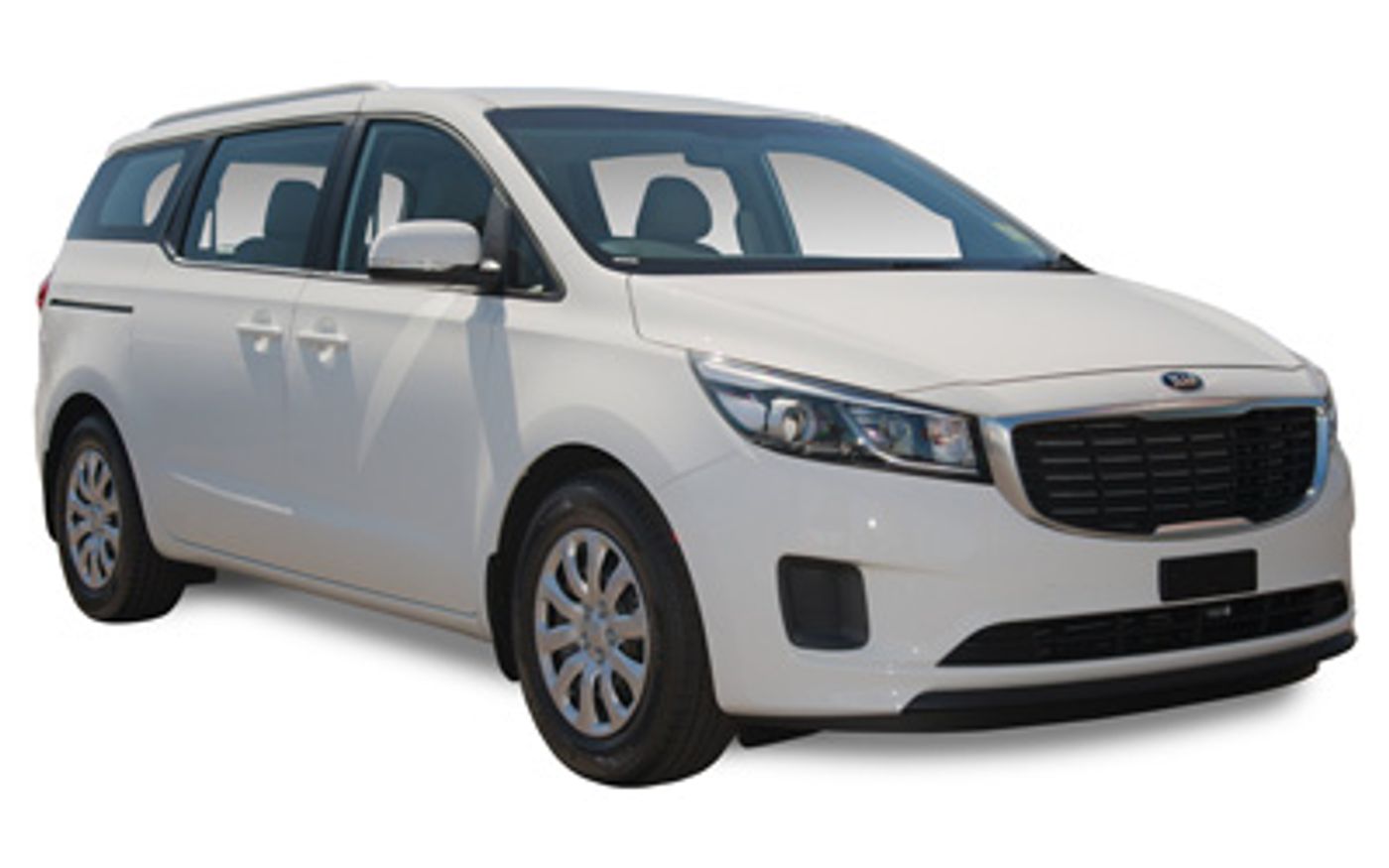

    Hero image of a new Kia Carnival S (2017) price & specs available with CarExpert deals.

    S

    Find a deal

    Overview

    The 2017 Kia Carnival S is a front-wheel drive, 5-door Mpv that was released to the Australian market on 4th January 1970 classified as a YP. The Kia Carnival is regarded as a Mpv built in Korea with prices starting at $43,990 before on-road costs.

    This Kia Carnival is powered by a 2.2L 4-cylinder engine that has 147 kW of power (at 3800 rpm) and 440 Nm of torque (at 1750 rpm) via a Six-speed Automatic transmission. Kia claims the Carnival S uses 7.7L/100km of Diesel in the combined city and highway cycle while putting out 199g of CO2. It has a 80L fuel tank, meaning it should be able to travel 1039km per full tank

    The Kia Carnival measures 1755mm (69.1 inches) in height, 5115mm (201.4 inches) in length, 1985mm (78.1 inches) in width with a 3060mm (120.5 inches) wheelbase that brings about a total of 2150kg (4739.9 lbs) of unladen weight. The Carnival S comes standard with 235/65 R17 front tyres and 235/65 R17 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 84 month, unlimited km warranty.

    The 2017 Kia Carnival S has a 171mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.

    Trusted Reviews, Smarter Choices, Better Prices

    Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.

    Compare CarsFind a deal

    How does the Carnival compare?

    Quickly see how the 2017 Kia Carnival S stacks up against its competition.
     Select any benchmark to see more details.

    Power to Weight
    68.37 - 98.1 kW/t
    45.15 kW/t
    98.1 kW/t
    Boot Space
    960 litres
    536 litres
    960 litres
    Fuel Efficiency
    7.7 - 11.6 L/100km
    6 L/100km
    11.6 L/100km
    Vehicle Range
    690 - 1,039 km
    690 km
    1,039 km
    Price
    $41,490 - $61,290
    $26,990
    $61,290
    Warranty (Years)
    7 years
    3 years
    7 years
    Warranty (Distance)
    Unlimited
    100,000 km
    Unlimited
    Years on Sale
    1 - 2 years
    1 year
    2 years
    Service Interval
    12 months
    6 months
    12 months

    Towing & Off-Road Capability

    Gross Vehicle Weight
    2,875 kg
    2,200 kg
    3,030 kg
    Braked Towing Capacity
    2,000 kg
    1,000 kg
    2,500 kg
    Ground Clearance Unladen
    171 mm
    150 mm
    222 mm

    Trusted Reviews, Smarter Choices, Better Prices

    Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.

    Compare CarsFind a deal

    Dimensions

    5,115 mm
    1,985 mm
    1,755 mm
    SpecificationMeasurement
    Overall Length5,115 mm
    Overall Width1,985 mm
    Overall Height1,755 mm
    Wheelbase3,060 mm
    Turning Circle11,200 mm
    Load Capacity725 mm

    Looking for complete Kia Carnival size & space specs?

    Our Kia Carnival Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.

    Sales Data

    Kia Carnival Sales rolling 12-months#

    Explore Kia Carnival Features & Specs

    S

    2.2L, 6-speed auto, 5-door Mpv, Diesel, FWD

    Save $$$ with CarExpert*
    $43,990†
    Find a deal

    Compressor

    Compressor: Turbo

    Emission Control Level

    CO2 Level (Combined): 199
    Standard Met: EU5

    Engine

    Bore Engine: 85.4
    Engine (cc): 2199
    Engine Configuration: In-Line
    Engine (L): 2.2
    Number of Cylinders: 4
    Number of Valves per Cylinder: 4
    Stroke Engine: 96.0

    Fuel

    Generic Primary Fuel Type: Diesel
    Minimum Fuel Type: Diesel
    Fuel Type: Diesel

    Fuel System

    Injection Carburetion: Diesel Common Rail

    Fuel Tanks

    Main Capacity Gal: 21.1
    Main Capacity (L): 80
    Main Capacity Uk Gallons: 17.6
    Main Type: Total

    Interested in buying a Kia Carnival S?

    Save $$$ with CarExpert*
    From
    $43,990†
    Find a deal

    Computer

    Average Fuel Consumption: yes
    Range for Remaining Fuel: yes

    Display Screen

    Screen Size (in): 5.0
    Touch Screen: yes

    Fuel Consumption

    ADR 81/02 Calculated Vehicle Range (km): 1039
    ADR 81/02 Calculated Vehicle Range (miles): 646
    ADR 81/02 Combined (km/L): 13.0
    ADR 81/02 Combined (L/100km): 7.7
    ADR 81/02 Combined (miles per UK gallon): 37
    ADR 81/02 Combined (mpg): 31
    ADR 81/02 Country Highway (km/L): 15.6
    ADR 81/02 Country Highway (L/100km): 6.4
    ADR 81/02 Country Highway (miles per UK gallon): 44
    ADR 81/02 Country Highway (mpg): 37
    ADR 81/02 Standard: Adr 81/02
    ADR 81/02 Urban (km/L): 10.3
    ADR 81/02 Urban (L/100km): 9.7
    ADR 81/02 Urban (miles per UK gallon): 29
    ADR 81/02 Urban (mpg): 24

    Fuel Economy

    ADR 81/02 (L/100km): 7.7

    Power

    Maximum Power (hp/PS): 200
    Maximum Power (kW): 147
    Maximum Torque (Nm): 440
    Measurement Standard: EEC
    Primary or Secondary Fuel Power Figure: Primary
    Rpm For Maximum Power Low: 3800
    Rpm For Maximum Torque Low: 1750

    Drive

    Driven Wheels: Front

    Transmission

    Description: Automatic With Manual Mode
    Manual Mode: yes
    Number of Speeds: 6
    Shift Lever Location: Dash
    Type: Automatic

    Disc Brakes

    Number of Disc Brakes: 4
    Number of Ventilated Disc Brakes: 2

    Steering Wheel

    Height Adjustment: yes
    Telescopic Adjustment: yes
    Type: Plastic

    Suspension

    Location: Front
    Front Spring Type: Coil
    Front Stabilizer Bar: yes
    Front Type: Strut
    Front Wheel Dependence: Independent
    Location: Rear
    Rear Spring Type: Coil
    Rear Stabilizer Bar: yes
    Rear Type: Multi-Link
    Rear Wheel Dependence: Independent

    Tires

    Front Wheels Tire Load Index: 104
    Location: Front
    Front Wheels Tire Profile: 65
    Front Wheels Tire Speed Rating: H
    Front Wheels Tire Type: Conventional/Summer
    Front Wheels Tire Width: 235
    Rear Wheels Tire Load Index: 104
    Rear Wheels Tire Location: Rear
    Rear Wheels Tire Profile: 65
    Rear Wheels Tire Speed Rating: H
    Rear Wheels Tire Type: Conventional/Summer
    Rear Wheels Tire Width: 235

    Wheels

    Location: Front
    Front Wheels Rim Diameter (In): 17
    Front Wheels Rim Type: Steel
    Front Wheels Rim Width (In): 6.5
    Location: Rear
    Rear Rim Diameter (In): 17
    Rear Rim Type: Steel
    Rear Wheels Rim Width (In): 6.5

    Body Style

    Body Type: MPV
    Local Body Type: MPV
    Platform Code: Hyundai Nf
    Wheelbase Type: Short

    Mud Flaps

    Front Mud Flaps Location: Front
    Rear Mud Flaps Location: Rear

    Spoiler

    Location: Roof

    Cargo Capacity

    Measurement Standard: SAE
    Rear Seat Down (cu ft): 78.4
    Rear Seat Down (L): 2220
    Rear Seat Up to Lower Window (cu ft): 33.9
    Rear Seat Up to Lower Window (L): 960

    External Dimensions

    Kerb to Kerb Turning Circle (mm): 11200
    Front Track (in): 66.3
    Front Track (mm): 1685
    Ground Clearance Unladen (in): 6.7
    Ground Clearance Unladen (mm): 171
    Kerb To Kerb Turning Circle (ft): 36.7
    Overall Height (in): 69.1
    Overall Height (mm): 1755
    Overall Length (in): 201.4
    Overall Length (mm): 5115
    Overall Width (in): 78.1
    Overall Width (mm): 1985
    Rear Track (in): 66.3
    Rear Track (mm): 1685
    Wheelbase (in): 120.5
    Wheelbase (mm): 3060

    Internal Dimensions

    3rd Row Headroom (in): 38.9
    3rd Row Headroom (mm): 987
    Front Headroom (in): 39.8
    Front Headroom (mm): 1010
    Rear Headroom (in): 39.4
    Rear Headroom (mm): 1000
    3rd Row Leg Room (in): 34.8
    3rd Row Leg Room (mm): 885
    Front Leg Room (in): 40.9
    Front Leg Room (mm): 1040
    Rear Leg Room (in): 41.1
    Rear Leg Room (mm): 1045
    Front Shoulder Room (in): 63.9
    Front Shoulder Room (mm): 1622

    Doors

    Location: Driver
    Driver Door Type: Front Hinged
    Location: Passenger
    Passenger Door Type: Front Hinged
    Location: Rear Driver
    Rear Driver Door Type: Sliding
    Location: Rear Passenger
    Rear Passenger Door Type: Sliding

    Rear Door

    Type: Lifting Gate

    Headlight Control

    Dusk Sensor: yes

    Headlights

    High Beam Bulb Type: Halogen
    Low Beam Bulb Type: Halogen
    Lens Type: Ellipsoidal

    Paint

    External Colour: White
    Type: Gloss

    Door Mirrors/Cameras

    Driver Door Mirrors/Cameras Colour: Painted
    Heated Driver Door Mirrors/Cameras: yes
    Driver Door Mirror Indicator Lights: yes
    Mirrors/Cameras Location: Driver
    Driver Door Mirrors/Cameras Type: Electrically Adjustable
    Passenger Door Mirrors/Cameras Colour: Painted
    Heated Passenger Door Mirrors/Cameras: yes
    Passenger Door Mirror Indicator Lights: yes
    Mirrors/Cameras Location: Passenger
    Passenger Door Mirrors/Cameras Type: Electrically Adjustable

    Power Windows

    Front Electric Windows: Front
    Rear Electric Windows: Rear

    Windshield Wipers

    Intermittent Wipe Windshield Wipers: Variable

    Weights

    Gross Trailer Weight Braked (kg): 2000
    Gross Trailer Weight Braked (lb): 4409
    Gross Trailer Weight Unbraked (kg): 750
    Gross Trailer Weight Unbraked (lb): 1653
    Gross Vehicle Weight (kg): 2875
    Gross Vehicle Weight (lb): 6338
    Published Kerb Weight (kg): 2150
    Published Kerb Weight (lb): 4740
    Tare Weight (kg): 2092

    Audio System

    CD Player Reads MP3: yes
    Colour Screen: yes
    In-Dash CD: yes
    Radio Type: Am/Fm
    Touch Screen: yes

    External Connections

    Aux Jack (Front): yes
    iPod Connection (Front): yes
    USB (Front): yes

    Remote Audio Controls

    Type: Steering Wheel Mounted

    Speakers

    Number of Speakers: 6

    Bluetooth

    Includes Music Streaming: yes
    Includes Phone Connection: yes

    Parking Distance System

    Location: Rear
    Rear Type: Sensor & Camera

    Power Outlet 12V

    Location (12V): Boot/Cargo
    Location (12V): Front
    Location (12V): Rear

    Vanity Mirror

    Driver Mirror Location: Driver
    Location: Passenger

    Luxury Trim

    Doors: Alloy Look
    Gear Selector: Piano Black
    Instrument Panel: Piano Black

    Airbags

    Number of Airbags: 6

    Crash Test Results

    ANCAP Overall: 5.00
    ANCAP Standard: Ancap

    Front Airbag

    Location: Driver
    Location: Passenger

    Front Seat Belts

    Driver Height Adjustable: yes
    Driver Pre Tensioners: yes
    Driver Seat Position: Driver
    Passenger Height Adjustable: yes
    Passenger Pre Tensioners: yes
    Passenger Seat Position: Passenger

    Head Restraints

    Location: 3rd Row Seats
    3rd Row Seats Number: 2
    Front Seats Location: Front Seats
    Rear Seats Location: Rear Seats
    Rear Seats Number: 3

    Rear Seat Belts

    Center Seat Position: Centre
    Center Type: 3-Point
    Driver Seat Position: Driver
    Passenger Seat Position: Passenger

    Side Airbag

    Location: Front

    Side Curtain Airbag

    Location: All Three Rows

    Third Row Seat Belts

    Center Operation: Static
    Center Seat Position: Centre
    Center Type: lap
    Driver Seat Position: Driver
    Passenger Seat Position: Passenger

    Front Seat

    Driver Front Seat Height Type: Manual
    Location: Driver
    Driver Front Seat Reach Type: Manual
    Driver Front Seat Reclining Type: Manual
    Driver Front Seat Type: Bucket
    Location: Passenger
    Passenger Front Seat Reach Type: Manual
    Passenger Front Seat Reclining Type: Manual
    Passenger Front Seat Type: Bucket

    Seat Upholstery

    Additional Seat Material: Cloth
    Main Seat Material: Cloth

    Seating

    Capacity: 8
    Configuration: 2+3+3

    Cup Holders

    Location: Front Seats
    Location: Rear Seats

    Air Conditioning

    Type: Manual

    Power Locks

    Operation: Remote

    Intermediate Service

    Distance (km): 15000
    Distance (miles): 9321
    Period (Months): 12
