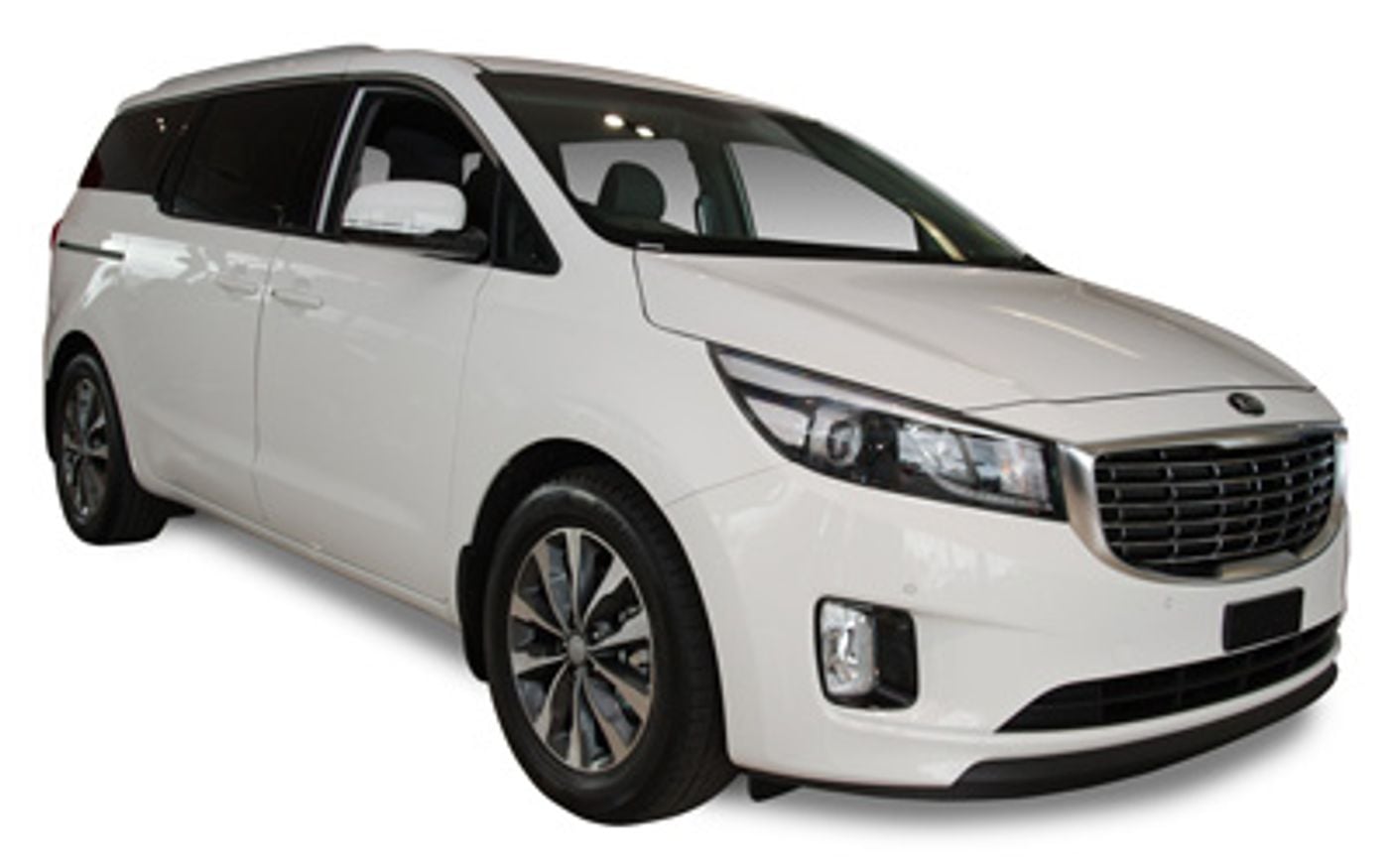

Kia Carnival SLi (2017) price & specs
Save $$$ with CarExpert*
From
$52,490â€
SLi
Overview
The 2017 Kia Carnival SLi is a front-wheel drive, 5-door Mpv that was released to the Australian market on 4th January 1970 classified as a YP. The Kia Carnival is regarded as a Mpv built in Korea with prices starting at $52,490 before on-road costs.
This Kia Carnival is powered by a 2.2L 4-cylinder engine that has 147 kW of power (at 3800 rpm) and 440 Nm of torque (at 1750 rpm) via a Six-speed Automatic transmission. Kia claims the Carnival SLi uses 7.7L/100km of Diesel in the combined city and highway cycle while putting out 199g of CO2. It has a 80L fuel tank, meaning it should be able to travel 1039km per full tank
The Kia Carnival measures 1755mm (69.1 inches) in height, 5115mm (201.4 inches) in length, 1985mm (78.1 inches) in width with a 3060mm (120.5 inches) wheelbase that brings about a total of 2150kg (4739.9 lbs) of unladen weight. The Carnival SLi comes standard with 235/60 R18 front tyres and 235/60 R18 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 84 month, unlimited km warranty.
The 2017 Kia Carnival SLi has a 171mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Carnival compare?
Quickly see how the 2017 Kia Carnival SLi stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
68.37 - 98.1 kW/t
45.15 kW/t
98.1 kW/t
Boot Space
960 litres
536 litres
960 litres
Fuel Efficiency
7.7 - 11.6 L/100km
6 L/100km
11.6 L/100km
Vehicle Range
690 - 1,039 km
690 km
1,039 km
Price
$41,490 - $61,290
$26,990
$61,290
Warranty (Years)
7 years
3 years
7 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
1 - 2 years
1 year
2 years
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,875 kg
2,200 kg
3,030 kg
Braked Towing Capacity
2,000 kg
1,000 kg
2,500 kg
Ground Clearance Unladen
171 mm
150 mm
222 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,115 mm
1,985 mm
1,755 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,115 mm |
| Overall Width | 1,985 mm |
| Overall Height | 1,755 mm |
| Wheelbase | 3,060 mm |
| Turning Circle | 11,200 mm |
| Load Capacity | 725 mm |
Looking for complete Kia Carnival size & space specs?
Our Kia Carnival Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Kia Carnival Sales rolling 12-months#
Explore Kia Carnival Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
CO2 Level (Combined): 199
Standard Met: EU5
Engine
Bore Engine: 85.4
Engine (cc): 2199
Engine Configuration: In-Line
Engine (L): 2.2
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 96.0
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 21.1
Main Capacity (L): 80
Main Capacity Uk Gallons: 17.6
Main Type: Total
Computer
Average Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Screen Size (in): 8.0
Touch Screen: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 1039
ADR 81/02 Calculated Vehicle Range (miles): 646
ADR 81/02 Combined (km/L): 13.0
ADR 81/02 Combined (L/100km): 7.7
ADR 81/02 Combined (miles per UK gallon): 37
ADR 81/02 Combined (mpg): 31
ADR 81/02 Country Highway (km/L): 15.6
ADR 81/02 Country Highway (L/100km): 6.4
ADR 81/02 Country Highway (miles per UK gallon): 44
ADR 81/02 Country Highway (mpg): 37
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 10.3
ADR 81/02 Urban (L/100km): 9.7
ADR 81/02 Urban (miles per UK gallon): 29
ADR 81/02 Urban (mpg): 24
Fuel Economy
ADR 81/02 (L/100km): 7.7
Power
Maximum Power (hp/PS): 200
Maximum Power (kW): 147
Maximum Torque (Nm): 440
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3800
Rpm For Maximum Torque Low: 1750
Drive
Driven Wheels: Front
Transmission
Description: Automatic With Manual Mode
Manual Mode: yes
Number of Speeds: 6
Shift Lever Location: Dash
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Alloy & Leather
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 103
Location: Front
Front Wheels Tire Profile: 60
Front Wheels Tire Speed Rating: H
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 235
Rear Wheels Tire Load Index: 103
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 60
Rear Wheels Tire Speed Rating: H
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 235
Wheels
Location: Front
Front Wheels Rim Diameter (In): 18
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.0
Location: Rear
Rear Rim Diameter (In): 18
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.0
Body Style
Body Type: MPV
Local Body Type: MPV
Platform Code: Hyundai Nf
Wheelbase Type: Short
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Spoiler
Location: Roof
Cargo Capacity
Measurement Standard: SAE
Rear Seat Down (cu ft): 78.4
Rear Seat Down (L): 2220
Rear Seat Up to Lower Window (cu ft): 33.9
Rear Seat Up to Lower Window (L): 960
External Dimensions
Kerb to Kerb Turning Circle (mm): 11200
Front Track (in): 66.3
Front Track (mm): 1685
Ground Clearance Unladen (in): 6.7
Ground Clearance Unladen (mm): 171
Kerb To Kerb Turning Circle (ft): 36.7
Overall Height (in): 69.1
Overall Height (mm): 1755
Overall Length (in): 201.4
Overall Length (mm): 5115
Overall Width (in): 78.1
Overall Width (mm): 1985
Rear Track (in): 66.3
Rear Track (mm): 1685
Wheelbase (in): 120.5
Wheelbase (mm): 3060
Internal Dimensions
3rd Row Headroom (in): 38.9
3rd Row Headroom (mm): 987
Front Headroom (in): 39.8
Front Headroom (mm): 1010
Rear Headroom (in): 39.4
Rear Headroom (mm): 1000
3rd Row Leg Room (in): 34.8
3rd Row Leg Room (mm): 885
Front Leg Room (in): 40.9
Front Leg Room (mm): 1040
Rear Leg Room (in): 41.1
Rear Leg Room (mm): 1045
Front Shoulder Room (in): 63.9
Front Shoulder Room (mm): 1622
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Rear Driver Electric Door: yes
Location: Rear Driver
Rear Driver Door Type: Sliding
Rear Passenger Electric Door: yes
Location: Rear Passenger
Rear Passenger Door Type: Sliding
Rear Door
Type: Lifting Gate
Headlight Control
Dusk Sensor: yes
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Rear Lights
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Third Row Power Window Switch Location: Third Row
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Gross Trailer Weight Braked (kg): 2000
Gross Trailer Weight Braked (lb): 4409
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2875
Gross Vehicle Weight (lb): 6338
Published Kerb Weight (kg): 2150
Published Kerb Weight (lb): 4740
Tare Weight (kg): 2092
Audio System
CD Player Reads MP3: yes
Colour Screen: yes
In-Dash CD: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Entertainment Display Screen
Front DVD: yes
Location: Front
Front Screen Size (in): 8.0
Front Touch Screen: yes
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Location (12V): Rear
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Luxury Trim
Centre Floor Console: Piano Black
Doors: Piano Black
Gear Selector: Leather
Instrument Panel: Piano Black
Airbags
Number of Airbags: 6
Crash Test Results
ANCAP Overall: 5.00
ANCAP Standard: Ancap
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Location: 3rd Row Seats
3rd Row Seats Number: 2
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: All Three Rows
Third Row Seat Belts
Center Operation: Static
Center Seat Position: Centre
Center Type: lap
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Height Type: Electric
Location: Driver
Driver Front Seat Lumbar Type: Electric
Driver Front Seat Number of Electrical Adjustments: 5
Driver Front Seat Reach Type: Electric
Driver Front Seat Reclining Type: Electric
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Leather
Seating
Capacity: 8
Configuration: 2+3+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 3
Rear Control For Climate Control: yes
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Rear Seats Location: Rear Seats
Ventilation System
Digital Display: yes
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
