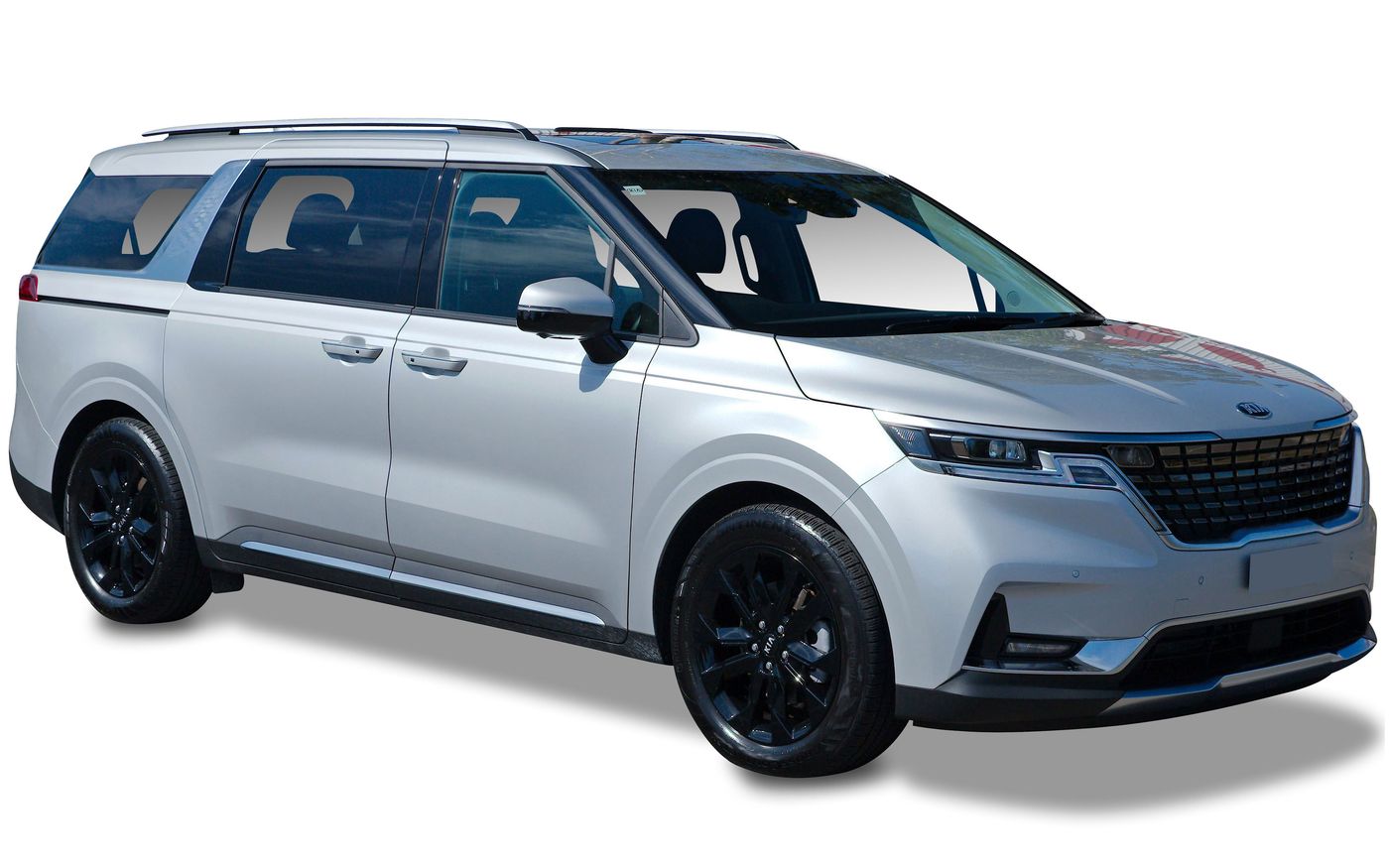

Kia Carnival Special Edition (2023) price & specs
Save $$$ with CarExpert*
From
$63,190â€
Special Edition
Overview
The 2023 Kia Carnival Special Edition is a front-wheel drive, 5-door Mpv that was released to the Australian market on 1st February 2023 classified as a KA4. The Kia Carnival is regarded as a Mpv built in Korea with prices starting at $63,190 before on-road costs.
This Kia Carnival is powered by a 2.2L 4-cylinder engine that has 148 kW of power (at 3800 rpm) and 440 Nm of torque (at 1750 rpm) via an Eight-speed Automatic transmission. Kia claims the Carnival Special Edition uses 6.5L/100km of Diesel in the combined city and highway cycle while putting out 170g of CO2. It has a 72L fuel tank, meaning it should be able to travel 1108km per full tank
The Kia Carnival measures 1775mm (69.9 inches) in height, 5115mm (201.4 inches) in length, 1995mm (78.5 inches) in width with a 3090mm (121.7 inches) wheelbase that brings about a total of 2134kg (4704.7 lbs) of unladen weight. The Carnival Special Edition comes standard with 235/55 R19 front tyres and 235/55 R19 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 84 month, unlimited km warranty.
The 2023 Kia Carnival Special Edition has a 172mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Carnival compare?
Quickly see how the 2023 Kia Carnival Special Edition stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
69.35 - 101.12 kW/t
48.87 kW/t
101.12 kW/t
Boot Space
627 litres
446 litres
831 litres
Fuel Efficiency
6.5 - 9.6 L/100km
4.9 L/100km
10.5 L/100km
Vehicle Range
750 - 1,108 km
714 km
1,212 km
Price
$47,480 - $67,580
$47,480
$77,950
Warranty (Years)
7 years
5 years
7 years
Warranty (Distance)
Unlimited
200,000 km
Unlimited
Years on Sale
1 - 2 years
1 year
2 years
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,876 - 2,880 kg
2,220 kg
3,500 kg
Braked Towing Capacity
2,000 kg
1,500 kg
2,500 kg
Ground Clearance Unladen
172 mm
140 mm
222 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,115 mm
1,995 mm
1,775 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,115 mm |
| Overall Width | 1,995 mm |
| Overall Height | 1,775 mm |
| Wheelbase | 3,090 mm |
| Turning Circle | 11,700 mm |
| Load Capacity | 742 mm |
Looking for complete Kia Carnival size & space specs?
Our Kia Carnival Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Kia Carnival Sales rolling 12-months#
Explore Kia Carnival Features & Specs
Automatic Door Closing
Rear Boot Hatch: yes
Cruise Control
Adaptive Cruise Control: yes
Stop Go Function: Stop & Go
Driver Modes
Engine Mapping: yes
Steering: yes
Transmission: yes
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: Unlimited
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Mirrorlink Months Subscription Included: 0
Parking Assistance
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Front
Front Type: Sensor & Camera
Location: Rear
Rear Type: Sensor & Camera
Location: Side
Side Type: Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Location (12V): Rear
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Includes Walk Away Locking: yes
USB Charging Port
Location: 3rd Row
Number of Ports in Third Row: 2
Location: Front
Number of Ports in Front: 3
Location: Rear
Number of Ports in Rear: 2
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Compressor
Compressor: Turbo
Number of Compressors: 1
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Country Highway): 149
CO2 Level (Combined): 170
CO2 Level (Urban): 205
Standard Met: EU5
Engine
Engine (cc): 2151
Engine Configuration: In-Line
Engine (L): 2.2
Number of Cylinders: 4
Interested in buying a Kia Carnival Special Edition?
Save $$$ with CarExpert*
From
$63,190â€
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel Tanks
Main Capacity Gal: 19.0
Main Capacity (L): 72
Main Capacity Uk Gallons: 15.8
Main Type: Total
Computer
Average Fuel Consumption: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Orientation: Fixed
Dashboard Centre 1 Screen Size (in): 12.30
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 4.20
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 1108
ADR 81/02 Calculated Vehicle Range (miles): 688
ADR 81/02 Combined (km/L): 15.4
ADR 81/02 Combined (L/100km): 6.5
ADR 81/02 Combined (miles per UK gallon): 44
ADR 81/02 Combined (mpg): 36
ADR 81/02 Country Highway (km/L): 17.5
ADR 81/02 Country Highway (L/100km): 5.7
ADR 81/02 Country Highway (miles per UK gallon): 50
ADR 81/02 Country Highway (mpg): 41
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 12.8
ADR 81/02 Urban (L/100km): 7.8
ADR 81/02 Urban (miles per UK gallon): 36
ADR 81/02 Urban (mpg): 30
Fuel Economy
ADR 81/02 (L/100km): 6.5
Power
Maximum Power (hp/PS): 201
Maximum Power (kW): 148
Maximum Torque (Nm): 440
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3800
Rpm For Maximum Torque Low: 1750
Drive
Driven Wheels: Front
Transmission
Description: Automatic With Manual Mode
Manual Mode: yes
Number of Simulated Gears: 0
Number of Speeds: 8
Shift Lever Location: Dash
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 101
Location: Front
Front Wheels Tire Profile: 55
Front Wheels Tire Speed Rating: H
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 235
Rear Wheels Tire Load Index: 101
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 55
Rear Wheels Tire Speed Rating: H
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 235
Wheels
Location: Front
Front Wheels Rim Diameter (In): 19
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.5
Location: Rear
Rear Rim Diameter (In): 19
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.5
Body Style
Body Type: MPV
Local Body Type: MPV
Platform Code: N3
Wheelbase Type: Short
Spoiler
Location: Roof
Cargo Capacity
Frunk Capacity (cu ft): 0.0
Frunk Capacity (L): 0
Measurement Standard: VDA
Rear Seat Down (cu ft): 98.4
Rear Seat Down (L): 2785
Rear Seat Up to Lower Window (cu ft): 22.1
Rear Seat Up to Lower Window (L): 627
External Dimensions
Kerb to Kerb Turning Circle (mm): 11700
Front Track (in): 68.7
Front Track (mm): 1746
Ground Clearance Unladen (in): 6.8
Ground Clearance Unladen (mm): 172
Kerb To Kerb Turning Circle (ft): 38.4
Overall Height (in): 69.9
Overall Height (mm): 1775
Overall Length (in): 201.4
Overall Length (mm): 5115
Overall Width (in): 78.5
Overall Width (mm): 1995
Rear Track (in): 68.7
Rear Track (mm): 1746
Wheelbase (in): 121.7
Wheelbase (mm): 3090
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Rear Driver Auxiliary Door Shut: yes
Rear Driver Electric Door: yes
Location: Rear Driver
Rear Driver Door Type: Sliding
Rear Passenger Auxiliary Door Shut: yes
Rear Passenger Electric Door: yes
Location: Rear Passenger
Rear Passenger Door Type: Sliding
Rear Door
Type: Lifting Gate
Headlight Control
Auto Highbeam: yes
Dusk Sensor: yes
Height Adjustment: Automatic
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: Gray
Type: Gloss
Glass Roof
Sunshade Type: Manual
Sunroof
Front Sunroof Location: Front
Front Sunroof Operation: Electric
Front Sunroof Type: Glass
Blind
Location: Side
Side Blind Type: Manual
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Gross Trailer Weight Braked (kg): 2000
Gross Trailer Weight Braked (lb): 4409
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2876
Gross Vehicle Weight (lb): 6341
Published Kerb Weight (kg): 2134
Published Kerb Weight (lb): 4705
Tare Weight (kg): 2081
Trailer Noseweight (kg): 200
Audio System
Digital Radio: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
Total 3rd Row USB Connections: 0
Total Front USB Connections: 1
Total Rear USB Connections: 0
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 8
Luxury Trim
Centre Floor Console: Piano Black
Doors: Alloy Look
Gear Selector: Alloy Look
Instrument Panel: Wood Or Woodlook
Airbags
Number of Airbags: 7
Autonomous Drive
Active Lane Control: yes
Level: 2 - Partial Automation
Traffic Jam Assist: yes
Traffic Sign Response: yes
Crash Test Results
ANCAP Adult Occupant Score: 90.0
ANCAP Child Occupant Score: 88.0
ANCAP Date Tested: 20210401
ANCAP Overall: 5.0
ANCAP Pedestrian Score: 68.0
ANCAP Rating Expiry Date: 20271231
ANCAP Rating Year: 2021
ANCAP Safety Assist Score: 82.0
ANCAP Standard: Ancap
ANCAP Version Tested: 2.2 Crdi S (Rhd)
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Seat Position: Passenger
Head Restraints
Location: 3rd Row Seats
3rd Row Seats Number: 2
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Lane Departure Warning
Activates Steering: yes
Overtaking Sensor
Includes Collision Avoidance: yes
Rear Cross Traffic Collision Avoidance
Includes Braking: yes
Type: Sensor
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: All Three Rows
Third Row Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Electric
Location: Driver
Driver Front Seat Lumbar Type: Electric
Driver Front Seat Number of Electrical Adjustments: 5
Driver Front Seat Reach Type: Electric
Driver Front Seat Reclining Type: Electric
Driver Front Seat Type: Bucket
Passenger Front Seat Heated: yes
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Synthetic Leather
Seating
Capacity: 8
Configuration: 2+3+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 3
Rear Control For Climate Control: yes
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Rear Seats Location: Rear Seats
Ventilation System
Engine Heater: yes
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
