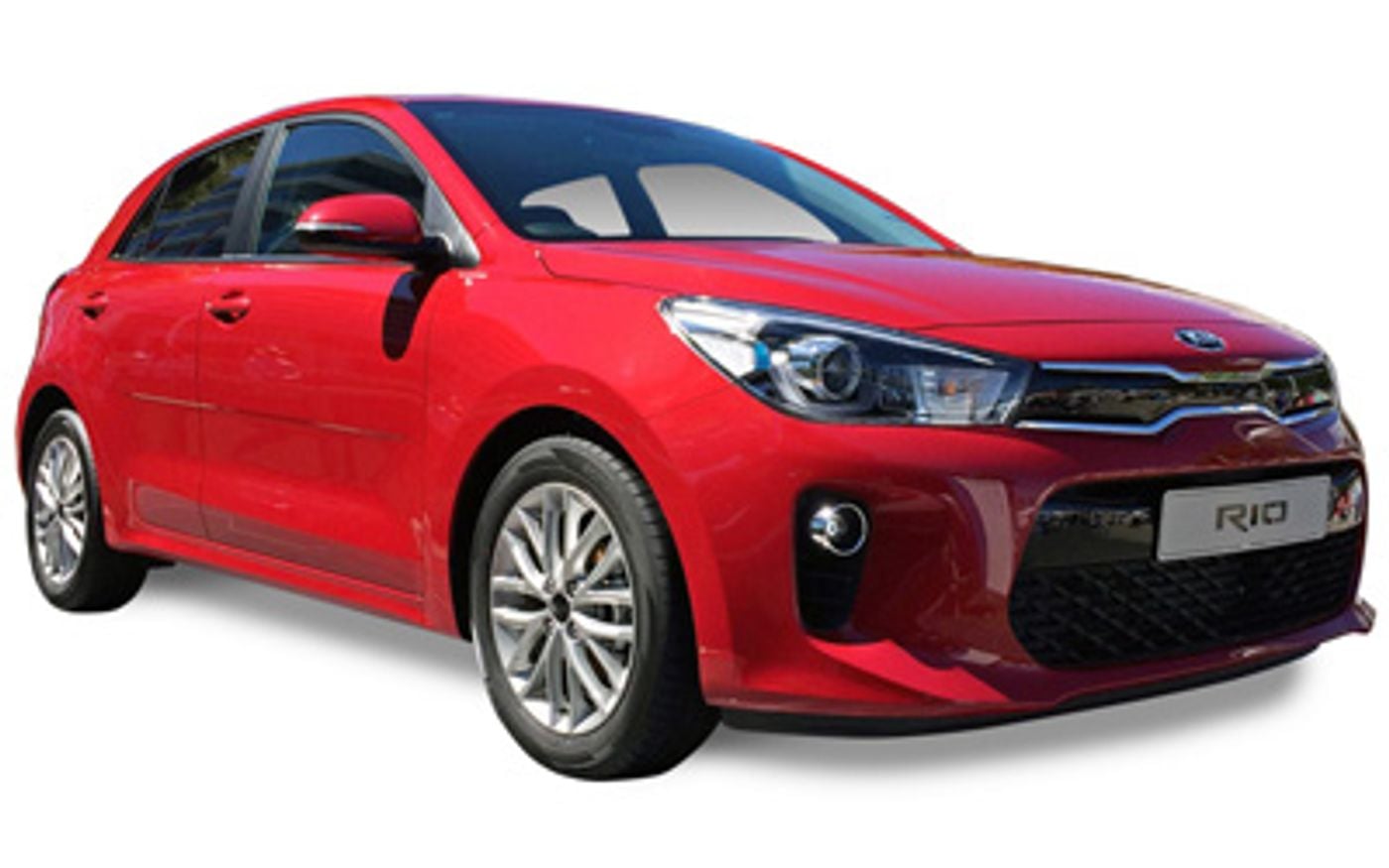

Kia Rio Ao Edition (2018) price & specs
Save $$$ with CarExpert*
From
$19,590†
Ao Edition
Overview
The 2018 Kia Rio Ao Edition is a front-wheel drive, 5-door Hatchback that was released to the Australian market on 3rd January 2018 classified as a YB. The Kia Rio is regarded as a small car built in Korea with prices starting at $19,590 before on-road costs.
This Kia Rio is powered by a 1.4L 4-cylinder engine that has 74 kW of power (at 6000 rpm) and 133 Nm of torque (at 4000 rpm) via a Four-speed Automatic transmission. Kia claims the Rio Ao Edition uses 6.2L/100km of Unleaded in the combined city and highway cycle while putting out 145g of CO2. It has a 45L fuel tank, meaning it should be able to travel 726km per full tank
The Kia Rio measures 1450mm (57.1 inches) in height, 4065mm (160.0 inches) in length, 1725mm (67.9 inches) in width with a 2580mm (101.6 inches) wheelbase that brings about a total of 1197kg (2638.9 lbs) of unladen weight. The Rio Ao Edition comes standard with 205/45 R17 front tyres and 205/45 R17 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 84 month, unlimited km warranty.
The 2018 Kia Rio Ao Edition has a 140mm ground clearance with a 800kg braked and 450kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Rio compare?
Quickly see how the 2018 Kia Rio Ao Edition stacks up against its competition.
Select any benchmark to see more details.
Power to Weight
61.82 - 63.14 kW/t
60.87 kW/t
127.56 kW/t
Boot Space
325 litres
238 litres
536 litres
Fuel Efficiency
5.6 - 6.2 L/100km
4.6 L/100km
8.4 L/100km
Vehicle Range
726 - 804 km
607 km
837 km
Price
$16,990 - $22,990
$14,990
$39,990
Warranty (Years)
7 years
3 years
7 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Braked Towing Capacity
800 - 1,000 kg
200 kg
1,100 kg
Ground Clearance Unladen
140 mm
120 mm
158 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,065 mm
1,725 mm
1,450 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,065 mm |
| Overall Width | 1,725 mm |
| Overall Height | 1,450 mm |
| Wheelbase | 2,580 mm |
Looking for complete Kia Rio size & space specs?
Our Kia Rio Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Kia Rio Sales rolling 12-months#
Explore Kia Rio Features & Specs
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Combined): 145
Standard Met: EU5
Engine
Bore Engine: 72.0
Engine (cc): 1368
Engine Configuration: In-Line
Engine (L): 1.4
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 84.0
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 91
Minimum Fuel Type: Unleaded
Fuel Type: Unleaded
Octane Number: 91
Fuel System
Injection Carburetion: Multi-Point Injection
Fuel Tanks
Main Capacity Gal: 11.9
Main Capacity (L): 45
Main Capacity Uk Gallons: 9.9
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 7.0
Dashboard Centre 1 Touch Screen: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 726
ADR 81/02 Calculated Vehicle Range (miles): 451
ADR 81/02 Combined (km/L): 16.1
ADR 81/02 Combined (L/100km): 6.2
ADR 81/02 Combined (miles per UK gallon): 46
ADR 81/02 Combined (mpg): 38
ADR 81/02 Country Highway (km/L): 20.0
ADR 81/02 Country Highway (L/100km): 5.0
ADR 81/02 Country Highway (miles per UK gallon): 57
ADR 81/02 Country Highway (mpg): 47
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 12.2
ADR 81/02 Urban (L/100km): 8.2
ADR 81/02 Urban (miles per UK gallon): 34
ADR 81/02 Urban (mpg): 29
Fuel Economy
ADR 81/02 (L/100km): 6.2
Performance
Acceleration 0 To 100 km/h: 12.9
Maximum Speed (km/h): 183
Maximum Speed (mph): 114
Power
Maximum Power (hp/PS): 101
Maximum Power (kW): 74
Maximum Torque (Nm): 133
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 6000
Rpm For Maximum Torque Low: 4000
Drive
Driven Wheels: Front
Transmission
Description: Automatic With Manual Mode
Manual Mode: yes
Number of Speeds: 4
Shift Lever Location: Floor
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Type: Torsion Beam
Rear Wheel Dependence: Semi-Independent
Tires
Front Wheels Tire Load Index: 88
Location: Front
Front Wheels Tire Profile: 45
Front Wheels Tire Speed Rating: V
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 205
Rear Wheels Tire Load Index: 88
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 45
Rear Wheels Tire Speed Rating: V
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 205
Wheels
Location: Front
Front Wheels Rim Diameter (In): 17
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 6.5
Location: Rear
Rear Rim Diameter (In): 17
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 6.5
Body Style
Body Type: Hatchback
Local Body Type: Hatchback
Platform Code: GB
Wheelbase Type: Short
Spoiler
Location: Roof
Cargo Capacity
Measurement Standard: VDA
Rear Seat Down (cu ft): 34.6
Rear Seat Down (L): 980
Rear Seat Up to Lower Window (cu ft): 11.5
Rear Seat Up to Lower Window (L): 325
External Dimensions
Ground Clearance Unladen (in): 5.5
Ground Clearance Unladen (mm): 140
Overall Height (in): 57.1
Overall Height (mm): 1450
Overall Length (in): 160.0
Overall Length (mm): 4065
Overall Width (in): 67.9
Overall Width (mm): 1725
Wall to Wall Turning Circle (ft): 33.5
Wall to Wall Turning Circle (mm): 10200
Wheelbase (in): 101.6
Wheelbase (mm): 2580
Internal Dimensions
Front Headroom (in): 40.2
Front Headroom (mm): 1020
Rear Headroom (in): 38.0
Rear Headroom (mm): 964
Front Hip Room (in): 52.9
Front Hip Room (mm): 1344
Rear Hip Room (in): 52.4
Rear Hip Room (mm): 1330
Front Leg Room (in): 42.1
Front Leg Room (mm): 1070
Rear Leg Room (in): 33.5
Rear Leg Room (mm): 850
Front Shoulder Room (in): 54.1
Front Shoulder Room (mm): 1375
Rear Shoulder Room (in): 53.3
Rear Shoulder Room (mm): 1355
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Dusk Sensor: yes
Height Adjustment: Manual
Internal Height Adjustment: yes
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
External Colour: Black
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Gross Trailer Weight Braked (kg): 800
Gross Trailer Weight Braked (lb): 1764
Gross Trailer Weight Unbraked (kg): 450
Gross Trailer Weight Unbraked (lb): 992
Published Kerb Weight (kg): 1197
Published Kerb Weight (lb): 2639
Tare Weight (kg): 1162
Audio System
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Cargo Area Cover Rear Parcel Shelf
Type: Rigid
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Media Control
Touch Screen: yes
Mobile Integration
Android Auto: yes
Apple Carplay: yes
Parking Assistance
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Front
Vanity Mirror
Driver Mirror Location: Driver
Location: Passenger
Voice Activating System
Includes Phone: yes
Luxury Trim
Gear Selector: Leather
Instrument Panel: Alloy Look
Airbags
Number of Airbags: 6
Crash Test Results
ANCAP Overall: 5.00
ANCAP Pedestrian: Acceptable
ANCAP Rear Crash Protect Head Restraint Rating: Good
ANCAP Standard: Ancap
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Manual
Ventilation System
Heater Type: Combustion
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
