Base
2.0L, 6-speed auto, 2-door Cab Chassis, Diesel, RWD
Save $$$ with CarExpert*
$47,358â€

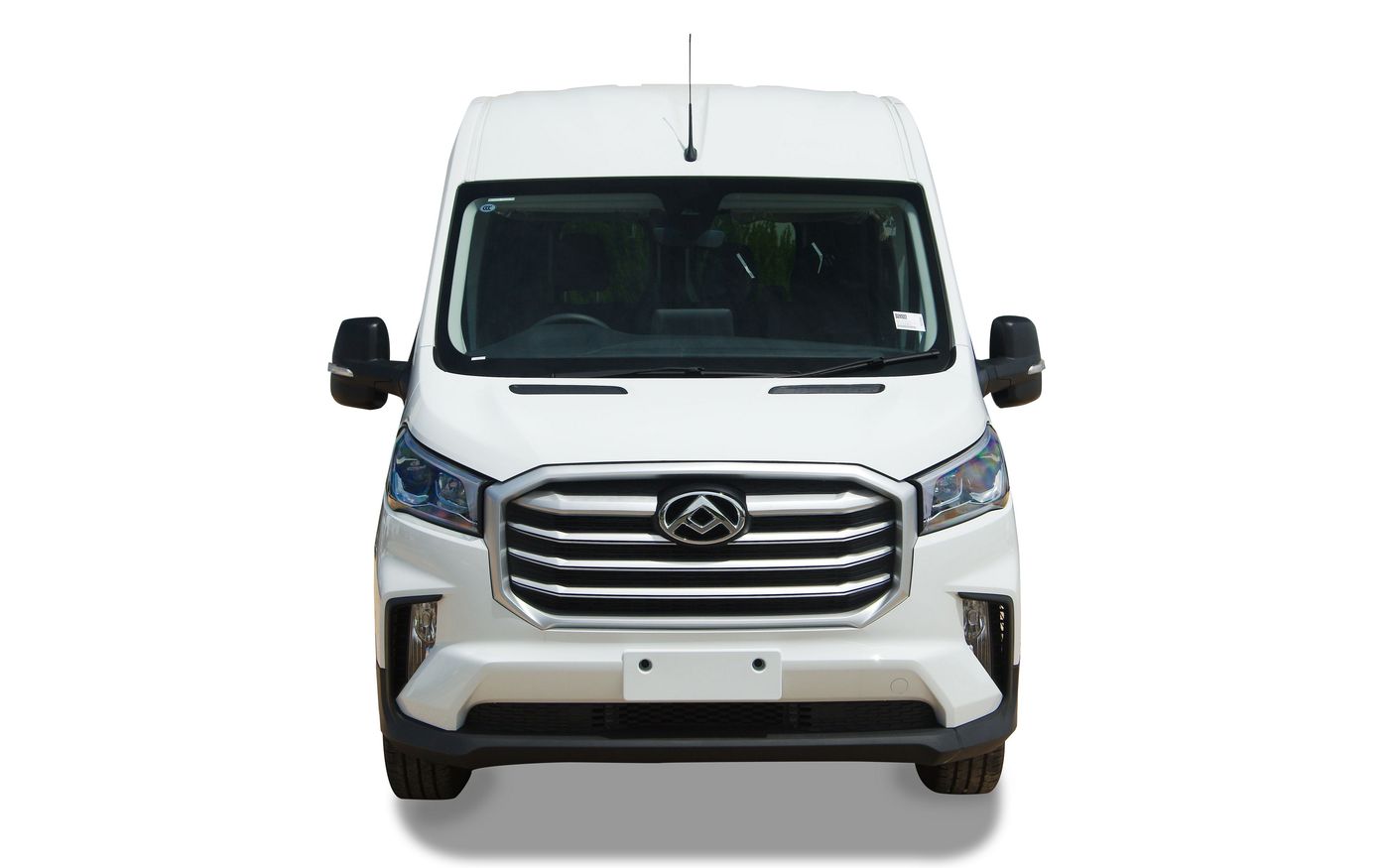

LDV Deliver 9 Base (2020) price & specs
Save $$$ with CarExpert*
From
$47,358â€
Base
Overview
The 2020 LDV Deliver 9 Base is a rear-wheel drive, 2-door Cab Chassis that was released to the Australian market on 6th May 2021 classified as a Sv63. The LDV Deliver 9 is regarded as a Van Over 3.5t built in China with prices starting at $47,358 before on-road costs.
This LDV Deliver 9 is powered by a 2.0L 4-cylinder engine that has 108 kW of power (at 3500 rpm) and 375 Nm of torque (at 1500 rpm) via a Six-speed Automatic transmission. It has a 80L fuel tank
The LDV Deliver 9 measures 2320mm (91.3 inches) in height, 6200mm (244.1 inches) in length, 2094mm (82.4 inches) in width with a 3760mm (148.0 inches) wheelbase that brings about a total of 2040kg (4497.4 lbs) of unladen weight. The Deliver 9 Base comes standard with 235/75 R16 front tyres and 195/75 R16 rear tyres. It requires a service every 12 months or 30,000 km, whichever comes first. It has a 36 month, 160,000 km warranty.
The 2020 LDV Deliver 9 Base has a 150mm ground clearance with a 2800kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Deliver 9 compare?
Quickly see how the 2020 LDV Deliver 9 Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
45.38 - 53.73 kW/t
38.22 kW/t
68.75 kW/t
Vehicle Range
899 km
899 km
1,406 km
Price
$42,095 - $51,042
$42,095
$95,101
Warranty (Years)
3 years
3 years
5 years
Warranty (Distance)
160,000 km
160,000 km
Unlimited
Years on Sale
3 - 6 years
1 year
5 years
Service Interval
12 months
12 months
24 months
Towing & Off-Road Capability
Gross Vehicle Weight
3,800 - 4,500 kg
3,510 kg
5,500 kg
Braked Towing Capacity
2,800 kg
1,700 kg
3,500 kg
Ground Clearance Unladen
150 mm
143 mm
231 mm
Payload Capacity
1,500 - 2,490 kg
914 kg
3,523 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
6,200 mm
2,094 mm
inc mirror: 2,466 mm
inc mirror: 2,466 mm
2,320 mm
| Specification | Measurement |
|---|---|
| Overall Length | 6,200 mm |
| Overall Width | 2,094 mm |
| Overall Width (Inc Mirror) | 2,466 mm |
| Overall Height | 2,320 mm |
| Wheelbase | 3,760 mm |
| Turning Circle | 14,200 mm |
| Load Capacity | 2,460 mm |
Looking for complete LDV Deliver 9 size & space specs?
Our LDV Deliver 9 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore LDV Deliver 9 Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Driver Modes
Engine Mapping: yes
Mobile Integration
Android Number of Months Subscription: 0
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Mirrorlink Months Subscription Included: 0
Other Months Subscription Included: 0
Parking Distance System
Location: Front
Front Type: Sensor
Power Outlet 12V
Location (12V): Front
USB Charging Port
Location: Front
Number of Ports in Front: 2
Compressor
Compressor: Turbo
Number of Compressors: 1
Electrical System
Voltage: 12
Emission Control Level
Standard Met: EU5
Engine
Bore Engine: 83.0
Engine (cc): 1996
Engine Configuration: In-Line
Engine Code: Sc20m150q5
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 92.0
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 21.1
Main Capacity (L): 80
Main Capacity Uk Gallons: 17.6
Main Type: Total
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 899
ADR 81/02 Calculated Vehicle Range (miles): 559
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 16.1
ADR 81/02 Urban (L/100km): 6.2
ADR 81/02 Urban (miles per UK gallon): 46
ADR 81/02 Urban (mpg): 38
Power
Maximum Power (hp/PS): 147
Maximum Power (kW): 108
Maximum Torque (Nm): 375
Measurement Standard: ISO
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3500
Rpm For Maximum Torque Low: 1500
Drive
Driven Wheels: Rear
Transmission
Code: 6l50
Description: Automatic
Number of Speeds: 6
Shift Lever Location: Dash
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 121
Location: Front
Front Wheels Tire Profile: 65
Front Wheels Tire Speed Rating: S
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 235
Rear Wheels Tire Load Index: 121
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 75
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 195
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 6.5
Location: 1
Rear Axle 1 Dual Wheel: yes
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 6.5
Body Style
Body Type: Cab Chassis
Local Body Type: Cab Chassis
Roof Type: Semi-High
Wheelbase Type: Long
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
External Dimensions
Kerb to Kerb Turning Circle (mm): 14200
Front Overhang (in): 40.2
Front Overhang (mm): 1020
Front Track (in): 68.5
Front Track (mm): 1740
Ground Clearance Unladen (in): 5.9
Ground Clearance Unladen (mm): 150
Kerb To Kerb Turning Circle (ft): 46.6
Overall Height (in): 91.3
Overall Height (mm): 2320
Overall Length (in): 244.1
Overall Length (mm): 6200
Overall Width (in): 82.4
Overall Width Inc Mirror (in): 97.1
Overall Width Inc Mirror (mm): 2466
Overall Width (mm): 2094
Rear Overhang (in): 55.9
Rear Overhang (mm): 1420
Rear Track (in): 65.1
Rear Track (mm): 1654
Wheelbase (in): 148.0
Wheelbase (mm): 3760
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Headlight Control
Height Adjustment: Manual
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
LED Lights
Location: Day Time Running Lights
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Front Axle Weight (kg): 1760
Front Axle Weight (lb): 3880
Gross Trailer Weight Braked (kg): 2800
Gross Trailer Weight Braked (lb): 6173
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 4500
Gross Vehicle Weight (lb): 9921
Payload Allowance (kg): 2460
Payload Allowance (lb): 5423
Published Kerb Weight (kg): 2040
Published Kerb Weight (lb): 4497
Rear Axle Weight (kg): 2740
Rear Axle Weight (lb): 6041
Tare Weight (kg): 1981
Audio System
Colour Screen: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
Total Front USB Connections: 1
Total Rear USB Connections: 0
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 3
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Orientation: Fixed
Dashboard Centre 1 Screen Size (in): 10.10
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 4.20
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Luxury Trim
Instrument Panel: Alloy Look
Airbags
Number of Airbags: 6
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Side Airbag
Front Head Protection: yes
Location: Front
Front Seat
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bench
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 2
Configuration: 1+1
Cup Holders
Location: Front Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 30000
Distance (miles): 18641
Period (Months): 12
