LDV V80 Base (2019) price & specs
Save $$$ with CarExpert*
From
$30,990â€
Base
Overview

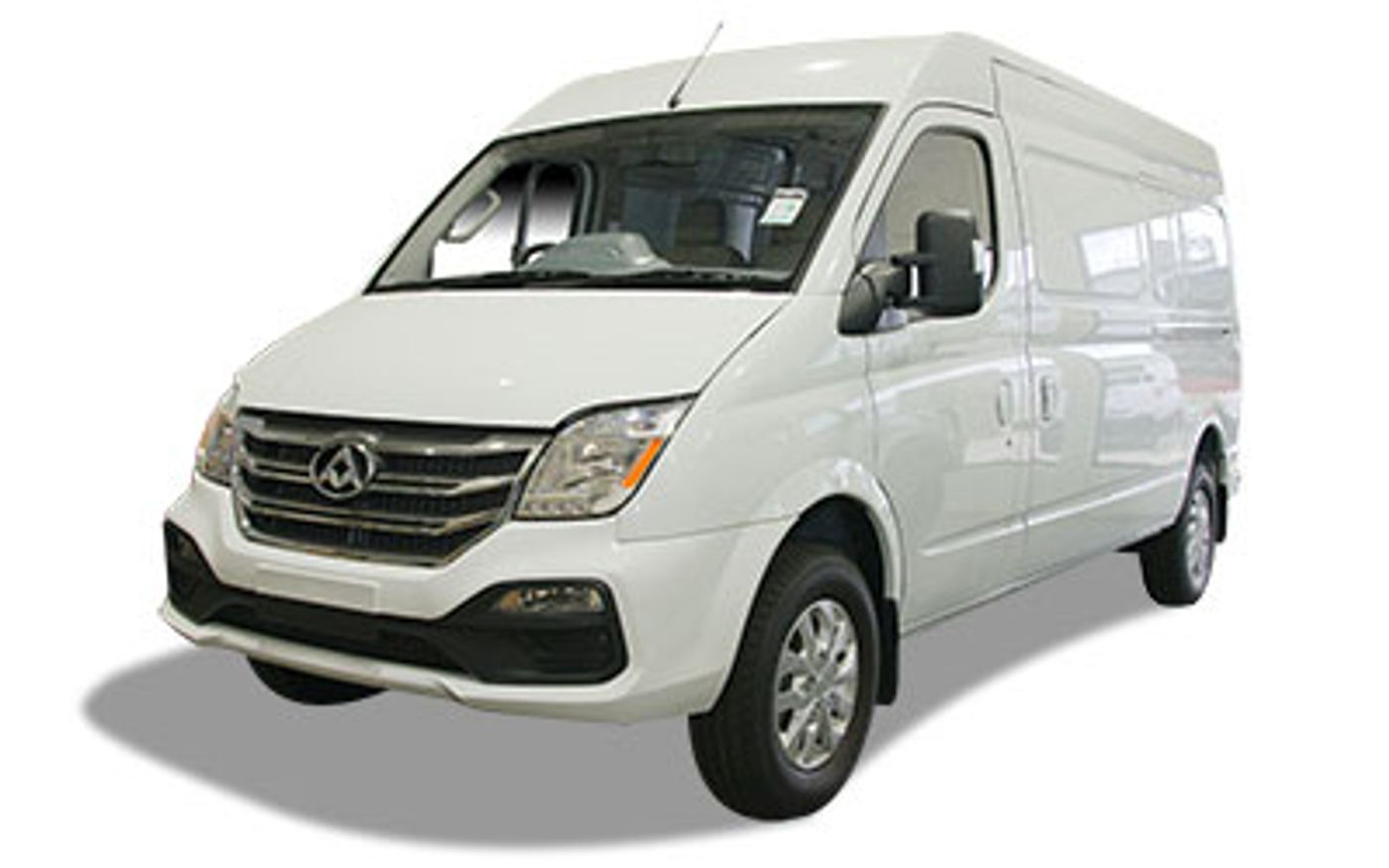

The 2019 LDV V80 Base is a front-wheel drive, 5-door Panel Van that was released to the Australian market on 1st July 2019. The LDV V80 is regarded as a Van Under 3.5t built in China with prices starting at $30,990 before on-road costs.
This LDV V80 is powered by a 2.5L 4-cylinder engine that has 100 kW of power (at 3800 rpm) and 330 Nm of torque (at 1800 rpm) via a Six-speed Manual transmission. LDV claims the V80 Base uses 9.4L/100km of Diesel in the combined city and highway cycle while putting out 250g of CO2. It has a 80L fuel tank, meaning it should be able to travel 851km per full tank
The LDV V80 measures 2132mm (83.9 inches) in height, 4950mm (194.9 inches) in length, 1998mm (78.7 inches) in width with a 3100mm (122.0 inches) wheelbase that brings about a total of 2056kg (4532.7 lbs) of unladen weight. The V80 Base comes standard with 215/75 R16 front tyres and 215/75 R16 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 36 month, 100,000 km warranty.
The 2019 LDV V80 Base has a 234mm ground clearance with a 1200kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the V80 compare?
Quickly see how the 2019 LDV V80 Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
46.06 - 48.64 kW/t
29.14 kW/t
97.64 kW/t
Fuel Efficiency
8.9 - 9.4 L/100km
4.7 L/100km
12.4 L/100km
Vehicle Range
851 - 899 km
565 km
1,327 km
Price
$30,990 - $45,253
$24,490
$63,170
Warranty (Years)
3 years
3 years
5 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Years on Sale
7 years
1 year
6 years
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
3,200 - 3,500 kg
1,810 kg
3,500 kg
Gross Comb. Mass
4,400 - 4,700 kg
2,295 kg
5,365 kg
Braked Towing Capacity
1,200 kg
322 kg
2,800 kg
Ground Clearance Unladen
234 mm
154 mm
234 mm
Payload Capacity
1,204 - 1,419 kg
540 kg
1,419 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,950 mm
1,998 mm
2,132 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,950 mm |
| Overall Width | 1,998 mm |
| Overall Height | 2,132 mm |
| Wheelbase | 3,100 mm |
| Turning Circle | 12,400 mm |
| Load Capacity | 1,144 mm |
Looking for complete LDV V80 size & space specs?
Our LDV V80 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
LDV V80 Sales rolling 12-months#
Explore LDV V80 Features & Specs
Compressor
Compressor: Turbo
Number of Compressors: 1
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Country Highway): 235
CO2 Level (Combined): 250
CO2 Level (Urban): 290
Standard Met: EU5
Engine
Bore Engine: 92.0
Engine (cc): 2499
Engine Configuration: In-Line
Engine Code: Sc25r136q4
Engine (L): 2.5
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 94.0
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 21.1
Main Capacity (L): 80
Main Capacity Uk Gallons: 17.6
Main Type: Total
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 851
ADR 81/02 Calculated Vehicle Range (miles): 529
ADR 81/02 Combined (km/L): 10.6
ADR 81/02 Combined (L/100km): 9.4
ADR 81/02 Combined (miles per UK gallon): 30
ADR 81/02 Combined (mpg): 25
ADR 81/02 Country Highway (km/L): 11.4
ADR 81/02 Country Highway (L/100km): 8.8
ADR 81/02 Country Highway (miles per UK gallon): 32
ADR 81/02 Country Highway (mpg): 27
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 9.3
ADR 81/02 Urban (L/100km): 10.8
ADR 81/02 Urban (miles per UK gallon): 26
ADR 81/02 Urban (mpg): 22
Fuel Economy
ADR 81/02 (L/100km): 9.4
Power
Maximum Power (hp/PS): 136
Maximum Power (kW): 100
Maximum Torque (Nm): 330
Measurement Standard: ISO
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3800
Rpm For Maximum Torque Low: 1800
Drive
Driven Wheels: Front
Transmission
Description: Manual
Number of Speeds: 6
Shift Lever Location: Dash
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 113
Location: Front
Front Wheels Tire Profile: 75
Front Wheels Tire Speed Rating: R
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 215
Rear Wheels Tire Load Index: 113
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 75
Rear Wheels Tire Speed Rating: R
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 215
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 6.0
Location: 1
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 6.0
Body Style
Body Type: Panel Van
Local Body Type: Panel Van
Roof Type: Standard
Wheelbase Type: Short
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Cargo Area Dimensions
Cargo Volume (cu ft): 226.0
Cargo Volume (L): 6400
Height (in): 59.3
Height (mm): 1770
Length (in): 100.4
Length (mm): 2550
Width Between Wheelhouses (in): 54.3
Width Between Wheelhouses (mm): 1380
Width (in): 69.7
Width (mm): 1770
External Dimensions
Kerb to Kerb Turning Circle (mm): 12400
Ground Clearance Unladen (in): 9.2
Ground Clearance Unladen (mm): 234
Kerb To Kerb Turning Circle (ft): 40.7
Overall Height (in): 83.9
Overall Height (mm): 2132
Overall Length (in): 194.9
Overall Length (mm): 4950
Overall Width (in): 78.7
Overall Width (mm): 1998
Wheelbase (in): 122.0
Wheelbase (mm): 3100
Cargo Doors
Driver Height (in): 55.1
Driver Height (mm): 1400
Driver Location: Driver
Driver Operation: Sliding
Driver Width (in): 42.9
Driver Width (mm): 1090
Passenger Height (in): 55.1
Passenger Height (mm): 1400
Location: Passenger
Passenger Operation: Sliding
Passenger Width (in): 42.9
Passenger Width (mm): 1090
Rear Height (in): 53.5
Rear Height (mm): 1360
Location: Rear
Rear Opening Angle: 180
Rear Operation: Double Hinged
Rear Width (in): 61.0
Rear Width (mm): 1550
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Headlight Control
Height Adjustment: Automatic
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
LED Lights
Location: Day Time Running Lights
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Front Axle Weight (kg): 1450
Front Axle Weight (lb): 3197
Gross Trailer Weight Braked (kg): 1200
Gross Trailer Weight Braked (lb): 2646
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 4400
Gross Train Weight (lb): 9700
Gross Vehicle Weight (kg): 3200
Gross Vehicle Weight (lb): 7055
Payload Allowance (kg): 1204
Payload Allowance (lb): 2654
Payload Inc Driver (kg): 1204
Payload Inc Driver (lb): 2654
Published Kerb Weight (kg): 2056
Published Kerb Weight (lb): 4533
Rear Axle Weight (kg): 1750
Rear Axle Weight (lb): 3858
Tare Weight (kg): 1997
Audio System
Audio Player Reads MP3: yes
Colour Screen: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
Total Front USB Connections: 2
Total Rear USB Connections: 0
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 3
Bluetooth
Includes Phone Connection: yes
Mobile Integration
Android Number of Months Subscription: 0
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Mirrorlink Months Subscription Included: 0
Other Months Subscription Included: 0
Parking Distance System
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Front
USB Charging Port
Location: Front
Number of Ports in Front: 2
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 10.0
Dashboard Centre 1 Touch Screen: yes
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Luxury Trim
Instrument Panel: Alloy Look
Airbags
Number of Airbags: 2
Crash Test Results
ANCAP Date Tested: 20130101
ANCAP Overall: 3.00
ANCAP Rating Year: 2013
ANCAP Standard: Ancap
ANCAP Version Tested: V80 2.5 Swb Low Roof
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Seat Position: Center
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Front Seat
Location: Centre
Center Front Seat Type: Bench
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Type: Bench
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 3
Configuration: 3+0
Cup Holders
Location: Front Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
