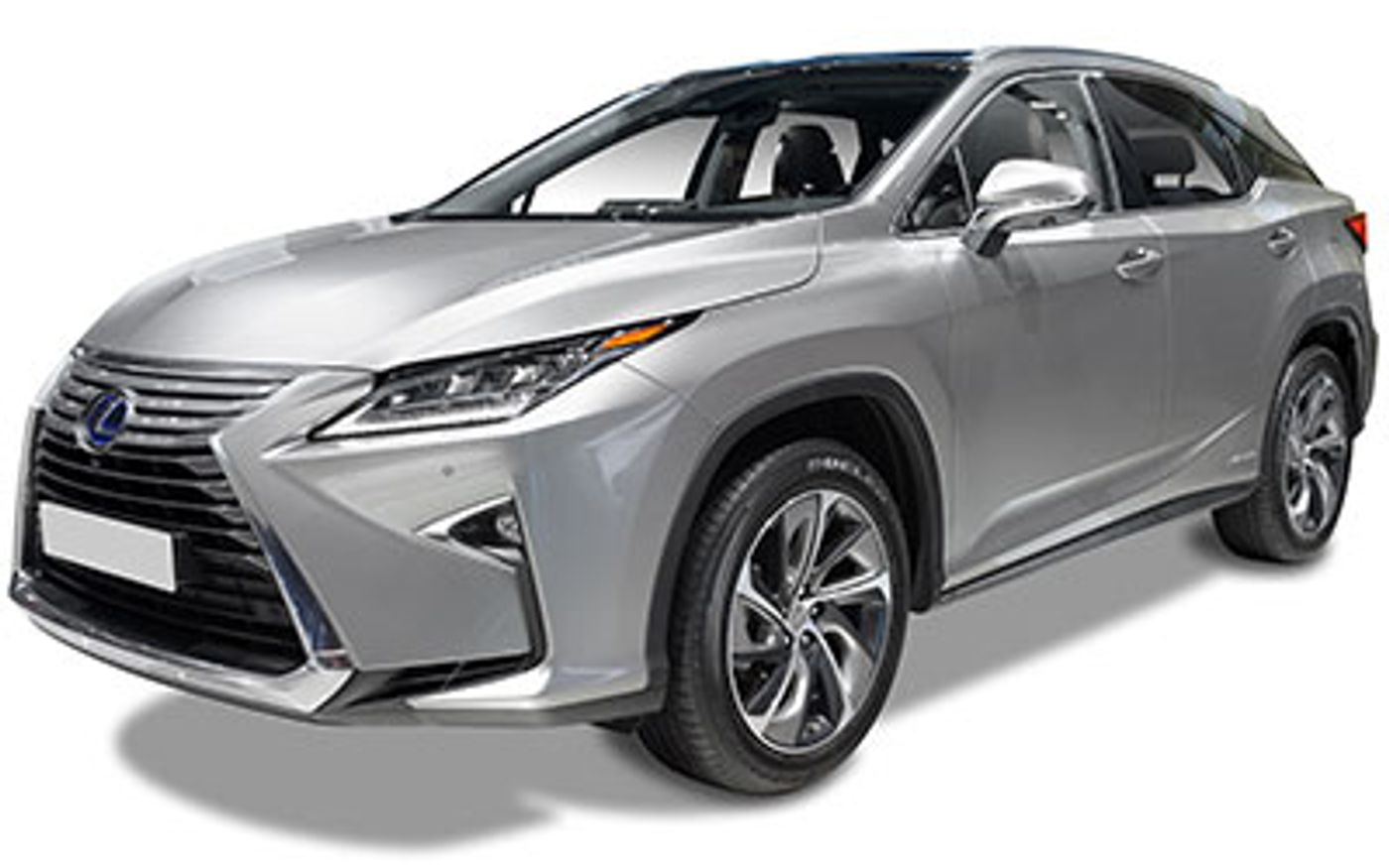

Lexus RX Crafted Edition (2019) price & specs
Save $$$ with CarExpert*
From
$88,551â€
Crafted Edition
Overview
The 2019 Lexus RX Crafted Edition is a four-wheel drive, 5-door SUV that was released to the Australian market on 2nd July 2019 classified as a Ggl25r. The Lexus RX is regarded as a Suv Large Luxury built in Japan with prices starting at $88,551 before on-road costs.
This Lexus RX is powered by a 3.5L 6-cylinder engine that has 221 kW of power (at 6300 rpm) and 370 Nm of torque (at 4600 rpm) via an Eight-speed Automatic transmission. Lexus claims the RX Crafted Edition uses 9.6L/100km of Premium Unleaded in the combined city and highway cycle while putting out 223g of CO2. It has a 72L fuel tank, meaning it should be able to travel 750km per full tank
The Lexus RX measures 1690mm (66.5 inches) in height, 4890mm (192.5 inches) in length, 1895mm (74.6 inches) in width with a 2790mm (109.8 inches) wheelbase that brings about a total of 2085kg (4596.6 lbs) of unladen weight. The RX Crafted Edition comes standard with 235/55 R20 front tyres and 235/55 R20 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 48 month, 100,000 km warranty.
The 2019 Lexus RX Crafted Edition has a 200mm ground clearance with a 1500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the RX compare?
Quickly see how the 2019 Lexus RX Crafted Edition stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
87.72 - 106 kW/t
70.06 kW/t
195.74 kW/t
Boot Space
176 - 453 litres
176 litres
810 litres
Fuel Efficiency
5.7 - 10.6 L/100km
2.1 L/100km
12.8 L/100km
Vehicle Range
679 - 1,140 km
656 km
1,417 km
Price
$71,556 - $111,070
$69,703
$239,000
Warranty (Years)
4 years
3 years
5 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Years on Sale
1 - 4 years
1 year
7 years
Service Interval
12 months
12 months
24 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,500 - 2,715 kg
2,380 kg
3,200 kg
Braked Towing Capacity
1,000 - 1,500 kg
1,000 kg
3,500 kg
Approach Angle
16.3 - 16.7°
16°
33°
Departure Angle
22 - 24.8°
14.4°
31°
Ground Clearance Unladen
195 - 200 mm
190 mm
278 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,890 mm
1,895 mm
inc mirror: 2,180 mm
inc mirror: 2,180 mm
1,690 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,890 mm |
| Overall Width | 1,895 mm |
| Overall Width (Inc Mirror) | 2,180 mm |
| Overall Height | 1,690 mm |
| Wheelbase | 2,790 mm |
| Turning Circle | 11,800 mm |
| Load Capacity | 490 mm |
Looking for complete Lexus RX size & space specs?
Our Lexus RX Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Lexus RX Sales rolling 12-months#
Explore Lexus RX Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Cruise Control
Adaptive Cruise Control: yes
Stop Go Function: Stop & Go
Driver Modes
Engine Mapping: yes
Steering: yes
Entertainment Display Screen
Front DVD: yes
Location: Front
Front Screen Size (in): 12.3
Media Control
Touch Pad: yes
Memorised Adjustment
Door Mirror Position: yes
Wheel Position: yes
Parking Assistance
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Location (12V): Rear
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Includes Memory Seat Adjustments: yes
Type: Automatic
Telematics
Concierge Months Included: 0
Connection Type: Via Own Phone
USB Charging Port
Location: Front
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
Includes Audio Player: yes
Includes Navigation System: yes
Includes Phone: yes
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Country Highway): 170
CO2 Level (Combined): 223
CO2 Level (Urban): 315
Standard Met: EU5
Engine
Bore Engine: 94.0
Engine (cc): 3456
Engine Configuration: V
Engine Code: 2gr-Fks
Engine (L): 3.5
Number of Cylinders: 6
Number of Valves per Cylinder: 4
Stroke Engine: 83.0
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 95
Minimum Fuel Type: Premium Unleaded
Fuel Type: Premium Unleaded
Octane Number: 95
Fuel System
Injection Carburetion: Gasoline Direct Injection & Multi-Point
Fuel Tanks
Main Capacity Gal: 19.0
Main Capacity (L): 72
Main Capacity Uk Gallons: 15.8
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Dashboard Centre 1 Screen Control Type: Touch Pad
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 12.3
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 4.2
Instrument Cluster
Head Up Display: Windscreen
Low Tire Pressure Indicator
Displays Pressure Reading: yes
Rim Mounted Sensor: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 750
ADR 81/02 Calculated Vehicle Range (miles): 466
ADR 81/02 Combined (km/L): 10.4
ADR 81/02 Combined (L/100km): 9.6
ADR 81/02 Combined (miles per UK gallon): 29
ADR 81/02 Combined (mpg): 25
ADR 81/02 Country Highway (km/L): 13.7
ADR 81/02 Country Highway (L/100km): 7.3
ADR 81/02 Country Highway (miles per UK gallon): 39
ADR 81/02 Country Highway (mpg): 32
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 7.4
ADR 81/02 Urban (L/100km): 13.5
ADR 81/02 Urban (miles per UK gallon): 21
ADR 81/02 Urban (mpg): 17
Fuel Economy
ADR 81/02 (L/100km): 9.6
Performance
Maximum Speed (km/h): 200
Maximum Speed (mph): 124
Power
Maximum Power (hp/PS): 301
Maximum Power (kW): 221
Maximum Torque (Nm): 370
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 6300
Rpm For Maximum Torque Low: 4600
Differential Lock
Location: Centre
Drive
Driven Wheels: 4x4
Four-Wheel Drive Type: Full And Part-Time
Selection: Manual & Automatic
Transmission
Code: U881f
Description: Automatic With Manual Mode
Manual Mode: yes
Number of Speeds: 8
Shift Lever Location: Floor
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 4
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Electric Adjustment: yes
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Wishbone
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 102
Location: Front
Front Wheels Tire Profile: 55
Front Wheels Tire Speed Rating: V
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 235
Rear Wheels Tire Load Index: 102
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 55
Rear Wheels Tire Speed Rating: V
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 235
Wheels
Location: Front
Front Wheels Rim Diameter (In): 20
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 8.0
Location: Rear
Rear Rim Diameter (In): 20
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 8.0
Cargo Capacity
Measurement Standard: Manufacturer’S Own
Rear Seat Down (cu ft): 32.6
Rear Seat Down (L): 924
Rear Seat Up to Lower Window (cu ft): 16.0
Rear Seat Up to Lower Window (L): 453
External Dimensions
Kerb to Kerb Turning Circle (mm): 11800
Front Track (in): 64.6
Front Track (mm): 1640
Ground Clearance Unladen (in): 7.9
Ground Clearance Unladen (mm): 200
Kerb To Kerb Turning Circle (ft): 38.7
Overall Height (in): 66.5
Overall Height (mm): 1690
Overall Length (in): 192.5
Overall Length (mm): 4890
Overall Width (in): 74.6
Overall Width Inc Mirror (in): 85.8
Overall Width Inc Mirror (mm): 2180
Overall Width (mm): 1895
Rear Track (in): 64.2
Rear Track (mm): 1630
Wall to Wall Turning Circle (ft): 45.3
Wall to Wall Turning Circle (mm): 13800
Wheelbase (in): 109.8
Wheelbase (mm): 2790
Internal Dimensions
Front Headroom (in): 39.4
Front Headroom (mm): 1002
Rear Headroom (in): 38.2
Rear Headroom (mm): 970
Front Hip Room (in): 56.6
Front Hip Room (mm): 1438
Rear Hip Room (in): 55.9
Rear Hip Room (mm): 1421
Front Leg Room (in): 44.1
Front Leg Room (mm): 1121
Rear Leg Room (in): 38.0
Rear Leg Room (mm): 965
Front Shoulder Room (in): 57.8
Front Shoulder Room (mm): 1469
Rear Shoulder Room (in): 57.6
Rear Shoulder Room (mm): 1462
Ramp Angles
Approach Angle: 16.7
Departure Angle: 24.8
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: TMC
Wheelbase Type: Short
Spoiler
Location: Roof
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Hands Free Release: yes
Type: Lifting Gate
Headlight Control
Auto Highbeam: yes
Dusk Sensor: yes
Height Adjustment: Automatic
Internal Height Adjustment: yes
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: Black
Type: Gloss
Sunroof
Front Sunroof Location: Front
Front Sunroof Operation: Remote
Front Sunroof Type: Glass
Door Mirrors/Cameras
Auto-Dimming Driver Door Mirrors: yes
Driver Door Mirrors/Cameras Colour: Toned
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors Tilting for Reverse: Automatic
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Auto-Dimming Passenger Door Mirrors: yes
Passenger Door Mirrors/Cameras Colour: Toned
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors Tilting for Reverse: Automatic
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 1500
Gross Trailer Weight Braked (lb): 3307
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2575
Gross Vehicle Weight (lb): 5677
Published Kerb Weight (kg): 2085
Published Kerb Weight (lb): 4597
Tare Weight (kg): 2040
Trailer Noseweight (kg): 150
Audio System
CD Player Reads MP3: yes
Colour Screen: yes
Digital Radio: yes
In-Dash CD: yes
In-Dash DVD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Brand: Mark Levinson
Number of Speakers: 15
Subwoofer: yes
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Luxury Trim
Centre Floor Console: Colour High Gloss
Doors: Colour High Gloss
Gear Selector: Leather
Instrument Panel: Alloy Look
Airbags
Number of Airbags: 10
Autonomous Drive
Active Lane Control: yes
Level: 1 - Driver Assistance
Crash Test Results
ANCAP Adult Occupant Score: 83.00
ANCAP Child Occupant Score: 82.00
ANCAP Date Tested: 20150101
ANCAP Overall: 5.00
ANCAP Pedestrian: Good
ANCAP Pedestrian Score: 79.00
ANCAP Rating Year: 2015
ANCAP Rear Crash Protect Head Restraint Rating: Good
ANCAP Safety Assist Score: 74.00
ANCAP Standard: Ancap
ANCAP Version Tested: 450h Lhd
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Active: yes
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Location: Passenger
Lane Departure Warning
Activates Steering: yes
Overtaking Sensor
Active Without Turn Signal: yes
Buzzer: yes
Rear Cross Traffic Collision Avoidance
Type: Sensor
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Location: Rear
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Memory
Location: Driver
Driver Front Seat Lumbar Type: Electric
Driver Front Seat Number of Electrical Adjustments: 5
Driver Front Seat Reach Type: Memory
Driver Front Seat Reclining Type: Memory
Driver Front Seat Type: Bucket
Driver Front Seat Ventilated: yes
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Heated: yes
Passenger Front Seat Height Type: Electric
Location: Passenger
Passenger Front Seat Lumbar Type: Electric
Passenger Front Seat Number of Electrical Adjustments: 5
Passenger Front Seat Reach Type: Electric
Passenger Front Seat Reclining Type: Electric
Passenger Front Seat Type: Bucket
Passenger Front Seat Ventilated: yes
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Ventilation System
Digital Display: yes
Heater Type: Combustion
Touch Screen Controls: yes
Power Locks
Automatic Locking: yes
Includes Power Windows: yes
Operation: Card Key
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
