XT
2.2L, 6-speed manual, 2-door Cab Chassis, Diesel, RWD
Save $$$ with CarExpert*
$27,490â€

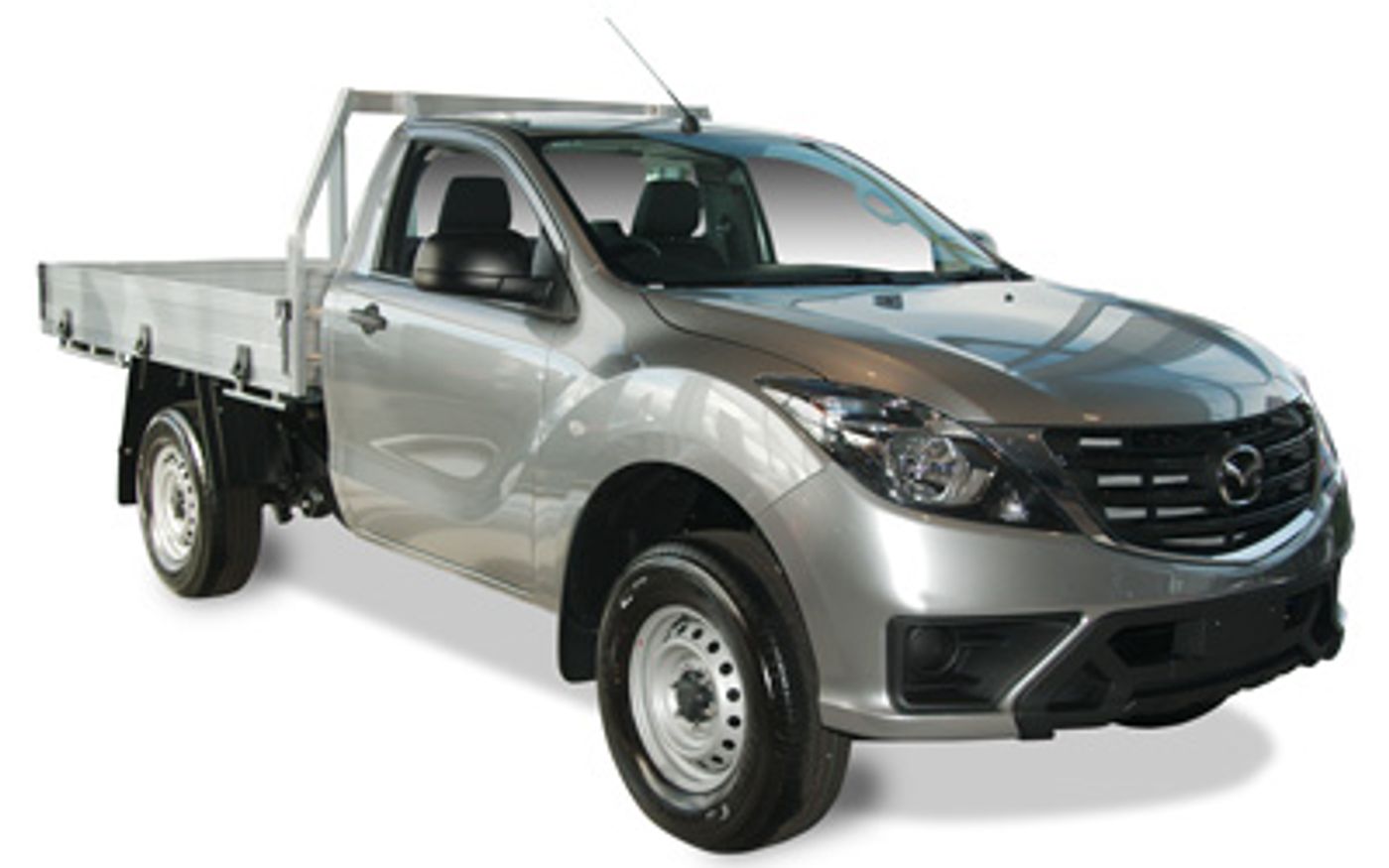

Mazda BT-50 XT (2018) price & specs
Save $$$ with CarExpert*
From
$27,490â€
Overview
The 2018 Mazda BT-50 XT is a rear-wheel drive, 2-door Cab Chassis that was released to the Australian market on 3rd August 2018. The Mazda BT-50 is regarded as a Pickup built in Thailand with prices starting at $27,490 before on-road costs.
This Mazda BT-50 is powered by a 2.2L 4-cylinder engine that has 110 kW of power (at 3700 rpm) and 375 Nm of torque (at 1500 rpm) via a Six-speed Manual transmission. Mazda claims the BT-50 XT uses 8.0L/100km of Diesel in the combined city and highway cycle while putting out 209g of CO2. It has a 80L fuel tank, meaning it should be able to travel 1000km per full tank
The Mazda BT-50 measures 1703mm (67.0 inches) in height, 5124mm (201.7 inches) in length, 1850mm (72.8 inches) in width with a 3220mm (126.8 inches) wheelbase that brings about a total of 1622kg (3575.9 lbs) of unladen weight. The BT-50 XT comes standard with 215/70 R16 front tyres and 215/70 R16 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
The 2018 Mazda BT-50 XT has a 201mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the BT-50 compare?
Quickly see how the 2018 Mazda BT-50 XT stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
65.99 - 86.73 kW/t
53.79 kW/t
111.71 kW/t
Fuel Efficiency
8 - 10 L/100km
6.3 L/100km
12.7 L/100km
Vehicle Range
800 - 1,000 km
551 km
1,270 km
Price
$27,490 - $63,250
$17,990
$169,950
Warranty (Years)
3 - 5 years
3 years
7 years
Warranty (Distance)
100,000 km - Unlimited
100,000 km
Unlimited
Years on Sale
1 - 6 years
1 year
4 years
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,925 - 3,200 kg
2,700 kg
5,309 kg
Gross Comb. Mass
5,425 - 6,000 kg
4,435 kg
11,479 kg
Braked Towing Capacity
2,500 - 3,500 kg
1,700 kg
6,942 kg
Approach Angle
22 - 28.2°
15.2°
35°
Departure Angle
24 - 28.4°
18°
29°
Ground Clearance Unladen
201 - 237 mm
171 mm
283 mm
Payload Capacity
1,039 - 1,533 kg
748 kg
1,713 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,124 mm
1,850 mm
1,703 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,124 mm |
| Overall Width | 1,850 mm |
| Overall Height | 1,703 mm |
| Wheelbase | 3,220 mm |
| Turning Circle | 11,800 mm |
| Load Capacity | 1,303 mm |
Looking for complete Mazda BT-50 size & space specs?
Our Mazda BT-50 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Mazda BT-50 Sales rolling 12-months#
Explore Mazda BT-50 Features & Specs
Compressor
Compressor: Turbo
Number of Compressors: 1
Emission Control Level
CO2 Level (Combined): 209
Standard Met: EU5
Engine
Bore Engine: 86.0
Engine (cc): 2198
Engine Configuration: In-Line
Engine (L): 2.2
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 94.6
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 21.1
Main Capacity (L): 80
Main Capacity Uk Gallons: 17.6
Main Type: Total
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 1000
ADR 81/02 Calculated Vehicle Range (miles): 621
ADR 81/02 Combined (km/L): 12.5
ADR 81/02 Combined (L/100km): 8.0
ADR 81/02 Combined (miles per UK gallon): 35
ADR 81/02 Combined (mpg): 29
ADR 81/02 Standard: Adr 81/02
Fuel Economy
ADR 81/02 (L/100km): 8.0
Power
Maximum Power (hp/PS): 150
Maximum Power (kW): 110
Maximum Torque (Nm): 375
Measurement Standard: DIN
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3700
Rpm For Maximum Torque Low: 1500
Drive
Driven Wheels: Rear
Transmission
Description: Manual
Number of Speeds: 6
Type: Manual
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Hydraulic
Steering Wheel
Height Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Torsion
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 108
Location: Front
Front Wheels Tire Profile: 70
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 215
Rear Wheels Tire Load Index: 108
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 70
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 215
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.5
Location: 1
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.5
Body Style
Body Type: Cab Chassis
Cab Type: Single Cab
Local Body Type: Cab Chassis
Platform Code: Un46
Roof Type: Standard
Wheelbase Type: Short
Mud Flaps
Front Mud Flaps Location: Front
External Dimensions
Kerb to Kerb Turning Circle (mm): 11800
Front Overhang (in): 36.2
Front Overhang (mm): 919
Front Track (in): 62.6
Front Track (mm): 1590
Ground Clearance Unladen (in): 7.9
Ground Clearance Unladen (mm): 201
Kerb To Kerb Turning Circle (ft): 38.7
Overall Height (in): 67.0
Overall Height (mm): 1703
Overall Length (in): 201.7
Overall Length (mm): 5124
Overall Width (in): 72.8
Overall Width (mm): 1850
Rear Overhang (in): 38.8
Rear Overhang (mm): 985
Rear Track (in): 62.6
Rear Track (mm): 1590
Wheelbase (in): 126.8
Wheelbase (mm): 3220
Ramp Angles
Approach Angle: 22.0
Departure Angle: 24.0
Bumpers
Front Bumper Colour: Painted
Location: Front
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
External Colour: Black
Type: Mica
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Front Axle Weight (kg): 1324
Front Axle Weight (lb): 2919
Gross Trailer Weight Braked (kg): 2500
Gross Trailer Weight Braked (lb): 5512
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 5425
Gross Train Weight (lb): 11960
Gross Vehicle Weight (kg): 2925
Gross Vehicle Weight (lb): 6449
Payload Allowance (kg): 1303
Payload Allowance (lb): 2873
Published Kerb Weight (kg): 1622
Published Kerb Weight (lb): 3576
Rear Axle Weight (kg): 1752
Rear Axle Weight (lb): 3863
Audio System
Brand Name: Alpine
CD Player Reads MP3: yes
Colour Screen: yes
Digital Radio: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 4
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Mobile Integration
Android Auto: yes
Apple Carplay: yes
Parking Distance System
Location: Rear
Rear Type: Camera
Power Outlet 12V
Location (12V): Front
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 7.0
Dashboard Centre 1 Touch Screen: yes
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Luxury Trim
Instrument Panel: Alloy Look
Airbags
Number of Airbags: 4
Crash Test Results
ANCAP Date Tested: 20111205
ANCAP Overall: 5.00
ANCAP Standard: Ancap
ANCAP Version Tested: 2.2 Diesel
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Seat Position: Center
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Side Curtain Airbag
Location: Front
Front Seat
Location: Centre
Center Front Seat Type: Bench
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Type: Bench
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Type: Bench
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 3
Configuration: 3+0
Cup Holders
Location: Front Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
