Mazda BT-50 SP (2022) price & specs
Save $$$ with CarExpert*
From
$66,290â€
Overview

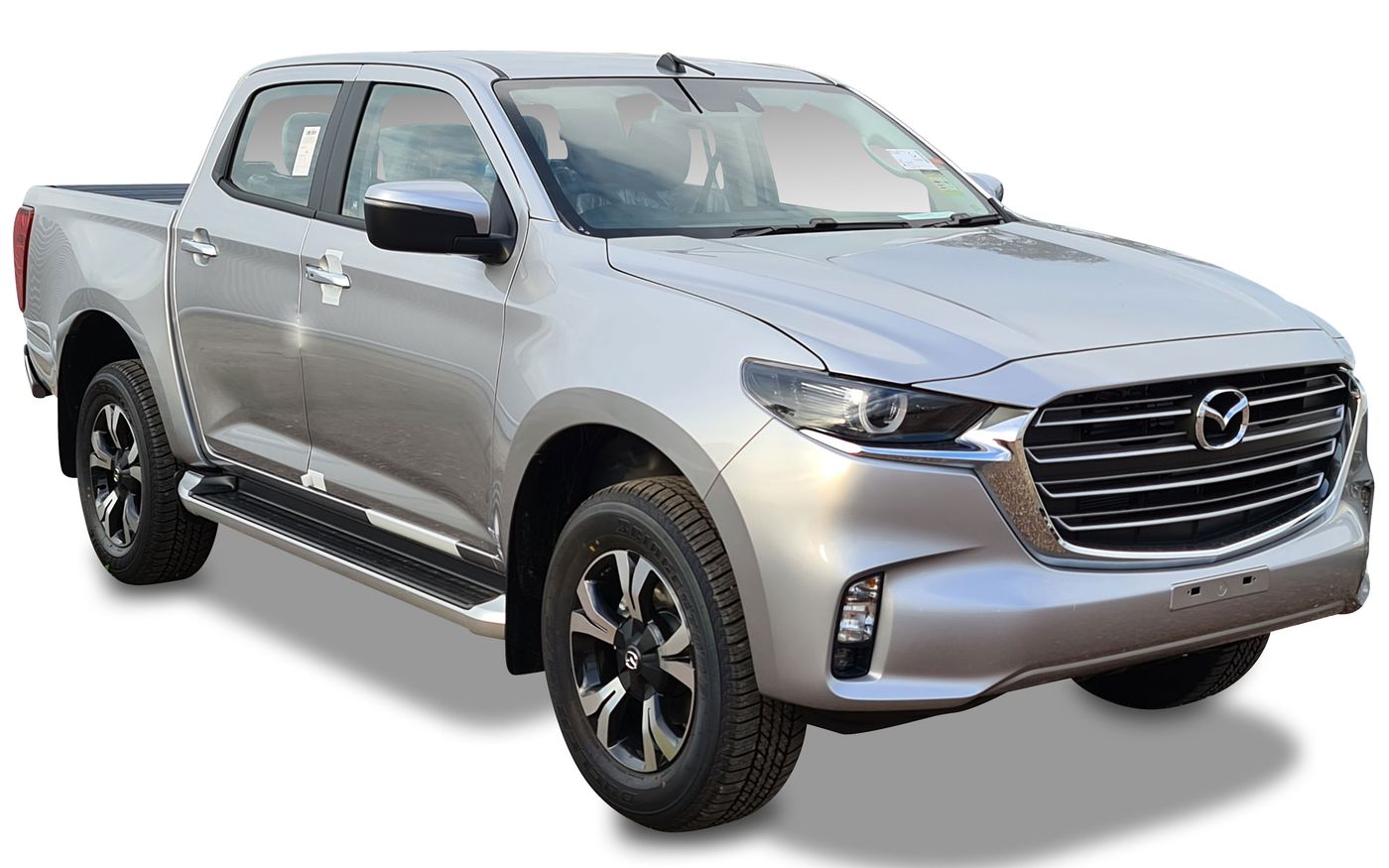

The 2022 Mazda BT-50 SP is a four-wheel drive, 4-door Utility that was released to the Australian market on 5th April 2022. The Mazda BT-50 is regarded as a Pickup built in Thailand with prices starting at $66,290 before on-road costs.
This Mazda BT-50 is powered by a 3.0L 4-cylinder engine that has 140 kW of power (at 3600 rpm) and 450 Nm of torque (at 1600 rpm) via a Six-speed Automatic transmission. Mazda claims the BT-50 SP uses 8.0L/100km of Diesel in the combined city and highway cycle while putting out 207g of CO2. It has a 76L fuel tank, meaning it should be able to travel 950km per full tank
The Mazda BT-50 measures 1790mm (70.5 inches) in height, 5280mm (207.9 inches) in length, 1870mm (73.6 inches) in width with a 3125mm (123.0 inches) wheelbase that brings about a total of 2115kg (4662.8 lbs) of unladen weight. The BT-50 SP comes standard with 265/60 R18 front tyres and 265/60 R18 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
The 2022 Mazda BT-50 SP has a 240mm ground clearance with a 3500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the BT-50 compare?
Quickly see how the 2022 Mazda BT-50 SP stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
56.85 - 83.09 kW/t
47.8 kW/t
172.44 kW/t
Fuel Efficiency
6.7 - 8 L/100km
6.7 L/100km
12.4 L/100km
Vehicle Range
950 - 1,134 km
658 km
1,159 km
Price
$33,550 - $71,290
$23,740
$219,950
Warranty (Years)
5 years
3 years
10 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
1 - 6 years
1 year
4 years
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
3,000 - 3,100 kg
2,700 kg
5,352 kg
Gross Comb. Mass
5,500 - 5,950 kg
4,435 kg
12,837 kg
Braked Towing Capacity
3,000 - 3,500 kg
1,800 kg
6,171 kg
Approach Angle
25.8 - 30.4°
15.2°
40.7°
Departure Angle
23.9 - 25.6°
15°
29.2°
Breakover Angle
23.3 - 24.3°
18°
27°
Ground Clearance Unladen
235 - 240 mm
174 mm
300 mm
Payload Capacity
887 - 1,380 kg
693 kg
1,759 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,280 mm
1,870 mm
inc mirror: 2,160 mm
inc mirror: 2,160 mm
1,790 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,280 mm |
| Overall Width | 1,870 mm |
| Overall Width (Inc Mirror) | 2,160 mm |
| Overall Height | 1,790 mm |
| Wheelbase | 3,125 mm |
| Turning Circle | 12,500 mm |
| Load Capacity | 985 mm |
Looking for complete Mazda BT-50 size & space specs?
Our Mazda BT-50 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Mazda BT-50 Sales rolling 12-months#
Explore Mazda BT-50 Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Cruise Control
Adaptive Cruise Control: yes
Stop Go Function: Stop & Go
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: Unlimited
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Apple Wireless Connection: yes
Mirrorlink Months Subscription Included: 0
Other Months Subscription Included: 0
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Front
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Includes Walk Away Locking: yes
Type: Automatic
USB Charging Port
Location: Front
Number of Ports in Front: 1
Location: Rear
Number of Ports in Rear: 1
Compressor
Compressor: Turbo
Number of Compressors: 1
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Country Highway): 180
CO2 Level (Combined): 207
CO2 Level (Urban): 254
Standard Met: EU5
Engine
Bore Engine: 95.4
Engine (cc): 2999
Engine Configuration: In-Line
Engine Code: 4jj3-Tcx
Engine (L): 3.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 104.9
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 20.1
Main Capacity (L): 76
Main Capacity Uk Gallons: 16.7
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 9.0
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 2
Instrument Cluster 2 Screen Size (in): 4.2
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 950
ADR 81/02 Calculated Vehicle Range (miles): 590
ADR 81/02 Combined (km/L): 12.5
ADR 81/02 Combined (L/100km): 8.0
ADR 81/02 Combined (miles per UK gallon): 35
ADR 81/02 Combined (mpg): 29
ADR 81/02 Country Highway (km/L): 14.5
ADR 81/02 Country Highway (L/100km): 6.9
ADR 81/02 Country Highway (miles per UK gallon): 41
ADR 81/02 Country Highway (mpg): 34
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 10.2
ADR 81/02 Urban (L/100km): 9.8
ADR 81/02 Urban (miles per UK gallon): 29
ADR 81/02 Urban (mpg): 24
Fuel Economy
ADR 81/02 (L/100km): 8.0
Power
Maximum Power (hp/PS): 190
Maximum Power (kW): 140
Maximum Torque (Nm): 450
Measurement Standard: DIN
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3600
Rpm For Maximum Torque Low: 1600
Differential Lock
Location: Rear
Drive
Descent Control System: yes
Driven Wheels: 4x4
Four-Wheel Drive Type: Part-Time
Selection: Manual
Dual Range Transmission
2wd High Low Transfer Selection: 2WD
4wd High High Low Transfer Selection: 4wd High
4wd Low High Low Transfer Selection: 4wd Low
Transmission
Description: Automatic With Manual Mode
Low High Gear Ranges: yes
Manual Mode: yes
Number of Speeds: 6
Shift Lever Location: Floor
Type: Automatic
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Torsion
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 110
Location: Front
Front Wheels Tire Profile: 60
Front Wheels Tire Speed Rating: S
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 265
Rear Wheels Tire Load Index: 110
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 60
Rear Wheels Tire Speed Rating: S
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 265
Wheels
Location: Front
Front Wheels Rim Diameter (In): 18
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.5
Location: 1
Location: Rear
Rear Rim Diameter (In): 18
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.5
Body Style
Body Type: Utility
Cab Type: Double Cab
Local Body Type: Utility
Platform Code: TF
Roof Type: Standard
Wheelbase Type: Short
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Step
Step Location: Rear
Rear Step Type: Platform
Step Location: Side
Tray/Tub
Lockable Tub Cover: yes
Liner: Composite
Cover: Tonneau Cover
Type: Straight Side
Cargo Area Dimensions
Height (in): 19.3
Length (in): 61.9
Length (mm): 1571
Loading Floor Height (in): 32.8
Loading Floor Height (mm): 833
Width Between Wheelhouses (in): 44.1
Width Between Wheelhouses (mm): 1120
External Dimensions
Kerb to Kerb Turning Circle (mm): 12500
Front Overhang (in): 35.6
Front Overhang (mm): 905
Front Track (in): 61.8
Front Track (mm): 1570
Ground Clearance Unladen (in): 9.4
Ground Clearance Unladen (mm): 240
Kerb To Kerb Turning Circle (ft): 41.0
Overall Height (in): 70.5
Overall Height (mm): 1790
Overall Length (in): 207.9
Overall Length (mm): 5280
Overall Width Folded Mirror (in): 75.8
Overall Width Folded Mirror (mm): 1926
Overall Width (in): 73.6
Overall Width Inc Mirror (in): 85.0
Overall Width Inc Mirror (mm): 2160
Overall Width (mm): 1870
Rear Overhang (in): 49.2
Rear Overhang (mm): 1250
Rear Track (in): 61.8
Rear Track (mm): 1570
Wheelbase (in): 123.0
Wheelbase (mm): 3125
Ramp Angles
Approach Angle: 30.4
Departure Angle: 24.2
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Cargo Doors
Location: Rear
Rear Opening Angle: 90
Rear Operation: Dropping Gate
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Headlight Control
Auto Highbeam: yes
Dusk Sensor: yes
Height Adjustment: Automatic
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Paint
External Colour: Gray
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Toned
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Toned
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Rear Side Windows
Location: Driver
Driver Type: Wind-Up
Location: Passenger
Passenger Type: Wind-Up
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Front Axle Weight (kg): 1450
Front Axle Weight (lb): 3197
Gross Trailer Weight Braked (kg): 3500
Gross Trailer Weight Braked (lb): 7716
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 5950
Gross Train Weight (lb): 13118
Gross Vehicle Weight (kg): 3100
Gross Vehicle Weight (lb): 6834
Payload Allowance (kg): 985
Payload Allowance (lb): 2172
Published Kerb Weight (kg): 2115
Published Kerb Weight (lb): 4663
Rear Axle Weight (kg): 1910
Rear Axle Weight (lb): 4211
Tare Weight (kg): 2059
Trailer Noseweight (kg): 350
Audio System
Audio Player Reads MP3: yes
Colour Screen: yes
Digital Radio: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
Total Front USB Connections: 1
Total Rear USB Connections: 0
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 8
Floor Covering
Vehicle Cab Compartment: Textile
Luxury Trim
Gear Selector: Leather
Instrument Panel: Alloy Look
Airbags
Number of Airbags: 8
Autonomous Drive
Level: 1 - Driver Assistance
Crash Test Results
ANCAP Adult Occupant Score: 83.00
ANCAP Child Occupant Score: 89.00
ANCAP Date Tested: 20200101
ANCAP Overall: 5.00
ANCAP Pedestrian: Good
ANCAP Pedestrian Score: 67.00
ANCAP Rating Year: 2020
ANCAP Rear Crash Protect Head Restraint Rating: Good
ANCAP Safety Assist Score: 84.00
ANCAP Standard: Ancap
ANCAP Version Tested: 3.0 Dual Cab Utility
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Lane Departure Warning
Activates Steering: yes
Overtaking Sensor
Buzzer: yes
Rear Cross Traffic Collision Avoidance
Type: Sensor
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Electric
Location: Driver
Driver Front Seat Lumbar Type: 2-Way Electric
Driver Front Seat Reach Type: Electric
Driver Front Seat Reclining Type: Electric
Driver Front Seat Type: Sports
Passenger Front Seat Heated: yes
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Sports
Seat Upholstery
Additional Seat Material: Synthetic Suede
Main Seat Material: Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Ventilation System
Digital Display: yes
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
