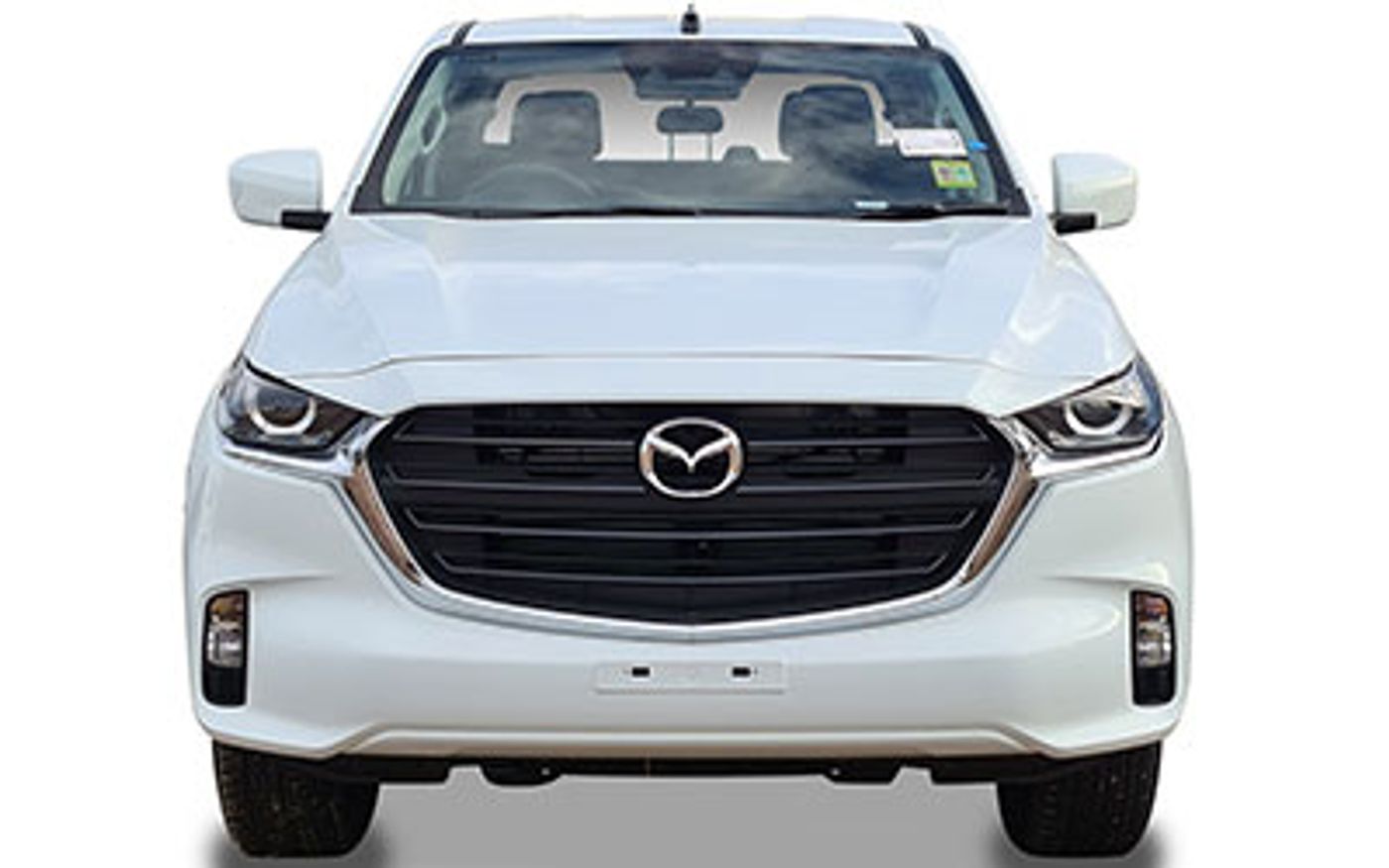

Mazda BT-50 XS (2022) price & specs
Save $$$ with CarExpert*
From
$33,850†
Overview
The 2022 Mazda BT-50 XS is a rear-wheel drive, 2-door Cab Chassis that was released to the Australian market on 5th April 2022. The Mazda BT-50 is regarded as a Pickup built in Thailand with prices starting at $33,850 before on-road costs.
This Mazda BT-50 is powered by a 1.9L 4-cylinder engine that has 110 kW of power (at 3600 rpm) and 350 Nm of torque (at 1800 rpm) via a Six-speed Automatic transmission. Mazda claims the BT-50 XS uses 7.0L/100km of Diesel in the combined city and highway cycle while putting out 184g of CO2. It has a 76L fuel tank, meaning it should be able to travel 1086km per full tank
The Mazda BT-50 measures 1800mm (70.9 inches) in height, 5320mm (209.4 inches) in length, 1870mm (73.6 inches) in width with a 3125mm (123.0 inches) wheelbase that brings about a total of 1620kg (3571.5 lbs) of unladen weight. The BT-50 XS comes standard with 255/65 R17 front tyres and 255/65 R17 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
The 2022 Mazda BT-50 XS has a 235mm ground clearance with a 3000kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the BT-50 compare?
Quickly see how the 2022 Mazda BT-50 XS stacks up against its competition.
Select any benchmark to see more details.
Power to Weight
56.85 - 83.09 kW/t
47.8 kW/t
172.44 kW/t
Fuel Efficiency
6.7 - 8 L/100km
6.7 L/100km
12.4 L/100km
Vehicle Range
950 - 1,134 km
658 km
1,159 km
Price
$33,550 - $71,290
$23,740
$219,950
Warranty (Years)
5 years
3 years
10 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
1 - 6 years
1 year
4 years
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
3,000 - 3,100 kg
2,700 kg
5,352 kg
Gross Comb. Mass
5,500 - 5,950 kg
4,435 kg
12,837 kg
Braked Towing Capacity
3,000 - 3,500 kg
1,800 kg
6,171 kg
Approach Angle
25.8 - 30.4°
15.2°
40.7°
Departure Angle
23.9 - 25.6°
15°
29.2°
Breakover Angle
23.3 - 24.3°
18°
27°
Ground Clearance Unladen
235 - 240 mm
174 mm
300 mm
Payload Capacity
887 - 1,380 kg
693 kg
1,759 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,320 mm
1,870 mm
inc mirror: 2,160 mm
inc mirror: 2,160 mm
1,800 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,320 mm |
| Overall Width | 1,870 mm |
| Overall Width (Inc Mirror) | 2,160 mm |
| Overall Height | 1,800 mm |
| Wheelbase | 3,125 mm |
| Turning Circle | 12,500 mm |
| Load Capacity | 1,380 mm |
Looking for complete Mazda BT-50 size & space specs?
Our Mazda BT-50 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Mazda BT-50 Sales rolling 12-months#
Explore Mazda BT-50 Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Cruise Control
Adaptive Cruise Control: yes
Stop Go Function: Stop & Go
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: Unlimited
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Apple Wireless Connection: yes
Mirrorlink Months Subscription Included: 0
Other Months Subscription Included: 0
Parking Distance System
Location: Rear
Rear Type: Camera
Power Outlet 12V
Location (12V): Front
USB Charging Port
Location: Front
Number of Ports in Front: 1
Compressor
Compressor: Turbo
Number of Compressors: 1
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Country Highway): 174
CO2 Level (Combined): 184
CO2 Level (Urban): 208
Standard Met: EU5
Engine
Bore Engine: 80.0
Engine (cc): 1898
Engine Configuration: In-Line
Engine Code: Rz4e-Tc
Engine (L): 1.9
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 94.4
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 20.1
Main Capacity (L): 76
Main Capacity Uk Gallons: 16.7
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 7.0
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 2
Instrument Cluster 2 Screen Size (in): 4.2
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 1086
ADR 81/02 Calculated Vehicle Range (miles): 675
ADR 81/02 Combined (km/L): 14.3
ADR 81/02 Combined (L/100km): 7.0
ADR 81/02 Combined (miles per UK gallon): 40
ADR 81/02 Combined (mpg): 34
ADR 81/02 Country Highway (km/L): 15.2
ADR 81/02 Country Highway (L/100km): 6.6
ADR 81/02 Country Highway (miles per UK gallon): 43
ADR 81/02 Country Highway (mpg): 36
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 12.7
ADR 81/02 Urban (L/100km): 7.9
ADR 81/02 Urban (miles per UK gallon): 36
ADR 81/02 Urban (mpg): 30
Fuel Economy
ADR 81/02 (L/100km): 7.0
Power
Maximum Power (hp/PS): 150
Maximum Power (kW): 110
Maximum Torque (Nm): 350
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3600
Rpm For Maximum Torque Low: 1800
Drive
Descent Control System: yes
Driven Wheels: Rear
Transmission
Description: Automatic With Manual Mode
Manual Mode: yes
Number of Speeds: 6
Shift Lever Location: Floor
Type: Automatic
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Torsion
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 110
Location: Front
Front Wheels Tire Profile: 65
Front Wheels Tire Speed Rating: S
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 255
Rear Wheels Tire Load Index: 110
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 65
Rear Wheels Tire Speed Rating: S
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 255
Wheels
Location: Front
Front Wheels Rim Diameter (In): 17
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 7.0
Location: 1
Location: Rear
Rear Rim Diameter (In): 17
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 7.0
Body Style
Body Type: Cab Chassis
Cab Type: Single Cab
Local Body Type: Cab Chassis
Platform Code: TF
Roof Type: Standard
Wheelbase Type: Short
Mud Flaps
Front Mud Flaps Location: Front
External Dimensions
Kerb to Kerb Turning Circle (mm): 12500
Front Overhang (in): 35.6
Front Overhang (mm): 905
Front Track (in): 61.8
Front Track (mm): 1570
Ground Clearance Unladen (in): 9.3
Ground Clearance Unladen (mm): 235
Kerb To Kerb Turning Circle (ft): 41.0
Overall Height (in): 70.9
Overall Height (mm): 1800
Overall Length (in): 209.4
Overall Length (mm): 5320
Overall Width Folded Mirror (in): 75.8
Overall Width Folded Mirror (mm): 1926
Overall Width (in): 73.6
Overall Width Inc Mirror (in): 85.0
Overall Width Inc Mirror (mm): 2160
Overall Width (mm): 1870
Rear Overhang (in): 49.2
Rear Overhang (mm): 1250
Rear Track (in): 61.8
Rear Track (mm): 1570
Wheelbase (in): 123.0
Wheelbase (mm): 3125
Ramp Angles
Approach Angle: 29.6
Departure Angle: 24.6
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Toned
Location: Rear
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Headlight Control
Auto Highbeam: yes
Dusk Sensor: yes
Height Adjustment: Manual
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: High Beam
Location: Low Beam
Paint
External Colour: Gray
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Front Axle Weight (kg): 1450
Front Axle Weight (lb): 3197
Gross Trailer Weight Braked (kg): 3000
Gross Trailer Weight Braked (lb): 6614
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 5500
Gross Train Weight (lb): 12125
Gross Vehicle Weight (kg): 3000
Gross Vehicle Weight (lb): 6614
Payload Allowance (kg): 1380
Payload Allowance (lb): 3042
Published Kerb Weight (kg): 1620
Published Kerb Weight (lb): 3572
Rear Axle Weight (kg): 1910
Rear Axle Weight (lb): 4211
Tare Weight (kg): 1564
Trailer Noseweight (kg): 350
Audio System
Audio Player Reads MP3: yes
Colour Screen: yes
Digital Radio: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
Total Front USB Connections: 1
Total Rear USB Connections: 0
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 2
Floor Covering
Vehicle Cab Compartment: Textile
Luxury Trim
Instrument Panel: Alloy Look
Airbags
Number of Airbags: 8
Autonomous Drive
Level: 1 - Driver Assistance
Crash Test Results
ANCAP Adult Occupant Score: 83.00
ANCAP Child Occupant Score: 89.00
ANCAP Date Tested: 20200101
ANCAP Overall: 5.00
ANCAP Pedestrian: Good
ANCAP Pedestrian Score: 67.00
ANCAP Rating Year: 2020
ANCAP Rear Crash Protect Head Restraint Rating: Good
ANCAP Safety Assist Score: 84.00
ANCAP Standard: Ancap
ANCAP Version Tested: 3.0 Dual Cab Utility
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Knee Airbags
Location: Driver
Lane Departure Warning
Activates Steering: yes
Overtaking Sensor
Buzzer: yes
Rear Cross Traffic Collision Avoidance
Type: Sensor
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front
Front Seat
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Type: Manual
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 2
Configuration: 2+0
Cup Holders
Location: Front Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
