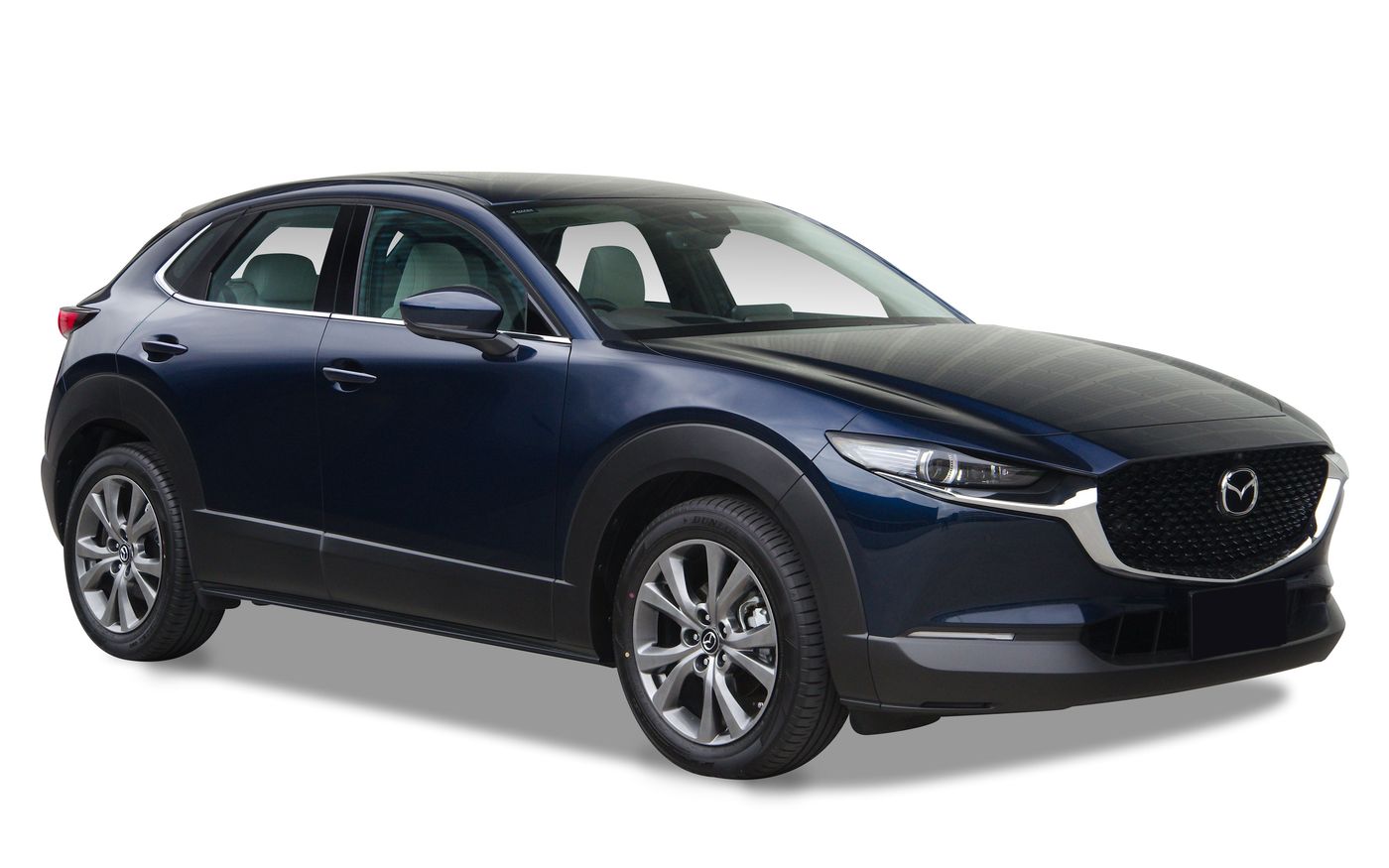

Mazda CX-30 Touring Sp Vision (2023) price & specs
Save $$$ with CarExpert*
From
$42,110â€
Touring Sp Vision
Overview
The 2023 Mazda CX-30 Touring Sp Vision is a four-wheel drive, 5-door SUV that was released to the Australian market on 7th January 2023. The Mazda CX-30 is regarded as a small SUV built in Japan with prices starting at $42,110 before on-road costs.
This Mazda CX-30 is powered by a 2.5L 4-cylinder engine that has 139 kW of power (at 6000 rpm) and 252 Nm of torque (at 4000 rpm) via a Six-speed Automatic transmission. Mazda claims the CX-30 Touring Sp Vision uses 6.8L/100km of Unleaded in the combined city and highway cycle while putting out 157g of CO2. It has a 48L fuel tank, meaning it should be able to travel 706km per full tank
The Mazda CX-30 measures 1540mm (60.6 inches) in height, 4395mm (173.0 inches) in length, 1795mm (70.7 inches) in width with a 2655mm (104.5 inches) wheelbase that brings about a total of 1529kg (3370.9 lbs) of unladen weight. The CX-30 Touring Sp Vision comes standard with 215/55 R18 front tyres and 215/55 R18 rear tyres. It requires a service every 12 months or 10,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
The 2023 Mazda CX-30 Touring Sp Vision has a 175mm ground clearance with a 1200kg braked and 600kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the CX-30 compare?
Quickly see how the 2023 Mazda CX-30 Touring Sp Vision stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
78.08 - 95.01 kW/t
56.29 kW/t
135.76 kW/t
Boot Space
317 litres
85 litres
551 litres
Fuel Efficiency
6 - 6.8 L/100km
1.9 L/100km
9.7 L/100km
Vehicle Range
706 - 810 km
555 km
1,000 km
Price
$30,090 - $48,710
$21,490
$64,000
Warranty (Years)
5 years
5 years
15 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
2 - 7 years
3 years
7 years
Service Interval
12 months
12 months
24 months
Towing & Off-Road Capability
Braked Towing Capacity
1,200 kg
400 kg
2,000 kg
Ground Clearance Unladen
175 mm
125 mm
225 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,395 mm
1,795 mm
1,540 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,395 mm |
| Overall Width | 1,795 mm |
| Overall Height | 1,540 mm |
| Wheelbase | 2,655 mm |
| Turning Circle | 10,600 mm |
Looking for complete Mazda CX-30 size & space specs?
Our Mazda CX-30 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Mazda CX-30 Sales rolling 12-months#
Explore Mazda CX-30 Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Cruise Control
Adaptive Cruise Control: yes
Stop Go Function: Stop & Go
Memorised Adjustment
Door Mirror Position: yes
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: Unlimited
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Mirrorlink Months Subscription Included: 0
Other Months Subscription Included: 0
Parking Distance System
Location: Front
Front Type: Sensor & Camera
Location: Rear
Rear Type: Sensor & Camera
Location: Side
Side Type: Sensor & Camera
Power Outlet 12V
Location (12V): Front
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Includes Walk Away Locking: yes
USB Charging Port
Location: Front
Number of Ports in Front: 1
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
Includes Audio Player: yes
Includes Navigation System: yes
Includes Phone: yes
Virtual Assistant: Other
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Country Highway): 133
CO2 Level (Combined): 157
CO2 Level (Urban): 200
Standard Met: EU5
Energy Recuperation
Engine: yes
Engine
Bore Engine: 89.0
Engine (cc): 2488
Engine Configuration: In-Line
Engine (L): 2.5
Number of Cylinders: 4
Stroke Engine: 100.0
Interested in buying a Mazda CX-30 Touring Sp Vision?
Save $$$ with CarExpert*
From
$42,110â€
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 91
Minimum Fuel Type: Unleaded
Fuel Type: Unleaded
Octane Number: 91
Fuel System
Injection Carburetion: Petrol Direct Injection
Fuel Tanks
Main Capacity Gal: 12.7
Main Capacity (L): 48
Main Capacity Uk Gallons: 10.6
Main Type: Total
Computer
Average Fuel Consumption: yes
Display Screen
Dashboard Centre 1 Screen Control Wheel: yes
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Orientation: Fixed
Dashboard Centre 1 Screen Size (in): 8.80
Instrument Cluster
Head Up Display: Windscreen
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 706
ADR 81/02 Calculated Vehicle Range (miles): 439
ADR 81/02 Combined (km/L): 14.7
ADR 81/02 Combined (L/100km): 6.8
ADR 81/02 Combined (miles per UK gallon): 42
ADR 81/02 Combined (mpg): 35
ADR 81/02 Country Highway (km/L): 17.5
ADR 81/02 Country Highway (L/100km): 5.7
ADR 81/02 Country Highway (miles per UK gallon): 50
ADR 81/02 Country Highway (mpg): 41
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 11.5
ADR 81/02 Urban (L/100km): 8.7
ADR 81/02 Urban (miles per UK gallon): 33
ADR 81/02 Urban (mpg): 27
Fuel Economy
ADR 81/02 (L/100km): 6.8
Performance
Acceleration 0 To 100 km/h: 9.1
Power
Maximum Power (hp/PS): 189
Maximum Power (kW): 139
Maximum Torque (Nm): 252
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 6000
Rpm For Maximum Torque Low: 4000
Drive
Driven Wheels: 4x4
Four-Wheel Drive Type: Full And Part-Time
Selection: Automatic
Transmission
Description: Automatic With Manual Mode
Gear Change Paddles: yes
Manual Mode: yes
Number of Speeds: 6
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Type: Torsion Beam
Rear Wheel Dependence: Semi-Independent
Tires
Front Wheels Tire Load Index: 95
Location: Front
Front Wheels Tire Profile: 55
Front Wheels Tire Speed Rating: H
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 215
Rear Wheels Tire Load Index: 95
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 55
Rear Wheels Tire Speed Rating: H
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 215
Wheels
Location: Front
Front Wheels Rim Diameter (In): 18
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.0
Location: Rear
Rear Rim Diameter (In): 18
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.0
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: Skyactiv-C+
Wheelbase Type: Short
Spoiler
Location: Roof
Cargo Capacity
Frunk Capacity (cu ft): 0.0
Frunk Capacity (L): 0
Measurement Standard: VDA
Rear Seat Up to Lower Window (cu ft): 11.2
Rear Seat Up to Lower Window (L): 317
External Dimensions
Kerb to Kerb Turning Circle (mm): 10600
Front Track (in): 61.6
Front Track (mm): 1565
Ground Clearance Unladen (in): 6.9
Ground Clearance Unladen (mm): 175
Kerb To Kerb Turning Circle (ft): 34.8
Overall Height (in): 60.6
Overall Height (mm): 1540
Overall Length (in): 173.0
Overall Length (mm): 4395
Overall Width (in): 70.7
Overall Width (mm): 1795
Rear Track (in): 61.6
Rear Track (mm): 1565
Wheelbase (in): 104.5
Wheelbase (mm): 2655
Internal Dimensions
Front Headroom (in): 38.1
Front Headroom (mm): 967
Rear Headroom (in): 38.3
Rear Headroom (mm): 973
Front Leg Room (in): 41.7
Front Leg Room (mm): 1058
Rear Leg Room (in): 36.3
Rear Leg Room (mm): 921
Front Shoulder Room (in): 55.6
Front Shoulder Room (mm): 1412
Rear Shoulder Room (in): 53.6
Rear Shoulder Room (mm): 1361
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Auto Highbeam: yes
Dusk Sensor: yes
Height Adjustment: Automatic
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: White
Type: Mica
Door Mirrors/Cameras
Auto-Dimming Driver Door Mirrors: yes
Driver Door Mirrors/Cameras Colour: Toned
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors Tilting for Reverse: Automatic
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Toned
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors Tilting for Reverse: Automatic
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 1200
Gross Trailer Weight Braked (lb): 2646
Gross Trailer Weight Unbraked (kg): 600
Gross Trailer Weight Unbraked (lb): 1323
Published Kerb Weight (kg): 1529
Published Kerb Weight (lb): 3371
Tare Weight (kg): 1501
Trailer Noseweight (kg): 80
Audio System
Colour Screen: yes
Digital Radio: yes
Radio Type: Am/Fm
External Connections
USB (Front): yes
Total Front USB Connections: 1
Total Rear USB Connections: 0
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 8
Cargo Area Cover Rear Parcel Shelf
Type: Rigid
Luxury Trim
Centre Floor Console: Piano Black
Doors: Synthetic Leather
Gear Selector: Leather
Instrument Panel: Synthetic Leather
Airbags
Number of Airbags: 7
Autonomous Drive
Active Lane Control: yes
City: yes
Level: 2 - Partial Automation
Traffic Jam Assist: yes
Crash Test Results
ANCAP Adult Occupant Score: 99.0
ANCAP Child Occupant Score: 88.0
ANCAP Date Tested: 20191231
ANCAP Overall: 5.0
ANCAP Pedestrian: Good
ANCAP Pedestrian Score: 80.0
ANCAP Rating Year: 2019
ANCAP Rear Crash Protect Head Restraint Rating: Good
ANCAP Safety Assist Score: 76.0
ANCAP Standard: Ancap
ANCAP Version Tested: 2.0 Petrol Lhd
Front Airbag
Location: Driver
Location: Passenger
Front Cross Traffic Collision Avoidance
Type: Sensor & Camera
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Lane Departure Warning
Activates Steering: yes
Maximum Speed For Operation (km/h): 200
Maximum Speed For Operation (mph): 124
Overtaking Sensor
Active Without Turn Signal: yes
Buzzer: yes
Rear Cross Traffic Collision Avoidance
Type: Sensor & Camera
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Height Type: Memory
Location: Driver
Driver Front Seat Lumbar Type: Electric
Driver Front Seat Number of Electrical Adjustments: 5
Driver Front Seat Reach Type: Memory
Driver Front Seat Reclining Type: Memory
Driver Front Seat Type: Bucket
Passenger Front Seat Height Type: Manual
Location: Passenger
Passenger Front Seat Lumbar Type: Manual
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Ventilation System
Digital Display: yes
Engine Heater: yes
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 10000
Distance (miles): 6214
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
