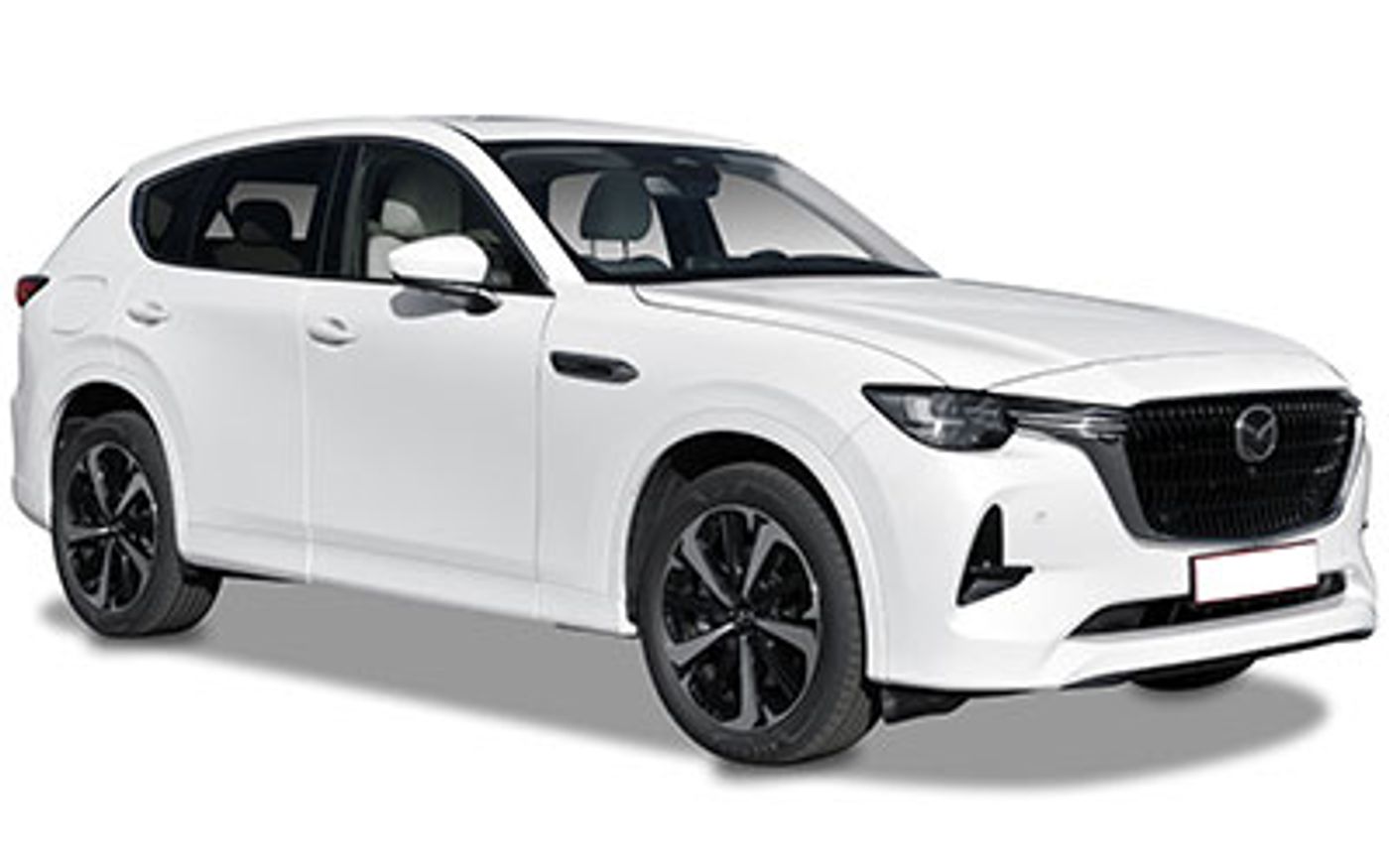

Mazda CX-60 Evolve Vision (2025) price & specs
Save $$$ with CarExpert*
From
$62,800â€
Evolve Vision
Overview
The 2025 Mazda CX-60 Evolve Vision is a four-wheel drive, 5-door SUV that was released to the Australian market on 3rd January 2025. The Mazda CX-60 is regarded as a Suv Medium Luxury built in Japan with prices starting at $62,800 before on-road costs.
This Mazda CX-60 is powered by a 3.3L 6-cylinder engine that has 209 kW of power (at 5000 rpm) and 450 Nm of torque (at 2000 rpm) via an Eight-speed Automatic transmission. Mazda claims the CX-60 Evolve Vision uses 7.4L/100km of Unleaded in the combined city and highway cycle while putting out 171g of CO2. It has a 58L fuel tank, meaning it should be able to travel 784km per full tank
The Mazda CX-60 measures 1675mm (65.9 inches) in height, 4740mm (186.6 inches) in length, 1890mm (74.4 inches) in width with a 2870mm (113.0 inches) wheelbase that brings about a total of 1921kg (4235.1 lbs) of unladen weight. The CX-60 Evolve Vision comes standard with 235/60 R18 front tyres and 235/60 R18 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
The 2025 Mazda CX-60 Evolve Vision has a 170mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the CX-60 compare?
Quickly see how the 2025 Mazda CX-60 Evolve Vision stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
77.88 - 114.16 kW/t
62.94 kW/t
216.45 kW/t
Boot Space
570 litres
115 litres
897 litres
Fuel Efficiency
2.1 - 7.5 L/100km
1.3 L/100km
11.3 L/100km
Vehicle Range
773 - 2,381 km
584 km
4,438 km
Price
$44,240 - $89,050
$44,240
$213,800
Warranty (Years)
5 years
2 years
7 years
Warranty (Distance)
Unlimited
80,000 km
Unlimited
Years on Sale
1 - 4 years
1 year
4 years
Service Interval
12 months
12 months
24 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,500 - 2,683 kg
2,100 kg
3,110 kg
Braked Towing Capacity
1,800 - 2,500 kg
300 kg
2,720 kg
Ground Clearance Unladen
170 - 175 mm
122 mm
224 mm
Battery & Charging
Max. battery kilowatt hour
0.33 - 17.8 kWh
0.33 kWh
105 kWh
AC Charging (max kW)
7.2 kW
3.7 kW
22 kW
Vehicle Range (EV)
76 km
14 km
623 km
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,740 mm
1,890 mm
inc mirror: 2,134 mm
inc mirror: 2,134 mm
1,675 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,740 mm |
| Overall Width | 1,890 mm |
| Overall Width (Inc Mirror) | 2,134 mm |
| Overall Height | 1,675 mm |
| Wheelbase | 2,870 mm |
| Turning Circle | 10,800 mm |
| Load Capacity | 579 mm |
Looking for complete Mazda CX-60 size & space specs?
Our Mazda CX-60 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Mazda CX-60 Sales rolling 12-months#
Explore Mazda CX-60 Features & Specs
Cruise Control
Adaptive Cruise Control: yes
Stop Go Function: Stop & Go
Driver Modes
Engine Mapping: yes
Transmission: yes
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: Unlimited
Android Wireless Connection: yes
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Apple Wireless Connection: yes
Mirrorlink Months Subscription Included: 0
Parking Assistance
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Front
Front Type: Sensor & Camera
Location: Rear
Rear Type: Sensor & Camera
Location: Side
Side Type: Camera
Power Outlet 12V
Location (12V): Front
Location (12V): Rear
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
USB Charging Port
Location: Front
Number of Ports in Front: 2
Location: Rear
Number of Ports in Rear: 2
Vanity Mirror
Driver Mirror Location: Driver
Location: Passenger
Compressor
Compressor: Turbo
Number of Compressors: 1
Electrical System
Voltage: 48
Emission Control Level
CO2 Level (Combined): 171
Standard Met: Eu6 D
Engine
Engine (cc): 3283
Engine Configuration: In-Line
Engine Code: G50e
Engine (L): 3.3
Number of Cylinders: 6
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 91
Fuel Type: Unleaded
Octane Number: 91
Fuel Tanks
Main Capacity Gal: 15.3
Main Capacity (L): 58
Main Capacity Uk Gallons: 12.8
Main Type: Total
Electric Motor
Motor 1 Type: Ac Perm Magnet Synchronous
Motor 1 Max Torque Motor (Nm): 153
Motor 1 Location: Transmission-Integrated Motor Generator
Motor 1 Number: 1
Motor 1 Power Output (hp/PS): 16.3
Motor 1 Power Output Motor (kW): 12.0
Electric Power Source
Battery Type: Lithium Ion
Max Wireless Charging (kW): 0.0
Maximum Battery (kWh): 0.33
Number of kWh Included: 0
Number of Months Subscription Included: 0
Hybrid Type
Hybrid Type: Mild Hybrid
Computer
Average Fuel Consumption: yes
Display Screen
Dashboard Centre 1 Screen Control Wheel: yes
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Orientation: Fixed
Dashboard Centre 1 Screen Size (in): 10.25
Dashboard Centre 1 Touch Screen: yes
Instrument Cluster 1 Screen Control Wheel: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 12.30
Instrument Cluster
Head Up Display: Windscreen
Low Tire Pressure Indicator
Displays Pressure Reading: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 784
ADR 81/02 Calculated Vehicle Range (miles): 487
ADR 81/02 Combined (km/L): 13.5
ADR 81/02 Combined (L/100km): 7.4
ADR 81/02 Combined (miles per UK gallon): 38
ADR 81/02 Combined (mpg): 32
ADR 81/02 Country Highway (km/L): 16.7
ADR 81/02 Country Highway (L/100km): 6.0
ADR 81/02 Country Highway (miles per UK gallon): 47
ADR 81/02 Country Highway (mpg): 39
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 10.2
ADR 81/02 Urban (L/100km): 9.8
ADR 81/02 Urban (miles per UK gallon): 29
ADR 81/02 Urban (mpg): 24
Fuel Economy
ADR 81/02 (L/100km): 7.4
Performance
Acceleration 0 To 100 km/h: 6.9
Power
Maximum Power (hp/PS): 284
Maximum Power hp/PS Electric Motor: 17
Maximum Power (kW): 209
Maximum Power kW Electric Motor: 13
Maximum Torque (Nm): 450
Maximum Torque Electric Motor (Nm): 153
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 5000
Rpm For Maximum Torque Low: 2000
Drive
Descent Control System: yes
Driven Wheels: 4x4
Four-Wheel Drive Type: Full And Part-Time
Manufacturer Name: I-Activ Awd
Selection: Automatic
Transmission
Description: Automatic With Manual Mode
Gear Change Paddles: yes
Manual Mode: yes
Manufacturer Name: Skyactiv-Drive
Number of Simulated Gears: 0
Number of Speeds: 8
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 4
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 100
Location: Front
Front Wheels Tire Profile: 60
Front Wheels Tire Speed Rating: W
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 235
Rear Wheels Tire Load Index: 100
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 60
Rear Wheels Tire Speed Rating: W
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 235
Wheels
Location: Front
Front Wheels Rim Diameter (In): 18
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.5
Location: Rear
Rear Rim Diameter (In): 18
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.5
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: Large Product Group
Wheelbase Type: Short
Spoiler
Location: Roof
Cargo Capacity
Frunk Capacity (cu ft): 0.0
Frunk Capacity (L): 0
Measurement Standard: VDA
Rear Seat Down (cu ft): 61.0
Rear Seat Down (L): 1726
Rear Seat Up to Lower Window (cu ft): 20.1
Rear Seat Up to Lower Window (L): 570
External Dimensions
Kerb to Kerb Turning Circle (mm): 10800
Front Track (in): 64.6
Front Track (mm): 1640
Ground Clearance Unladen (in): 6.7
Ground Clearance Unladen (mm): 170
Kerb To Kerb Turning Circle (ft): 35.4
Overall Height (in): 65.9
Overall Height (mm): 1675
Overall Length (in): 186.6
Overall Length (mm): 4740
Overall Width Folded Mirror (in): 76.7
Overall Width Folded Mirror (mm): 1949
Overall Width (in): 74.4
Overall Width Inc Mirror (in): 84.0
Overall Width Inc Mirror (mm): 2134
Overall Width (mm): 1890
Rear Track (in): 64.8
Rear Track (mm): 1645
Wall to Wall Turning Circle (ft): 38.4
Wall to Wall Turning Circle (mm): 11700
Wheelbase (in): 113.0
Wheelbase (mm): 2870
Internal Dimensions
Front Headroom (in): 39.5
Front Headroom (mm): 1004
Rear Headroom (in): 38.7
Rear Headroom (mm): 984
Front Leg Room (in): 41.7
Front Leg Room (mm): 1058
Rear Leg Room (in): 39.0
Rear Leg Room (mm): 990
Front Shoulder Room (in): 59.2
Front Shoulder Room (mm): 1504
Rear Shoulder Room (in): 56.7
Rear Shoulder Room (mm): 1441
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Auto Highbeam: yes
Dusk Sensor: yes
Height Adjustment: Automatic
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: White
Type: Mica
Door Mirrors/Cameras
Auto-Dimming Driver Door Mirrors: yes
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 2500
Gross Trailer Weight Braked (lb): 5512
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2500
Gross Vehicle Weight (lb): 5512
Published Kerb Weight (kg): 1921
Published Kerb Weight (lb): 4235
Tare Weight (kg): 1885
Trailer Noseweight (kg): 150
Audio System
Digital Radio: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
Total 3rd Row USB Connections: 0
Total Front USB Connections: 2
Total Rear USB Connections: 0
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 8
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Luxury Trim
Gear Selector: Leather
Airbags
Number of Airbags: 10
Autonomous Drive
Active Lane Control: yes
Level: 2 - Partial Automation
Crash Test Results
ANCAP Adult Occupant Score: 91.0
ANCAP Child Occupant Score: 93.0
ANCAP Date Tested: 20220101
ANCAP Overall: 5.0
ANCAP Pedestrian Score: 89.0
ANCAP Rating Year: 2022
ANCAP Safety Assist Score: 77.0
ANCAP Standard: Ancap
ANCAP Version Tested: Cx-60 Core + Lhd
Front Airbag
Location: Driver
Location: Passenger
Front Cross Traffic Collision Avoidance
Type: Sensor
Front Seat Belts
Driver Height Adjustable: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Lane Departure Warning
Activates Brakes: yes
Activates Steering: yes
Overtaking Sensor
Active Without Turn Signal: yes
Rear Cross Traffic Collision Avoidance
Includes Braking: yes
Type: Sensor
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Location: Rear
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Type: Manual
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Passenger Front Seat Height Type: Manual
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Synthetic Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Ventilation System
Electric Heater: yes
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
