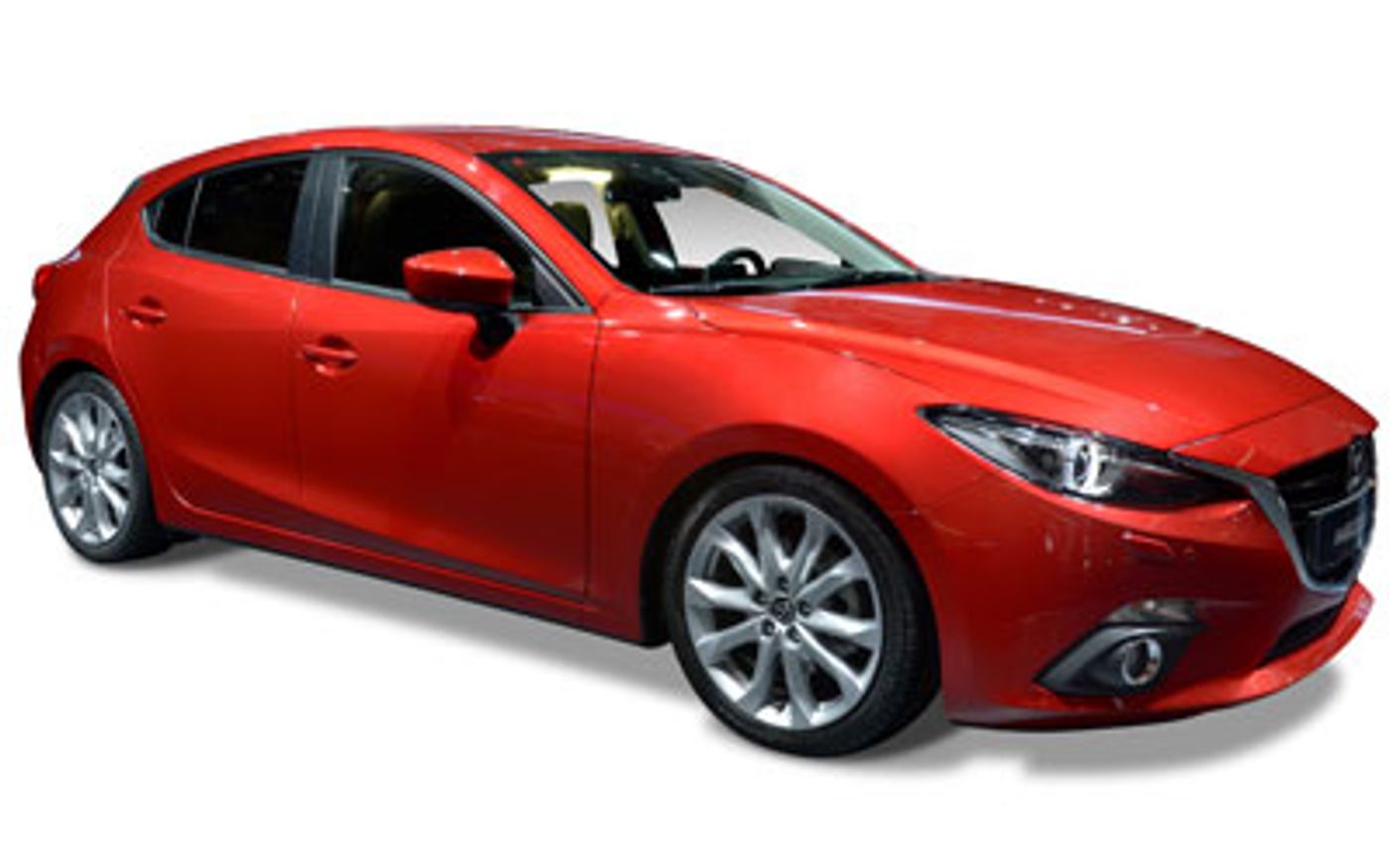

Mazda 3 Maxx Safety (2014) price & specs
Save $$$ with CarExpert*
From
$24,490â€
Maxx Safety
Overview
The 2014 Mazda 3 Maxx Safety is a front-wheel drive, 5-door Hatchback that was released to the Australian market on 2nd January 2014. The Mazda 3 is regarded as a small car built in Japan with prices starting at $24,490 before on-road costs.
This Mazda 3 is powered by a 2.0L 4-cylinder engine that has 114 kW of power (at 6000 rpm) and 200 Nm of torque (at 4000 rpm) via a Six-speed Manual transmission. Mazda claims the Mazda 3 Maxx Safety uses 5.9L/100km of Unleaded in the combined city and highway cycle while putting out 138g of CO2. It has a 51L fuel tank, meaning it should be able to travel 864km per full tank
The Mazda 3 measures 1455mm (57.3 inches) in height, 4460mm (175.6 inches) in length, 1795mm (70.7 inches) in width with a 2700mm (106.3 inches) wheelbase that brings about a total of 1266kg (2791.0 lbs) of unladen weight. The Mazda 3 Maxx Safety comes standard with 205/60 R16 front tyres and 205/60 R16 rear tyres. It has a 36 month, unlimited km warranty.
The 2014 Mazda 3 Maxx Safety has a 155mm ground clearance with a 1200kg braked and 600kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Mazda 3 compare?
Quickly see how the 2014 Mazda 3 Maxx Safety stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
87.36 - 105.99 kW/t
60.07 kW/t
105.99 kW/t
Boot Space
308 - 408 litres
308 litres
657 litres
Fuel Efficiency
5 - 6.5 L/100km
3.9 L/100km
7.5 L/100km
Vehicle Range
785 - 1,020 km
667 km
1,538 km
Price
$19,980 - $42,230
$18,490
$42,230
Warranty (Years)
3 years
3 years
7 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
4 - 7 years
2 years
6 years
Towing & Off-Road Capability
Braked Towing Capacity
1,200 - 1,400 kg
800 kg
1,550 kg
Ground Clearance Unladen
155 mm
135 mm
155 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,460 mm
1,795 mm
1,455 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,460 mm |
| Overall Width | 1,795 mm |
| Overall Height | 1,455 mm |
| Wheelbase | 2,700 mm |
| Turning Circle | 10,600 mm |
Looking for complete Mazda 3 size & space specs?
Our Mazda 3 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Mazda 3 Sales rolling 12-months#
Explore Mazda 3 Features & Specs
Emission Control Level
Australia Air Pollution Rating: 7.5
Australia Greenhouse Rating: 8.0
Australia Overall Emission Control Level Rating: 4.5
CO2 Level (Combined): 138
Engine
Bore Engine: 83.5
Engine (cc): 1998
Engine Configuration: In-Line
Engine Code: Mzr-2.0
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 91.2
Valve Gear Type: Double Overhead Cam
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 91
Minimum Fuel Type: Unleaded
Fuel Type: Unleaded
Octane Number: 91
Fuel System
Injection Carburetion: Petrol Direct Injection
Fuel Tanks
Main Capacity Gal: 13.5
Main Capacity (L): 51
Main Capacity Uk Gallons: 11.2
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: ?
Number of Screens: 1
Screen Size (in): 7.0
Touch Screen: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 864
ADR 81/02 Calculated Vehicle Range (miles): 537
ADR 81/02 Combined (km/L): 16.9
ADR 81/02 Combined (L/100km): 5.9
ADR 81/02 Combined (miles per UK gallon): 48
ADR 81/02 Combined (mpg): 40
ADR 81/02 Country Highway (km/L): 20.4
ADR 81/02 Country Highway (L/100km): 4.9
ADR 81/02 Country Highway (miles per UK gallon): 58
ADR 81/02 Country Highway (mpg): 48
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 13.2
ADR 81/02 Urban (L/100km): 7.6
ADR 81/02 Urban (miles per UK gallon): 37
ADR 81/02 Urban (mpg): 31
Fuel Economy
ADR 81/02 (L/100km): 5.9
Power
Maximum Power (hp/PS): 155
Maximum Power (kW): 114
Maximum Torque (Nm): 200
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 6000
Rpm For Maximum Torque Low: 4000
Drive
Driven Wheels: Front
Electronic Traction Control
Controlled By: Abs & Engine Management
Transmission
Description: Manual
Number of Speeds: 6
Shift Lever Location: Floor
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 92
Location: Front
Front Wheels Tire Profile: 60
Front Wheels Tire Speed Rating: V
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 205
Rear Wheels Tire Load Index: 92
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 60
Rear Wheels Tire Speed Rating: V
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 205
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 6.5
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 6.5
Body Style
Body Type: Hatchback
Local Body Type: Hatchback
Wheelbase Type: Short
Spoiler
Location: Roof
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Cargo Capacity
Measurement Standard: VDA
Rear Seat Up to Lower Window (cu ft): 10.9
Rear Seat Up to Lower Window (L): 308
External Dimensions
Kerb to Kerb Turning Circle (mm): 10600
Front Track (in): 61.2
Front Track (mm): 1555
Ground Clearance Unladen (in): 6.1
Ground Clearance Unladen (mm): 155
Kerb To Kerb Turning Circle (ft): 34.8
Overall Height (in): 57.3
Overall Height (mm): 1455
Overall Length (in): 175.6
Overall Length (mm): 4460
Overall Width (in): 70.7
Overall Width (mm): 1795
Rear Track (in): 61.4
Rear Track (mm): 1560
Wheelbase (in): 106.3
Wheelbase (mm): 2700
Internal Dimensions
Front Headroom (in): 38.6
Front Headroom (mm): 981
Rear Headroom (in): 37.6
Rear Headroom (mm): 955
Front Leg Room (in): 42.2
Front Leg Room (mm): 1073
Rear Leg Room (in): 35.8
Rear Leg Room (mm): 909
Front Shoulder Room (in): 57.2
Front Shoulder Room (mm): 1452
Rear Shoulder Room (in): 54.4
Rear Shoulder Room (mm): 1382
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlights
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
External Colour: Silver
Type: Mica
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Gross Trailer Weight Braked (kg): 1200
Gross Trailer Weight Braked (lb): 2646
Gross Trailer Weight Unbraked (kg): 600
Gross Trailer Weight Unbraked (lb): 1323
Published Kerb Weight (kg): 1266
Published Kerb Weight (lb): 2791
Tare Weight (kg): 1235
Audio System
CD Player Reads MP3: yes
Colour Screen: yes
In-Dash CD: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Cargo Area Cover Rear Parcel Shelf
Type: Rigid
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Parking Distance System
Location: Rear
Rear Type: Camera
Power Outlet 12V
Location (12V): Front
Vanity Mirror
Driver Mirror Location: Driver
Location: Passenger
Voice Activating System
Includes Audio Player: yes
Includes Navigation System: yes
Includes Phone: yes
Luxury Trim
Gear Selector: Leather
Handbrake Grip: Leather
Instrument Panel: Alloy Look
Airbags
Number of Airbags: 6
Crash Test Results
ANCAP Date Tested: 20140204
ANCAP Overall: 5.00
ANCAP Pedestrian: Acceptable
ANCAP Standard: Ancap
ANCAP Version Tested: Mazda 3 "Core" 2.0 Hatch Lhd
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Active: yes
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Operation: Reel
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 10000
Distance (miles): 6214
