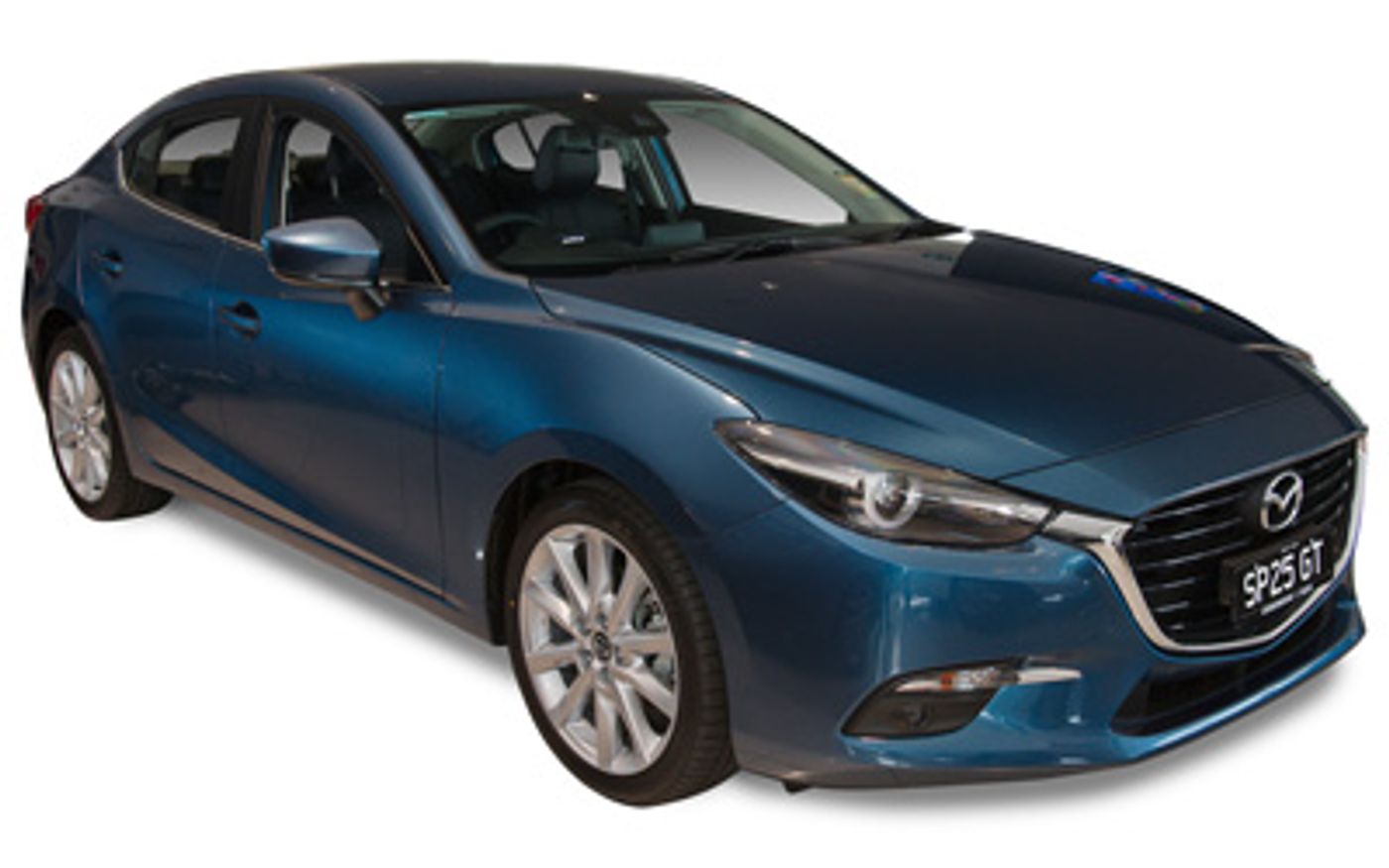

Mazda 3 Sp25 Gt (2017) price & specs
Save $$$ with CarExpert*
From
$31,990â€
Sp25 Gt
Overview
The 2017 Mazda 3 Sp25 Gt is a front-wheel drive, 5-door Hatchback that was released to the Australian market on 5th January 2017. The Mazda 3 is regarded as a small car built in Japan with prices starting at $31,990 before on-road costs.
This Mazda 3 is powered by a 2.5L 4-cylinder engine that has 138 kW of power (at 5700 rpm) and 250 Nm of torque (at 3250 rpm) via a Six-speed Automatic transmission. Mazda claims the Mazda 3 Sp25 Gt uses 6.1L/100km of Unleaded in the combined city and highway cycle while putting out 143g of CO2. It has a 51L fuel tank, meaning it should be able to travel 836km per full tank
The Mazda 3 measures 1465mm (57.7 inches) in height, 4470mm (176.0 inches) in length, 1795mm (70.7 inches) in width with a 2700mm (106.3 inches) wheelbase that brings about a total of 1328kg (2927.7 lbs) of unladen weight. The Mazda 3 Sp25 Gt comes standard with 215/45 R18 front tyres and 215/45 R18 rear tyres. It requires a service every 12 months or 10,000 km, whichever comes first. It has a 36 month, unlimited km warranty.
The 2017 Mazda 3 Sp25 Gt has a 155mm ground clearance with a 1200kg braked and 600kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Mazda 3 compare?
Quickly see how the 2017 Mazda 3 Sp25 Gt stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
87.16 - 106.65 kW/t
72.55 kW/t
163.17 kW/t
Boot Space
308 - 408 litres
280 litres
657 litres
Fuel Efficiency
5.7 - 6.5 L/100km
4.1 L/100km
8.8 L/100km
Vehicle Range
785 - 895 km
534 km
1,224 km
Price
$20,490 - $35,490
$19,990
$56,990
Warranty (Years)
3 years
3 years
7 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
4 - 7 years
2 years
6 years
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Braked Towing Capacity
1,200 kg
800 kg
1,400 kg
Ground Clearance Unladen
155 mm
102 mm
155 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,470 mm
1,795 mm
1,465 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,470 mm |
| Overall Width | 1,795 mm |
| Overall Height | 1,465 mm |
| Wheelbase | 2,700 mm |
| Turning Circle | 10,600 mm |
Looking for complete Mazda 3 size & space specs?
Our Mazda 3 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Mazda 3 Sales rolling 12-months#
Explore Mazda 3 Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Driver Modes
Engine Mapping: yes
Parking Distance System
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Front
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Type: Automatic
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
Includes Audio Player: yes
Includes Navigation System: yes
Includes Phone: yes
Emission Control Level
Australia Air Pollution Rating: 7.5
Australia Greenhouse Rating: 7.5
Australia Overall Emission Control Level Rating: 4.5
CO2 Level (Combined): 143
Standard Met: EU5
Engine
Bore Engine: 89.0
Engine (cc): 2488
Engine Configuration: In-Line
Engine Code: Mzr-2.5
Engine (L): 2.5
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 100.0
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 91
Minimum Fuel Type: Unleaded
Fuel Type: Unleaded
Octane Number: 91
Fuel System
Injection Carburetion: Petrol Direct Injection
Fuel Tanks
Main Capacity Gal: 13.5
Main Capacity (L): 51
Main Capacity Uk Gallons: 11.2
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: ?
Number of Screens: 1
Screen Size (in): 7.0
Touch Screen: yes
Instrument Cluster
Head Up Display: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 836
ADR 81/02 Calculated Vehicle Range (miles): 519
ADR 81/02 Combined (km/L): 16.4
ADR 81/02 Combined (L/100km): 6.1
ADR 81/02 Combined (miles per UK gallon): 46
ADR 81/02 Combined (mpg): 39
ADR 81/02 Country Highway (km/L): 20.0
ADR 81/02 Country Highway (L/100km): 5.0
ADR 81/02 Country Highway (miles per UK gallon): 57
ADR 81/02 Country Highway (mpg): 47
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 12.3
ADR 81/02 Urban (L/100km): 8.1
ADR 81/02 Urban (miles per UK gallon): 35
ADR 81/02 Urban (mpg): 29
Fuel Economy
ADR 81/02 (L/100km): 6.1
Power
Maximum Power (hp/PS): 188
Maximum Power (kW): 138
Maximum Torque (Nm): 250
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 5700
Rpm For Maximum Torque Low: 3250
Drive
Driven Wheels: Front
Transmission
Description: Automatic With Manual Mode
Gear Change Paddles: yes
Manual Mode: yes
Number of Speeds: 6
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 89
Location: Front
Front Wheels Tire Profile: 45
Front Wheels Tire Speed Rating: W
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 215
Rear Wheels Tire Load Index: 89
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 45
Rear Wheels Tire Speed Rating: W
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 215
Wheels
Location: Front
Front Wheels Rim Diameter (In): 18
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.0
Location: Rear
Rear Rim Diameter (In): 18
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.0
Body Style
Body Type: Hatchback
Local Body Type: Hatchback
Platform Code: Skyactiv-C+
Wheelbase Type: Short
Spoiler
Location: Roof
Bumpers
Location: Front
Location: Rear
Cargo Capacity
Measurement Standard: VDA
Rear Seat Up to Lower Window (cu ft): 10.9
Rear Seat Up to Lower Window (L): 308
External Dimensions
Kerb to Kerb Turning Circle (mm): 10600
Front Track (in): 61.2
Front Track (mm): 1555
Ground Clearance Unladen (in): 6.1
Ground Clearance Unladen (mm): 155
Kerb To Kerb Turning Circle (ft): 34.8
Overall Height (in): 57.7
Overall Height (mm): 1465
Overall Length (in): 176.0
Overall Length (mm): 4470
Overall Width (in): 70.7
Overall Width (mm): 1795
Rear Track (in): 61.4
Rear Track (mm): 1560
Wheelbase (in): 106.3
Wheelbase (mm): 2700
Internal Dimensions
Front Headroom (in): 38.6
Front Headroom (mm): 981
Rear Headroom (in): 37.6
Rear Headroom (mm): 955
Front Leg Room (in): 42.2
Front Leg Room (mm): 1073
Rear Leg Room (in): 35.8
Rear Leg Room (mm): 909
Front Shoulder Room (in): 57.2
Front Shoulder Room (mm): 1452
Rear Shoulder Room (in): 54.4
Rear Shoulder Room (mm): 1382
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Directional Headlights: yes
Dusk Sensor: yes
Height Adjustment: Automatic
Internal Height Adjustment: yes
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
LED Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: Gray
Type: Mica
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 1200
Gross Trailer Weight Braked (lb): 2646
Gross Trailer Weight Unbraked (kg): 600
Gross Trailer Weight Unbraked (lb): 1323
Published Kerb Weight (kg): 1328
Published Kerb Weight (lb): 2928
Tare Weight (kg): 1297
Audio System
Colour Screen: yes
Digital Radio: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Brand: Bose
Number of Speakers: 9
Cargo Area Cover Rear Parcel Shelf
Type: Rigid
Luxury Trim
Gear Selector: Leather
Handbrake Grip: Leather
Instrument Panel: Alloy Look
Airbags
Number of Airbags: 6
Crash Test Results
ANCAP Date Tested: 20140204
ANCAP Overall: 5.00
ANCAP Pedestrian: Acceptable
ANCAP Rear Crash Protect Head Restraint Rating: Good
ANCAP Standard: Ancap
ANCAP Version Tested: Mazda 3 "Core" 2.0 Hatch Lhd
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Active: yes
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Electric
Location: Driver
Driver Front Seat Lumbar Type: Manual
Driver Front Seat Number of Electrical Adjustments: 3
Driver Front Seat Reach Type: Electric
Driver Front Seat Reclining Type: Electric
Driver Front Seat Type: Bucket
Passenger Front Seat Heated: yes
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Ventilation System
Digital Display: yes
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 10000
Distance (miles): 6214
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
