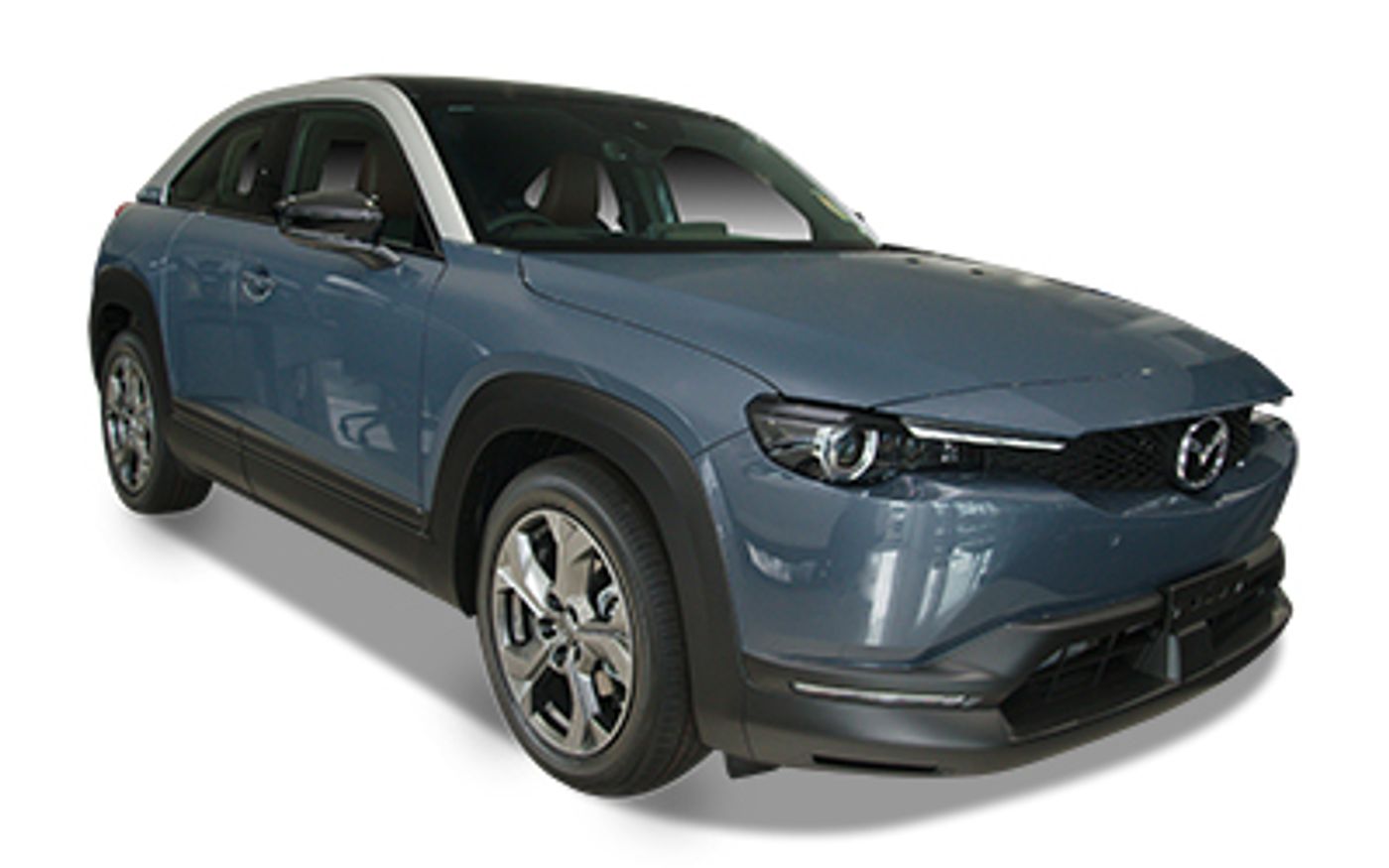

Mazda MX-30 Astina (2021) price & specs
Save $$$ with CarExpert*
From
$65,490â€
Astina
Overview
The 2021 Mazda MX-30 Astina is a front-wheel drive, 5-door SUV that was released to the Australian market on 3rd May 2021. The Mazda MX-30 is regarded as a small SUV built in Japan with prices starting at $65,490 before on-road costs.
This Mazda MX-30 uses a fully electric engine.
The Mazda MX-30 measures 1545mm (60.8 inches) in height, 4395mm (173.0 inches) in length, 1795mm (70.7 inches) in width with a 2655mm (104.5 inches) wheelbase that brings about a total of 1442kg (3179.1 lbs) of unladen weight. The MX-30 Astina comes standard with 215/55 R18 front tyres and 215/55 R18 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the MX-30 compare?
Quickly see how the 2021 Mazda MX-30 Astina stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
74.2 - 76.98 kW/t
64.14 kW/t
120.24 kW/t
Boot Space
311 litres
128 litres
720 litres
Fuel Efficiency
6.4 L/100km
1.5 L/100km
10.2 L/100km
Vehicle Range
224 - 797 km
224 km
2,176 km
Price
$33,990 - $65,490
$24,592
$147,300
Warranty (Years)
5 years
5 years
10 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Braked Towing Capacity
1,200 kg
480 kg
3,500 kg
Ground Clearance Unladen
180 mm
97 mm
230 mm
Battery & Charging
Max. battery kilowatt hour
0.2 - 35.5 kWh
0.2 kWh
80 kWh
AC Charging (max kW)
6.6 - 7 kW
3.6 kW
11 kW
DC Fast Charging (max kW)
50 kW
38 kW
110 kW
Vehicle Range (EV)
224 km
52 km
434 km
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,395 mm
1,795 mm
inc mirror: 2,035 mm
inc mirror: 2,035 mm
1,545 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,395 mm |
| Overall Width | 1,795 mm |
| Overall Width (Inc Mirror) | 2,035 mm |
| Overall Height | 1,545 mm |
| Wheelbase | 2,655 mm |
| Turning Circle | 11,400 mm |
Looking for complete Mazda MX-30 size & space specs?
Our Mazda MX-30 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Mazda MX-30 Sales rolling 12-months#
Explore Mazda MX-30 Features & Specs
Cruise Control
Adaptive Cruise Control: yes
Stop Go Function: Stop & Go
Memorised Adjustment
Door Mirror Position: yes
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: Unlimited
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Mirrorlink Months Subscription Included: 0
Parking Distance System
Location: Front
Front Type: Sensor & Camera
Location: Rear
Rear Type: Sensor & Camera
Location: Side
Side Type: Camera
Power Outlet 12V
Location (12V): Front
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Includes Walk Away Locking: yes
USB Charging Port
Location: Front
Number of Ports in Front: 2
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Emission Control Level
CO2 Level (Combined): 0
Energy Recuperation
Single Pedal Driving: yes
Fuel
Generic Primary Fuel Type: Electric
Fuel Type: Electric
Charging Connector
CCS (Combo) Charging Socket DC 1: yes
CCS (Combo) Location of DC 1 Socket: Rear Side
CCS (Combo) Type: Ccs (Combo)
Type 2 (Mennekes) Charging Socket AC 1: yes
Type 2 (Mennekes) Location of AC 1 Socket: Rear Side
Type 2 (Mennekes) Type: Type 2 (Mennekes)
Charging Information
Mode 2 Amps: 10
Mode 2 Duration: 9.00
Mode 2 Scenario: Mode 2
Mode 2 State of Charge Ends At (%): 80
Mode 2 State of Charge Starts At (%): 20
Mode 2 Voltage: 230
Mode 3 amps (A): 32
Mode 3 Duration: 3.00
Mode 3 Quoted kW Supplied To Vehicle: 7.00
Mode 3 Scenario: Mode 3
Mode 3 State of Charge Ends At (%): 80
Mode 3 State of Charge Starts At (%): 20
Mode 3 Voltage: 230
Mode 4 Duration: 0.60
Mode 4 Max kW Supplied To Vehicle: 50.00
Mode 4 Scenario: Mode 4
Mode 4 State of Charge Ends At (%): 80
Mode 4 State of Charge Starts At (%): 20
Mode 4 Voltage: 400
Electric Driven Wheels
Electric Driven Wheels: Front
Electric Motor
Motor 1 Type: Ac Perm Magnet Synchronous
Motor 1 Max Torque Motor (Nm): 271
Motor 1 Number: 1
Motor 1 Power Output (hp/PS): 145.5
Motor 1 Power Output Motor (kW): 107.0
Electric Power Source
Actively Heated Cooled Battery: yes
Battery (Ah): 100.0
Battery Cell Count: 192
Battery Cell Type: Prismatic
Battery Type: Lithium Ion
Battery Voltage: 355.0
Maximum Battery (kWh): 35.50
Number of kWh Included: 0
Number of Months Subscription Included: 0
Range (km): 224.00
Range (miles): 139.19
Computer
Average Fuel Consumption: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 8.80
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 7.00
Instrument Cluster
Head Up Display: Windscreen
Fuel Consumption
ADR 81/02 Standard: Adr 81/02
Performance
Acceleration 0 To 100 km/h: 9.7
Max Speed On Electric Power Only (km/h): 140
Maximum Speed (km/h): 140
Maximum Speed (mph): 87
Power
Maximum Power (hp/PS): 145
Maximum Power hp/PS Electric Motor: 145
Maximum Power (kW): 107
Maximum Power kW Electric Motor: 107
Maximum Torque (Nm): 271
Maximum Torque Electric Motor (Nm): 271
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 6000
Rpm For Maximum Torque Low: 4000
Power Consumption
Combined (km/kWh): 0.2
Combined (kWh/100 miles): 29.8
Combined (kWh/100km): 18.5
Combined (kWh/km): 0.5
Combined (kWh/mile): 0.3
Combined (miles/kWh): 0.3
Combined (Wh/km): 185
Combined (Wh/mile): 298
Drive
Driven Wheels: Front
Transmission
Description: Automatic
Number of Speeds: 1
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Heated: yes
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Type: Torsion Beam
Rear Wheel Dependence: Semi-Independent
Tires
Front Wheels Tire Load Index: 95
Location: Front
Front Wheels Tire Profile: 55
Front Wheels Tire Speed Rating: H
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 215
Rear Wheels Tire Load Index: 95
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 55
Rear Wheels Tire Speed Rating: H
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 215
Wheels
Location: Front
Front Wheels Rim Diameter (In): 18
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.0
Location: Rear
Rear Rim Diameter (In): 18
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.0
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: Skyactiv-C+
Wheelbase Type: Short
Spoiler
Location: Roof
Cargo Capacity
Measurement Standard: VDA
Rear Seat Down (cu ft): 30.9
Rear Seat Down (L): 876
Rear Seat Up to Lower Window (cu ft): 11.0
Rear Seat Up to Lower Window (L): 311
External Dimensions
Kerb to Kerb Turning Circle (mm): 11400
Front Track (in): 61.6
Front Track (mm): 1565
Ground Clearance Unladen (in): 7.1
Ground Clearance Unladen (mm): 180
Kerb To Kerb Turning Circle (ft): 37.4
Overall Height (in): 60.8
Overall Height (mm): 1545
Overall Length (in): 173.0
Overall Length (mm): 4395
Overall Width Folded Mirror (in): 72.8
Overall Width Folded Mirror (mm): 1848
Overall Width (in): 70.7
Overall Width Inc Mirror (in): 80.1
Overall Width Inc Mirror (mm): 2035
Overall Width (mm): 1795
Rear Track (in): 61.6
Rear Track (mm): 1565
Wheelbase (in): 104.5
Wheelbase (mm): 2655
Internal Dimensions
Front Leg Room (in): 41.7
Front Leg Room (mm): 1058
Rear Leg Room (in): 33.9
Rear Leg Room (mm): 861
Front Shoulder Room (in): 55.6
Front Shoulder Room (mm): 1412
Rear Shoulder Room (in): 52.7
Rear Shoulder Room (mm): 1338
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Rear Hinged
Location: Rear Passenger
Rear Passenger Door Type: Rear Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Active High Beam: yes
Directional Headlights: yes
Dusk Sensor: yes
Height Adjustment: Automatic
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: Gray
Type: Mica
Sunroof
Front Sunroof Location: Front
Front Sunroof Operation: Electric
Front Sunroof Type: Glass
Door Mirrors/Cameras
Auto-Dimming Driver Door Mirrors: yes
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors Tilting for Reverse: Automatic
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors Tilting for Reverse: Automatic
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 0
Gross Trailer Weight Braked (lb): 0
Gross Trailer Weight Unbraked (kg): 0
Gross Trailer Weight Unbraked (lb): 0
Published Kerb Weight (kg): 1442
Published Kerb Weight (lb): 3179
Tare Weight (kg): 1442
Trailer Noseweight (kg): 0
Audio System
Colour Screen: yes
Digital Radio: yes
Radio Type: Am/Fm
External Connections
USB (Front): yes
Total Front USB Connections: 2
Total Rear USB Connections: 0
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Brand: Bose
Number of Speakers: 12
Subwoofer: yes
Cargo Area Cover Rear Parcel Shelf
Type: Rigid
Luxury Trim
Centre Floor Console: Alloy Look
Gear Selector: Leather
Instrument Panel: Alloy Look
Airbags
Number of Airbags: 10
Autonomous Drive
Active Lane Control: yes
Highway Assist: yes
Level: 2 - Partial Automation
Crash Test Results
ANCAP Adult Occupant Score: 93.0
ANCAP Child Occupant Score: 87.0
ANCAP Date Tested: 20210101
ANCAP Overall: 5.0
ANCAP Pedestrian Score: 68.0
ANCAP Rating Year: 2020
ANCAP Safety Assist Score: 74.0
ANCAP Standard: Ancap
ANCAP Version Tested: BEV
Front Airbag
Location: Driver
Location: Passenger
Front Cross Traffic Collision Avoidance
Type: Sensor & Camera
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Lane Departure Warning
Activates Brakes: yes
Activates Steering: yes
Overtaking Sensor
Active Without Turn Signal: yes
Buzzer: yes
Rear Cross Traffic Collision Avoidance
Type: Sensor & Camera
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Location: Rear
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Memory
Location: Driver
Driver Front Seat Lumbar Type: Electric
Driver Front Seat Number of Electrical Adjustments: 5
Driver Front Seat Reach Type: Memory
Driver Front Seat Reclining Type: Memory
Driver Front Seat Type: Bucket
Passenger Front Seat Heated: yes
Passenger Front Seat Height Type: Manual
Location: Passenger
Passenger Front Seat Lumbar Type: Manual
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 1
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Ventilation System
Digital Display: yes
Touch Screen Controls: yes
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
