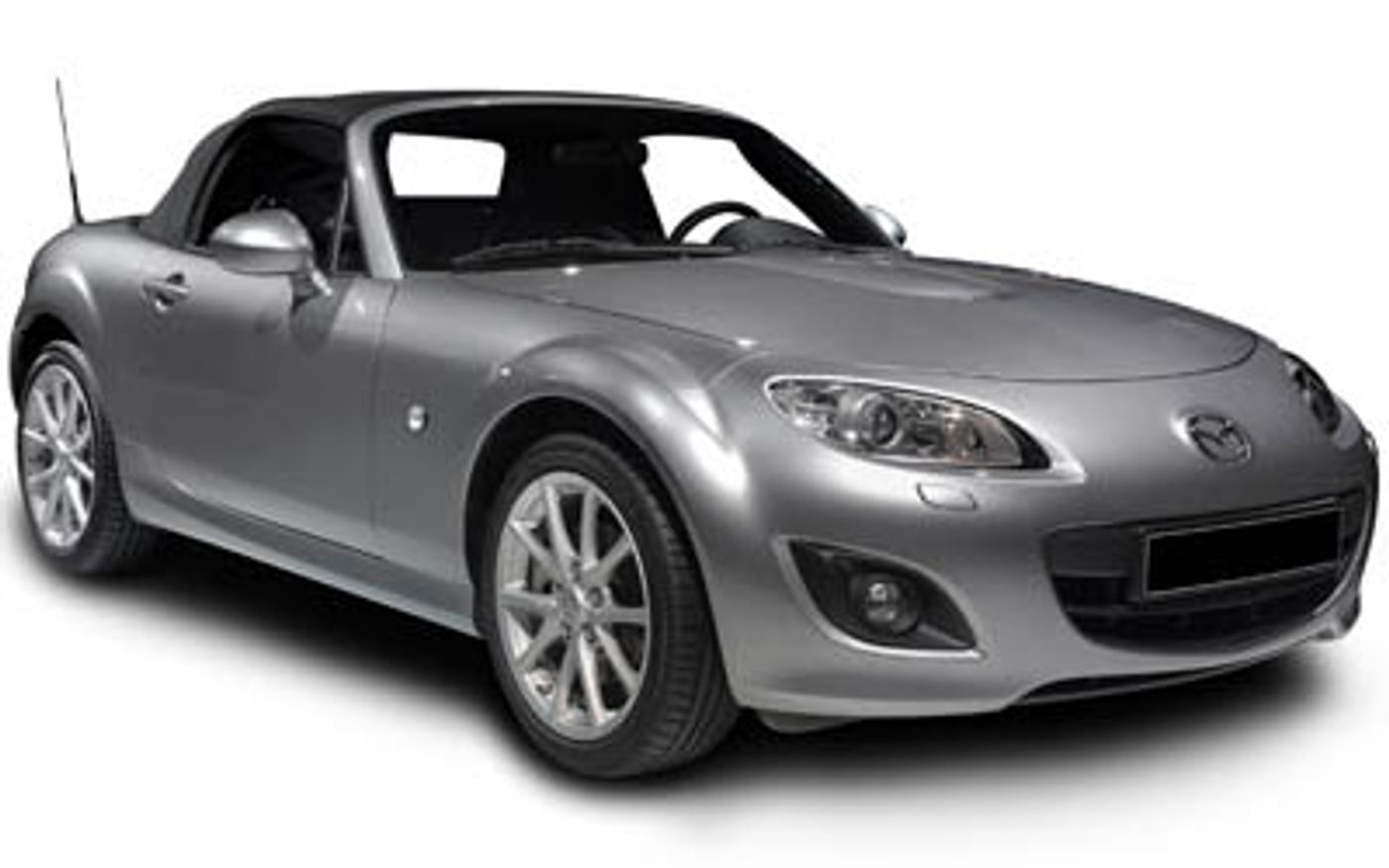

Mazda MX-5 Touring (2009) price & specs
Save $$$ with CarExpert*
From
$45,720â€
Touring
Overview
The 2009 Mazda MX-5 Touring is a rear-wheel drive, 2-door Roadster that was released to the Australian market on 4th January 1970. The Mazda MX-5 is regarded as a sports car built in Japan with prices starting at $45,720 before on-road costs.
This Mazda MX-5 is powered by a 2.0L 4-cylinder engine that has 118 kW of power (at 7000 rpm) and 188 Nm of torque (at 5000 rpm) via a Six-speed Manual transmission. Mazda claims the MX-5 Touring uses 8.1L/100km of Premium Unleaded in the combined city and highway cycle while putting out 192g of CO2. It has a 50L fuel tank, meaning it should be able to travel 617km per full tank
The Mazda MX-5 measures 1245mm (49.0 inches) in height, 4020mm (158.3 inches) in length, 1720mm (67.7 inches) in width with a 2330mm (91.7 inches) wheelbase that brings about a total of 1135kg (2502.2 lbs) of unladen weight. The MX-5 Touring comes standard with 205/45 R17 front tyres and 205/45 R17 rear tyres. It has a 36 month, unlimited km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the MX-5 compare?
Quickly see how the 2009 Mazda MX-5 Touring stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
100.25 - 104.52 kW/t
55.07 kW/t
240.98 kW/t
Boot Space
150 litres
112 litres
455 litres
Fuel Efficiency
8.1 L/100km
5.3 L/100km
16.6 L/100km
Vehicle Range
617 km
484 km
1,132 km
Price
$42,460 - $53,655
$42,460
$426,128
Warranty (Years)
3 years
1 year
4 years
Warranty (Distance)
Unlimited
20,000 km
Unlimited
Years on Sale
2 - 11 years
3 years
10 years
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,020 mm
1,720 mm
1,245 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,020 mm |
| Overall Width | 1,720 mm |
| Overall Height | 1,245 mm |
| Wheelbase | 2,330 mm |
| Turning Circle | 9,400 mm |
Looking for complete Mazda MX-5 size & space specs?
Our Mazda MX-5 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Mazda MX-5 Sales rolling 12-months#
Explore Mazda MX-5 Features & Specs
Emission Control Level
CO2 Level (Combined): 192
Engine
Bore Engine: 87.5
Engine (cc): 1998
Engine Configuration: In-Line
Engine Code: Mzr I4
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 83.1
Valve Gear Type: Double Overhead Cam
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 95
Minimum Fuel Type: Premium Unleaded
Fuel Type: Premium Unleaded
Octane Number: 95
Fuel System
Injection Carburetion: Multi-Point Injection
Fuel Tanks
Main Capacity Gal: 13.2
Main Capacity (L): 50
Main Capacity Uk Gallons: 11.0
Main Fuel Type: Premium Unleaded
Main Type: Total
Fuel Consumption
ADR 81/02 Combined (km/L): 12.3
ADR 81/02 Combined (L/100km): 8.1
ADR 81/02 Combined (miles per UK gallon): 35
ADR 81/02 Combined (mpg): 29
ADR 81/02 Standard: Adr 81/02
Fuel Economy
ADR 81/02 (L/100km): 8.1
Performance
Acceleration 0 To 100 km/h: 7.6
Power
Maximum Power (hp/PS): 160
Maximum Power (kW): 118
Maximum Torque (Nm): 188
Measurement Standard: EEC
Rpm For Maximum Power Low: 7000
Rpm For Maximum Torque Low: 5000
Drive
Driven Wheels: Rear
Electronic Traction Control
Controlled By: Abs & Engine Management
Limited Slip Differential
Location: Rear
Transmission
Description: Manual
Number of Speeds: 6
Shift Lever Location: Floor
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Extra Load: ?
Location: Front
Front Wheels Tire Profile: 45
Front Wheels Tire Speed Rating: W
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 205
Rear Wheels Tire Extra Load: ?
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 45
Rear Wheels Tire Speed Rating: W
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 205
Wheels
Location: Front
Front Wheels Rim Diameter (In): 17
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.0
Location: Rear
Rear Rim Diameter (In): 17
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.0
Body Style
Body Type: Convertible
Local Body Type: Roadster
Platform Code: NC
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Cargo Capacity
Rear Seat Up to Lower Window (cu ft): 5.3
Rear Seat Up to Lower Window (L): 150
External Dimensions
Kerb to Kerb Turning Circle (mm): 9400
Front Track (in): 58.7
Front Track (mm): 1490
Kerb To Kerb Turning Circle (ft): 30.8
Overall Height (in): 49.0
Overall Height (mm): 1245
Overall Length (in): 158.3
Overall Length (mm): 4020
Overall Width (in): 67.7
Overall Width (mm): 1720
Rear Track (in): 58.9
Rear Track (mm): 1495
Wheelbase (in): 91.7
Wheelbase (mm): 2330
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Headlights
Low Beam Bulb Type: Halogen
Paint
External Colour: Black
Type: Mica
Convertible Roof
Soft Top Rear Glass Window: yes
Roof Soft Operation: Manual
Roof Soft Type: Soft
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Windshield Wipers
Intermittent Wipe Windshield Wipers: Fixed
Weights
Published Kerb Weight (kg): 1135
Published Kerb Weight (lb): 2502
Audio System
CD Player Reads MP3: yes
Disc Autochanger: yes
Autochanger Disc Capacity: 6
Radio Type: Am/Fm
Disc Player
Dashboard Capacity: 6
Location: Dashboard
Dashboard Media Type: CD
External Connections
Aux Jack (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 7
Power Outlet 12V
Location (12V): Front
Vanity Mirror
Driver Mirror Location: Driver
Location: Passenger
Luxury Trim
Gear Selector: Leather
Instrument Panel: Alloy Look
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Operation: Reel
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Operation: Reel
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Head Restraints
Front Seats Location: Front Seats
Side Airbag
Location: Front
Front Seat
Driver Front Seat Height Adjustment: yes
Location: Driver
Driver Front Seat Type: Sports
Location: Passenger
Passenger Front Seat Type: Sports
Seat Upholstery
Additional Seat Material: Leather
Main Seat Material: Leather
Seating
Capacity: 2
Cup Holders
Location: Front Seats
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 10000
Distance (miles): 6214
