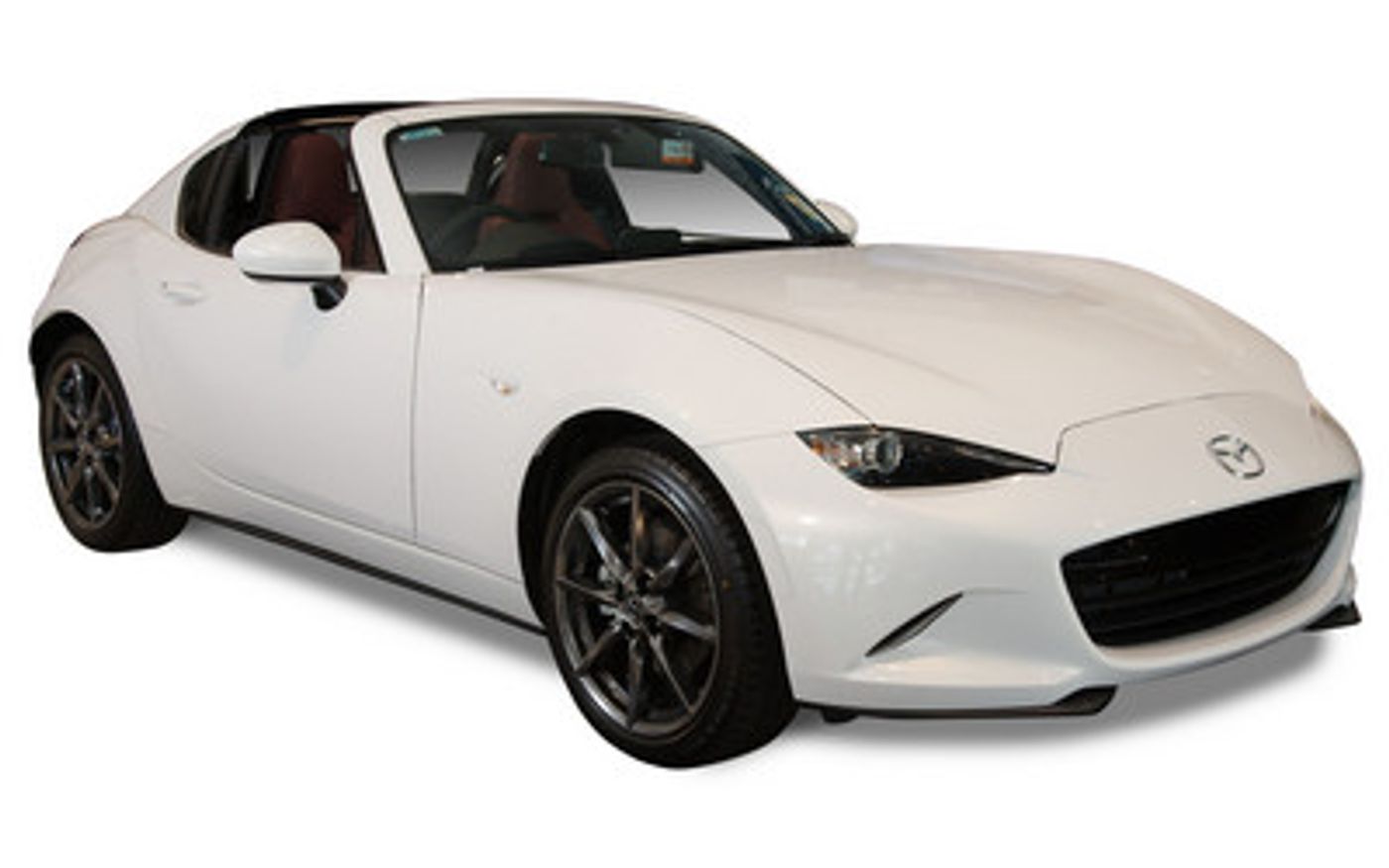

Mazda MX-5 Limited Edition (2017) price & specs
Save $$$ with CarExpert*
From
$55,790â€
Limited Edition
Overview
The 2017 Mazda MX-5 Limited Edition is a rear-wheel drive, 2-door Targa that was released to the Australian market on 3rd February 2018. The Mazda MX-5 is regarded as a sports car built in Japan with prices starting at $55,790 before on-road costs.
This Mazda MX-5 is powered by a 2.0L 4-cylinder engine that has 118 kW of power (at 6000 rpm) and 200 Nm of torque (at 4600 rpm) via a Six-speed Manual transmission. Mazda claims the MX-5 Limited Edition uses 7.0L/100km of Premium Unleaded in the combined city and highway cycle while putting out 164g of CO2. It has a 45L fuel tank, meaning it should be able to travel 643km per full tank
The Mazda MX-5 measures 1235mm (48.6 inches) in height, 3915mm (154.1 inches) in length, 1735mm (68.3 inches) in width with a 2310mm (90.9 inches) wheelbase that brings about a total of 1080kg (2381.0 lbs) of unladen weight. The MX-5 Limited Edition comes standard with 205/45 R17 front tyres and 205/45 R17 rear tyres. It requires a service every 12 months or 10,000 km, whichever comes first. It has a 36 month, unlimited km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the MX-5 compare?
Quickly see how the 2017 Mazda MX-5 Limited Edition stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
93.02 - 114.23 kW/t
74.83 kW/t
253.59 kW/t
Boot Space
127 - 130 litres
127 litres
465 litres
Fuel Efficiency
6.1 - 7.4 L/100km
4.4 L/100km
13.1 L/100km
Vehicle Range
608 - 738 km
462 km
1,500 km
Price
$33,340 - $55,790
$29,590
$521,715
Warranty (Years)
3 years
3 years
5 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
2 - 11 years
3 years
10 years
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Ground Clearance Unladen
140 - 150 mm
100 mm
150 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
3,915 mm
1,735 mm
1,235 mm
| Specification | Measurement |
|---|---|
| Overall Length | 3,915 mm |
| Overall Width | 1,735 mm |
| Overall Height | 1,235 mm |
| Wheelbase | 2,310 mm |
| Turning Circle | 9,400 mm |
Looking for complete Mazda MX-5 size & space specs?
Our Mazda MX-5 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Mazda MX-5 Features & Specs
Emission Control Level
CO2 Level (Combined): 164
Standard Met: EU5
Engine
Bore Engine: 83.5
Engine (cc): 1998
Engine Configuration: In-Line
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 91.2
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 95
Minimum Fuel Type: Premium Unleaded
Fuel Type: Premium Unleaded
Octane Number: 95
Fuel System
Injection Carburetion: Petrol Direct Injection
Fuel Tanks
Main Capacity Gal: 11.9
Main Capacity (L): 45
Main Capacity Uk Gallons: 9.9
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: ?
Number of Screens: 1
Screen Size (in): 7.0
Touch Screen: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 643
ADR 81/02 Calculated Vehicle Range (miles): 400
ADR 81/02 Combined (km/L): 14.3
ADR 81/02 Combined (L/100km): 7.0
ADR 81/02 Combined (miles per UK gallon): 40
ADR 81/02 Combined (mpg): 34
ADR 81/02 Standard: Adr 81/02
Fuel Economy
ADR 81/02 (L/100km): 7.0
Power
Maximum Power (hp/PS): 160
Maximum Power (kW): 118
Maximum Torque (Nm): 200
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 6000
Rpm For Maximum Torque Low: 4600
Drive
Driven Wheels: Rear
Limited Slip Differential
Location: Rear
Rear Type: Mechanical
Transmission
Description: Manual
Number of Speeds: 6
Shift Lever Location: Floor
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Type: Alloy & Leather
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 84
Location: Front
Front Wheels Tire Profile: 45
Front Wheels Tire Speed Rating: W
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 205
Rear Wheels Tire Load Index: 84
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 45
Rear Wheels Tire Speed Rating: W
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 205
Wheels
Location: Front
Front Wheels Rim Diameter (In): 17
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.0
Location: Rear
Rear Rim Diameter (In): 17
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.0
Body Style
Body Type: Targa
Local Body Type: Targa
Platform Code: ND
Wheelbase Type: Short
Bumpers
Location: Front
Location: Rear
Cargo Capacity
Measurement Standard: VDA
Rear Seat Up to Lower Window (cu ft): 4.5
Rear Seat Up to Lower Window (L): 127
External Dimensions
Kerb to Kerb Turning Circle (mm): 9400
Front Track (in): 58.9
Front Track (mm): 1495
Ground Clearance Unladen (in): 5.9
Ground Clearance Unladen (mm): 150
Kerb To Kerb Turning Circle (ft): 30.8
Overall Height (in): 48.6
Overall Height (mm): 1235
Overall Length (in): 154.1
Overall Length (mm): 3915
Overall Width (in): 68.3
Overall Width (mm): 1735
Rear Track (in): 59.3
Rear Track (mm): 1505
Wheelbase (in): 90.9
Wheelbase (mm): 2310
Internal Dimensions
Front Headroom (in): 37.4
Front Headroom (mm): 950
Front Leg Room (in): 43.1
Front Leg Room (mm): 1096
Front Shoulder Room (in): 52.2
Front Shoulder Room (mm): 1325
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Headlight Control
Directional Headlights: yes
Dusk Sensor: yes
Height Adjustment: Automatic
Internal Height Adjustment: yes
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: Silver
Two Tone: yes
Type: Mica
Convertible Roof
Foldable Hard Top Rear Glass Window: yes
Foldable Hard Top Operation: Electric
Foldable Hard Top Type: Foldable Hard Top
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Toned
Heated Driver Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Toned
Heated Passenger Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 0
Gross Trailer Weight Braked (lb): 0
Gross Trailer Weight Unbraked (kg): 0
Gross Trailer Weight Unbraked (lb): 0
Published Kerb Weight (kg): 1080
Published Kerb Weight (lb): 2381
Tare Weight (kg): 1054
Audio System
Colour Screen: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Brand: Bose
Number of Speakers: 9
Subwoofer: yes
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Type: Automatic
Vanity Mirror
Driver Mirror Location: Driver
Location: Passenger
Voice Activating System
Includes Audio Player: yes
Includes Navigation System: yes
Includes Phone: yes
Luxury Trim
Gear Selector: Alloy & Leather
Handbrake Grip: Leather
Airbags
Number of Airbags: 4
Crash Test Results
ANCAP Date Tested: 20160601
ANCAP Overall: 5.00
ANCAP Pedestrian: Good
ANCAP Rear Crash Protect Head Restraint Rating: Good
ANCAP Standard: Ancap
ANCAP Version Tested: 1.5 Litre Roadster
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Overtaking Sensor
Manufacturer Name: Blind Spot Monitor (Bsm)
Side Airbag
Location: Front
Front Seat
Driver Front Seat Heated: yes
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Branded
Passenger Front Seat Heated: yes
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Branded
Seat Upholstery
Additional Seat Material: Leather
Main Seat Material: Synthetic Suede
Seating
Capacity: 2
Configuration: 2+0
Cup Holders
Location: Front Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 1
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 10000
Distance (miles): 6214
Period (Months): 12
