Base
Overview

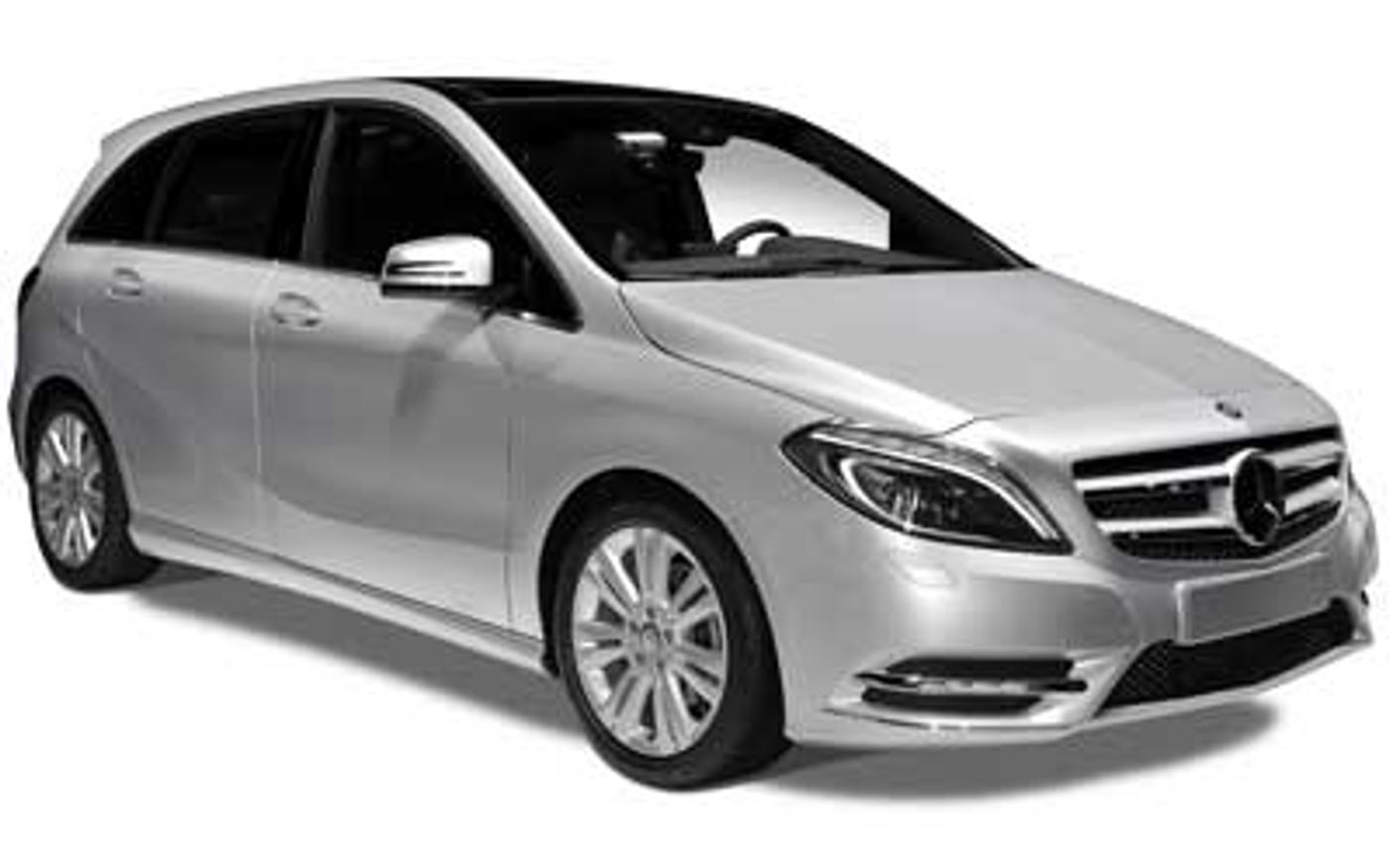

The 2013 Mercedes-Benz B-Class Base is a front-wheel drive, 5-door Mini Mpv that was released to the Australian market on 5th January 2010 classified as a W246. The Mercedes-Benz B-Class is regarded as a Small Luxury built in Germany with prices starting at $45,900 before on-road costs.
This Mercedes-Benz B-Class is powered by a 1.6L 4-cylinder engine that has 115 kW of power (at 5300 rpm) and 250 Nm of torque (at 1250 rpm) via a 7 SP MANUAL transmission. Mercedes-Benz claims the B-Class Base uses 6.1L/100km of Premium Unleaded in the combined city and highway cycle while putting out 141g of CO2. It has a 50L fuel tank, meaning it should be able to travel 820km per full tank
The Mercedes-Benz B-Class measures 1557mm (61.3 inches) in height, 4359mm (171.6 inches) in length, 1786mm (70.3 inches) in width with a 2699mm (106.3 inches) wheelbase that brings about a total of 1425kg (3141.6 lbs) of unladen weight. The B-Class Base comes standard with 225/45 R17 front tyres and 225/45 R17 rear tyres. It has a 36 month, unlimited km warranty.
The 2013 Mercedes-Benz B-Class Base has a 98mm ground clearance with a 1400kg braked and 695kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the B-Class compare?
Quickly see how the 2013 Mercedes-Benz B-Class Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
63.16 - 105.08 kW/t
52.13 kW/t
164.34 kW/t
Boot Space
486 - 488 litres
250 litres
505 litres
Fuel Efficiency
4.7 - 6.5 L/100km
3.8 L/100km
10.4 L/100km
Vehicle Range
769 - 1,064 km
566 km
1,447 km
Price
$39,990 - $50,200
$21,490
$74,900
Warranty (Years)
3 years
2 years
4 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Towing & Off-Road Capability
Gross Vehicle Weight
1,950 - 2,030 kg
1,645 kg
2,075 kg
Braked Towing Capacity
1,200 - 1,500 kg
750 kg
1,800 kg
Ground Clearance Unladen
98 mm
98 mm
155 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,359 mm
1,786 mm
1,557 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,359 mm |
| Overall Width | 1,786 mm |
| Overall Height | 1,557 mm |
| Wheelbase | 2,699 mm |
| Turning Circle | 11,000 mm |
| Load Capacity | 525 mm |
Looking for complete Mercedes-Benz B-Class size & space specs?
Our Mercedes-Benz B-Class Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Mercedes-Benz B-Class Sales rolling 12-months#
Explore Mercedes-Benz B-Class Features & Specs
Cruise Control
Steering Wheel Mounted Controls: yes
Entertainment Display Screen
Location: Front
Memorised Adjustment
Adjustment Settings: 3
Parking Assistance
Location: Rear
Rear Type: Full Automatic Parking
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Location (12V): Rear
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
Includes Audio Player: yes
Includes Navigation System: yes
Includes Phone: yes
Manufacturer Name: Linguatronic
Compressor
Compressor: Turbo
Emission Control Level
CO2 Level (Combined): 141
Engine
Bore Engine: 83.0
Engine (cc): 1595
Engine Configuration: In-Line
Engine (L): 1.6
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 73.7
Valve Gear Type: Double Overhead Cam
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 95
Minimum Fuel Type: Premium Unleaded
Fuel Type: Premium Unleaded
Octane Number: 95
Fuel Tanks
Main Capacity Gal: 13.2
Main Capacity (L): 50
Main Capacity Uk Gallons: 11.0
Main Type: Total
Computer
Average Fuel Consumption: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 820
ADR 81/02 Calculated Vehicle Range (miles): 510
ADR 81/02 Combined (km/L): 16.4
ADR 81/02 Combined (L/100km): 6.1
ADR 81/02 Combined (miles per UK gallon): 46
ADR 81/02 Combined (mpg): 39
ADR 81/02 Country Highway (km/L): 20.4
ADR 81/02 Country Highway (L/100km): 4.9
ADR 81/02 Country Highway (miles per UK gallon): 58
ADR 81/02 Country Highway (mpg): 48
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 12.3
ADR 81/02 Urban (L/100km): 8.1
ADR 81/02 Urban (miles per UK gallon): 35
ADR 81/02 Urban (mpg): 29
Fuel Economy
ADR 81/02 (L/100km): 6.1
Performance
Acceleration 0 To 100 km/h: 8.4
Maximum Speed (km/h): 210
Maximum Speed (mph): 130
Power
Maximum Power (hp/PS): 156
Maximum Power (kW): 115
Maximum Torque (Nm): 250
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 5300
Rpm For Maximum Torque Low: 1250
Drive
Driven Wheels: Front
Transmission
Automatic Mode: yes
Description: Dual Clutch Sequential Trans (Dct)
Gear Change Paddles: yes
Manual Sequential: yes
Number of Speeds: 7
Shift Lever Location: Steering Wheel
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Alloy & Leather
Alternate Suspension
Type: Sport
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Diameter: 18
Front Wheels Tire Load Index: 91
Location: Front
Front Wheels Tire Low Rolling Resistance: yes
Front Wheels Tire Profile: 45
Front Wheels Tire Run Flat: yes
Front Wheels Tire Speed Rating: W
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 225
Rear Wheels Tire Diameter: 18
Rear Wheels Tire Load Index: 91
Rear Wheels Tire Location: Rear
Rear Wheels Tire Low Rolling Resistance: yes
Rear Wheels Tire Profile: 45
Rear Wheels Tire Run Flat: yes
Rear Wheels Tire Speed Rating: W
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 225
Wheels
Location: Front
Front Wheels Rim Diameter (In): 17
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.5
Location: Rear
Rear Rim Diameter (In): 17
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.5
Body Style
Body Type: Mini Mpv
Local Body Type: Mini Mpv
Platform Code: MFA
Wheelbase Type: Short
Chrome Bright Trim
Bright Chrome Trim on Front Grille: yes
Cargo Capacity
Measurement Standard: VDA
Rear Seat Down (cu ft): 54.6
Rear Seat Down (L): 1547
Rear Seat Up to Lower Window (cu ft): 17.2
Rear Seat Up to Lower Window (L): 488
External Dimensions
Kerb to Kerb Turning Circle (mm): 11000
Front Track (in): 61.1
Front Track (mm): 1552
Ground Clearance Unladen (in): 3.9
Ground Clearance Unladen (mm): 98
Kerb To Kerb Turning Circle (ft): 36.1
Overall Height (in): 61.3
Overall Height (mm): 1557
Overall Length (in): 171.6
Overall Length (mm): 4359
Overall Width (in): 70.3
Overall Width (mm): 1786
Rear Track (in): 61.0
Rear Track (mm): 1549
Wheelbase (in): 106.3
Wheelbase (mm): 2699
Internal Dimensions
Front Headroom (in): 39.9
Front Headroom (mm): 1013
Rear Headroom (in): 38.8
Rear Headroom (mm): 985
Front Hip Room (in): 56.0
Front Hip Room (mm): 1423
Rear Hip Room (in): 56.9
Rear Hip Room (mm): 1446
Rear Leg Room (in): 38.4
Rear Leg Room (mm): 976
Front Shoulder Room (in): 55.6
Front Shoulder Room (mm): 1411
Rear Shoulder Room (in): 54.4
Rear Shoulder Room (mm): 1382
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Dusk Sensor: yes
Height Adjustment: Manual
Internal Height Adjustment: yes
Headlights
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
LED Lights
Location: Day Time Running Lights
Paint
External Colour: White
Type: Metallic
Sunroof
Front to Rear Sunroof Location: Front To Rear
Front to Rear Sunroof Operation: Electric
Front to Rear Sunroof Sliding: yes
Front to Rear Sunroof Sunshade: yes
Front to Rear Sunroof Type: Glass
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Headlight Cleaners
Cleaners Type: High Pressure
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 1400
Gross Trailer Weight Braked (lb): 3086
Gross Trailer Weight Unbraked (kg): 695
Gross Trailer Weight Unbraked (lb): 1532
Gross Vehicle Weight (kg): 1950
Gross Vehicle Weight (lb): 4299
Published Kerb Weight (kg): 1425
Published Kerb Weight (lb): 3142
Audio System
Brand Name: Harman/Kardon
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
RDS: yes
External Connections
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Upgraded Speakers: yes
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Floor Mats
Material: Textile
Luxury Trim
Instrument Panel: Wood Or Woodlook
Airbags
Number of Airbags: 9
Crash Test Results
ANCAP Overall: 5.0
ANCAP Standard: Ancap
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Location: Rear
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Fore/Aft Adjustment: yes
Driver Front Seat Height Adjustment: yes
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Type: Electric
Driver Front Seat Number of Electrical Adjustments: 2
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining: yes
Driver Front Seat Reclining Type: Manual
Driver Front Seat Tilt Adjustment: yes
Driver Front Seat Tilt Type: Memory
Driver Front Seat Type: Bucket
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Fore/Aft Adjustment: yes
Passenger Front Seat Height Adjustment: yes
Passenger Front Seat Height Type: Manual
Location: Passenger
Passenger Front Seat Lumbar Type: Electric
Passenger Front Seat Number of Electrical Adjustments: 2
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining: yes
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Tilt Adjustment: yes
Passenger Front Seat Tilt Type: Memory
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Synthetic Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Power Locks
Operation: Remote
Intermediate Service
Variable Distance Period: yes
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
