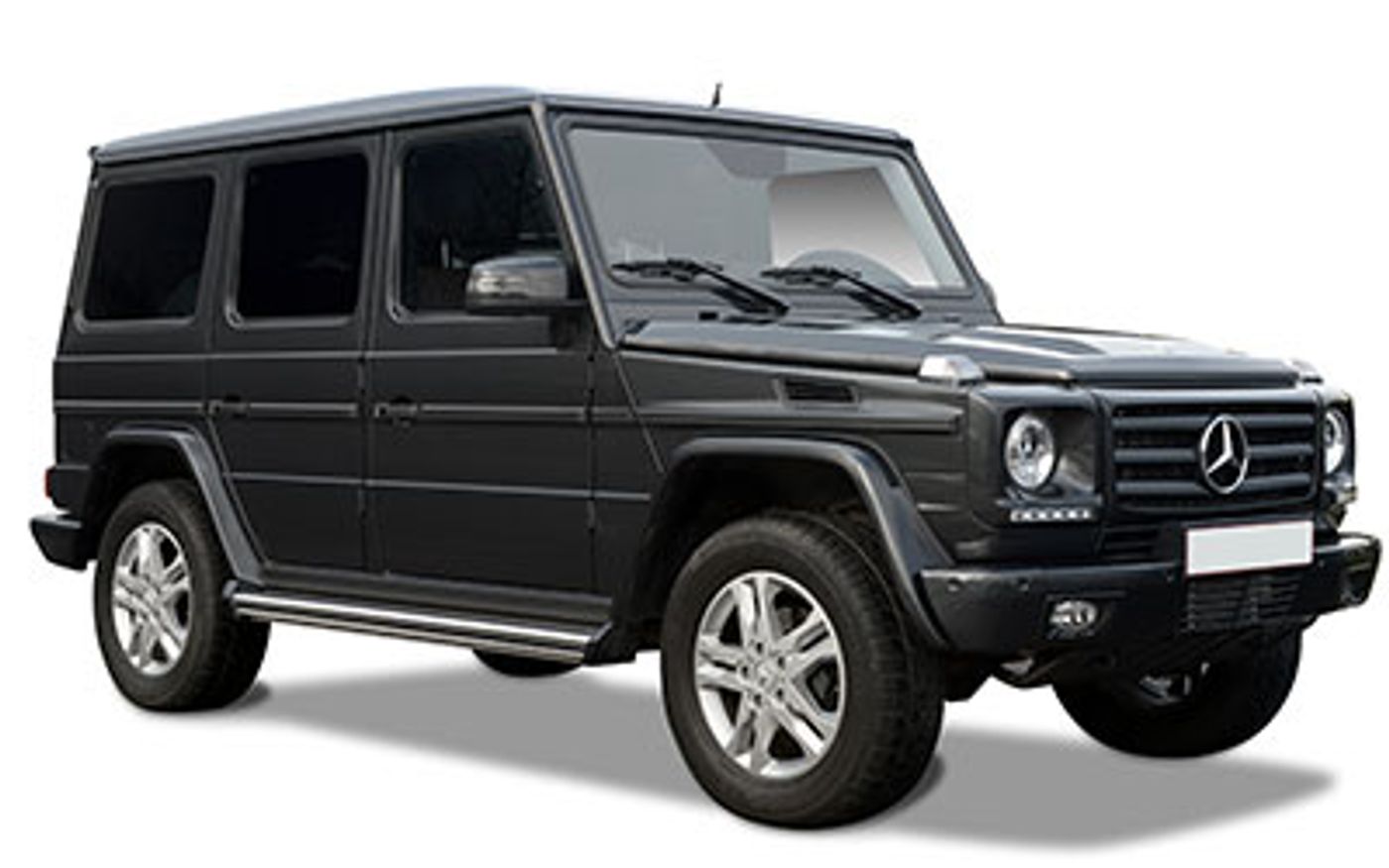

Mercedes-Benz G-Class Designo Manufaktur Edition (2018) price & specs
From
$183,111â€
Designo Manufaktur Edition
Overview
The 2018 Mercedes-Benz G-Class Designo Manufaktur Edition is a four-wheel drive, 5-door SUV that was released to the Australian market on 4th January 1970 classified as a Br 463. The Mercedes-Benz G-Class is regarded as a Suv Upper Large Luxury built in Austria with prices starting at $183,111 before on-road costs.
This Mercedes-Benz G-Class is powered by a 3.0L 6-cylinder engine that has 180 kW of power (at 3600 rpm) and 600 Nm of torque (at 1600 rpm) via a Seven-speed Automatic transmission. Mercedes-Benz claims the G Designo Manufaktur Edition uses 9.9L/100km of Diesel in the combined city and highway cycle while putting out 261g of CO2. It has a 96L fuel tank, meaning it should be able to travel 970km per full tank
The Mercedes-Benz G-Class measures 1951mm (76.8 inches) in height, 4672mm (183.9 inches) in length, 1760mm (69.3 inches) in width with a 2850mm (112.2 inches) wheelbase that brings about a total of 2570kg (5665.9 lbs) of unladen weight. The G Designo Manufaktur Edition comes standard with 275/55 R19 front tyres and 275/55 R19 rear tyres. It requires a service every 12 months or 25,000 km, whichever comes first. It has a 36 month, unlimited km warranty.
The 2018 Mercedes-Benz G-Class Designo Manufaktur Edition has a 210mm ground clearance with a 3500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the G compare?
Quickly see how the 2018 Mercedes-Benz G-Class Designo Manufaktur Edition stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
70.04 - 164.71 kW/t
70.04 kW/t
217.27 kW/t
Boot Space
480 litres
400 litres
667 litres
Fuel Efficiency
9.9 - 13.8 L/100km
2.8 L/100km
14.5 L/100km
Vehicle Range
696 - 970 km
646 km
1,246 km
Price
$164,240 - $255,311
$110,900
$427,300
Warranty (Years)
3 years
3 years
8 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
1 year
1 year
5 years
Service Interval
12 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
3,200 kg
3,050 kg
3,500 kg
Braked Towing Capacity
3,500 kg
2,250 kg
3,500 kg
Approach Angle
27 - 36°
24.2°
36°
Departure Angle
27°
20°
29.6°
Ground Clearance Unladen
210 - 220 mm
139 mm
296 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,672 mm
1,760 mm
1,951 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,672 mm |
| Overall Width | 1,760 mm |
| Overall Height | 1,951 mm |
| Wheelbase | 2,850 mm |
| Turning Circle | 13,600 mm |
| Load Capacity | 630 mm |
Looking for complete Mercedes-Benz G-Class size & space specs?
Our Mercedes-Benz G-Class Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Mercedes-Benz G-Class Sales rolling 12-months#
Explore Mercedes-Benz G-Class Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
CO2 Level (Combined): 261
Standard Met: EU6
Engine
Bore Engine: 83.0
Engine (cc): 2987
Engine Configuration: V
Engine Code: Om 642 D30 Scr
Engine (L): 3.0
Number of Cylinders: 6
Number of Valves per Cylinder: 4
Stroke Engine: 92.0
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 25.4
Main Capacity (L): 96
Main Capacity Uk Gallons: 21.1
Main Type: Total
Interested in buying a Mercedes-Benz G-Class Designo Manufaktur Edition?
Save $$$ with CarExpert*
From
$183,111â€
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Screen Size (in): 8.0
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 970
ADR 81/02 Calculated Vehicle Range (miles): 603
ADR 81/02 Combined (km/L): 10.1
ADR 81/02 Combined (L/100km): 9.9
ADR 81/02 Combined (miles per UK gallon): 29
ADR 81/02 Combined (mpg): 24
ADR 81/02 Country Highway (km/L): 11.0
ADR 81/02 Country Highway (L/100km): 9.1
ADR 81/02 Country Highway (miles per UK gallon): 31
ADR 81/02 Country Highway (mpg): 26
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 9.0
ADR 81/02 Urban (L/100km): 11.1
ADR 81/02 Urban (miles per UK gallon): 25
ADR 81/02 Urban (mpg): 21
Fuel Economy
ADR 81/02 (L/100km): 9.9
Performance
Acceleration 0 To 100 km/h: 8.8
Maximum Speed (km/h): 192
Maximum Speed (mph): 119
Power
Maximum Power (hp/PS): 245
Maximum Power (kW): 180
Maximum Torque (Nm): 600
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3600
Rpm For Maximum Torque Low: 1600
Differential Lock
Location: Centre
Location: Front
Location: Rear
Drive
Driven Wheels: 4x4
Four-Wheel Drive Type: Full-Time
Transmission
Description: Automatic With Manual Mode
Low High Gear Ranges: yes
Manual Mode: yes
Number of Speeds: 7
Shift Lever Location: Floor
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Electric Adjustment: yes
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Alloy & Leather
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Beam
Front Wheel Dependence: Rigid
Location: Rear
Rear Spring Type: Coil
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Location: Front
Front Wheels Tire Profile: 55
Front Wheels Tire Type: All Seasons
Front Wheels Tire Width: 275
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 55
Rear Wheels Tire Type: All Seasons
Rear Wheels Tire Width: 275
Wheels
Location: Front
Front Wheels Rim Diameter (In): 19
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 9.5
Location: Rear
Rear Rim Diameter (In): 19
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 9.5
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: W460
Wheelbase Type: Long
Mud Flaps
Rear Mud Flaps Location: Rear
Cargo Capacity
Measurement Standard: VDA
Rear Seat Down (cu ft): 79.5
Rear Seat Down (L): 2250
Rear Seat Up to Lower Window (cu ft): 17.0
Rear Seat Up to Lower Window (L): 480
External Dimensions
Kerb to Kerb Turning Circle (mm): 13600
Front Track (in): 58.1
Front Track (mm): 1475
Ground Clearance Unladen (in): 8.3
Ground Clearance Unladen (mm): 210
Kerb To Kerb Turning Circle (ft): 44.6
Overall Height (in): 76.8
Overall Height (mm): 1951
Overall Length (in): 183.9
Overall Length (mm): 4672
Overall Width (in): 69.3
Overall Width (mm): 1760
Rear Track (in): 58.1
Rear Track (mm): 1475
Wheelbase (in): 112.2
Wheelbase (mm): 2850
Internal Dimensions
Front Headroom (in): 42.2
Front Headroom (mm): 1072
Rear Headroom (in): 40.0
Rear Headroom (mm): 1015
Front Hip Room (in): 57.5
Front Hip Room (mm): 1460
Rear Hip Room (in): 57.5
Rear Hip Room (mm): 1460
Front Shoulder Room (in): 56.4
Front Shoulder Room (mm): 1432
Rear Shoulder Room (in): 56.4
Rear Shoulder Room (mm): 1432
Ramp Angles
Approach Angle: 36.0
Departure Angle: 27.0
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Single Hinged
Headlight Control
Dusk Sensor: yes
Height Adjustment: Automatic
Internal Height Adjustment: yes
Headlights
High Beam Bulb Type: Bi-Xenon
Low Beam Bulb Type: Bi-Xenon
Lens Type: Ellipsoidal
LED Lights
Location: Day Time Running Lights
Paint
External Colour: Black
Type: Gloss
Sunroof
Front Sunroof Location: Front
Front Sunroof Operation: Electric
Front Sunroof Type: Steel
Door Mirrors/Cameras
Auto-Dimming Driver Door Mirrors: yes
Driver Door Mirrors/Cameras Colour: Toned
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Toned
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors Tilting for Reverse: Automatic
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 3500
Gross Trailer Weight Braked (lb): 7716
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 3200
Gross Vehicle Weight (lb): 7055
Published Kerb Weight (kg): 2570
Published Kerb Weight (lb): 5666
Tare Weight (kg): 2497
Audio System
CD Player Reads MP3: yes
Colour Screen: yes
Digital Media Card: yes
Digital Radio: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Game Console Connection: yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Brand: Harman/Kardon
Number of Speakers: 12
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Entertainment Display Screen
Location: Back Of Front Seats
Front Digital Television: yes
Front DVD: yes
Location: Front
Front Screen Size (in): 7.0
Memorised Adjustment
Door Mirror Position: yes
Wheel Position: yes
Mobile Integration
Android Auto: yes
Apple Carplay: yes
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Location (12V): Rear
Smart Card/Smart Key
Type: Manual
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
Includes Audio Player: yes
Includes Navigation System: yes
Includes Phone: yes
Floor Mats
Material: Plastic/Rubber
Luxury Trim
Centre Floor Console: Piano Black
Gear Selector: Chrome And Leather
Instrument Panel: Piano Black
Airbags
Number of Airbags: 6
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Active: yes
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Active Seat Bolstering: yes
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Memory
Location: Driver
Driver Front Seat Lumbar Type: 2-Way Electric
Driver Front Seat Number of Electrical Adjustments: 6
Driver Front Seat Reach Type: Memory
Driver Front Seat Reclining Type: Memory
Driver Front Seat Type: Bucket
Passenger Front Seat Active Seat Bolstering: yes
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Heated: yes
Passenger Front Seat Height Type: Memory
Location: Passenger
Passenger Front Seat Lumbar Type: 2-Way Electric
Passenger Front Seat Number of Electrical Adjustments: 6
Passenger Front Seat Reach Type: Memory
Passenger Front Seat Reclining Type: Memory
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Leather
Main Seat Material: Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Ventilation System
Digital Display: yes
Anti-Theft Protection
Interior Monitoring: yes
Peripheral: yes
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 25000
Distance (miles): 15534
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
