Base
Overview

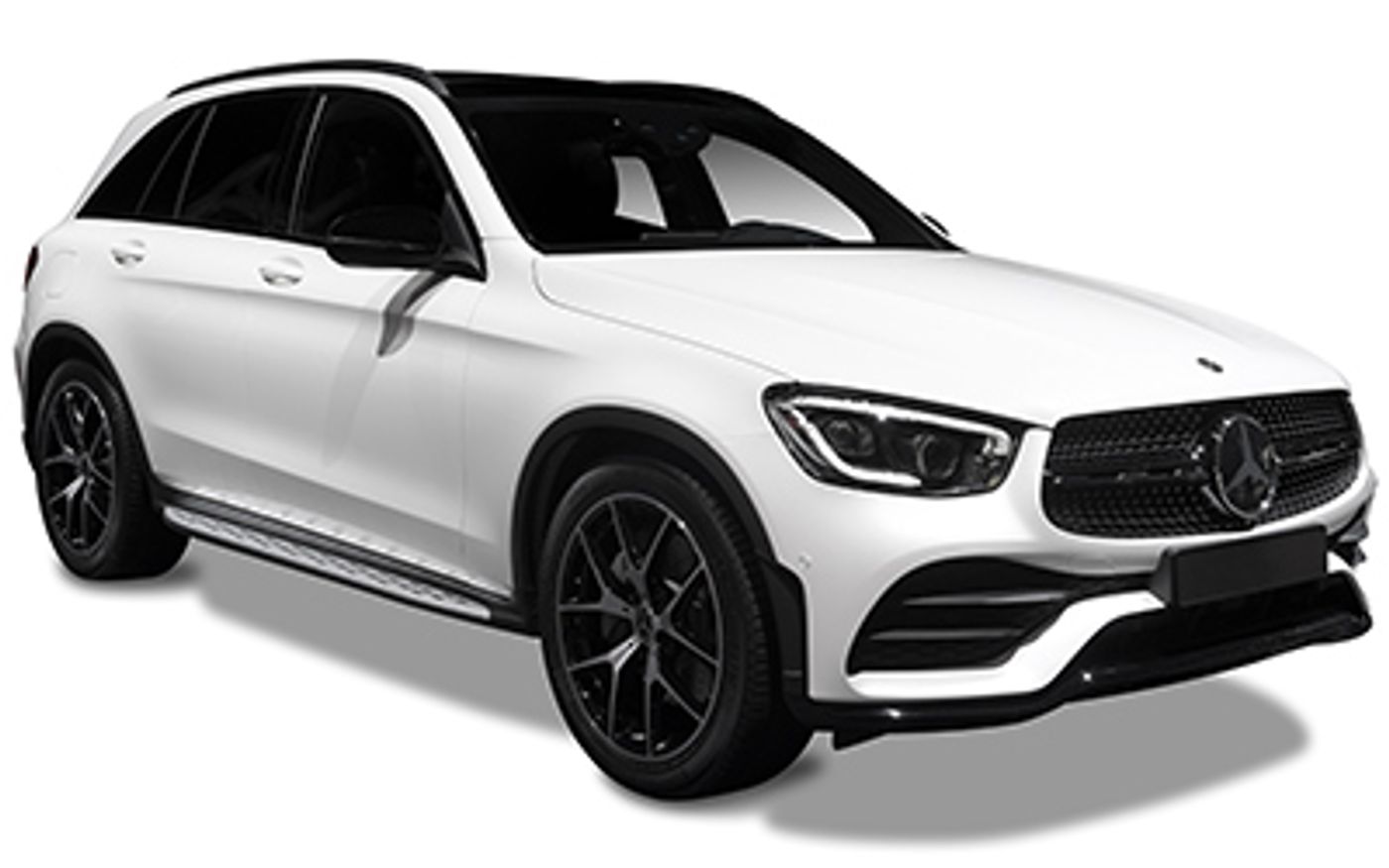

The 2020 Mercedes-Benz GLC-Class Base is a four-wheel drive, 5-door SUV that was released to the Australian market on 3rd January 2020 classified as a X 253. The Mercedes-Benz GLC-Class is regarded as a Suv Medium Luxury built in Germany with prices starting at $83,500 before on-road costs.
This Mercedes-Benz GLC-Class uses a fully electric engine.
The Mercedes-Benz GLC-Class measures 1644mm (64.7 inches) in height, 4658mm (183.4 inches) in length, 1890mm (74.4 inches) in width with a 2873mm (113.1 inches) wheelbase that brings about a total of 2030kg (4475.4 lbs) of unladen weight. The GLC Base comes standard with 255/45 R20 front tyres and 255/45 R20 rear tyres. It requires a service every 12 months or 25,000 km, whichever comes first. It has a 36 month, unlimited km warranty.
The 2020 Mercedes-Benz GLC-Class Base has a 123mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the GLC compare?
Quickly see how the 2020 Mercedes-Benz GLC-Class Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
80.38 - 115.76 kW/t
54.54 kW/t
218.66 kW/t
Boot Space
395 - 550 litres
115 litres
591 litres
Fuel Efficiency
2.6 - 8.1 L/100km
2.2 L/100km
12.2 L/100km
Vehicle Range
815 - 846 km
541 km
1,268 km
Price
$66,100 - $95,800
$40,990
$174,000
Warranty (Years)
3 - 5 years
3 years
5 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
1 - 3 years
1 year
4 years
Service Interval
12 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,305 - 2,615 kg
2,160 kg
2,750 kg
Braked Towing Capacity
2,000 kg
600 kg
2,400 kg
Approach Angle
19.9 - 20.8°
15°
25.6°
Departure Angle
14.1 - 18.6°
14.1°
30.6°
Ground Clearance Unladen
123 - 155 mm
122 mm
236 mm
Battery & Charging
Max. battery kilowatt hour
13.5 kWh
0.2 kWh
13.5 kWh
AC Charging (max kW)
11 kW
3.7 kW
11 kW
Vehicle Range (EV)
43 - 46 km
43 km
51 km
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,658 mm
1,890 mm
1,644 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,658 mm |
| Overall Width | 1,890 mm |
| Overall Height | 1,644 mm |
| Wheelbase | 2,873 mm |
| Turning Circle | 11,800 mm |
| Load Capacity | 585 mm |
Looking for complete Mercedes-Benz GLC-Class size & space specs?
Our Mercedes-Benz GLC-Class Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Mercedes-Benz GLC-Class Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Cruise Control
Adaptive Cruise Control: yes
Stop Go Function: Stop & Go
Driver Modes
Engine Mapping: yes
Steering: yes
Suspension: yes
Media Control
Touch Pad: yes
Touch Screen: yes
Memorised Adjustment
Door Mirror Position: yes
Adjustment Settings: 3
Wheel Position: yes
Mobile Integration
Android Auto: yes
Apple Carplay: yes
Parking Assistance
Location: Rear
Rear Type: Full Auto Park & Perpendicular & Exit
Parking Distance System
Location: Front
Front Type: Sensor & Camera
Location: Rear
Rear Type: Sensor & Camera
Location: Side
Side Type: Sensor & Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Remote HVAC Control
Includes Key: yes
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Type: Automatic
Telematics
Advanced Auto Collision Notification: yes
Connection Type: Via Sim In Vehicle
Tracker System: yes
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
Includes Audio Player: yes
Includes Navigation System: yes
Includes Phone: yes
Compressor
Compressor: Turbo
Number of Compressors: 1
Emission Control Level
CO2 Level (Combined): 59
Standard Met: EU6
Energy Recuperation
Engine: yes
Engine
Bore Engine: 83.0
Engine (cc): 1991
Engine Configuration: In-Line
Engine Code: M 274
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 92.0
Variable Valve Timing Camshaft: yes
Interested in buying a Mercedes-Benz GLC-Class Base?
Save $$$ with CarExpert*
From
$83,500â€
Additional Fuel Types
Premium Unleaded Fuel: Premium Unleaded
Fuel
Generic Primary Fuel Type: Electric
Minimum Fuel Octane Number: 98
Minimum Fuel Type: Premium Unleaded
Other Fuel Type: Premium Unleaded
Fuel Type: Electric
Fuel System
Injection Carburetion: Petrol Direct Injection
Fuel Tanks
Main Capacity Gal: 13.2
Main Capacity (L): 50
Main Capacity Uk Gallons: 11.0
Main Type: Total
Charging Connector
Mode 2 (EVSE) Type: Mode 2 (Evse)
Type 2 (Mennekes) Charging Cable Included: yes
Type 2 (Mennekes) Charging Socket AC 1: yes
Type 2 (Mennekes) Type: Type 2 (Mennekes)
Charging Information
Mode 2 Amps: 10
Mode 2 Duration: 5.00
Mode 2 Max kW Supplied To Vehicle: 2.30
Mode 2 Scenario: Mode 2
Mode 2 State of Charge Ends At (%): 100
Mode 2 State of Charge Starts At (%): 10
Mode 2 Voltage: 230
Mode 3 Duration: 1.50
Mode 3 Max kW Supplied To Vehicle: 11.00
Mode 3 Scenario: Mode 3
Mode 3 State of Charge Ends At (%): 100
Mode 3 State of Charge Starts At (%): 10
Mode 4 Scenario: Mode 4
Electric Motor
Motor 1 Type: Ac Perm Magnet Synchronous
Motor 1 Max Torque Motor (Nm): 440
Motor 1 Number: 1
Motor 1 Power Output (hp/PS): 122.4
Motor 1 Power Output Motor (kW): 90.0
Electric Power Source
Battery Supplier: Other
Battery Type: Lithium Ion
Maximum Battery (kWh): 13.5
Number of kWh Included: 0
Number of Months Subscription Included: 0
Onboard Charger: 7.4
Range (km): 46.00
Range (miles): 28.58
Hybrid Type
Hybrid Type: Active Hybrid
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 10.2
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 12.3
Instrument Cluster
Reconfigurable: yes
Fuel Consumption
ADR 81/02 Combined (L/100km): 2.6
ADR 81/02 Combined (miles per UK gallon): 109
ADR 81/02 Combined (mpg): 90
ADR 81/02 Standard: Adr 81/02
Fuel Economy
ADR 81/02 (L/100km): 2.6
Performance
Acceleration 0 To 100 km/h: 5.7
Max Speed On Electric Power Only (km/h): 130
Maximum Speed (km/h): 230
Maximum Speed (mph): 143
Power
Maximum Power (hp/PS): 320
Maximum Power hp/PS Electric Motor: 122
Maximum Power (kW): 235
Maximum Power kW Electric Motor: 90
Maximum Torque (Nm): 700
Maximum Torque Electric Motor (Nm): 440
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Power Consumption
Combined (km/kWh): 0.2
Combined (kWh/100 miles): 28.6
Combined (kWh/100km): 17.8
Combined (kWh/km): 0.5
Combined (kWh/mile): 0.3
Combined (miles/kWh): 0.3
Combined (Wh/km): 178
Combined (Wh/mile): 286
Secondary Fuel Economy
Combined (km/L): 38.5
Combined (L/100km): 2.6
Combined (mpg): 90
Secondary Power
Maximum Power (hp/PS): 211
Maximum Power (kW): 155
Maximum Torque (Nm): 350
Rpm For Maximum Power Low: 5500
Rpm For Maximum Torque Low: 1200
Drive
Driven Wheels: 4x4
Four-Wheel Drive Type: Full-Time
Transmission
Description: Automatic With Manual Mode
Gear Change Paddles: yes
Manual Mode: yes
Number of Speeds: 9
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 4
Power Steering
Variable Rack: yes
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Alloy & Leather
Responsive Suspension
Driver Selectable: yes
Type: Electronic
Suspension
Location: Front
Front Spring Type: air
Front Stabilizer Bar: yes
Front Type: Multi-Link
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: air
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Suspension Levelling
Location: Front
Front Operation: Automatic
Location: Rear
Tires
Front Wheels Tire Diameter: 19
Front Wheels Tire Load Index: 101
Location: Front
Front Wheels Tire Profile: 45
Front Wheels Tire Run Flat: yes
Front Wheels Tire Speed Rating: W
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 255
Rear Wheels Tire Diameter: 19
Rear Wheels Tire Load Index: 101
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 45
Rear Wheels Tire Run Flat: yes
Rear Wheels Tire Speed Rating: W
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 255
Wheels
Location: Front
Front Wheels Rim Diameter (In): 20
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 8.5
Front Wheels Two Tone: yes
Location: Rear
Rear Rim Diameter (In): 20
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 8.5
Rear Two Tone: yes
Cargo Capacity
Measurement Standard: VDA
Rear Seat Down (cu ft): 51.0
Rear Seat Down (L): 1445
Rear Seat Up to Lower Window (cu ft): 13.9
Rear Seat Up to Lower Window (L): 395
External Dimensions
Kerb to Kerb Turning Circle (mm): 11800
Front Track (in): 63.8
Front Track (mm): 1621
Ground Clearance Unladen (in): 4.8
Ground Clearance Unladen (mm): 123
Kerb To Kerb Turning Circle (ft): 38.7
Overall Height (in): 64.7
Overall Height (mm): 1644
Overall Length (in): 183.4
Overall Length (mm): 4658
Overall Width (in): 74.4
Overall Width (mm): 1890
Rear Track (in): 63.7
Rear Track (mm): 1617
Wheelbase (in): 113.1
Wheelbase (mm): 2873
Internal Dimensions
Front Headroom (in): 39.6
Front Headroom (mm): 1005
Rear Headroom (in): 39.6
Rear Headroom (mm): 1006
Front Hip Room (in): 54.9
Front Hip Room (mm): 1394
Rear Hip Room (in): 49.4
Rear Hip Room (mm): 1256
Rear Leg Room (in): 37.3
Rear Leg Room (mm): 948
Front Shoulder Room (in): 57.3
Front Shoulder Room (mm): 1455
Rear Shoulder Room (in): 56.5
Rear Shoulder Room (mm): 1436
Ramp Angles
Approach Angle: 19.9
Departure Angle: 14.1
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: MRA
Wheelbase Type: Short
Spoiler
Location: Roof
Step
Step Location: Side
Side Step Type: Platform
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Hands Free Release: yes
Type: Lifting Gate
Headlight Control
Active High Beam: yes
Directional Headlights: yes
Dusk Sensor: yes
Fog Light Function: yes
Height Adjustment: Automatic
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: White
Type: Gloss
Sunroof
Front Sunroof Location: Front
Front Sunroof Operation: Remote
Front Sunroof Sliding: yes
Front Sunroof Sunshade: yes
Front Sunroof Tilting: yes
Front Sunroof Type: Glass
Door Mirrors/Cameras
Auto-Dimming Driver Door Mirrors: yes
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 2000
Gross Trailer Weight Braked (lb): 4409
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2615
Gross Vehicle Weight (lb): 5765
Published Kerb Weight (kg): 2030
Published Kerb Weight (lb): 4475
Tare Weight (kg): 2000
Audio System
Colour Screen: yes
Digital Radio: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 5
Subwoofer: yes
Surround Sound: yes
Upgraded Speakers: yes
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Luxury Trim
Centre Floor Console: Wood Or Woodlook
Doors: Wood Or Woodlook
Instrument Panel: Alloy
Airbags
Number of Airbags: 9
Autonomous Drive
Active Lane Control: yes
Level: 2 - Partial Automation
Crash Test Results
ANCAP Date Tested: 20150101
ANCAP Overall: 5.00
ANCAP Pedestrian: Good
ANCAP Rear Crash Protect Head Restraint Rating: Good
ANCAP Standard: Ancap
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Height Adjustable: yes
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Lane Departure Warning
Activates Brakes: yes
Rear Cross Traffic Collision Avoidance
Type: Sensor
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Location: Rear
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Climate Controlled: yes
Driver Front Seat Power Adjustable: yes
Driver Front Seat Fore/Aft Adjustment: yes
Driver Front Seat Height Adjustment: yes
Driver Front Seat Height Type: Electric
Location: Driver
Driver Front Seat Lumbar Type: 2-Way Electric
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining: yes
Driver Front Seat Reclining Type: Electric
Driver Front Seat Thigh Support: yes
Driver Front Seat Tilt Adjustment: yes
Driver Front Seat Tilt Type: Memory
Driver Front Seat Type: Bucket
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Fore/Aft Adjustment: yes
Passenger Front Seat Height Adjustment: yes
Passenger Front Seat Height Type: Electric
Location: Passenger
Passenger Front Seat Lumbar Type: 2-Way Electric
Passenger Front Seat Reach Type: Electric
Passenger Front Seat Reclining: yes
Passenger Front Seat Reclining Type: Electric
Passenger Front Seat Thigh Support: yes
Passenger Front Seat Tilt Adjustment: yes
Passenger Front Seat Tilt Type: Memory
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Synthetic Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Ventilation System
Digital Display: yes
Heater Type: Combustion
Anti-Theft Protection
Anti-Lift: yes
Interior Monitoring: yes
Peripheral: yes
Remote Operation: yes
Power Locks
Includes Power Windows: yes
Operation: Card Key
Intermediate Service
Distance (km): 25000
Distance (miles): 15534
Period (Months): 12
Variable Distance Period: yes
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
