Base
Overview

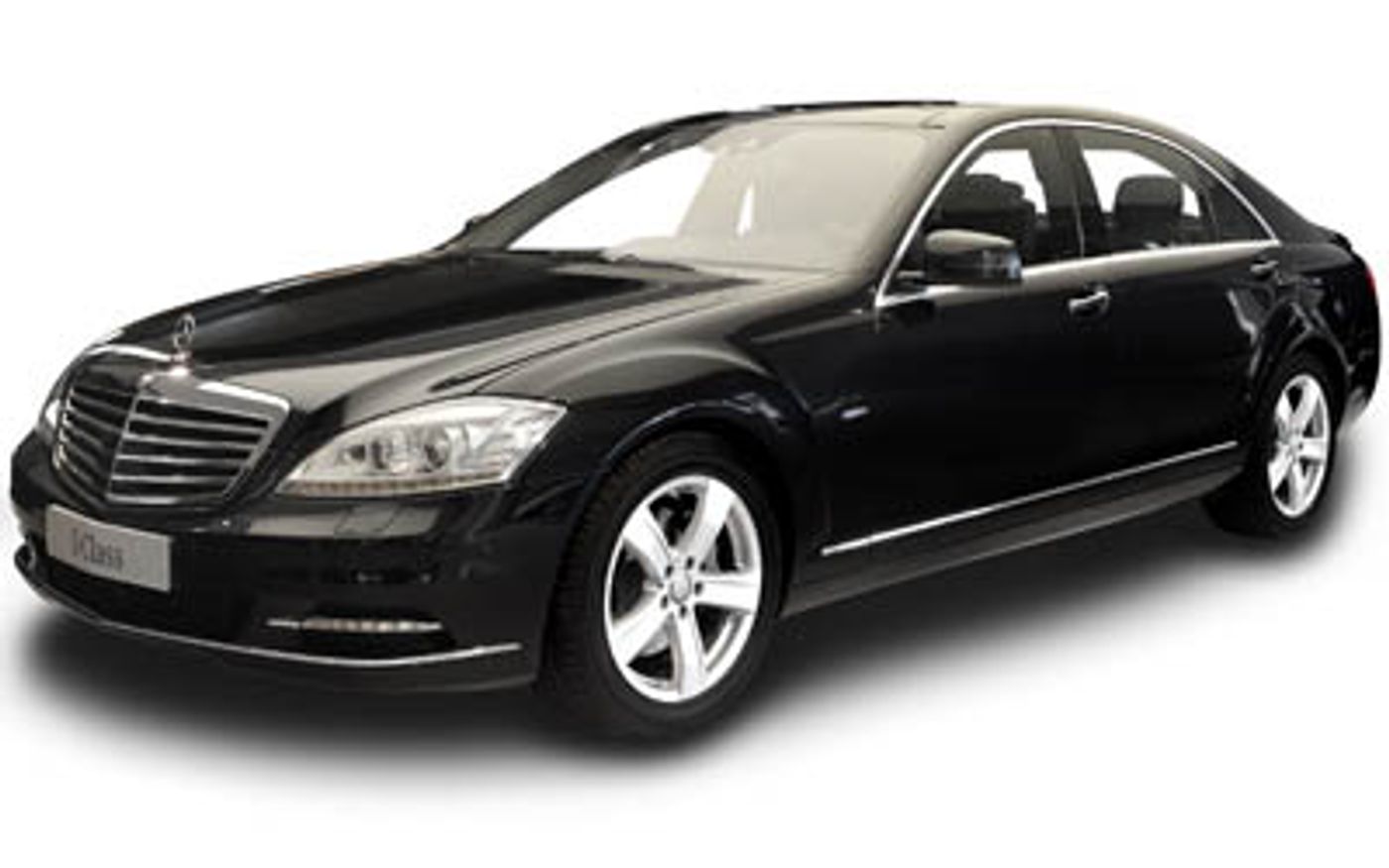

The 2010 Mercedes-Benz S-Class Base is a rear-wheel drive, 4-door Sedan that was released to the Australian market on 2nd October 2009 classified as a W/V221. The Mercedes-Benz S-Class is regarded as a Luxury built in Germany with prices starting at $236,040 before on-road costs.
This Mercedes-Benz S-Class is powered by a 3.5L 6-cylinder engine that has 200 kW of power (at 6000 rpm) and 350 Nm of torque (at 2400 rpm) via a Seven-speed Automatic transmission. Mercedes-Benz claims the S-Class Base uses 9.8L/100km of Premium Unleaded in the combined city and highway cycle while putting out 234g of CO2. It has a 90L fuel tank, meaning it should be able to travel 918km per full tank
The Mercedes-Benz S-Class measures 1473mm (58.0 inches) in height, 5209mm (205.1 inches) in length, 1872mm (73.7 inches) in width with a 3165mm (124.6 inches) wheelbase that brings about a total of 1925kg (4243.9 lbs) of unladen weight. The S-Class Base comes standard with 255/45 R18 front tyres and 255/45 R18 rear tyres. It has a 36 month, unlimited km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the S-Class compare?
Quickly see how the 2010 Mercedes-Benz S-Class Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
88.49 - 204.87 kW/t
88.49 kW/t
204.87 kW/t
Boot Space
560 litres
315 litres
560 litres
Fuel Efficiency
7 - 14.5 L/100km
6.8 L/100km
15.8 L/100km
Vehicle Range
621 - 1,286 km
510 km
1,286 km
Price
$213,428 - $499,200
$158,600
$1,355,000
Warranty (Years)
3 years
3 years
4 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
5 years
2 years
6 years
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,209 mm
1,872 mm
1,473 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,209 mm |
| Overall Width | 1,872 mm |
| Overall Height | 1,473 mm |
| Wheelbase | 3,165 mm |
| Load Capacity | 580 mm |
Looking for complete Mercedes-Benz S-Class size & space specs?
Our Mercedes-Benz S-Class Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Mercedes-Benz S-Class Sales rolling 12-months#
Explore Mercedes-Benz S-Class Features & Specs
Bluetooth
Type: Bluetooth
Cruise Control
Adaptive Cruise Control: yes
Entertainment Display Screen
Digital Television Back of Front Seats: yes
Location: Back Of Front Seats
Back of Front Seats TV: yes
Front Dual-View Screen: yes
Location: Front
Front TV: yes
Memorised Adjustment
Door Mirror Position: yes
Wheel Position: yes
Parking Assistance
Location: Rear
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Front
Location (12V): Rear
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Includes Memory Seat Adjustments: yes
Type: Automatic
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
Includes Audio Player: yes
Includes Navigation System: yes
Includes Phone: yes
Emission Control Level
Australia Air Pollution Rating: 8.5
Australia Greenhouse Rating: 5.5
Australia Overall Emission Control Level Rating: 4.0
CO2 Level (Combined): 234
Standard Met: EU4
Engine
Bore Engine: 92.9
Engine (cc): 3498
Engine Configuration: V
Engine (L): 3.5
Number of Cylinders: 6
Number of Valves per Cylinder: 4
Stroke Engine: 86.0
Valve Gear Type: Double Overhead Cam
Variable Valve Timing Camshaft: yes
Interested in buying a Mercedes-Benz S-Class Base?
Save $$$ with CarExpert*
From
$236,040â€
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 95
Minimum Fuel Type: Premium Unleaded
Fuel Type: Premium Unleaded
Octane Number: 95
Fuel System
Injection Carburetion: Multi-Point Injection
Fuel Tanks
Main Capacity Gal: 23.8
Main Capacity (L): 90
Main Capacity Uk Gallons: 19.8
Main Fuel Type: Premium Unleaded
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Range for Remaining Fuel: yes
Display Screen
Location: ?
Low Tire Pressure Indicator
Displays Pressure Reading: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 918
ADR 81/02 Calculated Vehicle Range (miles): 570
ADR 81/02 Combined (km/L): 10.2
ADR 81/02 Combined (L/100km): 9.8
ADR 81/02 Combined (miles per UK gallon): 29
ADR 81/02 Combined (mpg): 24
ADR 81/02 Country Highway (km/L): 13.7
ADR 81/02 Country Highway (L/100km): 7.3
ADR 81/02 Country Highway (miles per UK gallon): 39
ADR 81/02 Country Highway (mpg): 32
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 7.0
ADR 81/02 Urban (L/100km): 14.3
ADR 81/02 Urban (miles per UK gallon): 20
ADR 81/02 Urban (mpg): 16
Fuel Economy
ADR 81/02 (L/100km): 9.8
Performance
Acceleration 0 To 100 km/h: 7.3
Maximum Speed (km/h): 210
Maximum Speed (mph): 130
Power
Maximum Power (hp/PS): 272
Maximum Power (kW): 200
Maximum Torque (Nm): 350
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 6000
Rpm For Maximum Torque Low: 2400
Drive
Driven Wheels: Rear
Electronic Traction Control
Controlled By: Abs & Engine Management
Transmission
Description: Automatic With Manual Mode
Manual Mode: yes
Number of Speeds: 7
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Variable Rack: yes
Vehicle Speed Proportional: yes
Steering Wheel
Electric Adjustment: yes
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: air
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: air
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Suspension Levelling
Location: Front
Location: Rear
Tires
Location: Front
Front Wheels Tire Low Rolling Resistance: yes
Front Wheels Tire Profile: 45
Front Wheels Tire Speed Rating: Y
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 255
Rear Wheels Tire Location: Rear
Rear Wheels Tire Low Rolling Resistance: yes
Rear Wheels Tire Profile: 45
Rear Wheels Tire Speed Rating: Y
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 255
Wheels
Location: Front
Front Wheels Rim Diameter (In): 18
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 8.5
Location: Rear
Rear Rim Diameter (In): 18
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 8.5
Body Style
Body Type: Sedan
Local Body Type: Sedan
Platform Code: W221
Underbody Protection
Location: Engine
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Cargo Capacity
Rear Seat Up to Lower Window (cu ft): 19.8
Rear Seat Up to Lower Window (L): 560
External Dimensions
Front Track (in): 63.1
Front Track (mm): 1604
Overall Height (in): 58.0
Overall Height (mm): 1473
Overall Length (in): 205.1
Overall Length (mm): 5209
Overall Width (in): 73.7
Overall Width (mm): 1872
Rear Track (in): 63.2
Rear Track (mm): 1606
Wall to Wall Turning Circle (ft): 40.0
Wall to Wall Turning Circle (mm): 12200
Wheelbase (in): 124.6
Wheelbase (mm): 3165
Internal Dimensions
Front Headroom (in): 39.5
Front Headroom (mm): 1004
Rear Headroom (in): 38.7
Rear Headroom (mm): 983
Front Hip Room (in): 60.8
Front Hip Room (mm): 1544
Rear Hip Room (in): 60.9
Rear Hip Room (mm): 1547
Front Shoulder Room (in): 59.1
Front Shoulder Room (mm): 1502
Rear Shoulder Room (in): 58.7
Rear Shoulder Room (mm): 1490
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Headlight Control
Auto Highbeam: yes
Directional Headlights: yes
Dusk Sensor: yes
Internal Height Adjustment: yes
Headlights
Low Beam Bulb Type: Bi-Xenon
LED Lights
Location: Day Time Running Lights
Paint
External Colour: Black
Type: Metallic
Sunroof
Front Sunroof Location: Front
Front Sunroof Operation: Electric
Front to Rear Sunroof Location: Front To Rear
Front to Rear Sunroof Operation: Electric
Front to Rear Sunroof Sliding: yes
Front to Rear Sunroof Type: Glass
Front Sunroof Type: Glass
Blind
Location: Rear
Rear Blind Type: Electric
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Electrically Foldable Mirrors
Operation: Electric
Heat Reflective Glass
Location: ?
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 2100
Gross Trailer Weight Braked (lb): 4630
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2505
Gross Vehicle Weight (lb): 5523
Published Kerb Weight (kg): 1925
Published Kerb Weight (lb): 4244
Audio System
Brand Name: Harman/Kardon
CD Player Reads MP3: yes
Digital Media Card: yes
Disc Autochanger: yes
Autochanger Disc Capacity: 6
Radio Type: Am/Fm
Disc Player
Dashboard Capacity: 6
Location: Dashboard
Dashboard Media Type: DVD
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 14
Luxury Trim
Centre Floor Console: Wood Or Woodlook
Doors: Wood Or Woodlook
Instrument Panel: Wood Or Woodlook
Crash Test Results
ANCAP Overall: 5.0
ANCAP Standard: Ancap
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Active: yes
Front Seats Electric Adjustable: yes
Front Seats Location: Front Seats
Front Seats Neck Support: yes
Rear Seats Electric Adjustable: yes
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Rear Seat Belts
Center Operation: Reel
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Location: Rear
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Adjustment: yes
Driver Front Seat Height Type: Memory
Location: Driver
Driver Front Seat Lumbar Adjustment: yes
Driver Front Seat Lumbar Type: Memory
Driver Front Seat Number of Electrical Adjustments: 6
Driver Front Seat Reach Type: Memory
Driver Front Seat Reclining Type: Memory
Driver Front Seat Type: Bucket
Driver Front Seat Ventilated: yes
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Heated: yes
Passenger Front Seat Height Adjustment: yes
Passenger Front Seat Height Type: Memory
Location: Passenger
Passenger Front Seat Lumbar Adjustment: yes
Passenger Front Seat Lumbar Type: Memory
Passenger Front Seat Number of Electrical Adjustments: 6
Passenger Front Seat Reach Type: Memory
Passenger Front Seat Reclining Type: Memory
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Leather
Main Seat Material: Leather
Seating
Capacity: 4
Configuration: 2+2
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 4
Fully Automated Climate Control: yes
Secondary Ventilation Controls
Individual Rear Location: Individual Rear
Passenger Seat Location: Passenger Seat
Rear Seats Digital Display: yes
Rear Seats Location: Rear Seats
Ventilation System
Digital Display: yes
Anti-Theft Protection
Anti-Lift: yes
Interior Monitoring: yes
Peripheral: yes
Remote Operation: yes
Power Locks
Operation: Card Key
Intermediate Service
Variable Distance Period: yes
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
