Base
Overview

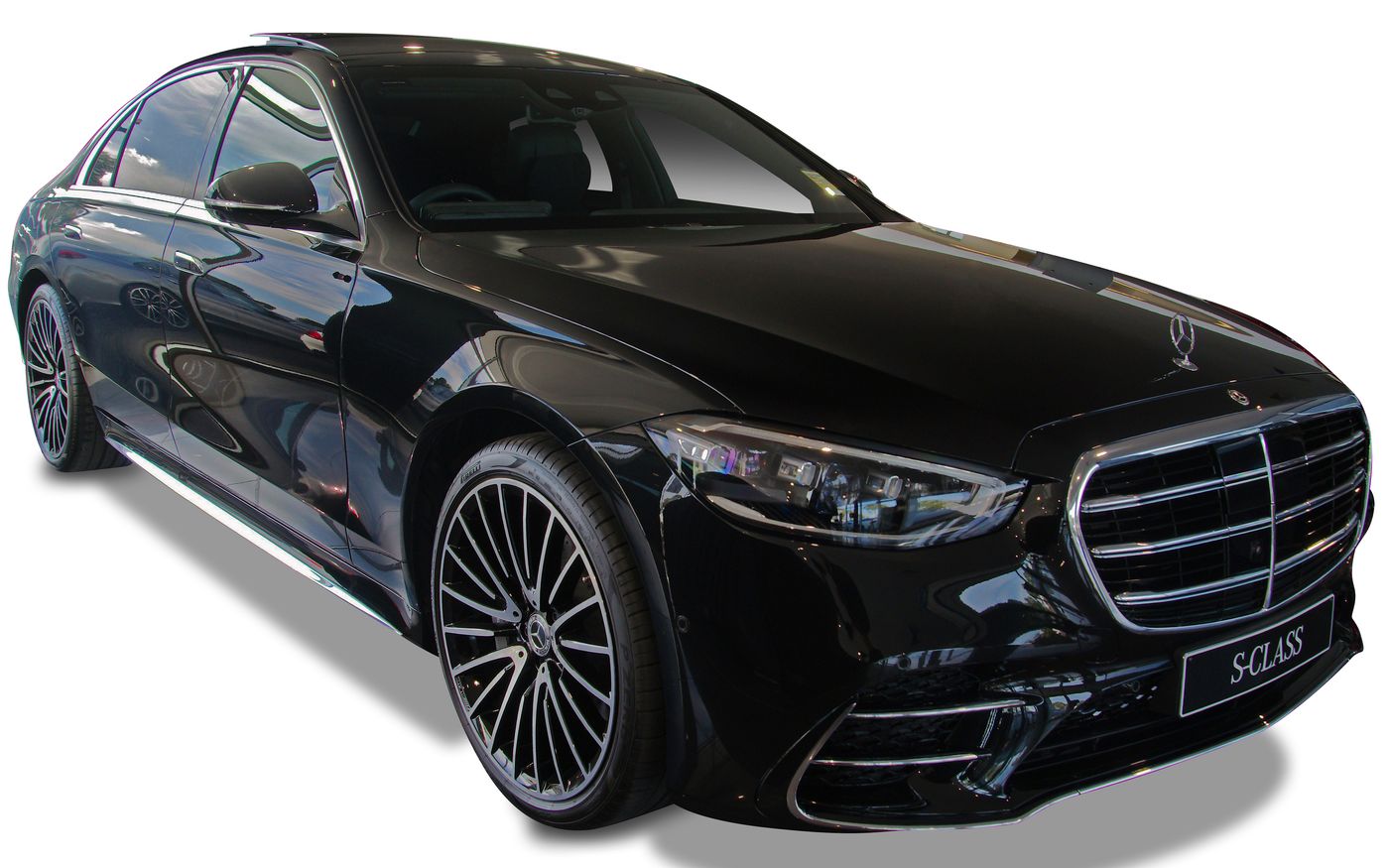

The 2023 Mercedes-Benz S-Class Base is a four-wheel drive, 4-door Sedan that was released to the Australian market on 6th July 2023 classified as a V223. The Mercedes-Benz S-Class is regarded as a Luxury built in Germany with prices starting at $332,760 before on-road costs.
This Mercedes-Benz S-Class is powered by a 4.0L 8-cylinder engine that has 370 kW of power (at 5500 rpm) and 700 Nm of torque (at 2000 rpm) via a Nine-speed Automatic transmission. Mercedes-Benz claims the S-Class Base uses 10.5L/100km of Premium Unleaded in the combined city and highway cycle while putting out 239g of CO2. It has a 76L fuel tank, meaning it should be able to travel 724km per full tank
The Mercedes-Benz S-Class measures 1503mm (59.2 inches) in height, 5289mm (208.2 inches) in length, 1954mm (76.9 inches) in width with a 3216mm (126.6 inches) wheelbase that brings about a total of 2115kg (4662.8 lbs) of unladen weight. The S-Class Base comes standard with 255/35 R20 front tyres and 285/35 R20 rear tyres. It requires a service every 12 months or 25,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
The 2023 Mercedes-Benz S-Class Base has a 130mm ground clearance with a 2100kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the S-Class compare?
Quickly see how the 2023 Mercedes-Benz S-Class Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
125.64 - 174.94 kW/t
99.06 kW/t
244.01 kW/t
Boot Space
535 - 540 litres
351 litres
610 litres
Fuel Efficiency
8.2 - 10.5 L/100km
2.5 L/100km
14 L/100km
Vehicle Range
724 - 927 km
559 km
3,077 km
Price
$242,361 - $334,290
$155,000
$670,500
Warranty (Years)
5 years
3 years
5 years
Warranty (Distance)
Unlimited
Unlimited
Years on Sale
5 years
2 years
6 years
Service Interval
12 months
12 months
24 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,795 - 2,820 kg
2,390 kg
3,250 kg
Braked Towing Capacity
2,100 kg
750 kg
2,300 kg
Ground Clearance Unladen
130 mm
124 mm
147 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,289 mm
1,954 mm
inc mirror: 2,109 mm
inc mirror: 2,109 mm
1,503 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,289 mm |
| Overall Width | 1,954 mm |
| Overall Width (Inc Mirror) | 2,109 mm |
| Overall Height | 1,503 mm |
| Wheelbase | 3,216 mm |
| Turning Circle | 12,800 mm |
| Load Capacity | 705 mm |
Looking for complete Mercedes-Benz S-Class size & space specs?
Our Mercedes-Benz S-Class Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Mercedes-Benz S-Class Sales rolling 12-months#
Explore Mercedes-Benz S-Class Features & Specs
Automatic Door Closing
Rear Boot Hatch: yes
Side Doors: yes
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Cruise Control
Adaptive Cruise Control: yes
Stop Go Function: Stop & Go
Driver Modes
Engine Mapping: yes
Suspension: yes
Entertainment Display Screen
Front Digital Television: yes
Location: Front
Front Screen Size (in): 12.80
Front Touch Screen: yes
Illuminated Entry System
Logo Projection: yes
Memorised Adjustment
Door Mirror Position: yes
Wheel Position: yes
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: Unlimited
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Mirrorlink Months Subscription Included: 0
Other Months Subscription Included: 0
Parking Assistance
Rear Automatic Braking Whilst: yes
Location: Rear
Rear Type: Full Auto Park & Perpendicular & Exit
Parking Distance System
Location: Front
Front Type: Sensor & Camera
Location: Rear
Rear Type: Sensor & Camera
Location: Side
Side Type: Sensor & Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Location (12V): Rear
Remote HVAC Control
Includes Key: yes
Remote Services
Beep Flash: yes
Find My Car: yes
Geo Fencing: yes
Months Subscription Included: 36
Remote Lock Unlock: yes
Send Destination To Car: yes
Speed Alert: yes
Theft Alert: yes
Vehicle Start: yes
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Includes Memory Seat Adjustments: yes
Telematics
Advanced Auto Collision Notification: yes
Breakdown Assistance: yes
Concierge Months Included: 0
Connection Type: Via Sim In Vehicle
Tracker System: yes
USB Charging Port
Location: Front
Location: Rear
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
Includes Air Conditioning: yes
Includes Audio Player: yes
Includes Navigation System: yes
Includes Phone: yes
Virtual Assistant: Other
Compressor
Compressor: Turbo
Number of Compressors: 2
Electrical System
Voltage: 48
Emission Control Level
CO2 Level (Country Highway): 178
CO2 Level (Combined): 239
CO2 Level (Urban): 341
Standard Met: EU6
Energy Recuperation
Engine: yes
Engine
Bore Engine: 83.0
Engine (cc): 3982
Engine Configuration: V
Engine Code: M176
Engine (L): 4.0
Number of Cylinders: 8
Stroke Engine: 92.0
Interested in buying a Mercedes-Benz S-Class Base?
Save $$$ with CarExpert*
From
$332,760â€
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 95
Minimum Fuel Type: Premium Unleaded
Fuel Type: Premium Unleaded
Octane Number: 95
Fuel System
Injection Carburetion: Petrol Direct Injection
Fuel Tanks
Main Capacity Gal: 20.1
Main Capacity (L): 76
Main Capacity Uk Gallons: 16.7
Main Type: Total
Electric Motor
Motor 1 Type: Integrated Starter Generator
Motor 1 Number: 1
Motor 1 Power Output (hp/PS): 20.4
Motor 1 Power Output Motor (kW): 15.0
Electric Power Source
Battery Type: Lithium Ion
Battery Voltage: 48
Number of kWh Included: 0
Number of Months Subscription Included: 0
Hybrid Type
Hybrid Type: Mild Hybrid
Computer
Average Fuel Consumption: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Orientation: Fixed
Dashboard Centre 1 Screen Size (in): 12.80
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 12.30
Instrument Cluster 1 Screen Touchpad Control: yes
Instrument Cluster
Head Up Display: Windscreen
HUD Including Augmented Reality: yes
Reconfigurable: yes
Low Tire Pressure Indicator
Displays Pressure Reading: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 724
ADR 81/02 Calculated Vehicle Range (miles): 450
ADR 81/02 Combined (km/L): 9.5
ADR 81/02 Combined (L/100km): 10.5
ADR 81/02 Combined (miles per UK gallon): 27
ADR 81/02 Combined (mpg): 22
ADR 81/02 Country Highway (km/L): 12.7
ADR 81/02 Country Highway (L/100km): 7.9
ADR 81/02 Country Highway (miles per UK gallon): 36
ADR 81/02 Country Highway (mpg): 30
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 6.7
ADR 81/02 Urban (L/100km): 15.0
ADR 81/02 Urban (miles per UK gallon): 19
ADR 81/02 Urban (mpg): 16
Fuel Economy
ADR 81/02 (L/100km): 10.5
Performance
Acceleration 0 To 100 km/h: 4.4
Maximum Speed (km/h): 250
Maximum Speed (mph): 155
Power
Maximum Power (hp/PS): 503
Maximum Power hp/PS Electric Motor: 20
Maximum Power (kW): 370
Maximum Power kW Electric Motor: 15
Maximum Torque (Nm): 700
Maximum Torque Electric Motor (Nm): 200
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 5500
Rpm For Maximum Torque Low: 2000
Secondary Power
Maximum Power (hp/PS): 503
Maximum Power (kW): 370
Maximum Torque (Nm): 700
Rpm For Maximum Power Low: 5500
Rpm For Maximum Torque Low: 2000
Drive
Driven Wheels: 4x4
Four-Wheel Drive Type: Full-Time
Limited Slip Differential
Location: Rear
Rear Type: Electronic
Transmission
Code: W9a 700
Description: Automatic With Manual Mode
Gear Change Paddles: yes
Manual Mode: yes
Number of Speeds: 9
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 4
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Electric Adjustment: yes
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Alloy & Leather
Responsive Suspension
Driver Selectable: yes
Type: Electronic
Suspension
Location: Front
Front Spring Type: air
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: air
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Suspension Levelling
Location: Front
Front Operation: Automatic
Location: Rear
Rear Operation: Automatic
Tires
Location: Front
Front Wheels Tire Profile: 40
Front Wheels Tire Run Flat: yes
Front Wheels Tire Speed Rating: Y
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 255
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 35
Rear Wheels Tire Run Flat: yes
Rear Wheels Tire Speed Rating: Y
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 285
Wheels
Location: Front
Front Wheels Rim Diameter (In): 20
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 9.0
Location: Rear
Rear Rim Diameter (In): 20
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 10.0
Body Style
Body Type: Sedan
Local Body Type: Sedan
Wheelbase Type: Long
Cargo Capacity
Frunk Capacity (cu ft): 0.0
Frunk Capacity (L): 0
Measurement Standard: ISO
Rear Seat Up to Lower Window (cu ft): 18.9
Rear Seat Up to Lower Window (L): 535
External Dimensions
Kerb to Kerb Turning Circle (mm): 12800
Front Track (in): 65.2
Front Track (mm): 1655
Ground Clearance Unladen (in): 5.1
Ground Clearance Unladen (mm): 130
Kerb To Kerb Turning Circle (ft): 42.0
Overall Height (in): 59.2
Overall Height (mm): 1503
Overall Length (in): 208.2
Overall Length (mm): 5289
Overall Width (in): 76.9
Overall Width Inc Mirror (in): 83.0
Overall Width Inc Mirror (mm): 2109
Overall Width (mm): 1954
Rear Track (in): 66.3
Rear Track (mm): 1683
Wheelbase (in): 126.6
Wheelbase (mm): 3216
Internal Dimensions
Front Headroom (in): 39.7
Front Headroom (mm): 1009
Rear Headroom (in): 39.7
Rear Headroom (mm): 1009
Front Hip Room (in): 62.7
Front Hip Room (mm): 1592
Rear Hip Room (in): 62.7
Rear Hip Room (mm): 1592
Front Shoulder Room (in): 59.7
Front Shoulder Room (mm): 1516
Rear Shoulder Room (in): 57.8
Rear Shoulder Room (mm): 1469
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Exterior Door Handles
Flush Handles: Electric
Headlight Control
Active High Beam: yes
Digital Matrix: yes
Directional Headlights: yes
Dusk Sensor: yes
Fog Light Function: yes
Height Adjustment: Automatic
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
Type: Metallic
Sunroof
Front Sunroof Location: Front
Front Sunroof Operation: Remote
Front Sunroof Type: Glass
Blind
Location: Side
Side Blind Type: Electric
Door Mirrors/Cameras
Auto-Dimming Driver Door Mirrors: yes
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors Tilting for Reverse: Automatic
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 2100
Gross Trailer Weight Braked (lb): 4630
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2820
Gross Vehicle Weight (lb): 6217
Published Kerb Weight (kg): 2115
Published Kerb Weight (lb): 4663
Tare Weight (kg): 2066
Audio System
Colour Screen: yes
Digital Radio: yes
Radio Type: Am/Fm
System Power (W): 710
Touch Screen: yes
Audio Zones
Number of Zones: 2
External Connections
USB (Front): yes
USB (Rear): yes
Total Front USB Connections: 2
Total Rear USB Connections: 2
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Brand: Burmester
Number of Speakers: 15
Subwoofer: yes
Door Sill Protector
Illuminated: yes
Luxury Trim
Centre Floor Console: Piano Black
Doors: Wood Or Woodlook
Instrument Panel: Wood & Synthetic Leather
Active Seatback
Location: Front
Autonomous Drive
Active Lane Control: yes
Lane Changing: yes
Level: 2 - Partial Automation
Traffic Jam Assist: yes
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Active: yes
Front Seats Electric Adjustable: yes
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Lane Departure Warning
Activates Brakes: yes
Activates Steering: yes
Overtaking Sensor
Active Without Turn Signal: yes
Buzzer: yes
Manufacturer Code: 234
Rear Cross Traffic Collision Avoidance
Type: Sensor
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Location: Rear
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Active Massage: yes
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Memory
Location: Driver
Driver Front Seat Lumbar Type: 2-Way Memory
Driver Front Seat Number of Electrical Adjustments: 9
Driver Front Seat Reach Type: Memory
Driver Front Seat Reclining Type: Memory
Driver Front Seat Thigh Support Type: Memory
Driver Front Seat Type: Bucket
Driver Front Seat Ventilated: yes
Passenger Front Seat Active Massage: yes
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Heated: yes
Passenger Front Seat Height Type: Memory
Location: Passenger
Passenger Front Seat Lumbar Type: 2-Way Memory
Passenger Front Seat Number of Electrical Adjustments: 7
Passenger Front Seat Reach Type: Memory
Passenger Front Seat Rear Passenger Control: yes
Passenger Front Seat Reclining Type: Memory
Passenger Front Seat Thigh Support Type: Memory
Passenger Front Seat Type: Bucket
Passenger Front Seat Ventilated: yes
Seat Upholstery
Additional Seat Material: Premium Leather
Main Seat Material: Premium Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 3
Rear Control For Climate Control: yes
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Rear Seats Location: Rear Seats
Ventilation System
Digital Display: yes
Engine Heater: yes
Touch Screen Controls: yes
Power Locks
Includes Power Windows: yes
Operation: Card Key
Intermediate Service
Distance (km): 25000
Distance (miles): 15534
Period (Months): 12
Variable Distance Period: yes
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
