Base
2.2L, 5-speed manual, 4-door Panel Van, Diesel, RWD
Save $$$ with CarExpert*
$43,547â€
Base
Overview

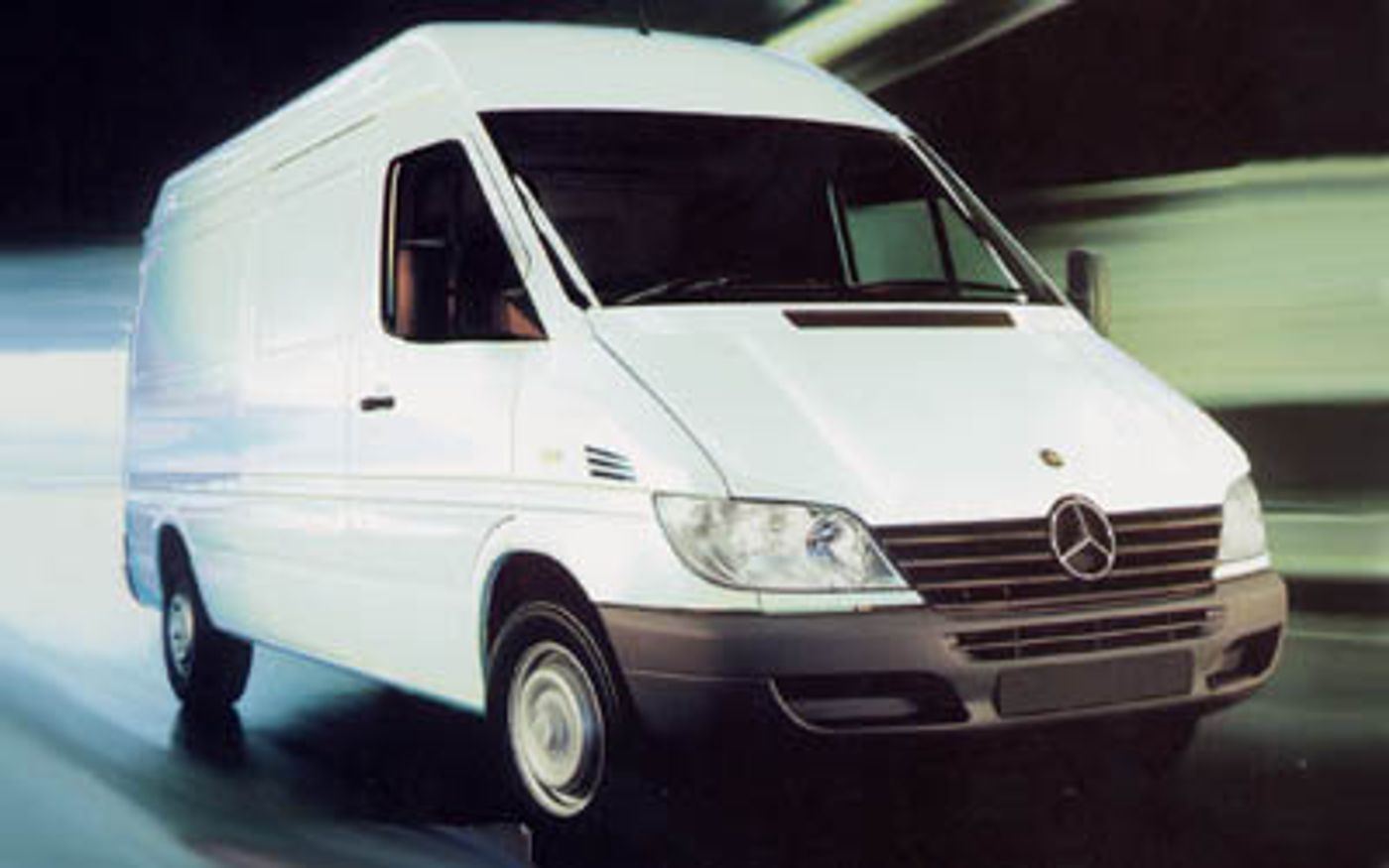

The 2001 Mercedes-Benz Sprinter Base is a rear-wheel drive, 4-door Panel Van that was released to the Australian market on 4th January 1970. The Mercedes-Benz Sprinter is regarded as a Van Over 3.5t built in Germany with prices starting at $43,547 before on-road costs.
This Mercedes-Benz Sprinter is powered by a 2.2L 4-cylinder engine that has 95 kW of power (at 3800 rpm) and 300 Nm of torque (at 1600 rpm) via a Five-speed Manual transmission. It has a 75L fuel tank
The Mercedes-Benz Sprinter measures 2570mm (101.2 inches) in height, 6590mm (259.4 inches) in length, 1933mm (76.1 inches) in width with a 4025mm (158.5 inches) wheelbase that brings about a total of 2045kg (4508.4 lbs) of unladen weight. The Sprinter Base comes standard with 225/70 R15 front tyres and 225/70 R15 rear tyres. It has a 36 month, 100,000 km warranty.
The 2001 Mercedes-Benz Sprinter Base has a 189mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Sprinter compare?
Quickly see how the 2001 Mercedes-Benz Sprinter Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
29.34 - 58.43 kW/t
29.34 kW/t
71.81 kW/t
Price
$32,808 - $51,985
$28,400
$51,985
Warranty (Years)
3 years
3 years
Warranty (Distance)
100,000 km
100,000 km
Years on Sale
2 - 8 years
1 year
5 years
Towing & Off-Road Capability
Gross Vehicle Weight
3,550 - 5,990 kg
2,880 kg
5,990 kg
Braked Towing Capacity
2,000 kg
2,000 kg
2,500 kg
Ground Clearance Unladen
172 - 189 mm
172 mm
189 mm
Payload Capacity
1,505 - 3,728 kg
1,268 kg
3,728 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
6,590 mm
1,933 mm
2,570 mm
| Specification | Measurement |
|---|---|
| Overall Length | 6,590 mm |
| Overall Width | 1,933 mm |
| Overall Height | 2,570 mm |
| Wheelbase | 4,025 mm |
| Turning Circle | 14,300 mm |
| Load Capacity | 1,505 mm |
Looking for complete Mercedes-Benz Sprinter size & space specs?
Our Mercedes-Benz Sprinter Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Mercedes-Benz Sprinter Sales rolling 12-months#
Explore Mercedes-Benz Sprinter Features & Specs
Compressor
Compressor: Turbo
Engine
Bore Engine: 88
Engine (cc): 2150
Compression Ratio: 18
Engine Configuration: In-Line
Engine (L): 2.2
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 88.4
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 19.8
Main Capacity (L): 75
Main Fuel Type: Diesel
Main Type: Total
Interested in buying a Mercedes-Benz Sprinter Base?
Save $$$ with CarExpert*
From
$43,547â€
Water Temperature
Type: Gauge
Power
Maximum Power (hp/PS): 129
Maximum Power (kW): 95
Maximum Torque (Nm): 300
Measurement Standard: EEC
Rpm For Maximum Power Low: 3800
Rpm For Maximum Torque Low: 1600
Drive
Driven Wheels: Rear
Transmission
Number of Speeds: 5
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Suspension
Location: Front
Front Spring Type: Leaf
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Stabilizer Bar: yes
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Location: Front
Front Wheels Tire Profile: 70
Front Wheels Tire Width: 225
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 70
Rear Wheels Tire Width: 225
Wheels
Location: Front
Front Wheels Rim Diameter (In): 15
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6
Location: Rear
Rear Rim Diameter (In): 15
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6
Body Style
Body Type: Panel Van
Cab Type: Single Cab
Driver Location: RHD
Local Body Type: Panel Van
Roof Type: High
Wheelbase Type: Long
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Step
Step Location: Rear
Bumpers
Front Bumper Colour: Black
Location: Front
Front Bumper Material: Plastic
Rear Bumper Colour: Black
Location: Rear
Rear Bumper Material: Plastic
Cargo Area Dimensions
Cargo Volume (cu ft): 473.2
Cargo Volume (L): 13400
Height (in): 73
Height (mm): 1736
Length (in): 165.9
Length (mm): 4215
Loading Floor Height (in): 25.7
Loading Floor Height (mm): 653
Standard Measurement: VDA
Width Between Wheelhouses (in): 50
Width Between Wheelhouses (mm): 1270
Width (in): 68.3
Width (mm): 1736
External Dimensions
Kerb to Kerb Turning Circle (mm): 14300
Front Overhang (in): 37
Front Overhang (mm): 939
Front Track (in): 65
Front Track (mm): 1652
Ground Clearance Unladen (in): 7.4
Ground Clearance Unladen (mm): 189
Kerb To Kerb Turning Circle (ft): 46.9
Overall Height (in): 101.2
Overall Height (mm): 2570
Overall Length (in): 259.4
Overall Length (mm): 6590
Overall Width (in): 76.1
Overall Width (mm): 1933
Rear Overhang (in): 64
Rear Overhang (mm): 1625
Rear Track (in): 64.8
Rear Track (mm): 1646
Wheelbase (in): 158.5
Wheelbase (mm): 4025
Cargo Doors
Passenger Height (in): 59.8
Passenger Height (mm): 1520
Passenger Internal Handles: yes
Location: Passenger
Passenger Opening Angle: 0
Passenger Operation: Sliding
Passenger Width (in): 41.1
Passenger Width (mm): 1045
Rear Height (in): 69.9
Rear Height (mm): 1775
Rear Internal Handles: yes
Location: Rear
Rear Opening Angle: 180
Rear Operation: Double Hinged
Rear Width (in): 61.4
Rear Width (mm): 1560
Headlight Control
Internal Height Adjustment: yes
Headlights
Low Beam Bulb Type: Halogen
Lens Type: Conventional
Paint
Type: Gloss
Door Mirrors/Cameras
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Externally Adjustable
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Externally Adjustable
Windshield Wipers
Intermittent Wipe Windshield Wipers: Fixed
Weights
Front Axle Weight (kg): 1600
Front Axle Weight (lb): 3527
Gross Trailer Weight Braked (kg): 2000
Gross Trailer Weight Braked (lb): 4409
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 3550
Gross Vehicle Weight (lb): 7826
Payload Allowance (kg): 1505
Payload Allowance (lb): 3318
Published Kerb Weight (kg): 2045
Published Kerb Weight (lb): 4508
Rear Axle Weight (kg): 2240
Rear Axle Weight (lb): 4938
Audio Anti-Theft Protection
Type: Code
Audio System
Cassette Player: yes
Radio Type: Am/Fm
Speakers
Number of Speakers: 2
Ashtray
Location: Front
Cigar Lighter
Location: Front Seats
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Front Seat Belts
Center Operation: Reel
Center Seat Position: Center
Center Type: 3-Point
Driver Height Adjustable: yes
Driver Operation: Reel
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Height Adjustable: yes
Passenger Operation: Reel
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Head Restraints
Front Seats Height Adjustable: yes
Front Seats Location: Front Seats
Front Seats Number: 2
Front Seat
Location: Centre
Center Front Seat Type: Bench
Driver Front Seat Height Adjustment: yes
Location: Driver
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Type: Bucket
Seat Upholstery
Main Seat Material: Cloth
Seating
Capacity: 2
Configuration: 2+0
Cup Holders
Location: Front Seats
Front Seats Type: Fixed
Door Pockets Bins
Location: Driver
Location: Passenger
Glove Compartment
Lid: yes
