Base
Overview

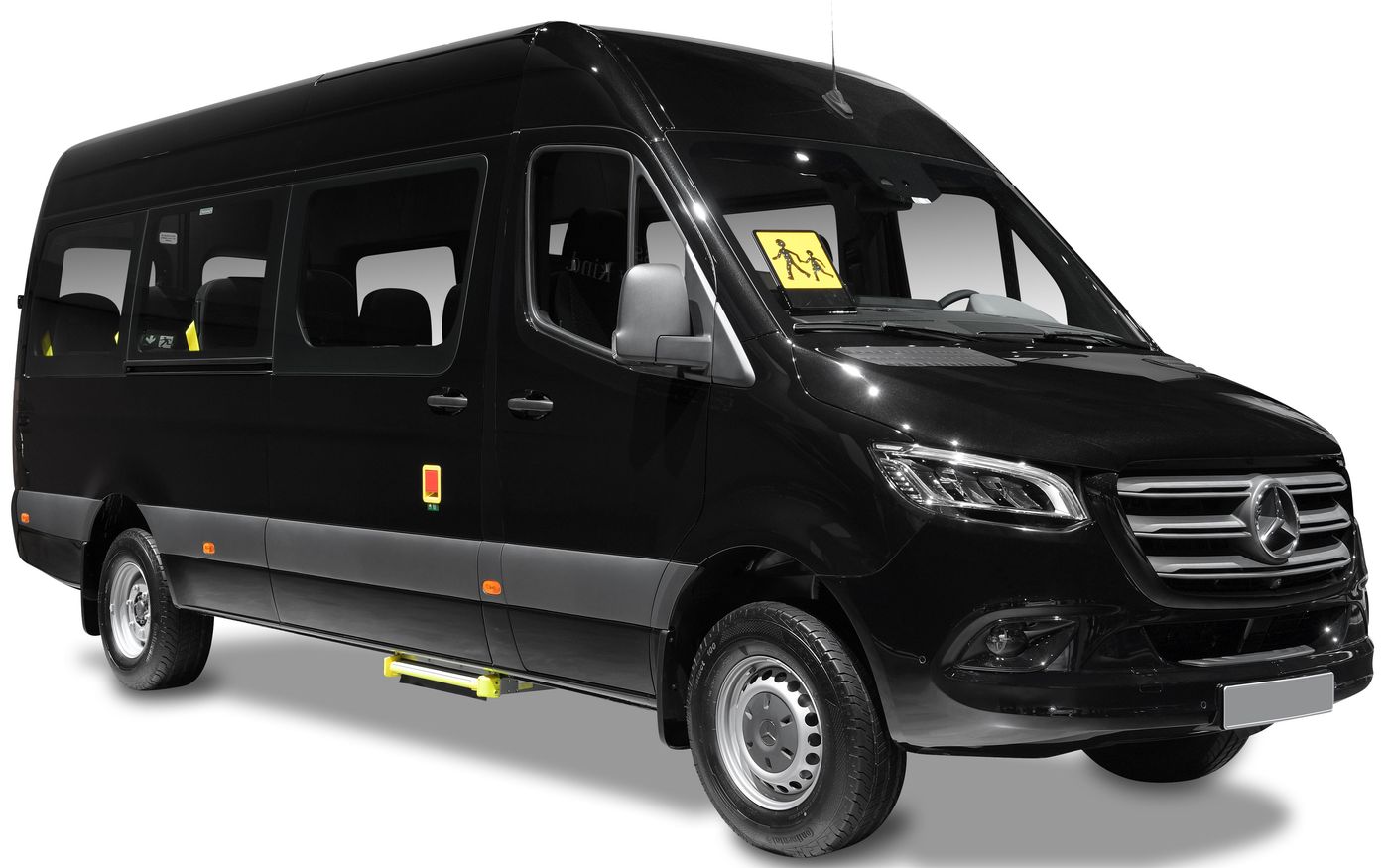

The 2023 Mercedes-Benz Sprinter Base is a rear-wheel drive, 4-door Bus that was released to the Australian market on 2nd November 2022 classified as a Vs30. The Mercedes-Benz Sprinter is regarded as an Omnibus built in Germany with prices starting at $106,600 before on-road costs.
This Mercedes-Benz Sprinter is powered by a 2.0L 4-cylinder engine that has 125 kW of power (at 3800 rpm) and 360 Nm of torque (at 1700 rpm) via a Nine-speed Automatic transmission. It has a 71L fuel tank
The Mercedes-Benz Sprinter measures 2867mm (112.9 inches) in height, 5932mm (233.5 inches) in length, 2020mm (79.5 inches) in width with a 3665mm (144.3 inches) wheelbase that brings about a total of 2663kg (5870.9 lbs) of unladen weight. The Sprinter Base comes standard with 235/65 R16 front tyres and 235/65 R16 rear tyres. It requires a service every 24 months or 40,000 km, whichever comes first. It has a 60 month, 250,000 km warranty.
The 2023 Mercedes-Benz Sprinter Base has a 163mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Sprinter compare?
Quickly see how the 2023 Mercedes-Benz Sprinter Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
38.22 - 59.78 kW/t
38.22 kW/t
71.77 kW/t
Price
$65,839 - $95,553
$49,700
$118,836
Warranty (Years)
3 - 5 years
3 years
5 years
Warranty (Distance)
200,000 - 250,000 km
160,000 km
Unlimited
Years on Sale
2 - 8 years
1 year
5 years
Service Interval
24 months
12 months
24 months
Towing & Off-Road Capability
Gross Vehicle Weight
3,550 - 5,000 kg
3,500 kg
5,500 kg
Gross Comb. Mass
5,500 - 7,000 kg
4,250 kg
7,000 kg
Braked Towing Capacity
2,000 - 3,500 kg
1,200 kg
3,500 kg
Ground Clearance Unladen
143 - 188 mm
143 mm
231 mm
Payload Capacity
1,124 - 2,909 kg
911 kg
3,523 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,932 mm
2,020 mm
2,867 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,932 mm |
| Overall Width | 2,020 mm |
| Overall Height | 2,867 mm |
| Wheelbase | 3,665 mm |
| Load Capacity | 1,437 mm |
Looking for complete Mercedes-Benz Sprinter size & space specs?
Our Mercedes-Benz Sprinter Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Mercedes-Benz Sprinter Sales rolling 12-months#
Explore Mercedes-Benz Sprinter Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Cruise Control
Adaptive Cruise Control: yes
Stop Go Function: Stop & Go
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: Unlimited
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Mirrorlink Months Subscription Included: 0
Other Months Subscription Included: 0
Parking Assistance
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Front
Front Type: Sensor & Camera
Location: Rear
Rear Type: Camera
Location: Side
Side Type: Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Smart Card/Smart Key
Includes Keyless Start: yes
USB Charging Port
Location: Front
Number of Ports in Front: 2
Voice Activating System
Virtual Assistant: Other
Compressor
Compressor: Turbo
Number of Compressors: 1
Electrical System
Voltage: 12
Emission Control Level
Standard Met: EU6
Engine
Bore Engine: 82.0
Engine (cc): 1950
Engine Configuration: In-Line
Engine Code: Om 654
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 92.3
Interested in buying a Mercedes-Benz Sprinter Base?
Save $$$ with CarExpert*
From
$106,600â€
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 18.8
Main Capacity (L): 71
Main Capacity Uk Gallons: 15.6
Main Type: Total
Computer
Average Fuel Consumption: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Orientation: Fixed
Dashboard Centre 1 Screen Size (in): 7.00
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 5.50
Fuel Consumption
ADR 81/02 Standard: Adr 81/02
Power
Maximum Power (hp/PS): 170
Maximum Power (kW): 125
Maximum Torque (Nm): 360
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3800
Rpm For Maximum Torque Low: 1700
Drive
Driven Wheels: Rear
Transmission
Description: Automatic
Number of Speeds: 9
Shift Lever Location: Column
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Leaf
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Stabilizer Bar: yes
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 115
Location: Front
Front Wheels Tire Profile: 65
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 235
Rear Wheels Tire Load Index: 115
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 65
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 235
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 6.5
Location: 1
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 6.5
Body Style
Body Type: bus
Local Body Type: bus
Roof Type: High
Wheelbase Type: Medium
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Step
Step Location: Rear
Rear Step Type: Platform
Step Location: Side
Bumpers
Front Bumper Colour: Black
Location: Front
Rear Bumper Colour: Black
Location: Rear
Cargo Area Dimensions
Cargo Volume (cu ft): 370.8
Cargo Volume (L): 10500
Height (in): 79.1
Height (mm): 1787
Loading Floor Height (in): 24.7
Loading Floor Height (mm): 628
Standard Measurement: VDA
Width Between Wheelhouses (in): 55.6
Width Between Wheelhouses (mm): 1412
Width (in): 70.4
Width (mm): 1787
External Dimensions
Front Overhang (in): 40.2
Front Overhang (mm): 1021
Ground Clearance Unladen (in): 6.4
Ground Clearance Unladen (mm): 163
Overall Height (in): 112.9
Overall Height (mm): 2867
Overall Length (in): 233.5
Overall Length (mm): 5932
Overall Width (in): 79.5
Overall Width (mm): 2020
Rear Overhang (in): 49.1
Rear Overhang (mm): 1246
Wheelbase (in): 144.3
Wheelbase (mm): 3665
Cargo Doors
Location: Passenger
Passenger Operation: Sliding
Rear Internal Handles: yes
Location: Rear
Rear Opening Angle: 180
Rear Operation: Double Hinged
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Sliding
Headlight Control
Dusk Sensor: yes
Height Adjustment: Automatic
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: High Beam
Location: Low Beam
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Side Windows
Location: Driver
Driver Type: Fixed
Location: Passenger
Passenger Type: Fixed
Third Row Windows
Location: Driver
Location: Passenger
Tinted Glass
Location: Rear
Location: Side
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Front Axle Weight (kg): 1860
Front Axle Weight (lb): 4101
Gross Trailer Weight Braked (kg): 2000
Gross Trailer Weight Braked (lb): 4409
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 5500
Gross Train Weight (lb): 12125
Gross Vehicle Weight (kg): 4100
Gross Vehicle Weight (lb): 9039
Payload Allowance (kg): 1437
Payload Allowance (lb): 3168
Published Kerb Weight (kg): 2663
Published Kerb Weight (lb): 5871
Rear Axle Weight (kg): 2430
Rear Axle Weight (lb): 5357
Tare Weight (kg): 2611
Audio System
Colour Screen: yes
Digital Media Card: yes
Radio Type: Am/Fm
RDS: yes
Touch Screen: yes
External Connections
Aux Jack (Front): yes
USB (Front): yes
Total Front USB Connections: 1
Total Rear USB Connections: 0
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 4
Floor Covering
Load Area: Board
Vehicle Cab Compartment: Plastic/Rubber
Airbags
Number of Airbags: 4
Autonomous Drive
Level: 1 - Driver Assistance
Fourth Row Seat Belts
Center Seat Position: Centre
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Seat Position: Center
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Overtaking Sensor
Active Without Turn Signal: yes
Manufacturer Code: JA7
Rear Cross Traffic Collision Avoidance
Type: Sensor
Rear Seat Belts
Center Seat Position: Centre
Driver Seat Position: Driver
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front
Third Row Seat Belts
Center Seat Position: Centre
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Front Seat
Location: Centre
Driver Front Seat Fore/Aft Adjustment: yes
Driver Front Seat Height Adjustment: yes
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Adjustment: yes
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining: yes
Driver Front Seat Reclining Type: Manual
Driver Front Seat Seat Suspension: Mechanical
Driver Front Seat Type: Bucket
Passenger Front Seat Fore/Aft Adjustment: yes
Passenger Front Seat Height Adjustment: yes
Location: Passenger
Passenger Front Seat Lumbar Adjustment: yes
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining: yes
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Seat Suspension: Mechanical
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Manufacturer Name: Artico
Seating
Capacity: 15
Cup Holders
Location: Front Seats
Air Conditioning
Type: Semi-Auto
Ventilation System
Digital Display: yes
Micro Filter: yes
Anti-Theft Protection
Peripheral: yes
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 40000
Distance (miles): 24855
Period (Months): 24
