Base
2.1L, 6-speed manual, 5-door Panel Van, Diesel, RWD
Save $$$ with CarExpert*
$38,050â€
Base
Overview

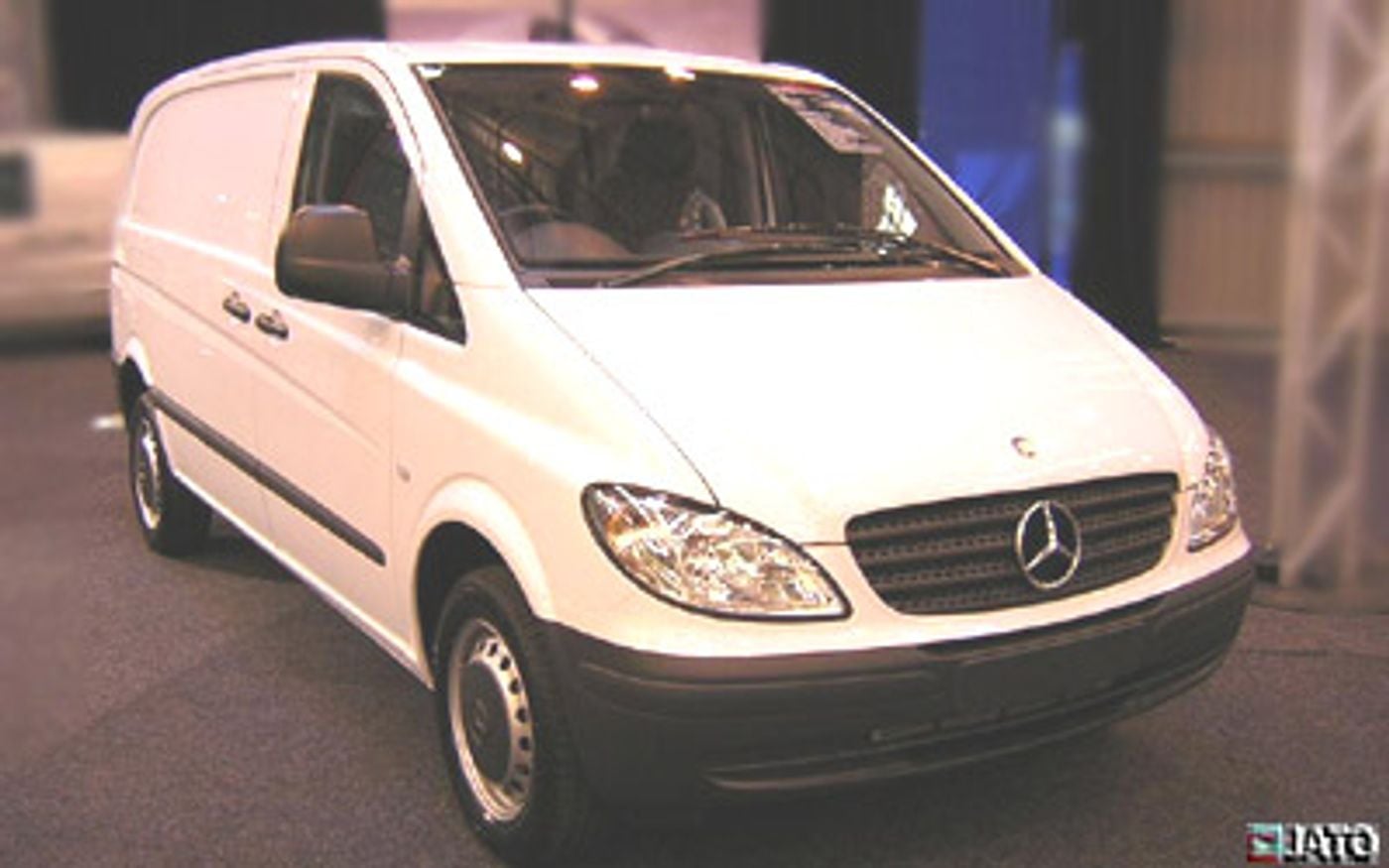

The 2004 Mercedes-Benz Vito Base is a rear-wheel drive, 5-door Panel Van that was released to the Australian market on 4th January 1970. The Mercedes-Benz Vito is regarded as a Van Under 3.5t built in Spain with prices starting at $38,050 before on-road costs.
This Mercedes-Benz Vito is powered by a 2.1L 4-cylinder engine that has 65 kW of power (at 3800 rpm) and 220 Nm of torque (at 1800 rpm) via a Six-speed Manual transmission. It has a 75L fuel tank
The Mercedes-Benz Vito measures 2328mm (91.7 inches) in height, 5223mm (205.6 inches) in length, 1901mm (74.8 inches) in width with a 3430mm (135.0 inches) wheelbase that brings about a total of 1710kg (3769.9 lbs) of unladen weight. The Vito Base comes standard with 195/65 R16 front tyres and 195/65 R16 rear tyres. It has a 36 month, 100,000 km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Vito compare?
Quickly see how the 2004 Mercedes-Benz Vito Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
37.04 - 84.34 kW/t
35 kW/t
91.05 kW/t
Fuel Efficiency
8.2 - 12.2 L/100km
8.2 L/100km
12.2 L/100km
Price
$33,990 - $58,500
$18,990
$58,500
Warranty (Years)
3 years
3 years
Warranty (Distance)
100,000 - 200,000 km
100,000 km
200,000 km
Years on Sale
2 years
1 year
6 years
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,223 mm
1,901 mm
2,328 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,223 mm |
| Overall Width | 1,901 mm |
| Overall Height | 2,328 mm |
| Wheelbase | 3,430 mm |
| Turning Circle | 12,500 mm |
| Load Capacity | 1,060 mm |
Looking for complete Mercedes-Benz Vito size & space specs?
Our Mercedes-Benz Vito Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Mercedes-Benz Vito Features & Specs
Compressor
Compressor: Turbo
Engine
Bore Engine: 88
Engine (cc): 2148
Compression Ratio: 18
Engine Configuration: In-Line
Engine Code: Om646 De22la 65kw
Engine (L): 2.1
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 88.3
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 19.8
Main Capacity (L): 75
Main Fuel Type: Diesel
Main Type: Total
Power
Maximum Power (hp/PS): 88
Maximum Power (kW): 65
Maximum Torque (Nm): 220
Measurement Standard: EEC
Rpm For Maximum Power Low: 3800
Rpm For Maximum Torque Low: 1800
Drive
Driven Wheels: Rear
Electronic Traction Control
Controlled By: Abs & Engine Management
Transmission
Code: Nsg 250-6
Description: Manual
Number of Speeds: 6
Type: Manual
ABS
Location: 4-Wheel
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Type: Trailing Arm
Rear Wheel Dependence: Independent
Tires
Location: Front
Front Wheels Tire Profile: 65
Front Wheels Tire Width: 195
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 65
Rear Wheels Tire Width: 195
Wheels
Front Covers: Partial
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6
Rear Covers: Partial
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6
Body Style
Body Type: Panel Van
Cab Type: Single Cab
Driver Location: RHD
Local Body Type: Panel Van
Platform Code: Vito
Roof Type: Standard
Wheelbase Type: Extra Long
Bumpers
Front Bumper Colour: Black
Location: Front
Front Bumper Material: Plastic
Rear Bumper Colour: Black
Location: Rear
Rear Bumper Material: Plastic
Cargo Area Dimensions
Height (in): 53.1
Height (mm): 1630
Length (in): 114.1
Length (mm): 2897
Loading Floor Height (in): 22
Loading Floor Height (mm): 560
Standard Measurement: Manufacturer'S Own
Width Between Wheelhouses (in): 50.3
Width Between Wheelhouses (mm): 1277
Width (in): 64.2
Width (mm): 1630
External Dimensions
Kerb to Kerb Turning Circle (mm): 12500
Front Overhang (in): 30.8
Front Overhang (mm): 783
Front Track (in): 64.2
Front Track (mm): 1630
Kerb To Kerb Turning Circle (ft): 41
Overall Height (in): 91.7
Overall Height (mm): 2328
Overall Length (in): 205.6
Overall Length (mm): 5223
Overall Width (in): 74.8
Overall Width (mm): 1901
Rear Overhang (in): 39.8
Rear Overhang (mm): 1010
Rear Track (in): 64.2
Rear Track (mm): 1630
Wheelbase (in): 135
Wheelbase (mm): 3430
Cargo Doors
Driver Height (in): 49.6
Driver Height (mm): 1259
Driver Internal Handles: yes
Driver Location: Driver
Driver Opening Angle: 0
Driver Operation: Sliding
Driver Width (in): 38.8
Driver Width (mm): 985
Passenger Height (in): 49.6
Passenger Height (mm): 1259
Passenger Internal Handles: yes
Location: Passenger
Passenger Opening Angle: 0
Passenger Operation: Sliding
Passenger Width (in): 38.8
Passenger Width (mm): 985
Rear Height (in): 49.8
Rear Height (mm): 1264
Rear Internal Handles: yes
Location: Rear
Rear Opening Angle: 90
Rear Operation: Lifting Gate
Rear Width (in): 55
Rear Width (mm): 1396
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Headlight Control
Internal Height Adjustment: yes
Headlights
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Externally Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Externally Adjustable
Heat Reflective Glass
Location: ?
Power Windows
Front Electric Windows: Front
Rear Side Windows
Location: Driver
Driver Type: Fixed
Location: Passenger
Passenger Type: Fixed
Third Row Windows
Location: Driver
Driver Type: Hinged
Location: Passenger
Passenger Type: Hinged
Windshield Wipers
Intermittent Wipe Windshield Wipers: Fixed
Weights
Front Axle Weight (kg): 1470
Front Axle Weight (lb): 3241
Gross Trailer Weight Braked (kg): 2000
Gross Trailer Weight Braked (lb): 4409
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2770
Gross Vehicle Weight (lb): 6107
Payload Allowance (kg): 1060
Payload Allowance (lb): 2337
Published Kerb Weight (kg): 1710
Published Kerb Weight (lb): 3770
Rear Axle Weight (kg): 1470
Rear Axle Weight (lb): 3241
Audio Anti-Theft Protection
Type: Code
Audio System
In-Dash CD: yes
Radio Type: Am/Fm
Speakers
Number of Speakers: 2
Load Restraint
Type: Hooks
Cigar Lighter
Location: Front Seats
Floor Covering
Load Area: Wood
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Operation: Reel
Center Seat Position: Center
Center Type: 3-Point
Driver Height Adjustable: yes
Driver Operation: Reel
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Height Adjustable: yes
Passenger Operation: Reel
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Head Restraints
Front Seats Height Adjustable: yes
Front Seats Location: Front Seats
Front Seats Number: 2
Front Seat
Location: Centre
Center Front Seat Type: Bench
Driver Front Seat Height Adjustment: yes
Location: Driver
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Type: Bucket
Seat Upholstery
Main Seat Material: Cloth
Seating
Capacity: 2
Configuration: 2+0
Audio Media Storage Unit
CDs Type: Discs
Cup Holders
Location: Front Seats
Door Pockets Bins
Location: Driver
Location: Passenger
Power Locks
Operation: Remote
