Base
Overview

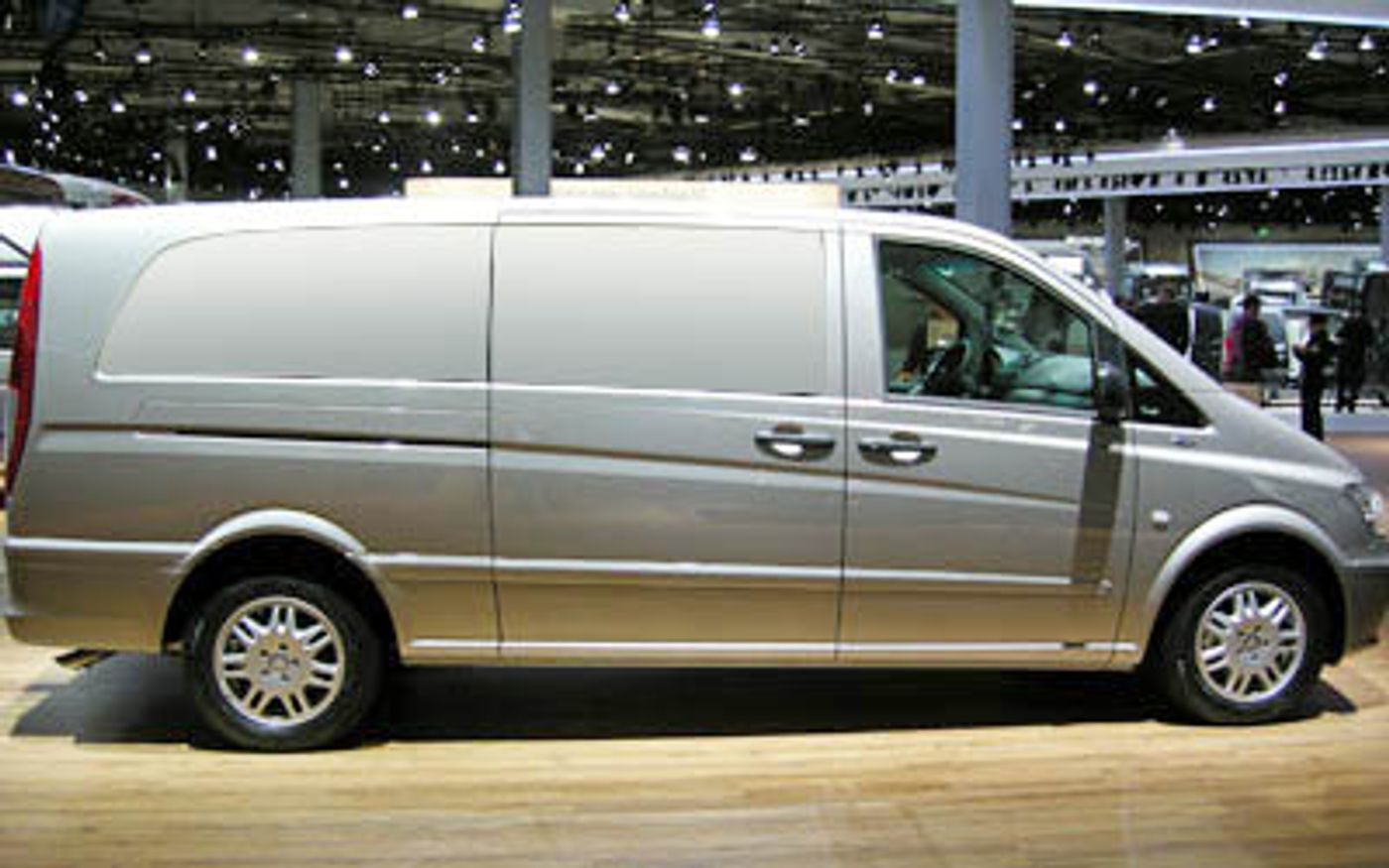

The 2013 Mercedes-Benz Vito Base is a rear-wheel drive, 5-door Panel Van that was released to the Australian market on 5th January 2010. The Mercedes-Benz Vito is regarded as a Van Under 3.5t built in Spain with prices starting at $48,190 before on-road costs.
This Mercedes-Benz Vito is powered by a 2.1L 4-cylinder engine that has 120 kW of power (at 3800 rpm) and 350 Nm of torque (at 1600 rpm) via a Five-speed Automatic transmission. Mercedes-Benz claims the Vito Base uses 8.2L/100km of Diesel in the combined city and highway cycle while putting out 216g of CO2. It has a 75L fuel tank, meaning it should be able to travel 915km per full tank
The Mercedes-Benz Vito measures 1900mm (74.8 inches) in height, 5238mm (206.2 inches) in length, 1901mm (74.8 inches) in width with a 3430mm (135.0 inches) wheelbase that brings about a total of 1965kg (4332.1 lbs) of unladen weight. The Vito Base comes standard with 205/65 R16 front tyres and 205/65 R16 rear tyres. It has a 36 month, 200,000 km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Vito compare?
Quickly see how the 2013 Mercedes-Benz Vito Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
37.43 - 81.89 kW/t
37.43 kW/t
81.89 kW/t
Fuel Efficiency
7.4 - 8.6 L/100km
4.7 L/100km
10.1 L/100km
Vehicle Range
872 - 1,014 km
732 km
1,277 km
Price
$38,990 - $60,190
$19,990
$60,190
Warranty (Years)
3 years
3 years
5 years
Warranty (Distance)
200,000 km
160,000 km
Unlimited
Years on Sale
2 years
1 year
6 years
Towing & Off-Road Capability
Gross Vehicle Weight
3,050 kg
1,917 kg
3,500 kg
Braked Towing Capacity
2,000 kg
1,050 kg
2,000 kg
Ground Clearance Unladen
151 mm
151 mm
190 mm
Payload Capacity
1,000 - 1,180 kg
650 kg
1,800 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,238 mm
1,901 mm
1,900 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,238 mm |
| Overall Width | 1,901 mm |
| Overall Height | 1,900 mm |
| Wheelbase | 3,430 mm |
| Turning Circle | 11,700 mm |
| Load Capacity | 1,085 mm |
Looking for complete Mercedes-Benz Vito size & space specs?
Our Mercedes-Benz Vito Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Mercedes-Benz Vito Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
Australia Air Pollution Rating: 5.0
Australia Greenhouse Rating: 6.0
Australia Overall Emission Control Level Rating: 3.0
CO2 Level (Combined): 216
Standard Met: EU5
Engine
Bore Engine: 88.0
Engine (cc): 2148
Engine Configuration: In-Line
Engine Code: Om 646 De 22 La (Mp3)
Engine (L): 2.1
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 88.3
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 19.8
Main Capacity (L): 75
Main Capacity Uk Gallons: 16.5
Main Type: Total
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 915
ADR 81/02 Calculated Vehicle Range (miles): 569
ADR 81/02 Combined (km/L): 12.2
ADR 81/02 Combined (L/100km): 8.2
ADR 81/02 Combined (miles per UK gallon): 34
ADR 81/02 Combined (mpg): 29
ADR 81/02 Country Highway (km/L): 14.3
ADR 81/02 Country Highway (L/100km): 7.0
ADR 81/02 Country Highway (miles per UK gallon): 40
ADR 81/02 Country Highway (mpg): 34
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 9.8
ADR 81/02 Urban (L/100km): 10.2
ADR 81/02 Urban (miles per UK gallon): 28
ADR 81/02 Urban (mpg): 23
Fuel Economy
ADR 81/02 (L/100km): 8.2
Power
Maximum Power (hp/PS): 163
Maximum Power (kW): 120
Maximum Torque (Nm): 350
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3800
Rpm For Maximum Torque Low: 1600
Drive
Driven Wheels: Rear
Electronic Traction Control
Controlled By: Abs & Engine Management
Transmission
Description: Automatic With Manual Mode
Manual Mode: yes
Number of Speeds: 5
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Hydraulic
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Type: Trailing Arm
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 103
Location: Front
Front Wheels Tire Profile: 65
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 205
Rear Wheels Tire Load Index: 103
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 65
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 205
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.5
Location: 1
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.5
Body Style
Body Type: Panel Van
Local Body Type: Panel Van
Platform Code: Ncv2
Roof Type: Standard
Wheelbase Type: Long
Mud Flaps
Rear Mud Flaps Location: Rear
Bumpers
Front Bumper Colour: Black
Location: Front
Rear Bumper Colour: Black
Location: Rear
Cargo Area Dimensions
Cargo Volume (cu ft): 219.0
Cargo Volume (L): 6200
Height (in): 55.6
Height (mm): 1630
Length (in): 106.2
Length (mm): 2697
Loading Floor Height (in): 22.0
Loading Floor Height (mm): 560
Standard Measurement: VDA
Width (in): 64.2
Width (mm): 1630
External Dimensions
Kerb to Kerb Turning Circle (mm): 11700
Front Overhang (in): 30.8
Front Overhang (mm): 783
Front Track (in): 64.2
Front Track (mm): 1630
Kerb To Kerb Turning Circle (ft): 38.4
Overall Height (in): 74.8
Overall Height (mm): 1900
Overall Length (in): 206.2
Overall Length (mm): 5238
Overall Width (in): 74.8
Overall Width (mm): 1901
Rear Overhang (in): 39.8
Rear Overhang (mm): 1010
Rear Track (in): 64.2
Rear Track (mm): 1630
Wall to Wall Turning Circle (ft): 41.0
Wall to Wall Turning Circle (mm): 12500
Wheelbase (in): 135.0
Wheelbase (mm): 3430
Cargo Doors
Driver Height (in): 49.6
Driver Height (mm): 1259
Driver Location: Driver
Driver Operation: Sliding
Driver Width (in): 38.8
Driver Width (mm): 985
Passenger Height (in): 49.6
Passenger Height (mm): 1259
Location: Passenger
Passenger Operation: Sliding
Passenger Width (in): 38.8
Passenger Width (mm): 985
Rear Height (in): 49.8
Rear Height (mm): 1264
Rear Internal Handles: yes
Location: Rear
Rear Opening Angle: 90
Rear Operation: Lifting Gate
Rear Width (in): 55.0
Rear Width (mm): 1396
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Sliding
Location: Rear Passenger
Rear Passenger Door Type: Sliding
Headlight Control
Height Adjustment: Manual
Internal Height Adjustment: yes
Headlights
Low Beam Bulb Type: Halogen
Configuration: Single
Lens Type: Complex Surface
LED Lights
Location: Day Time Running Lights
Paint
External Colour: White
Type: Gloss
Roof Rails
Colour: Black
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Headlight Cleaners
Cleaners Type: High Pressure
Power Windows
Front Electric Windows: Front
Tinted Glass
Location: Rear
Location: Side
Windshield Wipers
Intermittent Wipe Windshield Wipers: Fixed
Weights
Front Axle Weight (kg): 1550
Front Axle Weight (lb): 3417
Gross Trailer Weight Braked (kg): 2000
Gross Trailer Weight Braked (lb): 4409
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 3050
Gross Vehicle Weight (lb): 6724
Kerb Weight Inc Driver (kg): 1965
Kerb Weight Inc Driver (lb): 4332
Kerb Weight Includes Driver: yes
Payload Allowance (kg): 1085
Payload Allowance (lb): 2392
Published Kerb Weight (kg): 1965
Published Kerb Weight (lb): 4332
Rear Axle Weight (kg): 1550
Rear Axle Weight (lb): 3417
Audio System
CD Player Reads MP3: yes
Colour Screen: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 2
Bulkhead
Type: Solid
Solid Bulkhead Window: yes
Bluetooth
Includes Phone Connection: yes
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor
Power Outlet 12V
Location (12V): Boot/Cargo
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Display Screen
Location: ?
Number of Screens: 1
Floor Covering
Load Area: Wood
Vehicle Cab Compartment: Plastic/Rubber
Airbags
Number of Airbags: 2
Crash Test Results
ANCAP Overall: 4.00
ANCAP Standard: Ancap
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Operation: Reel
Center Seat Position: Center
Center Type: 3-Point
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Front Seats Number: 3
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front
Front Seat
Location: Centre
Center Front Seat Type: Bench
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 2
Configuration: 2+0
Cup Holders
Location: Front Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Variable Distance Period: yes
